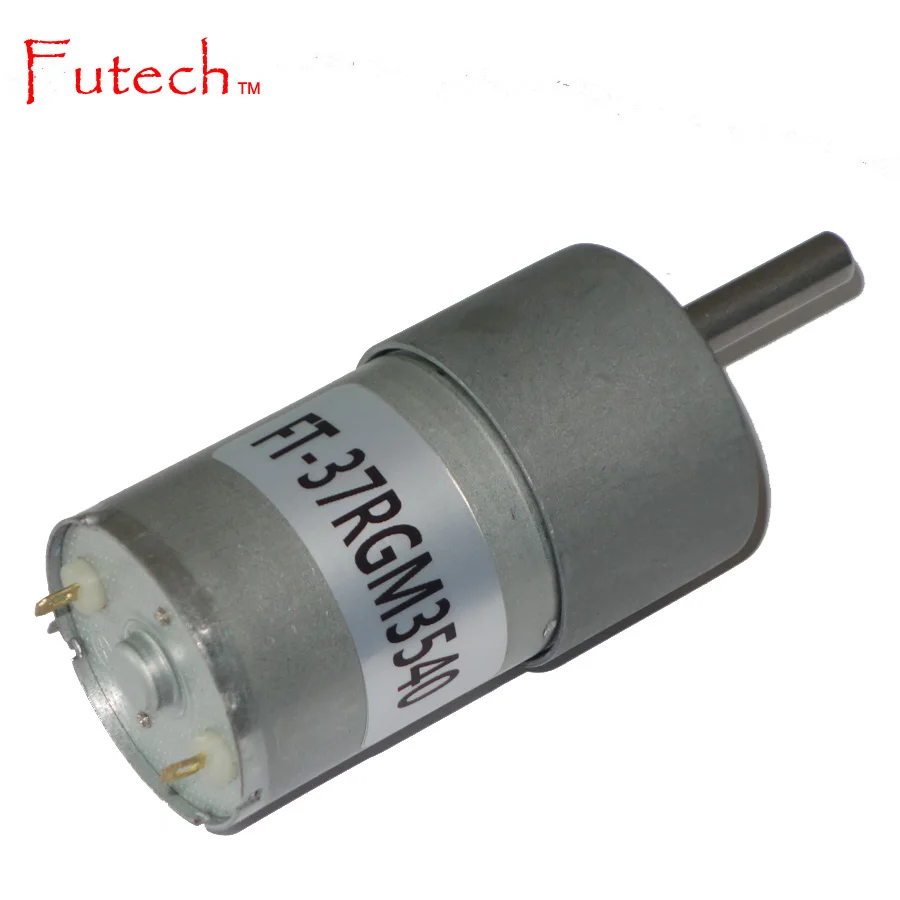

37mm 12 Volt 24 Volt DC Metal Gear Motor

Product Overview

Description

FT-37RGM3540  37mm 12 Volt 24 Volt DC Metal Gear Motor

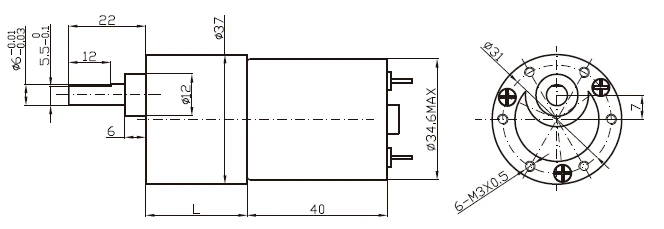

DRAWING (mm)

 Remark: find the dimension "L" in the GEARBOX DATA below.



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-37RGM35400067000-61K	6V	110	300	90	1400	2.3	2.1	3500	10
FT-37RGM35400126000-10K	12V	600	150	480	700	0.8	3.9	3000	3.2
FT-37RGM35400126000-20K	12V	285	120	224	700	1.5	3.4	2500	5.5
FT-37RGM35400126000-30K	12V	200	150	169	900	1.9	3.3	2800	11
FT-37RGM35400126000-61K	12V	100	85	82	530	2.6	2.2	2200	15
FT-37RGM35400126000-90K	12V	66	100	50	800	6	3.1	2150	22
FT-37RGM35400124500-90K	12V	50	70	41	410	4.2	1.8	1350	20
FT-37RGM35400123000-120K	12V	25	100	18	330	4	0.7	560	16
FT-37RGM35400127500-184K	12V	40	280	29	1000	10	3.0	2640	46
FT-37RGM35400126000-270K	12V	22	150	16.5	750	16	2.7	2200	55
FT-37RGM35400123500-552K	12V	6	60	5	210	14.4	0.7	870	84
FT-37RGM35400244500-20K	24V	214	75	190	260	1	1.9	800	5
FT-37RGM35400244500-30K	24V	150	50	123	200	1.4	1.8	740	7.9
FT-37RGM35400246000-61K	24V	98	70	81	400	3	2.5	1200	18
FT-37RGM35400247000-121K	24V	57	50	50	250	4.3	2.2	1160	29
FT-37RGM35400246000-184K	24V	32	120	27	420	10	2.8	1150	44
FT-37RGM35400246000-270K	24V	22	80	16.5	370	20	3.4	1200	72
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	2-stage	3-stage	4-stage	5-stage	6-stage	7-stage
Reduction ratio	6.8, 10	20, 30	61, 90, 100	115, 184, 270, 300	414, 552,614, 810, 900	1243, 1657, 2430, 2700
Gearbox length (L) mm	18	21.5	24	26.5	29	31.5
Max rated torque Kgf.cm	1	2	5	6	8	10
Max momentary torque Kgf.cm	3	6	15	18	24	30
Gearbox efficiency	81%	73%	65%	59%	53%	47%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-3540	12	≤50	4500	≤420	3600	96	3.62	≥410	≥1790
FT-3540	12	≤59	6000	≤513	5100	100	5.34	≥430	≥2180
FT-3540	24	≤45	4500	≤215	3600	97	3.66	≥410	≥910
FT-3540	24	≤42	6000	≤305	4800	110	5.5	≥470	≥1300
FT-3540	24	≤38	7000	≤411	5100	115	6.14	≥490	≥1750



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
