Industrial chemical mineral inorganic fertilizer powder auger precompression dry double roller compacting clay granulator
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (60691499538):
Product Overview
Description
Our Company
We are a small factory but dedicated in only dry roller compaction for granulating & briquetting powders.
We have been engaged in roller compaction over 15 year. As evident in our history we are in the unique position fo have a full mastery of:
Manheim potassium sulfate (SOP) fertilizer granulating, potassium chloride(MOP/KCL) fertilizer granulating, ammonium sulfate granulating, NPK nuggets producing, slow-release & controlled-release fertilizer granulating, FGD (Flue Gas Desulfurization) gypsm briquetting, and other chemical powders.
Also, we are capable of handling lithium iron phosphate compacting for battery in field of New energy resources, and have installed granulating lines in China.
Our factory and office are located in Changzhou city which is 1 hour from Shanghai. Welcome to us at any time with sample to test on our pilot machine.
Product Description

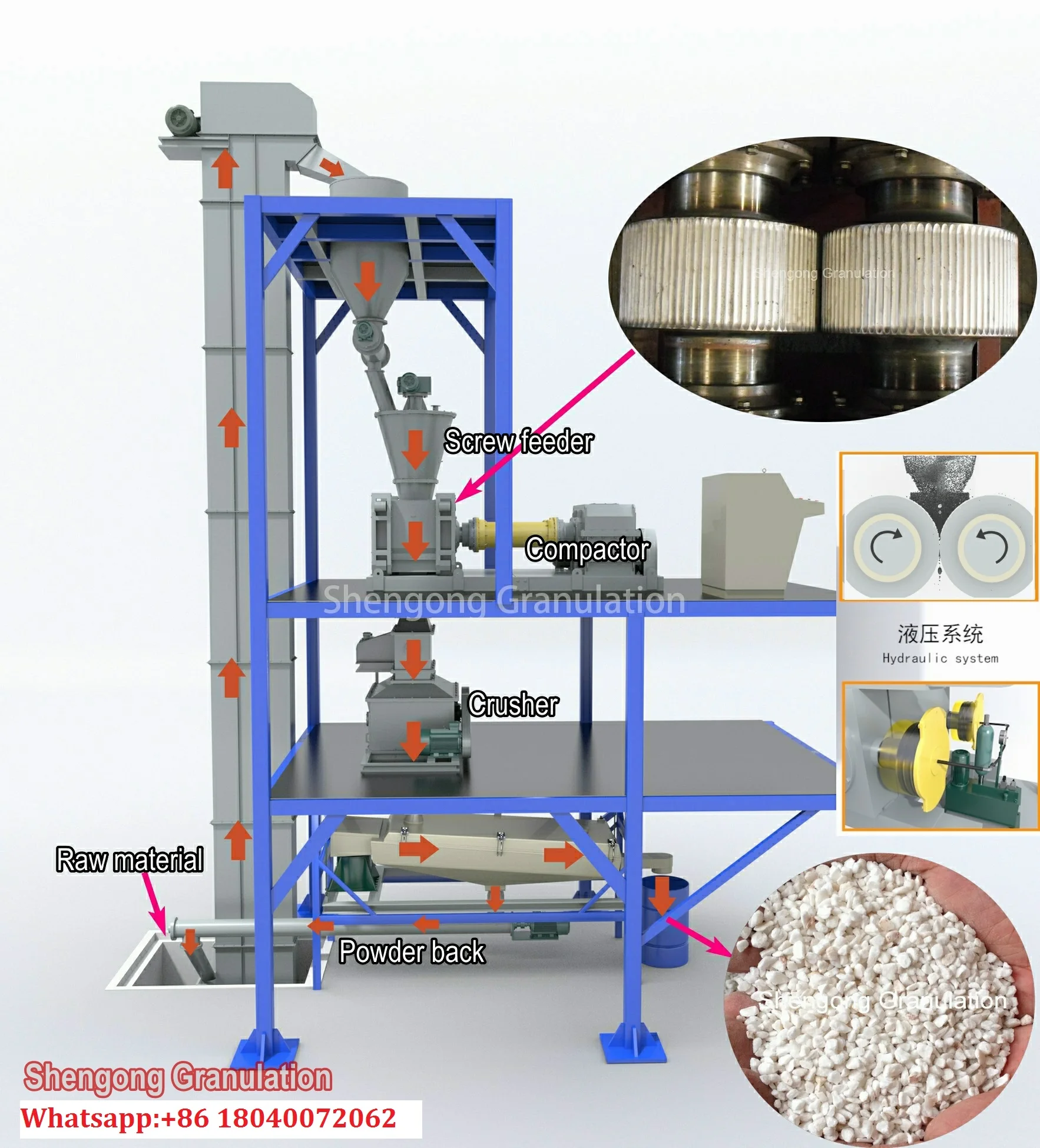

Machine Application
■Dry inorganic power:
□Gypsums, including FGD gypsum (from electric power plant), natural gypsum, phosphogypsum,fluorogypsum
□Fertilizer, saying chemical fertilizer, mineral fertilizer, NPK compound fertilizer, especially specialized in Russia SOP/KCL and Manheim SOP (100% organic fertilizer is not suitable)
□Fine chemical materials, snow melt agent, fire retardant, cement retarder, metallurgical addition agent, etc.
■Dry organic powder mixed with min.50% inorganic power, saying cocopeat.
■Slight wet powder, saying charcoal mixed with starch and water, coal powder
SPECIFICATIONS | ||||||
Motor & gearbox of roller compactor | Motor brand | Siemens | Industrial voltage | |||
Gearbox brand | Guomao | |||||
Gearbox type | Double shaft output hard-teeth reduction gear | |||||
Main performance parameters | Pressure of accumlator | Mpa | 6-10 | |||
Roller speed (max. & min.) | Regulable by VFD | |||||
Roller gap | mm | 0.5-1mm, adjustable | ||||
Hydraulic system | Hydraulic system | Mpa | 10-16 | |||
Main pump | KN | 70-75kN/CM | ||||
Jack quantity | PCS | 2 | ||||
Main Features
\tMore durable, for improved crush strength.
\tUniform, for more even downstream blending. Roll compaction produces consistent, irregular-shaped granules that "interlock" to reduce product stratification during shipping and handling.
\tHighly flowable powders compared to powders that bridge and cake. Tableting and other downstream processes are more efficient.
\tSized specifically to meet your precise product requirements. Roller compaction offers control and range of granule size.
\tDust free to prevent cross-contamination in the next stage of production. By converting your raw material to granule form, you greatly minimize dust that can cause health and production problems while decreasing maintenance costs.
\tEasily handled, transported and stored because of increased bulk density and flow properties.

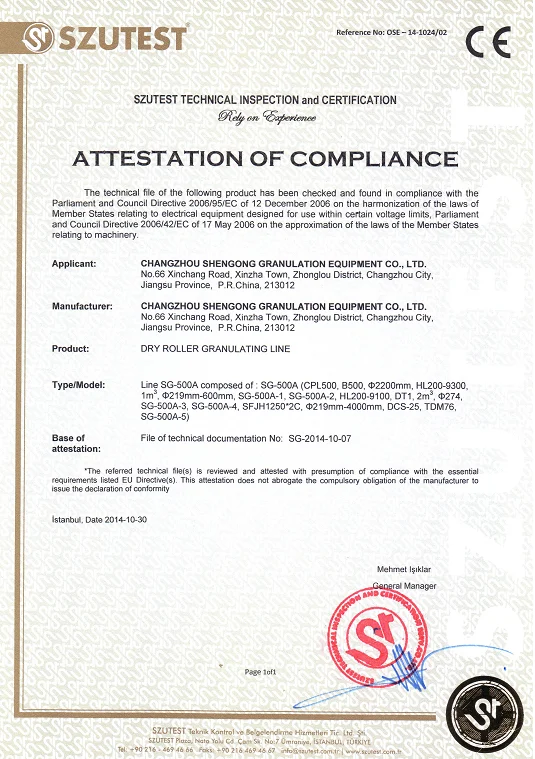

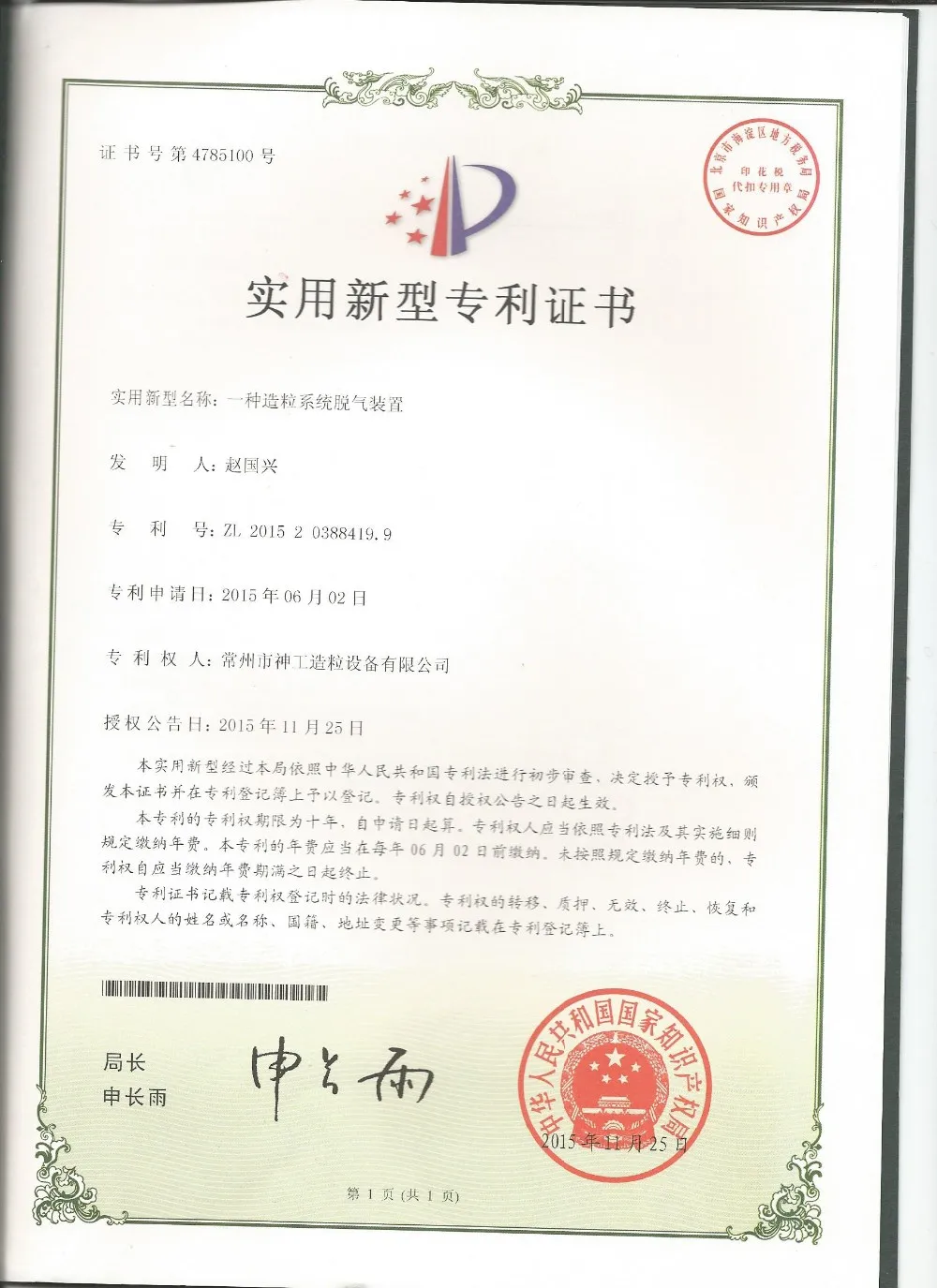

Certifications
Detailed Images
Pressure parts-1
Name: Cylinder / jack / piston
Qty.: Two
Role: Push one of roller close to the other. Move backforward to protect bearings, rollers in case big stuff falling into gap between two rollers.
Pressure parts-2
Name: hydraulic pump
kW: 0-2.2kW
Working pressure: 6-20Mpa
Pressure is reserved for each start-up.
Accmulator is filled with nitrogen gas.
One or two accumulators are fixed for pressure compensation.

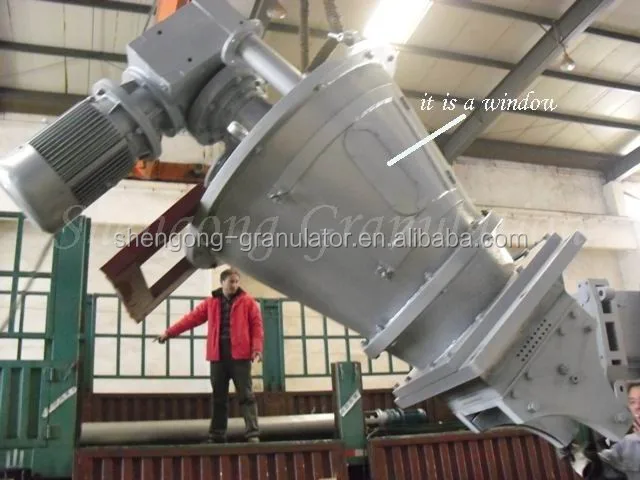

Pressure parts-3
Name: Screw feeder / Auger
Position: fixed on top of two rollers
Role: pre-compacting powder and hence reduce air quantity in the powder to get firm granules / briquette.

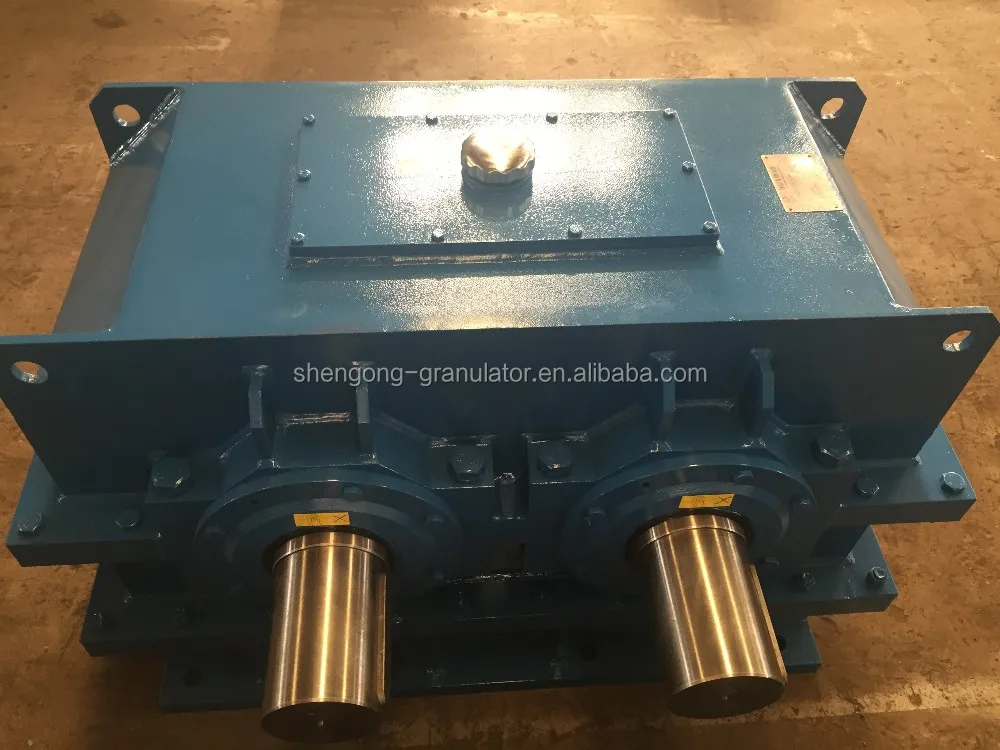

Drive train
Name: double shaft output hardened gear reducer
Brand: Guomao
Original: China
It is the most important that the synchronizing gears and the connection with gear tooth couplings provides an absolutely uniform circumferential speed of the rollers.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

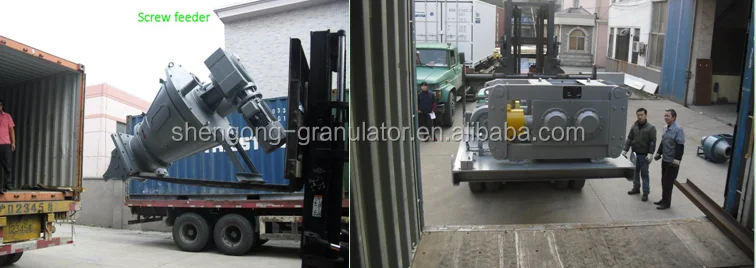

Packing & Delivery
Packaging | ||
Size | 20ft or 40ft general container | |
Weight | Depends on model of the line | |
Packaging Details | It is nude packing to save cost and space the reason machinery is duty-heavy. There will be steel wire and ply-wood blocks to fix machine to inside of containers. | |
Related Products
Pulse dust filtering
91.8% Response Rate
25-50kg packing machine
91.8% Response Rate
Bucket elevator
91.8% Response Rate
FAQ
Why choose dry roller compaction for granulating & briquetting?
1. Dry roller compaction is sort of physical convert from plastic deformation to elastic deformation. It doesn't changing original composition and hence doesn't influence final product application.
2. Dry roller compaction is desgined with hydraulic pressure which helps final product obtain higher strength to avoid breaking into powder again.
3. Dry roller compaction consumes only electricity. It is a prevalent, economical and friendly way to turn powder into shaped products.
4. Dry roller compaction is a low labor cost technology.
5. Granlulated or briquetted product density is doubled. Space during transportation and packing are double saved too.
What is size & shape of granulated and briquetted product?
We have two types of machine. One is Type A we refer to "Granulating", the other Type B we refer to "Briqueting".
The difference is roller shape. Please see below.
Type A makes usually 2-5mm angular granules by the reason of breaking&crushing is applied.
Type B makes usually +10mm uniform briquettes.
Roller surface shape is different and customized according to your particular requirement.
