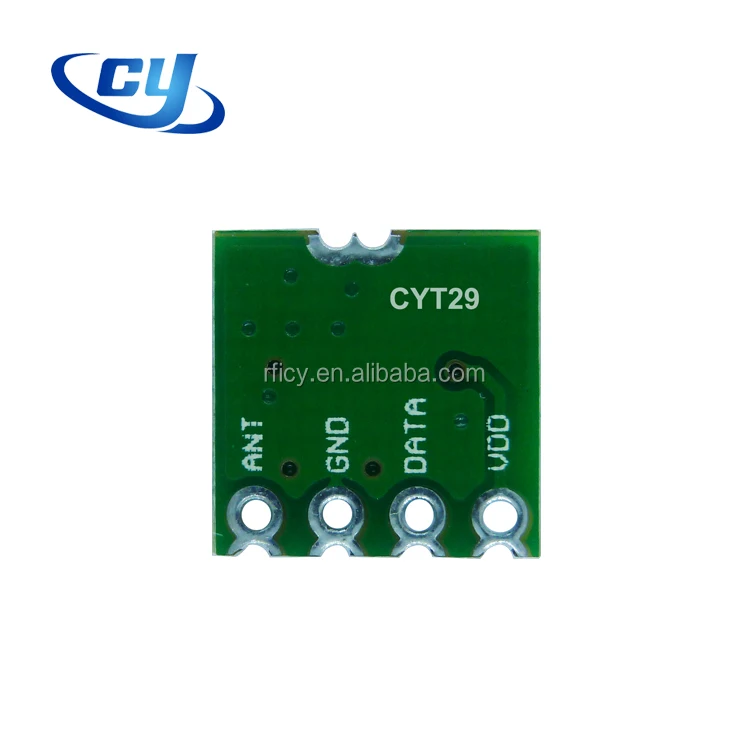

CYT29 ASK/ FSK RF 315 433.92 868 915MHz Transmitter Module

Product Overview

Description



DESCRIPTION:
CYT29 ASK/OOK wireless transmitter module gets excellent performance with ISM frequency band. With the adoption of branded industrial RF wireless data transmission chipsets, it has the advantages at strong transmission power, low voltage and easy to pass FCC/CE certificates. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.


FEATURES:

Frequency: 240 MHz – 960 MHz (ASK/FSK);
High output power: +14dBm;
Low operation voltage: VCC = 1.8 to 3.6V;
Static current: <20nA; 50% duty ratio transmitting current: 18.5mA;
Freq deviation: ±30KHz;
FSK deviation: ±35K
Circuit shape: PLL (10PPM), stable working frequency;
Temperature Range: -20℃ ~ 70℃ (-40℃ ~ 85℃)
The range can be up to 500m in the open space when matching with CY68
Dimension: 10.6*10.4*2.1mm

APPLICATION:
Remote Gate Controls, brake
Remote Keyless Entry
Mechanical and electrical control of strong interference;
Wireless Industrial Remote Control
Wireless Data Transmission
Remote Control Curtain



PIN DEFINITION:

Pin-out as showed in Fingure 1 above.

Pin Name	Pin Definition
VDD	Antenna OutConnect to positive power supply
DATA	Data input
GND	Ground
ANT	Antenna input
GND	Ground





ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=1.8-3.6V VDD-GDN

Characteristics	Value			Unit	Condition
	Min.	Typ.	Max.
Frequency	240		960	MHz
Modulation	ASK/FSK
Output Power		14		dBm	3.6V/50Ω
Data Rate	0.5	2.4	30	Kbps
Working Voltage	1.8		3.6	V
Current		18.5		mA
Frequency Deviation		±30		kHz
Working Temperature	-20		70	℃





MECHANICAL SIZE: (unit: mm)
