High Performance Vegetables Fruits Food Industry Cold storage room Walk In Freezer Storage Cold Storage Refrigeration
- Category: >>>
- Supplier: Taizhou Zjbanco Refrigeration Equipment Co. Ltd
Share on (60691581677):
Product Overview
Description
Description
Design
Banco Cold Room has different capacity, it can be customized design according to your requirements.
Temperature
The temperature can be customized from -60℃ ~ +20℃.
Capacity
Banco Cold Room is from 5 CBM to 10,000CBM, the dimension can be customized according to your requirements. It applies to different products from 1 Tons to 2,500 Tons or more.
Pratical
Cold Room can store food, fruit, vegetable, fish, meat, ice, flower, milk, drinks, medicine, and other industry etc.
Banco Cold Room has different capacity, it can be customized design according to your requirements.
Temperature
The temperature can be customized from -60℃ ~ +20℃.
Capacity
Banco Cold Room is from 5 CBM to 10,000CBM, the dimension can be customized according to your requirements. It applies to different products from 1 Tons to 2,500 Tons or more.
Pratical
Cold Room can store food, fruit, vegetable, fish, meat, ice, flower, milk, drinks, medicine, and other industry etc.
Customized Cold Room
Application | Products | Temperature | Dimension& Capacity(Tons) | Power Supply |
Ripening | Banana, Mango, Mushroom etc | 5 ~ 15℃ | Customized | 220V-1Ph-50Hz, 380V-3Ph-50hZ, 220V-3Ph-60Hz, 440/480V-3Ph-60Hz. |
Fresh Keeping | Fruits, Vegetables, Medicine etc | 0~ -5℃ | Customized | |
Cooling | Meat, fish, ice etc | -10~ -20℃ | Customized | |
Freezing | Meat, Fish etc | -18~ -25℃ | Customized | |
Blast Freezing | Meat, Fish, Ice cream, Cherry etc | -20 ~ -40℃ | Customized |
Structure

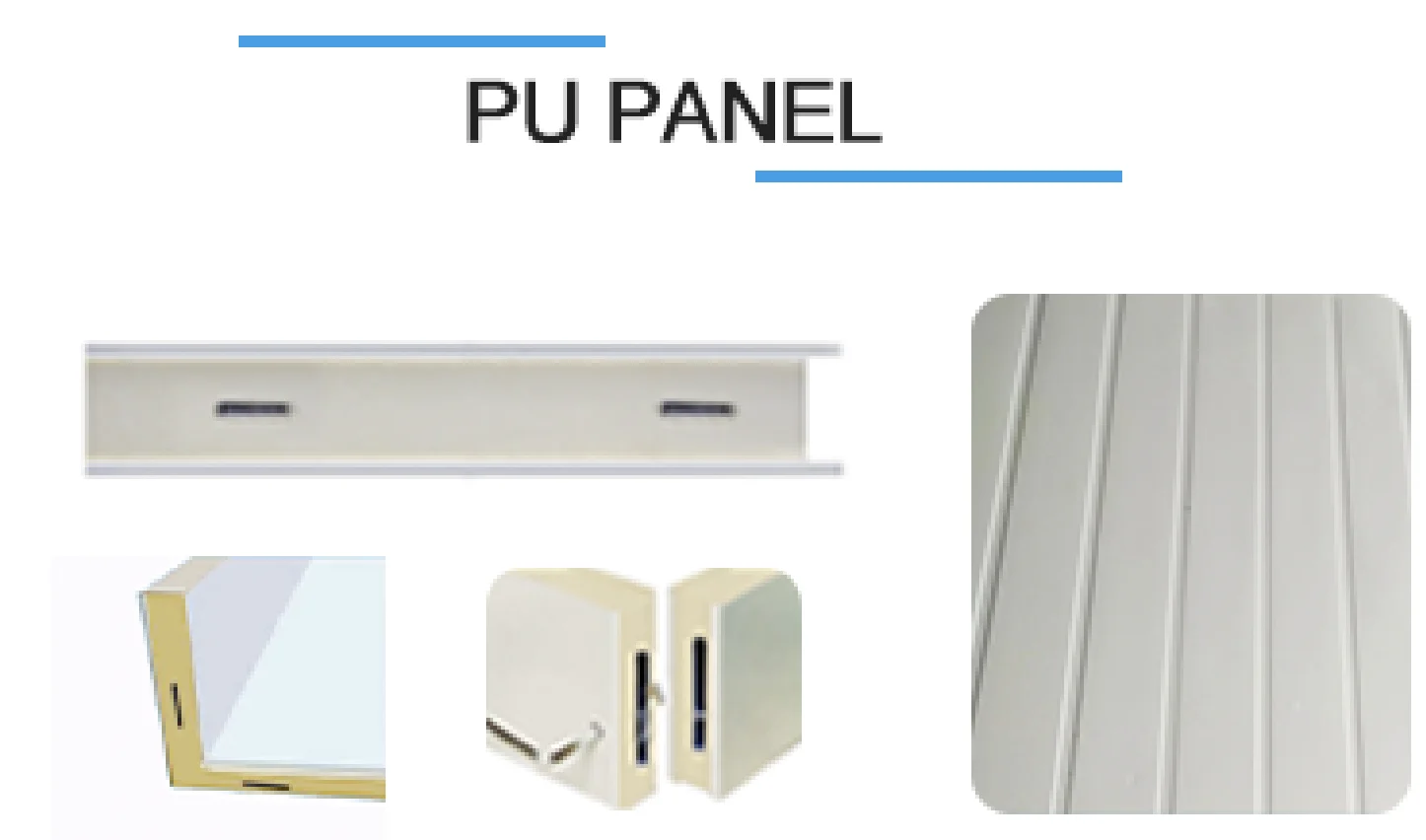

Pu Panel
It’s made of high density pu foam and strong metal sheet, make sure good heat preservation effect.
1. Panel connection: Cam locks type, Tongue&groove type is optional.
2. Panel thickness: 75MM ~ 200MM.
3. PU density: 42 ± 2Kg/m³.
4. Fire grade: B2, B1, A1.
5. Double side metal sheet type: PPGI(Widely use), Aluminum plate (Antiskid), Stainless steel (Anticorrosion).

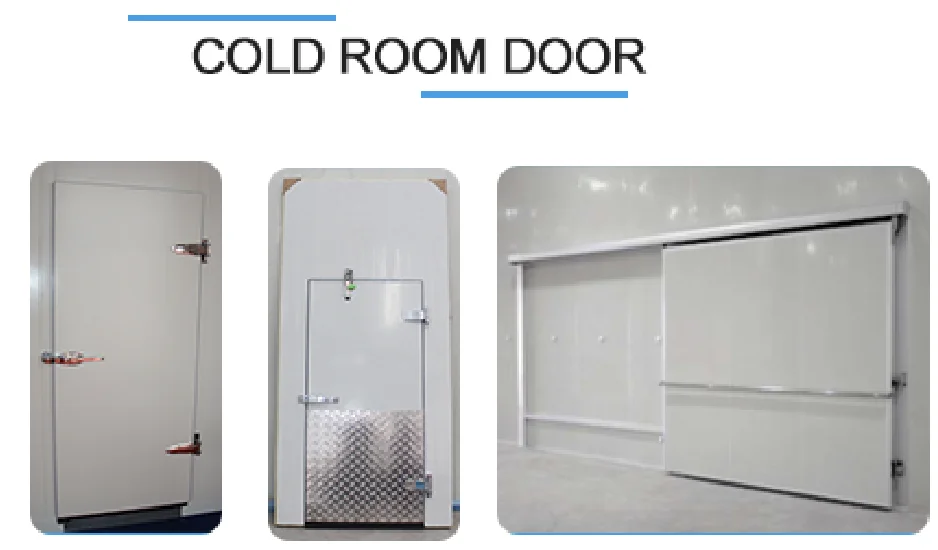

Cold Room Door
Hinged door, swing door, sliding door, free door and other types of doors could be customized according to your requirements and actual condition.

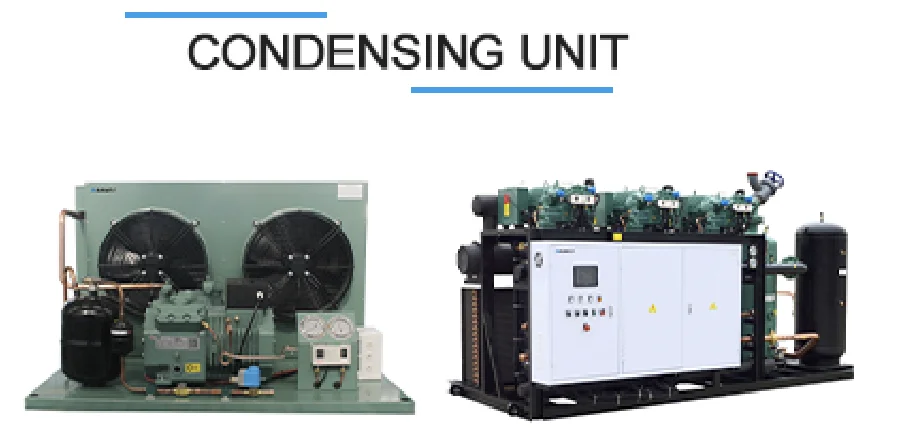

Condensing Unit
The Condensing Unit with branded compressor and parts, such as
Bizter, Copeland, Danfoss, Tecumseh etc.
Bizter, Copeland, Danfoss, Tecumseh etc.
The cooling capacity is from 2HP-300HP, it's widely used in all kinds of keeping
fresh and freezing cold room.
fresh and freezing cold room.
Evaporator
It’s widely used for the different cold room
to cool the space together with the condensing unit.
Installation Accessories
1. Expansion valve: "Danfoss" brand, "Sanhua" brand is optional.
2. Electrical control box: It’s easy to operate and control the temperature accurately, protect the compressor, with alarm function.
3. Other installation accessories are available according to your requirements and actual condition of cold room.
Projects & Feedback
Packing & Delivery
Production
FAQ
Q: What information is needed to provide the quotation?
A: Generally, for cold room we need to know the following information in order to suggest the suitable cold room and for providing the quotation.
A: Generally, for cold room we need to know the following information in order to suggest the suitable cold room and for providing the quotation.
1) Temperature pf cold room.
2) Dimension of cold room.
3) Store products.
4) Store tons.
5) Application place.
6) Power Supply & Refrigerant.
Q: What is the warranty of products?
A:
Q: What is the warranty of products?
A:
1) 18 months warranty: non-artificial free exchange damaged parts along with the shipment in warranty
2) Per your special requests are welcome for discussion.
3) After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.
Q: What is the Payment Terms?
A:
2) Per your special requests are welcome for discussion.
3) After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.
Q: What is the Payment Terms?
A:
1) Total mount less than 10,000USD should be paid 100% in advance.
2) Total amount more than 10,000USD is 30%T/T in advance, 70% should be paid before shipment.
3) L/C is also acceptable.
4) Per your special requests are welcome for discussion.
Q: What is the package of cold room?
A: Pvc film for pu panel and cold room door, Plywood box for refrigeration units, Carton box for Accessories.
2) Total amount more than 10,000USD is 30%T/T in advance, 70% should be paid before shipment.
3) L/C is also acceptable.
4) Per your special requests are welcome for discussion.
Q: What is the package of cold room?
A: Pvc film for pu panel and cold room door, Plywood box for refrigeration units, Carton box for Accessories.
