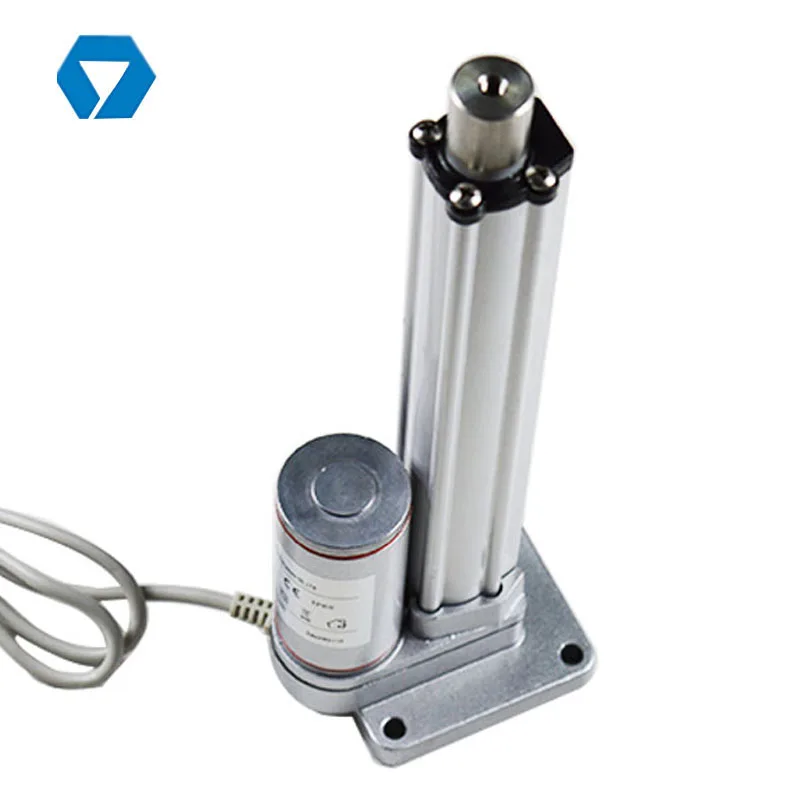

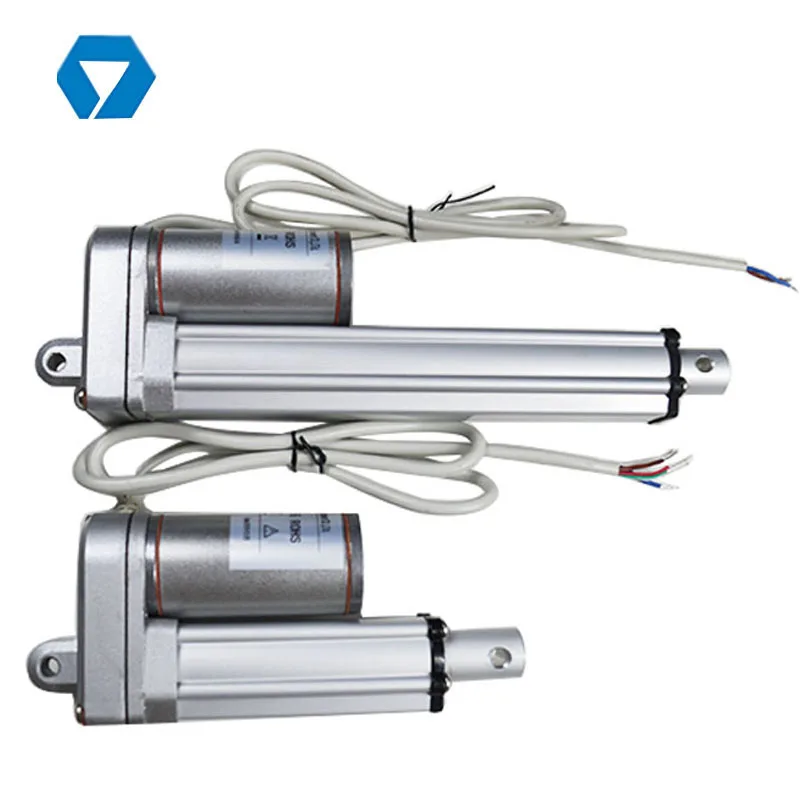

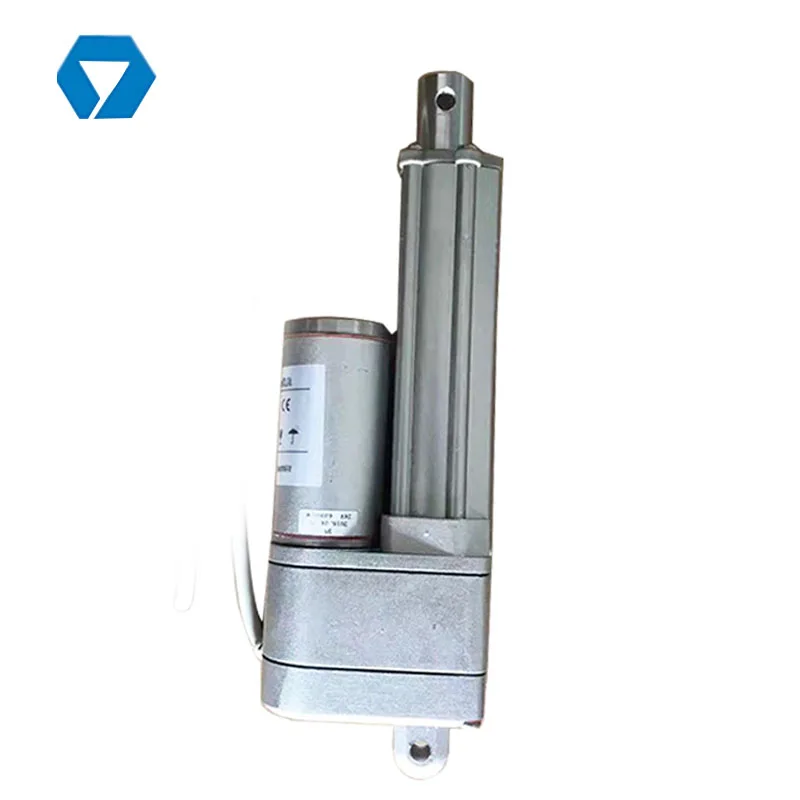

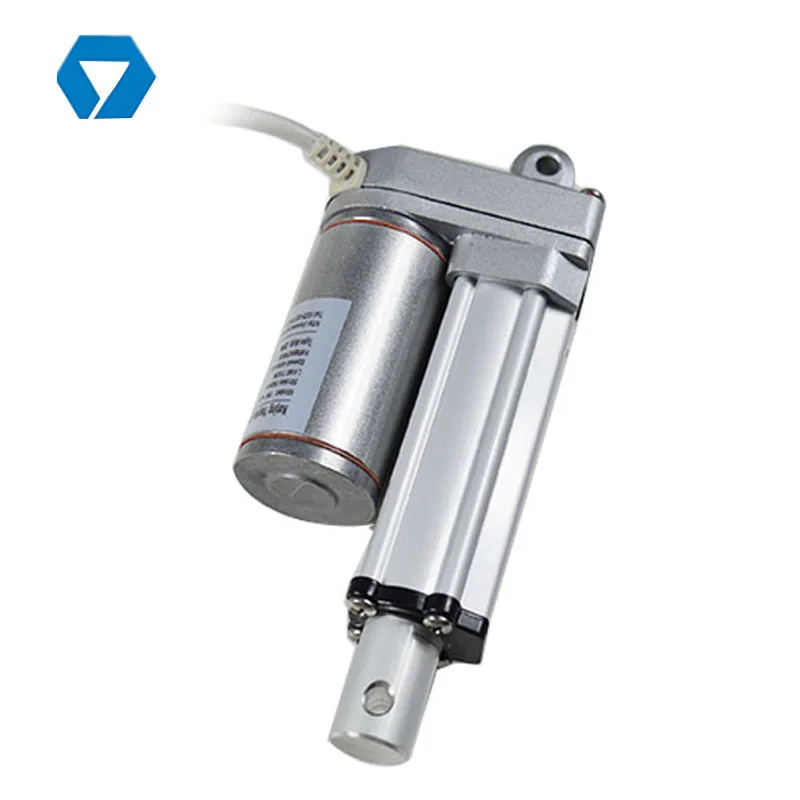

50mm stroke flat base linear actuator with Mounting brackets
- Category: >>>
- Supplier: Nanjing Yongnuo Transmission Equipment Co. Ltd.
Share on (60691603705):
Product Overview
Description
The linear actuator is waterpoof and design is novel, small size, high precision, fully synchronized, self-locking performance is good, the motor direct drive, do not need the pipeline gas source and oil. now a large number for the production line, sanitation sweeping vehicles, car electronic throttle, electric Window, car, military, stage, textile, sewage treatment and other applications need to run a straight line of the occasion.
| LINER ACTUATOR YNT-03 TECHNICAL PARAMETER | |||
| Model | YNT-03 | Input voltage | 12/24/36/48VDC |
| Load capacity | Max1200N(push)/1200(pull) | Stroke | Customized Stroke Available |
| Free load speed | 45mm/s (100N) | Operation temperature | -26℃~+65℃ |
| Full load speed | 5mm/s (1200N) | Protection class | IP65 |
| Duty cycle | 20%(2 minutes continuous use in 8minutes) | Limit switch | Built-in |
| Output Power | 30w | Noise level | <=70dB |
| Pot | Shanghai/Ningbo | Control mode | wired or wireless |
| Certificate | CE, RoHS | Minimum installation distance | stroke+105mm |
Load Capacity and Speed performance:
YNT-03 linear actuator support several load and speed based on different Metal gear ratio.
| Dynamic Load Force | 1200N | 750N | 400N | 300N | 200N | 100N | 50N |
| Static Load Force | 5mm/s | 10mm/s | 20mm/s | 30mm/s | 40mm/s | 50mm/s | 60mm/s |
| Speed with Load | 5mm/s | 10mm/s | 20mm/s | 30mm/s | 40mm/s | 50mm/s | 60mm/s |
| Input Voltage | 12/24/36/48VDC | ||||||

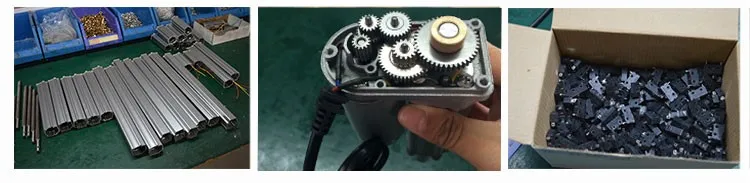

Material List:
| DC drive motor | Screw | Nuts |
| Aluminum alloy outer tube | Reducer gearbox | Micro Switch |

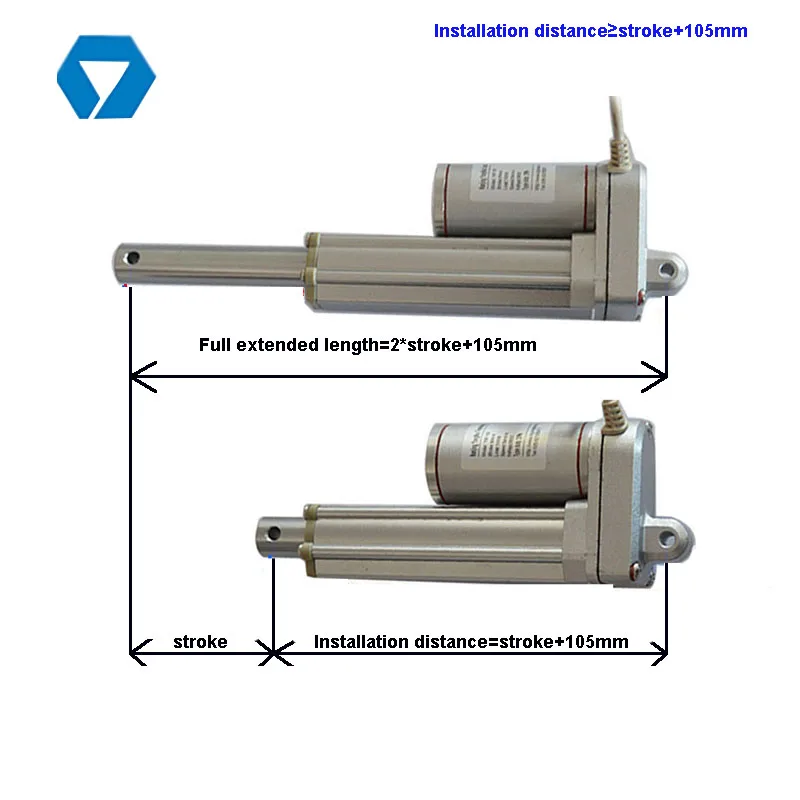

Fully Retracted Status The length while fully retracted (Installation Length) is Stroke length+105mm, e.g., the stroke is 100mm, the Installation Length would be 205mm (100+105mm). | Fully Extended Status The length while fully extended length is Stroke length*2+105mm, e.g., the stroke is 100mm, the fully extended Length would be 305mm (100*2+105mm). |
Mounting Drawing in millimeter:
Common Standard Installation length:Customization
| Stroke length (mm) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Installation Length (mm) | 155 | 205 | 305 | 405 | 505 | 605 | 705 |
| Weight (KG) | 0.55 | 0.7 | 1 | 1.3 | 1.6 | 1.9 | 2.2 |
Inner Tube Slot connector Optional x6.5mm,x6.3mm slot | We can change the diameter of the hole according to your installation size |
Assembly Image
We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.
Control box and power supply
and remote control
Other linear actuators you may like:
 |
|
| YNT-01 Linear Actuator | YNT-04 Linear Actuator |
Our Company:
| Welcome to YONGNUO! |
| We specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! |
Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
|
