Rubber Powder Grinding machine Used Rubber tire grinding machine waste tire grinding

Product Overview

Description

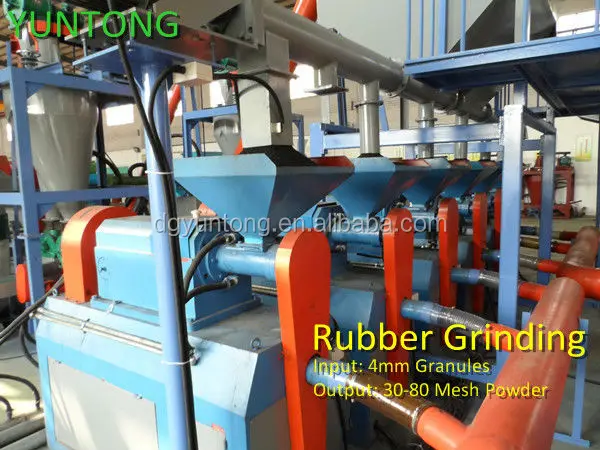

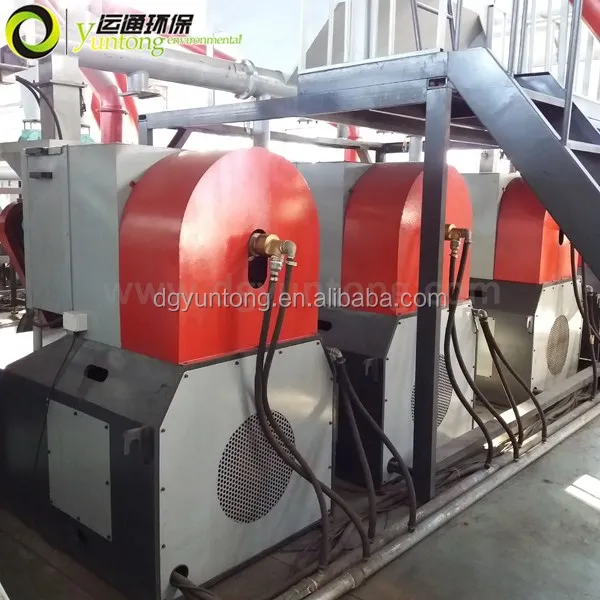

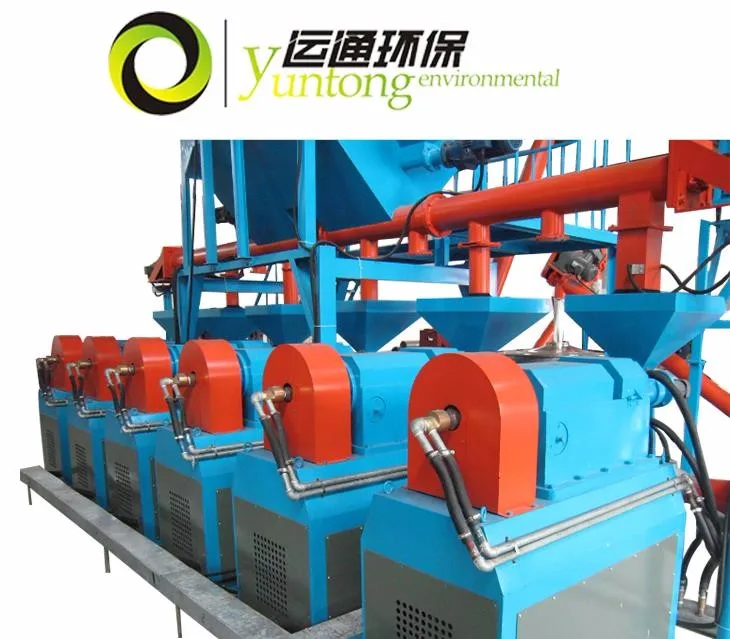

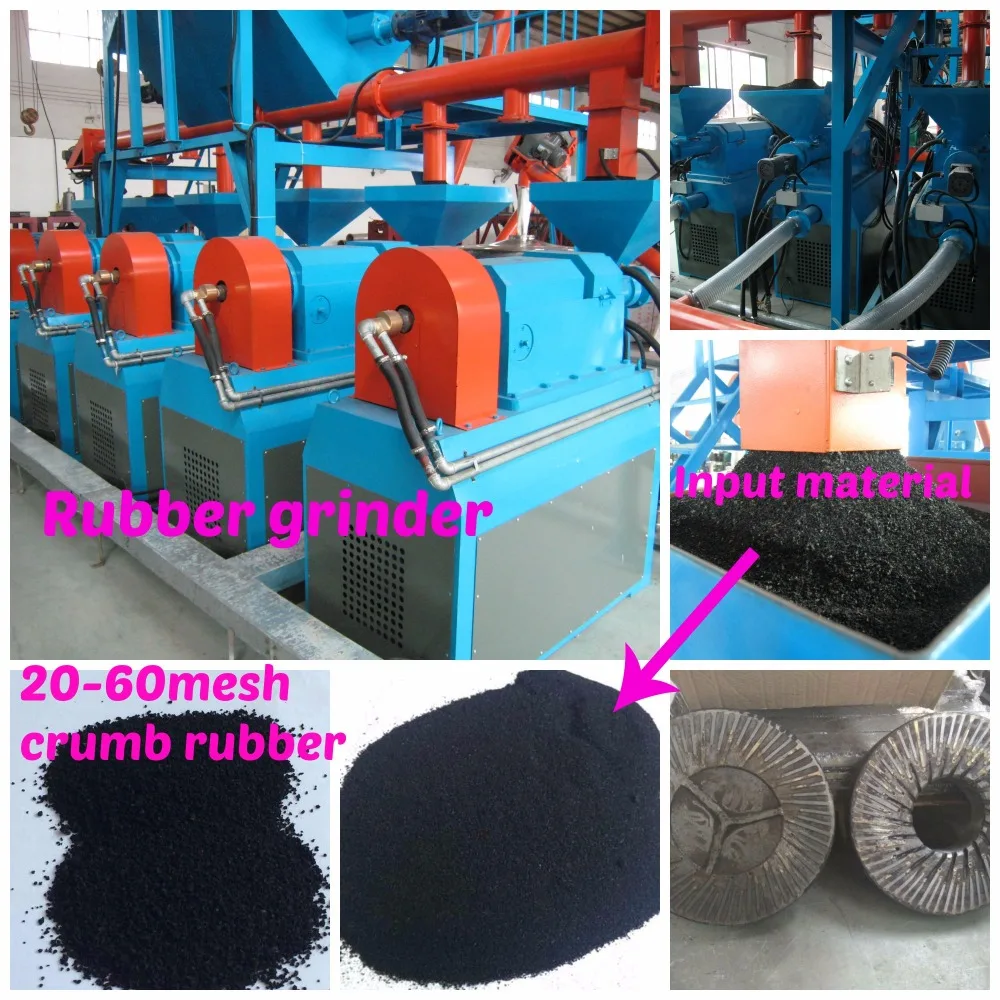

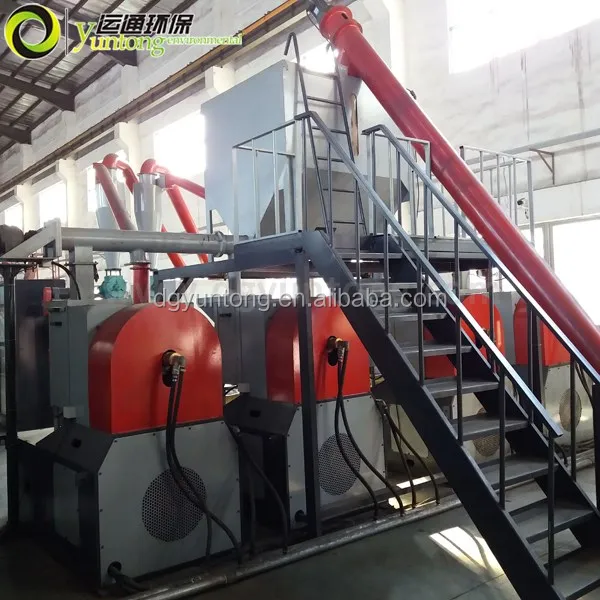

Rubber Powder Grinding machine Used Rubber tire grinding machine waste tire grinding



Main structure:It is consisted of the machine frame, main shaft, bearing housing, fixed powder-grinding main body, rotating powder-grinding main body, feed device, motor, power system, cooling system, & etc.

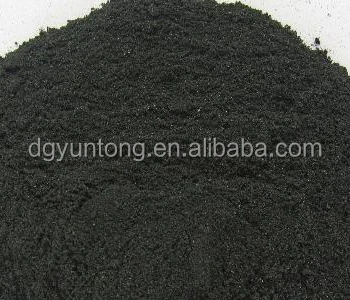

  Main application:This machine can grind non-metal material of 4-14mm to powder of 20-40 mesh at ambient temperature

Working principle:Non-mental granules are being sent into grinding chamber, and through the interaction betweem the fixed and rotating powder-grinding bodies, will be grinded to powder of 20-40 mesh.,

Feature

Compact appearance, can be transported integrally, and easy for installation.

Knives are made of special alloy,which can be used for a long time after maintenance of low cost and convenient.

capacity and low power-consumption.

The size of powder can be adjused freely .

XFM/CFM  Main Technical Parameter  XFM/CFM



NO	Equipment Type	XFM450	CFM550
1	Motor power(Kw)	45	45
2	Sub Motor Power	1.5	3.7
3	Inlet granules  (mm)	≤15	≤40
4	Outlet granule (mesh)	20-40	20-30
5	Capacity(kg/h)	210-250	190-250
6	Blades lifespan	can be welded and used indefinitely
7	Cooling Way	Cycle water cooling
8	Dimension(L×W×H)mm	1920×900×1650	2030×1020×1750
9	Weight(kg)	3700	4000

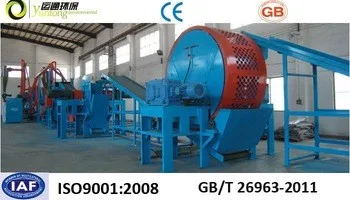

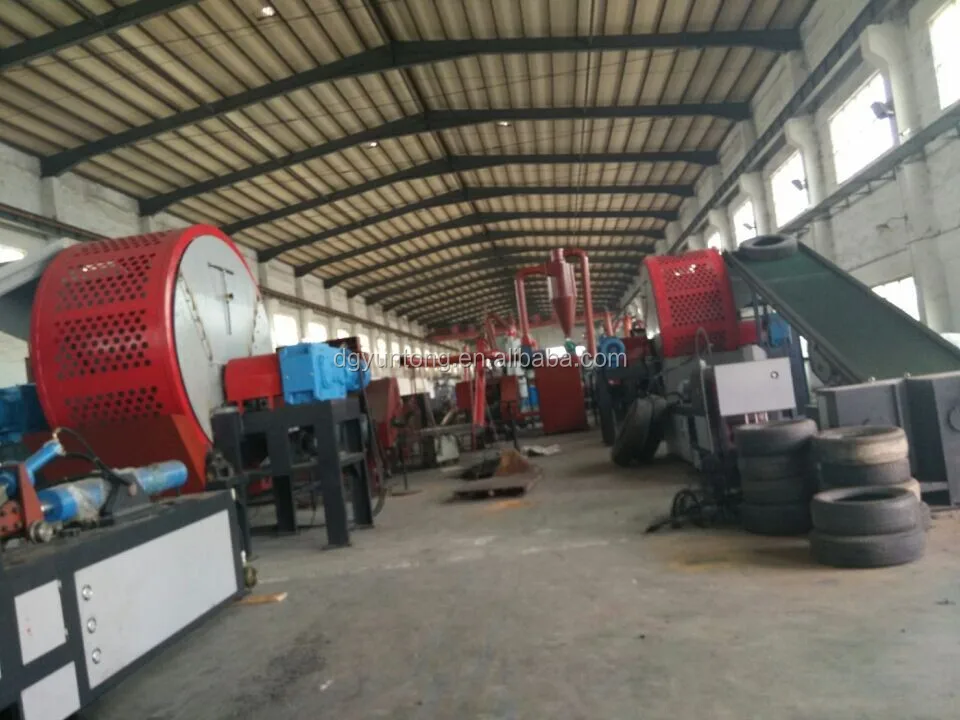

Automatic Waste Tire Recycling Plant (5000-20000 Ton/year)







Simple instruction for recycling waste tires:

Features of rubber recycling machinery

1.To granulate radial tires into fine rubber crumb of 40~120 mesh with steel and fiber completely recycled at ambient temperature.

2.The input is whole tires,after the processing,steel is completely separated and fiber can be separated up to 99% or above.The finish product is high and competitive in the market

3.Tight construction, small space and simple technique flow.

4. Low energy-consuming and good performance-cost ratio

5.Hight automatization, fewer labours requirement.

6.Reasonable construction,easy operation and low rate of breakdown

7.Environmental-protection,no pollution(no waste gas,no waste residue,no polluted water),meeting the environmental requirement of the government

Application Field:

Specifications	Scope of application
3-5mesh	Rubber floor bricks, plastic track, poly sound insulation board, playground, gymnasium, school, kindergarten, old folk's home, ward, swimming pool, foot bridge, walk and so on
5-15mesh
20-40mesh	Rubber color floor bricks, reclaimed rubber, waterproof coiled material, all kinds of rubber vibration-insulation pad and so on
40-60mesh	Modified asphalt used in the construction of highway, all kinds of rubber product manufacture, waterproof coiled material, sports facilities, reclaimed rubber and so on
60-80mesh	Raw material of tire production, Modified asphalt used in the construction ofhighway, reclaimed rubber, sole, conveyer belt and so on
