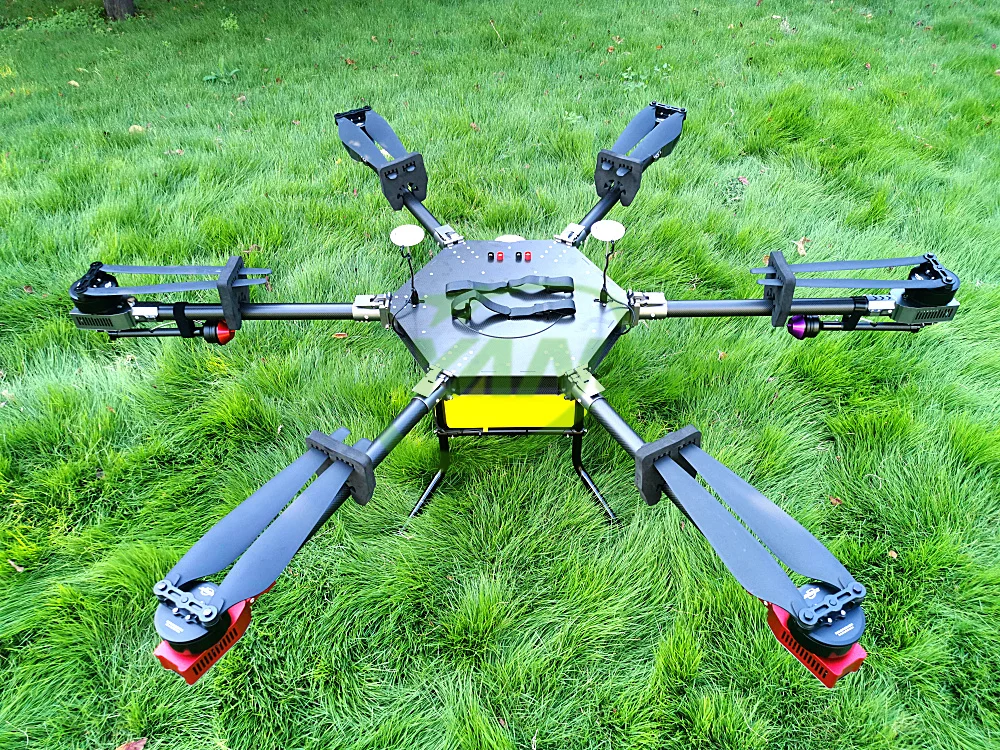

joyance jt15 606 pesticide spraying uav / drone sprayer for agriculture
- Category: Aircraft >>>
- Supplier: Shandong Joyance Intelligence Technology Co. Ltd.
Share on (60691666423):
Product Overview
Description
Products Description
Drone Applications

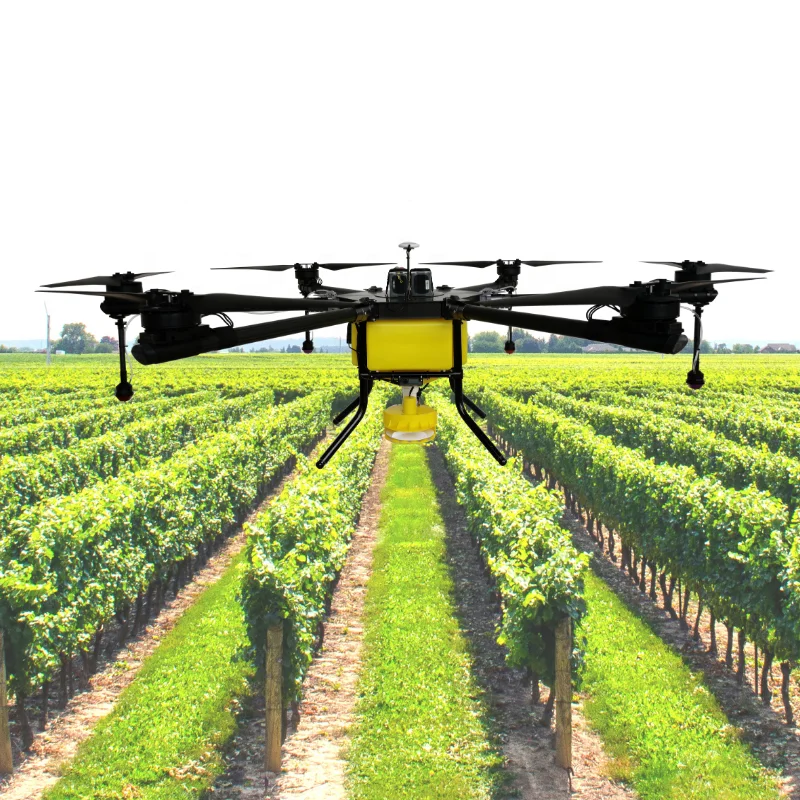

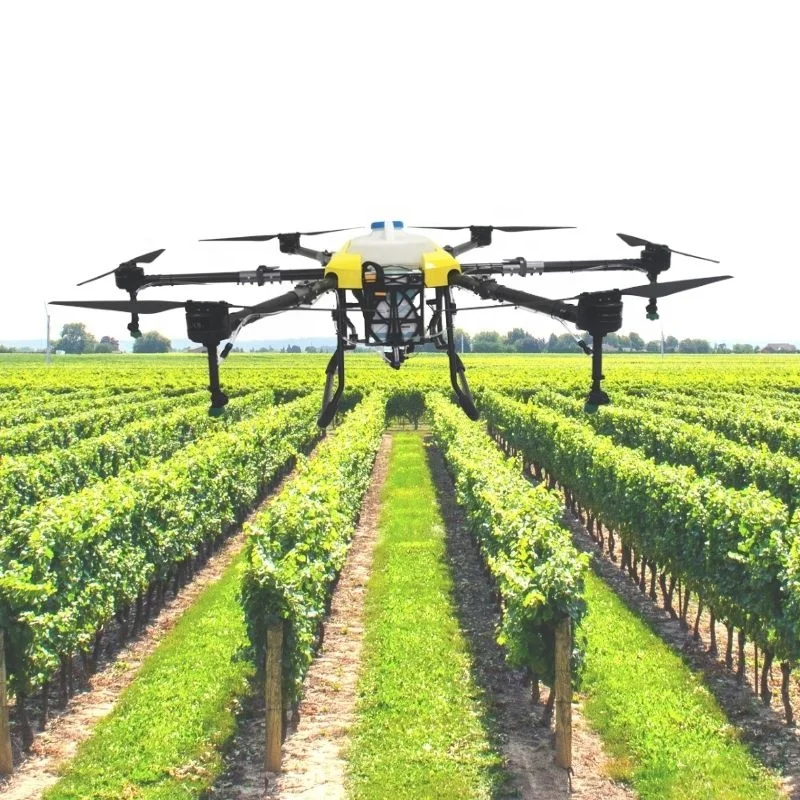

JOYANCE drones have been widely used for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Product Feature
1. Heavy-duty brushless motor--- FOC power system, more powerful, support more stable flight
2. Electrostatic centrifugal nozzle---50-200um small droplet size, better atomization and penetration effect. Suitable for spraying all crops and fruit trees.

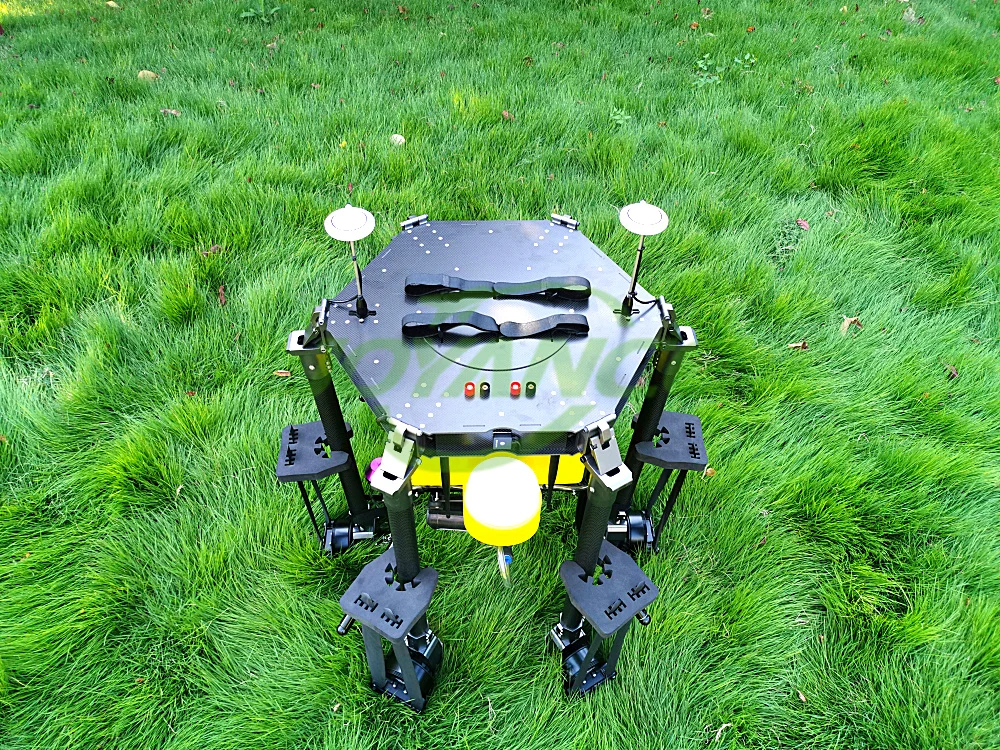

3. Folding Joint---Aviation aluminum alloy material, makes the drone frame stronger, flight is more stable.
4. Foldable carbon fiber propeller---easy to transport
5. Granule Spreader---Spread solid fertilizer, seed, feed
6. Carbon fiber umbrella foldable frame. 3mm thick plate and 40mm diameter tube.
3. Folding Joint---Aviation aluminum alloy material, makes the drone frame stronger, flight is more stable.
4. Foldable carbon fiber propeller---easy to transport
5. Granule Spreader---Spread solid fertilizer, seed, feed
6. Carbon fiber umbrella foldable frame. 3mm thick plate and 40mm diameter tube.

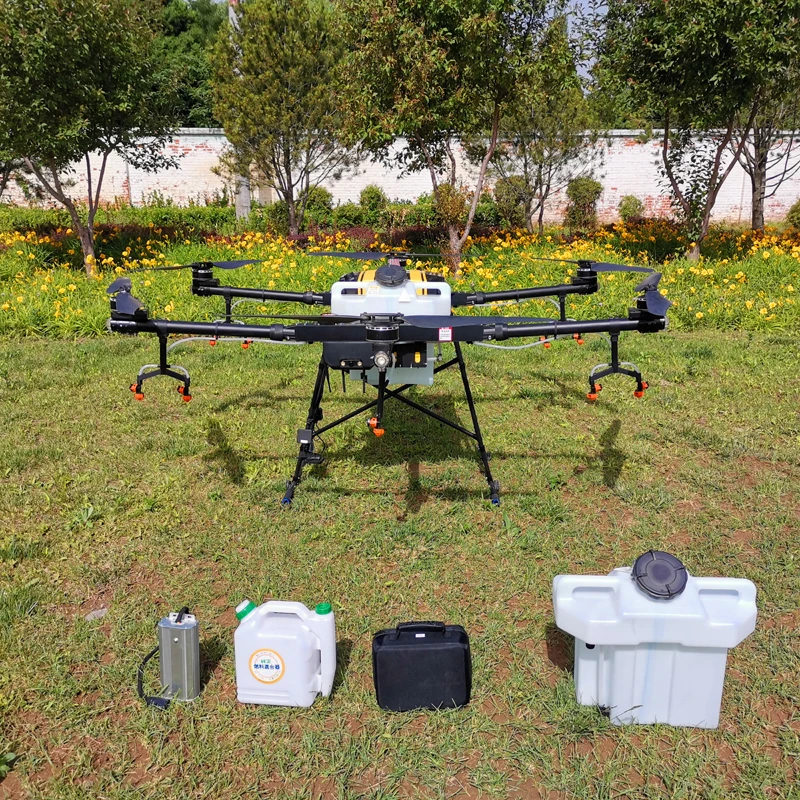

WHAT DOES YOUR PACKAGE INCLUDE??? | ||
15 Liters drone kit | JT15L-606 *1 | |
Spraying system | 15L 2 in 1 tank *1 Water Pump *1 Electrostatic centrifugal nozzles *2 | |
Power system (FOC) | Motor+ESC+Motor Base *6 Carbon fiber foldable propeller *6 | |
Battery | 6S, 17000mAh Battery *2 | |
Charger | 1200W, 8-way, charger *1 Full charge 2 batteries in 30 minutes | |
Intelligent Spraying | DCU + Flowmeter | |
Remote controller | With integrated radio telemetry, 1.5km distance, 12 hours work time/day | |
Toolkit | Maintenance tools, replacement spare parts | |
Package Case | Aluminum transport case, protect drone and the parts | |
Product Parameter
Technical parameter | JT10L-606 | JT15L-606 | JT15L-608 pro | JT20L-606 |
Pesticide load | 10 Liters | 15 Liters | 15 liters | 20 liters |
Self weight | 10.5 KG | 13.5 KG | 20 kg | 18.5 kg |
Take-off weight | 22 KG | 31 KG | 39 kg | 44 kg |
Fly time | 10-15 Min | 10-15 Min | 10~15 min | 10~15 min |
Spraying efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 Hectares/hour | 9~11 hectares/hour |
Spray width | 4-6 M | 6-7 M | 8~10 m | 7~8 m |
Spray speed | 0~8 M/S | 0~8 M/S | 0~10 m/s | 0~10 m/s |
Nozzle | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 centrifugal nozzles | 4 centrifugal nozzles |
Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 2 pcs 6S 23000 mAh | 2 pcs 6S 23000 mAh |
Flying radius | 1000 M | 1000 M | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2.5~3 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Spread size (m) | W1.3 * L1.3 * H0.45 | W1.8 *L1.8 * H0.48 | 2.7 *1.55 * 0.5 m | 1.95 *1.95 * 0.57 m |
Folded size (m) | W0.6 * L0.6 * H0.51 | W0.7 * L0.7 *H0.63 | 0.85 * 0.75 *0.7 m | 0.7 * 0.7 *0.8 m |
Aluminum box size / weight | 73*67*65 cm / 50 kgs | 75*75*81 cm / 70kgs | 79*79*84 cm / 80 kgs | 75*85*95 cm / 80 kgs |
Hot Selling Drones
Why Choose Us
COMPANY PROFILE

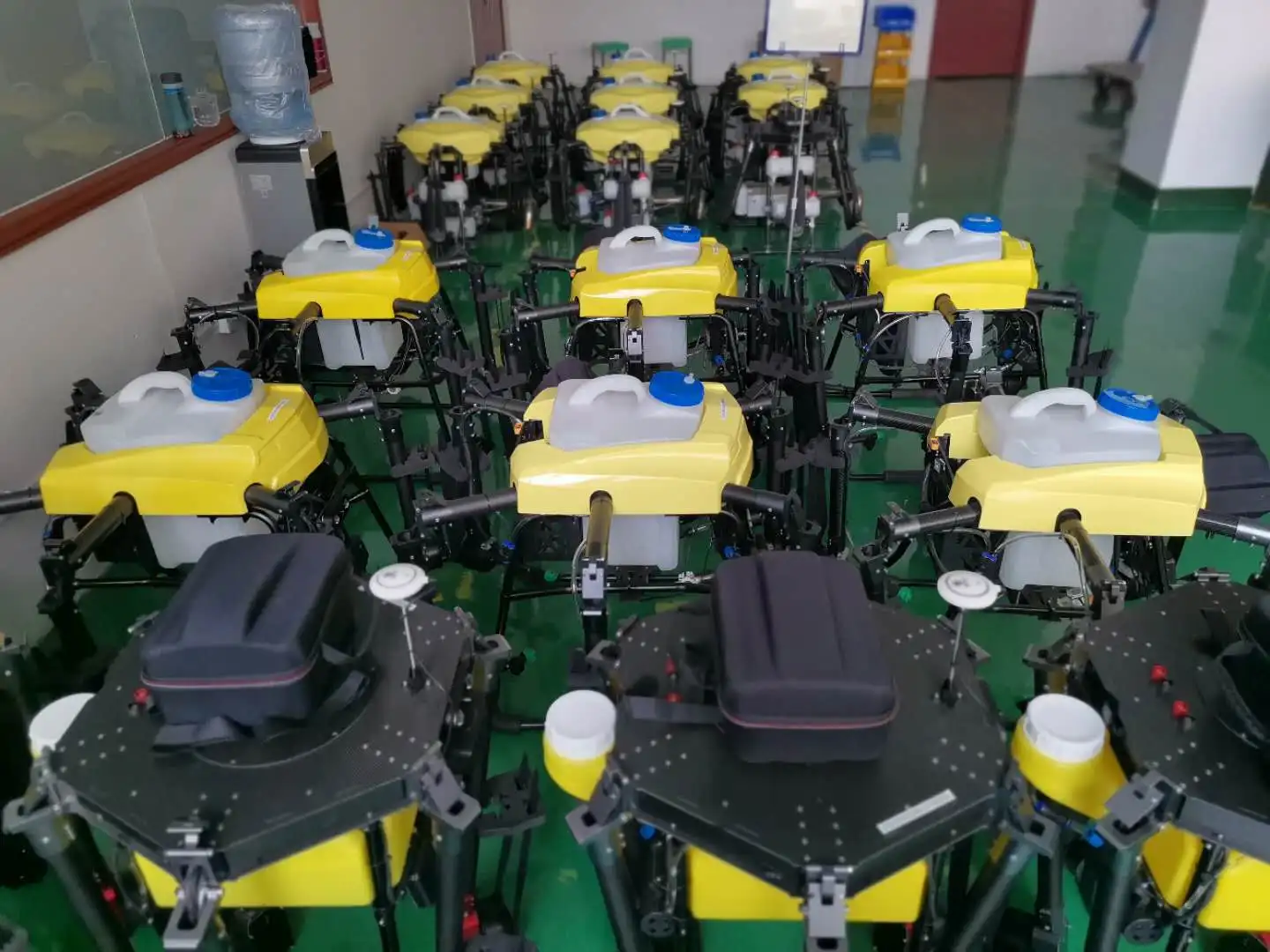

Shandong Joyance Intelligence Technology Co.,Ltd. is a high-tech enterprise, established in 2016, officially registered capital of 60 million RMB, and more than 35 employees. Depending on professional R&D team, experienced production and management, as well as excellent after-sale service team, we concentrate on the manufacturing & research of multi-rotors agricultural sprayer drones and related UAV application solutions, our production capacity is over 200 sets monthly, devote to be your reliable professional agriculture drones business partner.
Our drones are high quality, easy to operate and maintenance, high efficient and durable. Products got 14 patents and CE, FCC, RoHS, ISO9001 certifications, widely used in the area of agricultural spraying, plant protection and public sanitary disinfection. Has been exported to Australia, Turkey, Iran, South Africa, Nigeria, USA, Brazil, Peru, Argentina, Indonesia, Cambodia, Greece, Poland, France, etc. High quality products, very competitive price and professional after-sale service, has been widely praised by our clients.
CERTIFICATE & PATENT
CE, FCC, RoHS, ISO 9001, 12 Patents.
EXHIBITION
Exhibitions in Ukraine, Australia, New Zealand, Argentina, Malaysia, Canton Fair, etc.
CUSTOMERS IN THE WORLD
JOYANCE drones have been sold to 63 countries and regions, such as Brazil, Peru, Colombia, Ecuador, Iran, Turkey, Malaysia, Indonesia, Cambodia, Australia, New Zealand, Ghana, Nigeria, Poland, Ukraine, etc.
Professional Packing and Delivery
Fast Delivery: 3-7 working days for small order, 10-30 days for bulk order
Shipment: by sea/air/courier
Package: professional packing with aluminum packing case, protect the goods well in transportation.
The drones are 100% tested before delivery, ready to fly!
Package: professional packing with aluminum packing case, protect the goods well in transportation.
The drones are 100% tested before delivery, ready to fly!
FAQ
Q1. What's your best price for the UAV?
A1: We will quote our best price according to your order quantity, so when you make an inquiry, please let us know the quantity you need.
Q2. What's your MOQ?
A2: 1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q3. What's the delivery time?
A3: 3-7 days for trial order, 7-15 days for mass order.
Q4. What's your payment term?
A4: quantity order: T/T, 50% deposit before production, 50% balance payment before delivery.
Q5. What about the warranty?
A5: 1 year warranty (three months for wearing parts).
A1: We will quote our best price according to your order quantity, so when you make an inquiry, please let us know the quantity you need.
Q2. What's your MOQ?
A2: 1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q3. What's the delivery time?
A3: 3-7 days for trial order, 7-15 days for mass order.
Q4. What's your payment term?
A4: quantity order: T/T, 50% deposit before production, 50% balance payment before delivery.
Q5. What about the warranty?
A5: 1 year warranty (three months for wearing parts).
Q6. Are you factory or trading company?
A6: We are factory with 9 years experience on R&D.
A6: We are factory with 9 years experience on R&D.
