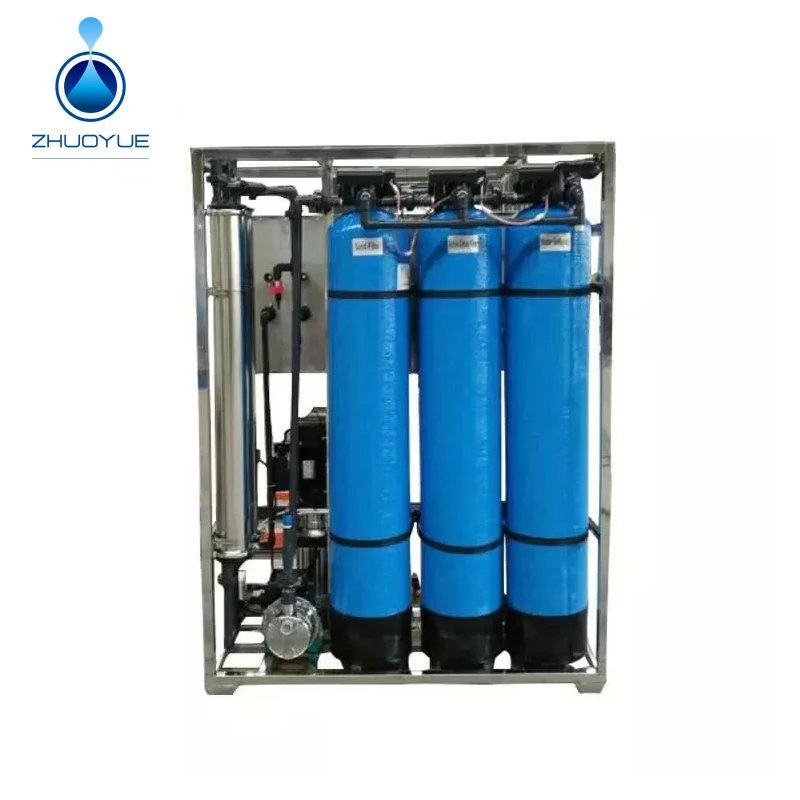

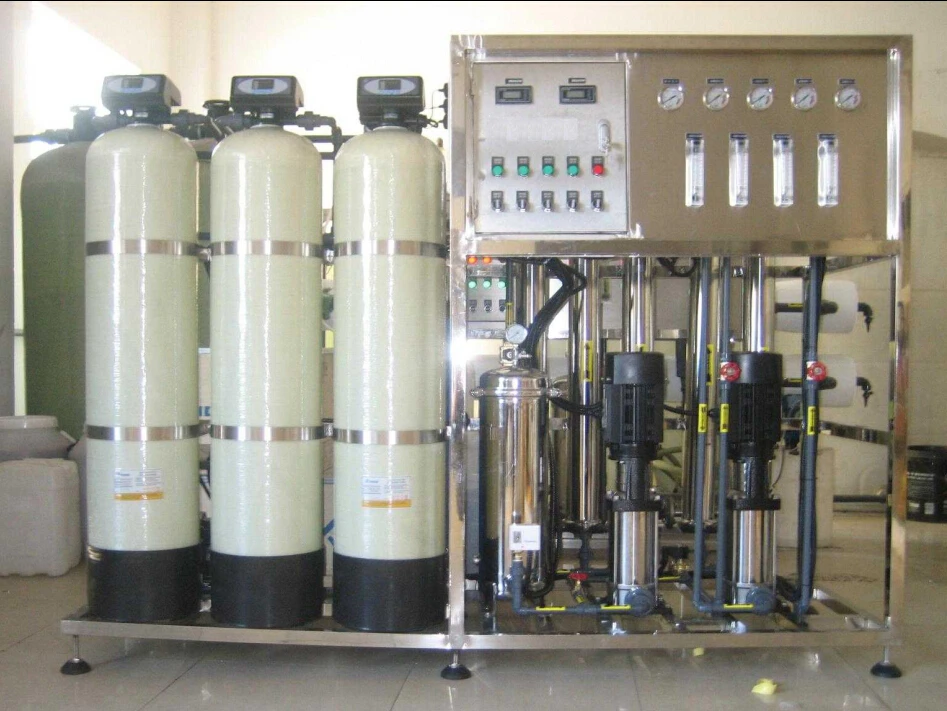

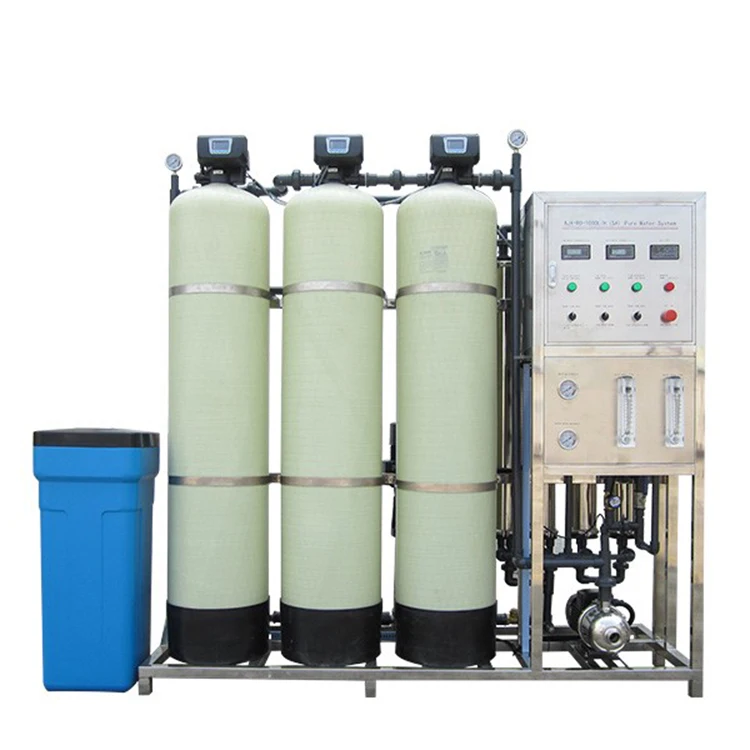

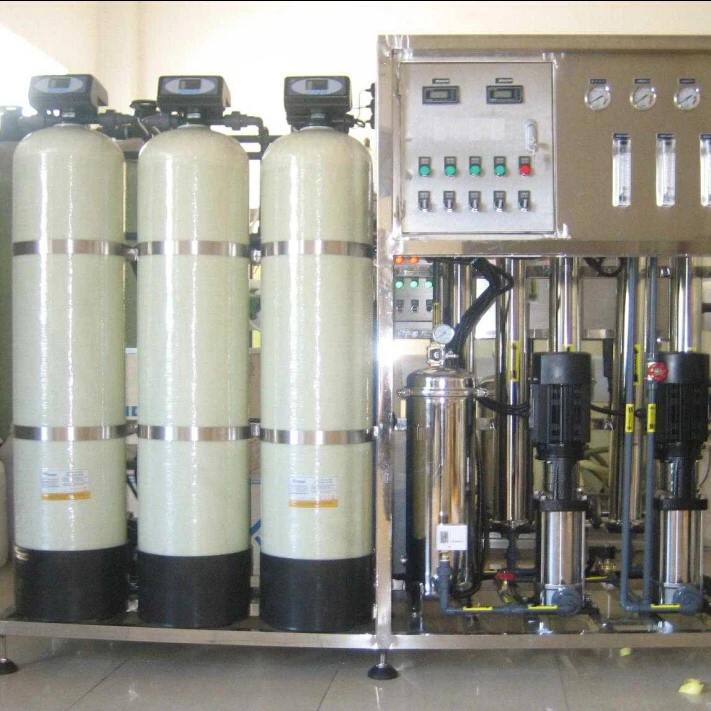

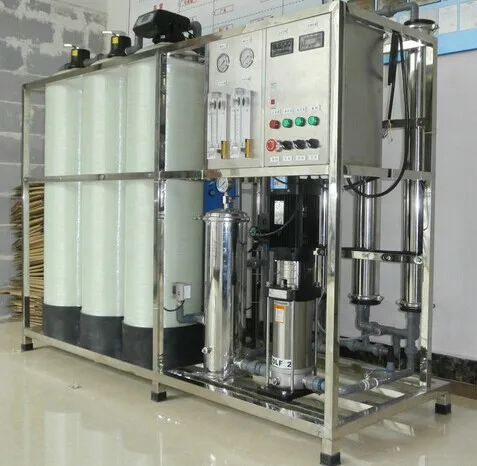

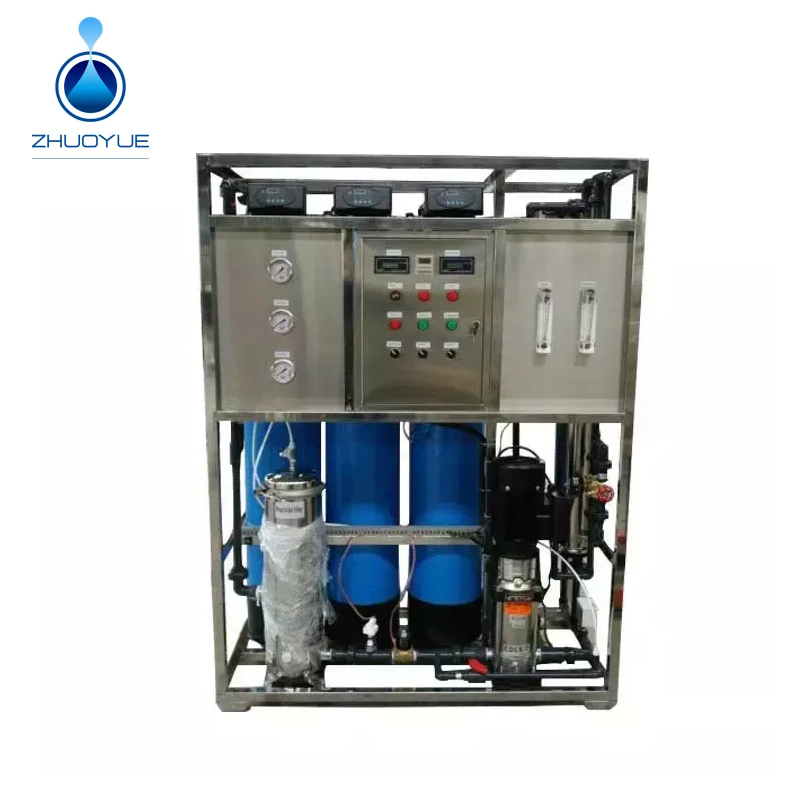

1000l per hour 304 Stainless Steel Reverse Osmosis RO Commercial Drinking Water Purification System

Product Overview

Description

Water production	0.25m3-100m3according to customers' requirement
RO membrane DN	0.0001-0.001um
Ion removal rate	≥99%;
Endotoxin, bacterial removal rate	≥ 99%;
Recovery	≥75%;
Effluent conductivity	≤ 15us / cm (source water quality TDS <200ppm)
Working pressur	0.2-0.4 Mpa,
Water temperature	5-40 ℃

No.	Model	Water yield (L/H)	Voltage/Power (V/Kw)	Body Size (L*W*H mm)	Water Tank (L/Material)
1	ZYRO-250	250	380/2.5	1500*600*1600	250/stainless steel/PE
2	ZYRO-500	500	380/3.5	1500*600*1600	500/stainless steel/PE
3	ZYRO-750	750	380/4.5	1500*800*1800	750/stainless steel/PE
4	ZYRO-1000	1000	380/6.0	1500*800*1800	1000/stainless steel/PE
5	ZYRO-1500	1500	380/7.0	1500*800*1800	1500/stainless steel/PE
6	ZYRO-2000	2000	380/8.0	1500*800*1800	2000/stainless steel/PE
7	ZYRO-3000	3000	380/9.5	1800*800*2000	3000/stainless steel/PE
8	ZYRO-5000	5000	380/11.5	1800*800*2000	5000/stainless steel/PE

Note:  Customization is available.

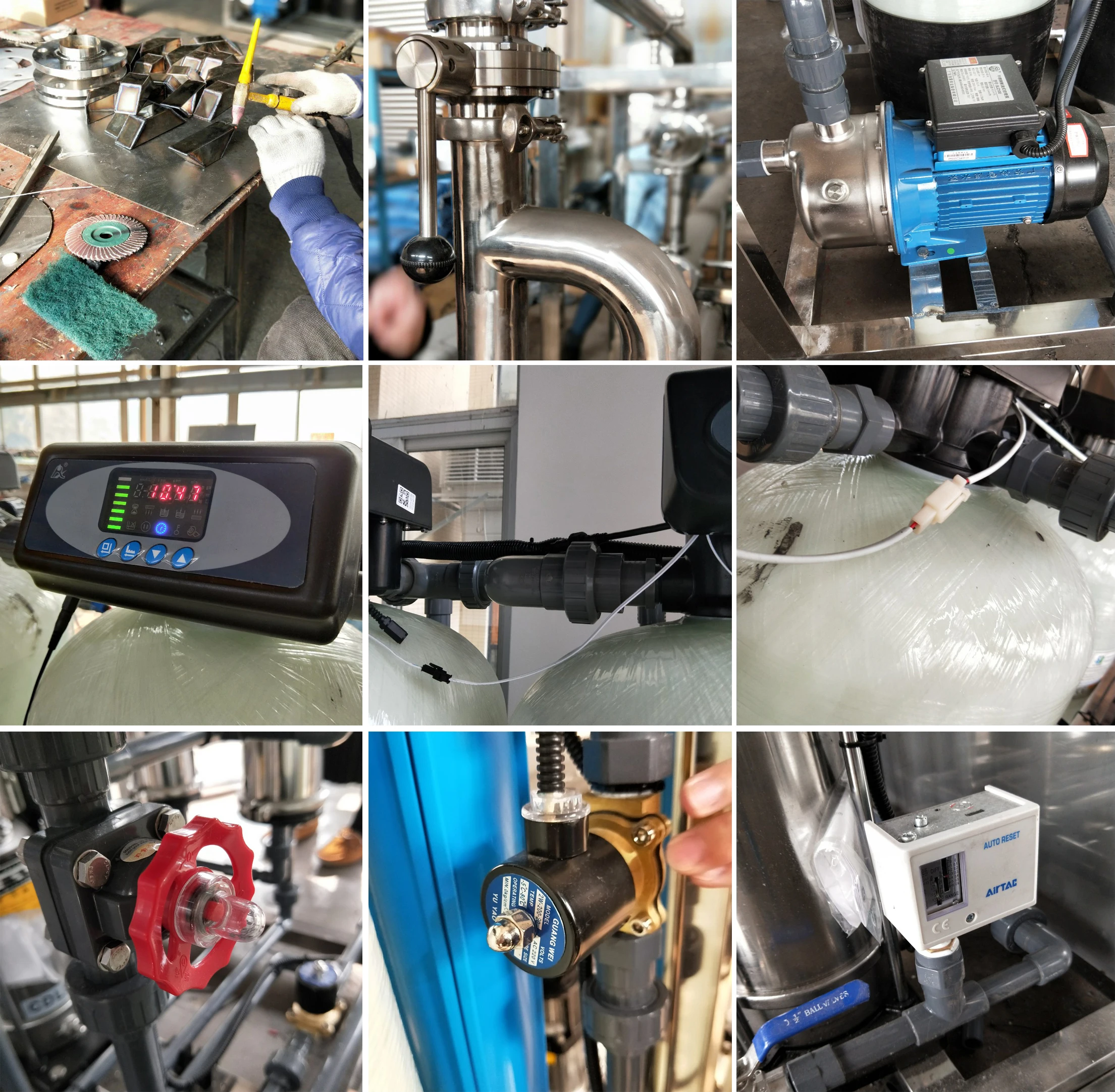

1. High-precision filter, the aperture of nano-level, the best water quality

2. Manual / electric control system automatically switch;

3. With a self-test, water-free point automatically open the system of water, water full stop, no pressure protection and other safety devices;

4. With open RO membrane automatic washing and water tank full automatic double wash function, can extend the life of RO membrane;

5.  With on-line monitoring of water quality (conductivity display), flow and pressure on-line display;

6. Equipment integration, installation is simple, simple operation, no special duty;

7. Equipment failure with automatic alarm function;

8.High water production, high desalination rate, long service life;

9. Core components (pumps, RO membrane, electronic control systems, etc.) imported / domestic joint venture brand;

10. Equipment rack with stainless steel, low-pressure pipe for the UPVC material, high-pressure pipe using SUS304 stainless steel.

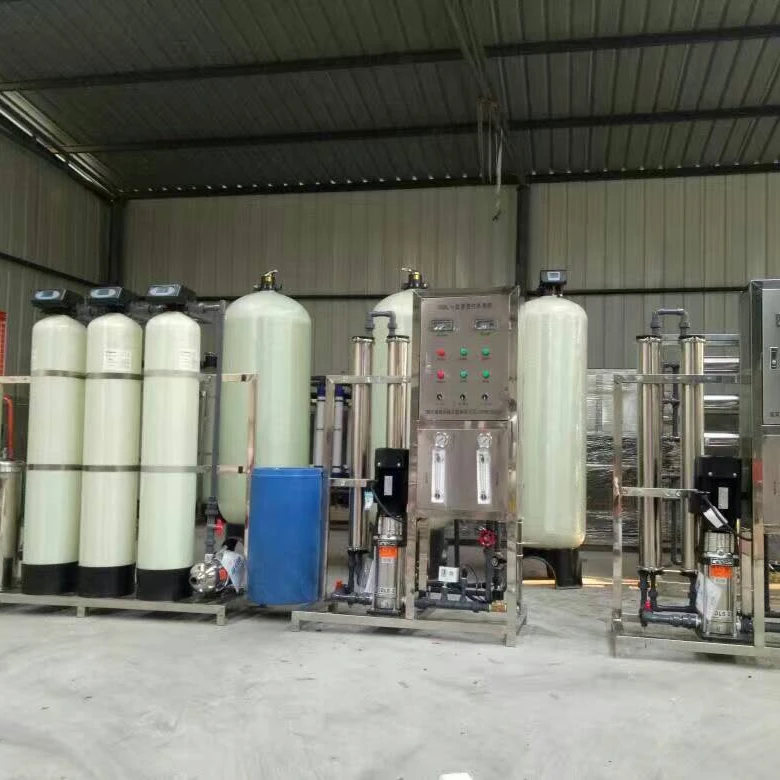

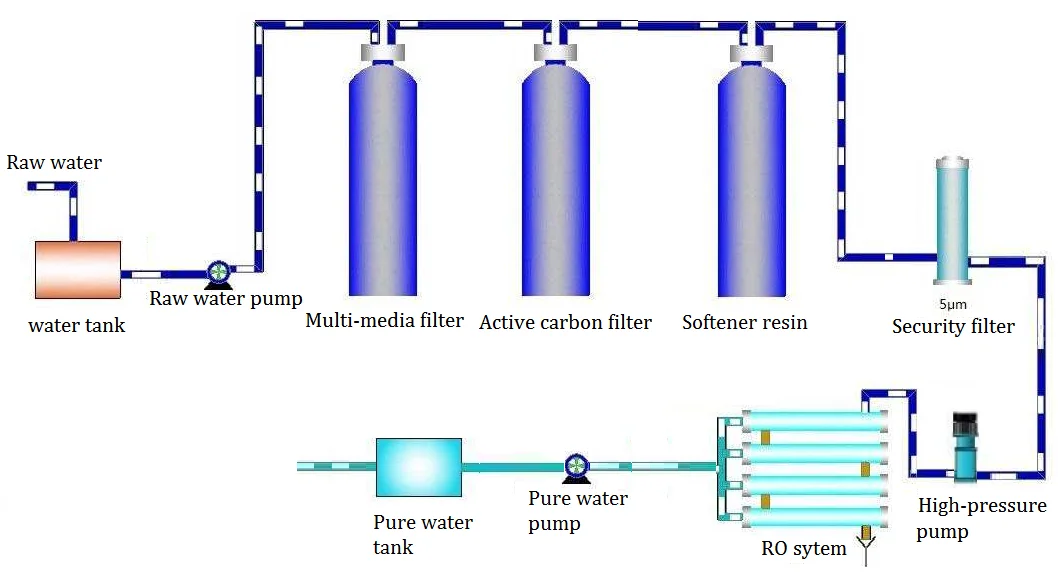

1. Raw water tank--store raw water;

2. Quartz sand filter-- get rid of sediment, turbidity, suspended matter, organic matter, colloid, ect;

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener filter--exchange "ions" of calcium and magnesium with the most common and easiest method.

4.1 Brine box--offer Na+ to exchange Ca2+ and Mg2+ to finish regenerating.

5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane ro.

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

8. Pure water tank--store pure water.



1. Raw water pump-- provide pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter-- filtrate sediment, rust, silt, turbidity, suspended matter, organic matter, colloid, ect.

3. Active carbon filter--Remove color, residual chlorine, organic matter, harmful matter, ect.

4. Softener filter--exchange Ca2+ and Mg2+ to Na+ to prevent scalling and save RO memrbane.

4.1. Brine tank-- regenerate softener resin.

5. Security filter--prevent large particles, bacteria, virus into RO membrane, accuracy is olny 5um.

6. High pressure pump-- Provide the high pressure to RO membrane.

7. RO membrane-- remove more than 99% ions, bacteria, salt, pollutant matters, microorganism, heavy metal ions, colloid,emdotoxin and other particles in the water.



Tips
