Product Overview

Description

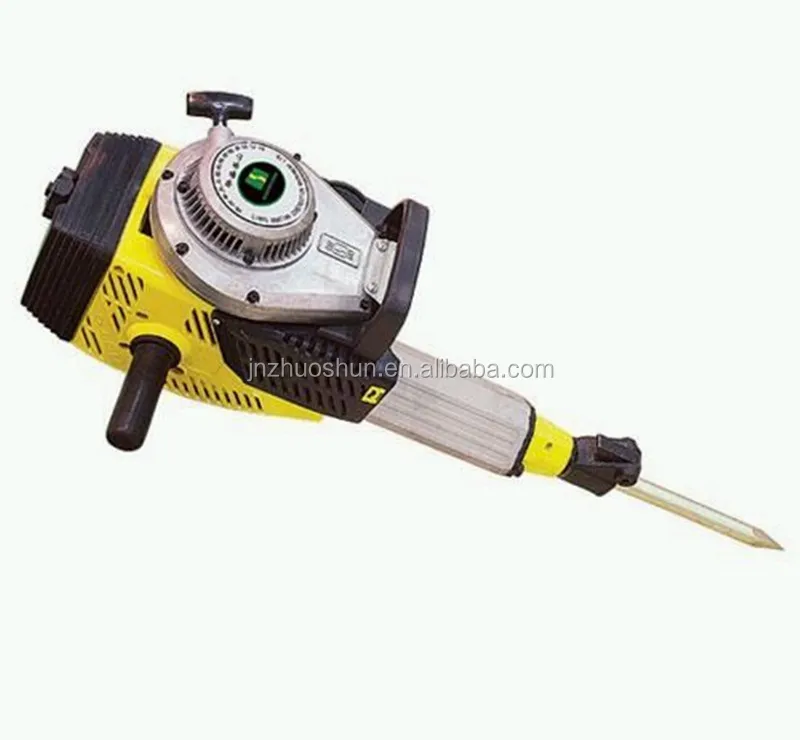

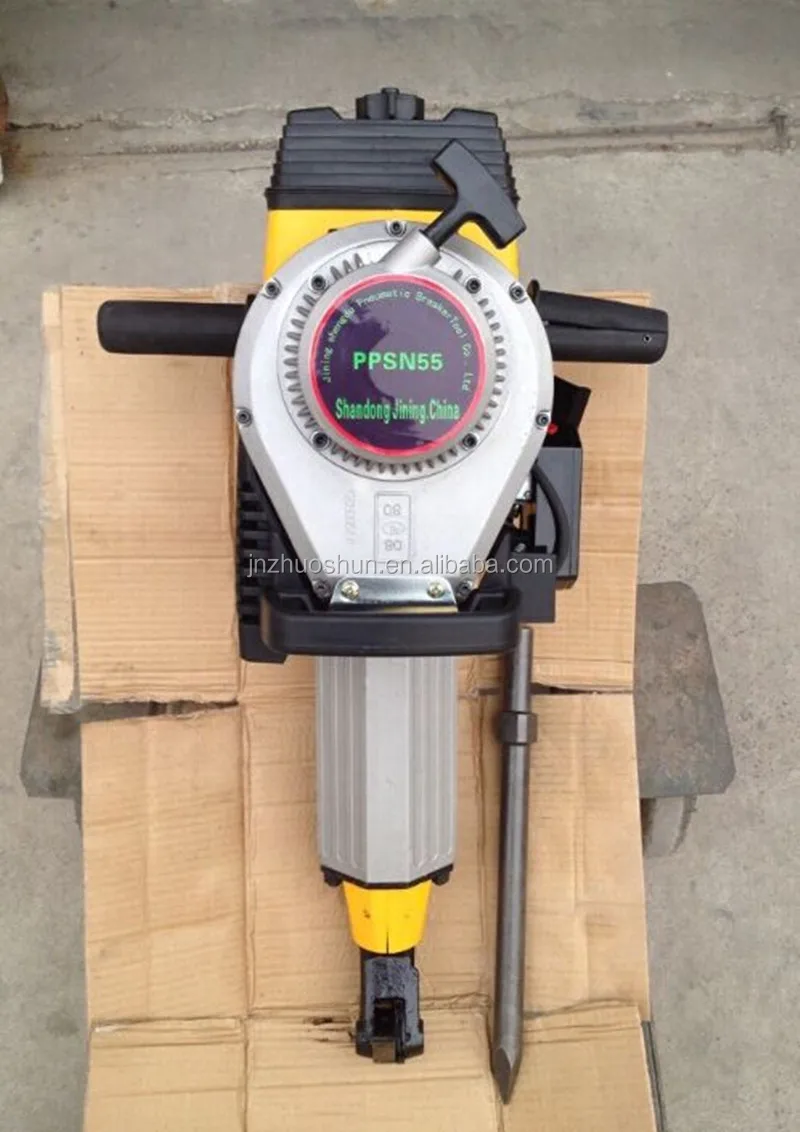

petrol concrete breaker PPSN55  onPSN55

Product Introduction

mini road breaker gasoline engine powered road crusher

Appliance :

The crusher takes 1E45F-3A gasoline as drive motor, so it has a strong power to work efficiently. The structure of the machinery is compact and reasonable.

It also has a fine appearance, on the other hand it is convenient to carry and comfortable to operate. Above all, it's safe to use and easy to maintain.

mini road breaker gasoline engine powered road crusher

 Feature:

1. Break engine: Single cylinder air cooled gasoline engine

2. Operating weight: 26kg

3. Impact frequency: 1300/min

4. Impact energy: 55J

5. Carton size: 880*500*390mm

Technology Parameters

Model	PPSN55
Engine Model:	1E45F-3A
Engine Type:	single cylinder, 2-stroke, forced air cooling
Displacement:	80cc
Max. Output:	2.0kw/4400r/min
Fuel Consumption:	≤480g/kw.h
Work Weight:	26kg
Impact Frequency:	1300/min
Impact Energy:	55J
Clutch Rotation:	2500r/min
Work Rotation:	4250r/min
Overall Dimensions:	840x470x350mm
Carton Size:	880x500x390mm
