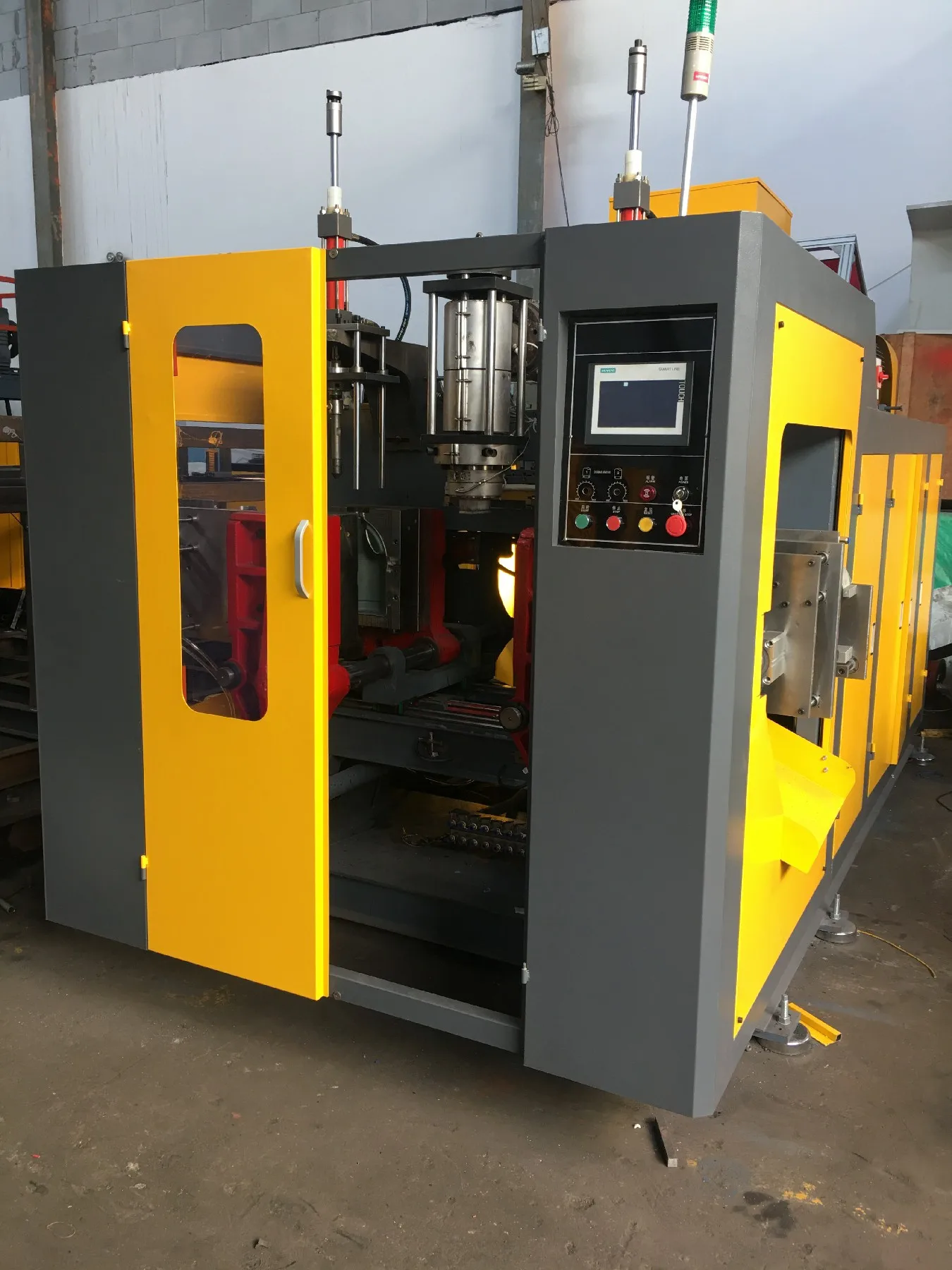

55mm max 2L plastic bottle extruder blow molding machine

FEATURES

plastic blow molding machine can be used for A wide variety of materials,which are suitable for producing multi-type products in small batches.

bottle blow molding machine The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported.

extruder blow molding machine The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.

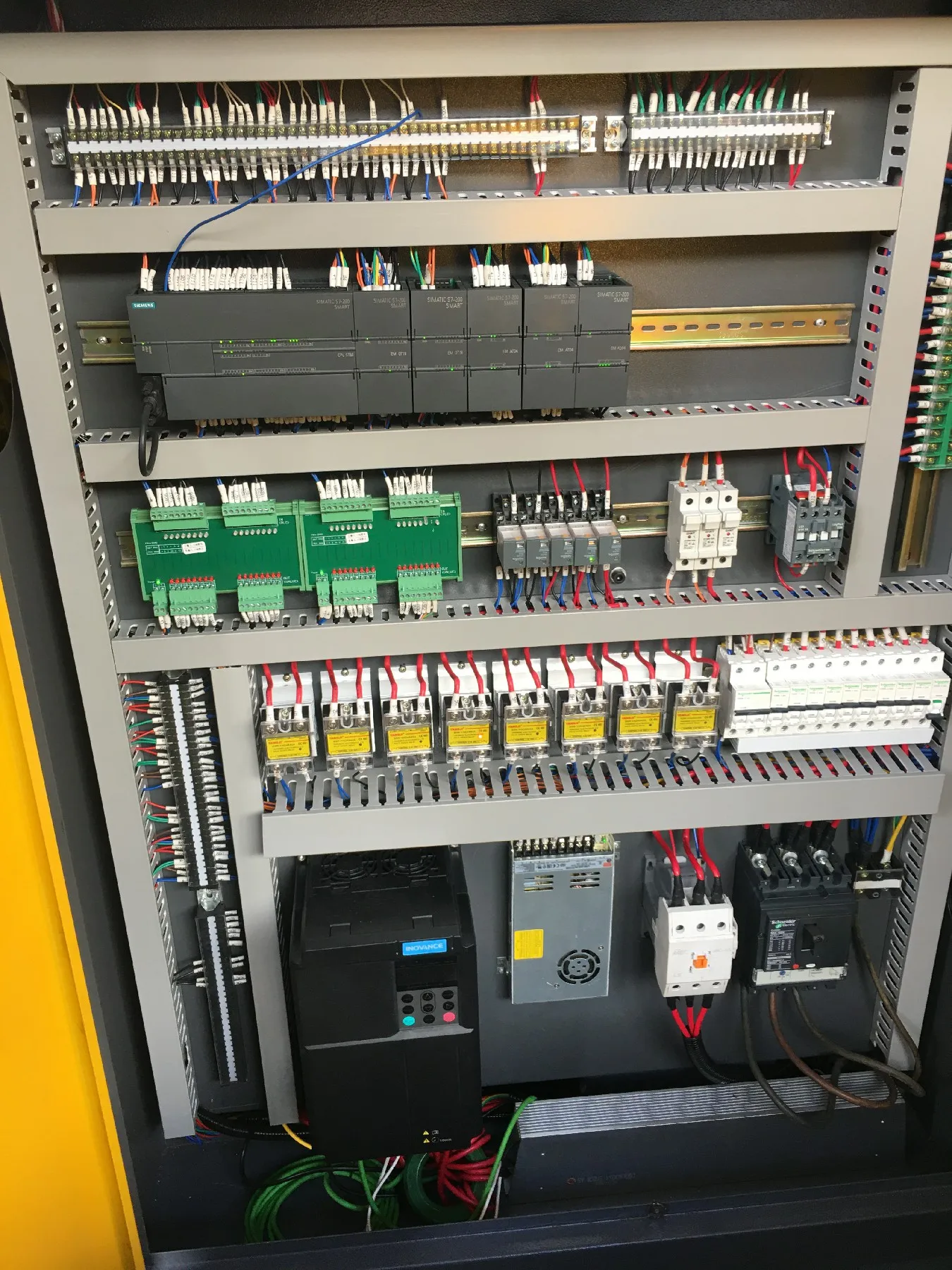

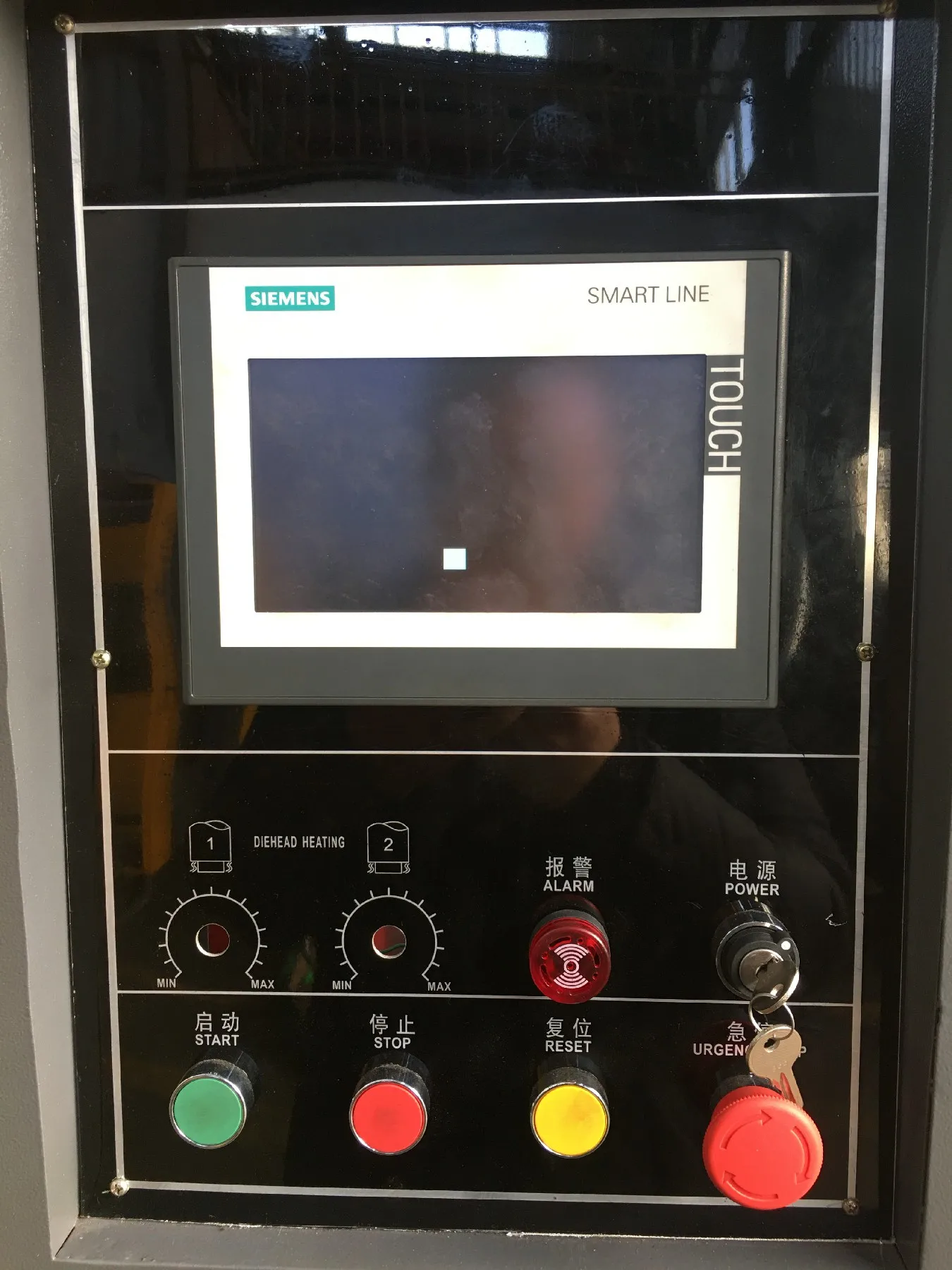

The control system consists of PLC and Human-machine interface imported, an automatic temperature control module and imported electrical parts.

CHARACTERISTIC

Die Head Unit\t

with moving head
heaters made of stainless steel.
Temperature controlling precision: Various in ±1℃
Material：nitrogenization treated 35CrMo steel, chrome plating

Extruding Unit\t

Screw type: same distance, different depth, gradual change
Material of screw: nitrogenization treated 38CrMoALA steel, hardness>800，brittleness<2；
Material of barrel: nitrogenization treated 38CrMoALA steel，hardness>900，brittleness< 2；
Driving way: invert motor and hard-teeth face gear box
automatic temperature control module
Temperature controlling precision: Various ±1%；
Heater：cast aluminum heater
Screw head：plate abrasive-resistant alloy
Cooled by 4 air blowers
Material feeding part cooled by recycling chillerd water

Clamping Unit\t

3 tie bars, 2 direction, synchronization, 1 hydraulic cylinder centering clamping
