Hot Price OTO Pulley Type Iron Wire Steel Wire Welding Wire Drawing Machine LH560
Product Description

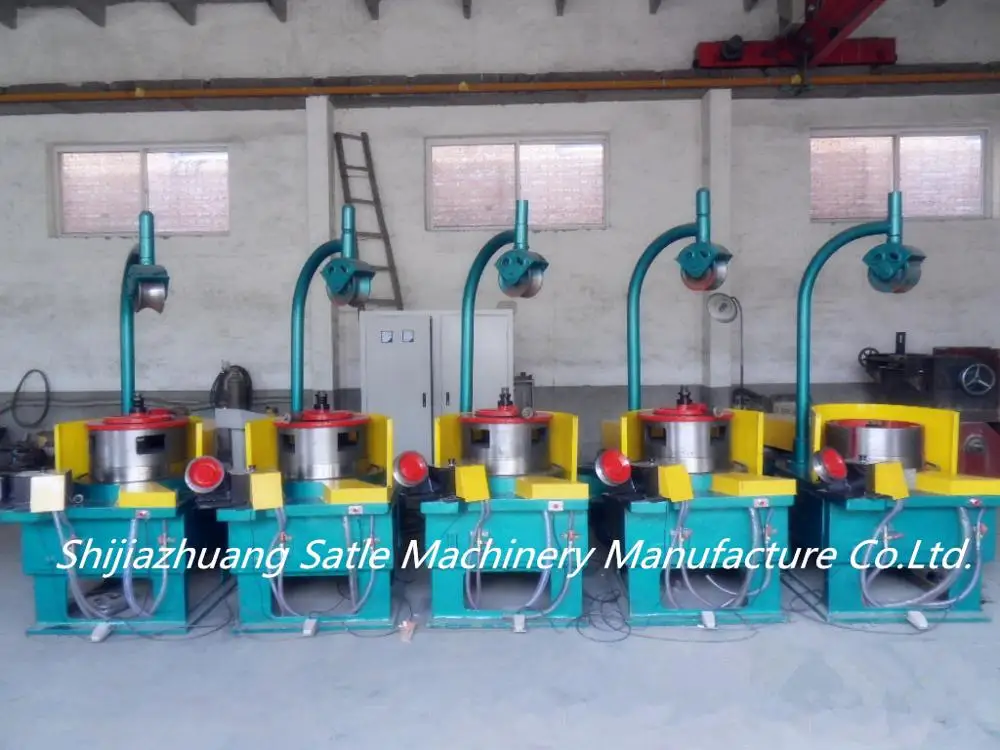

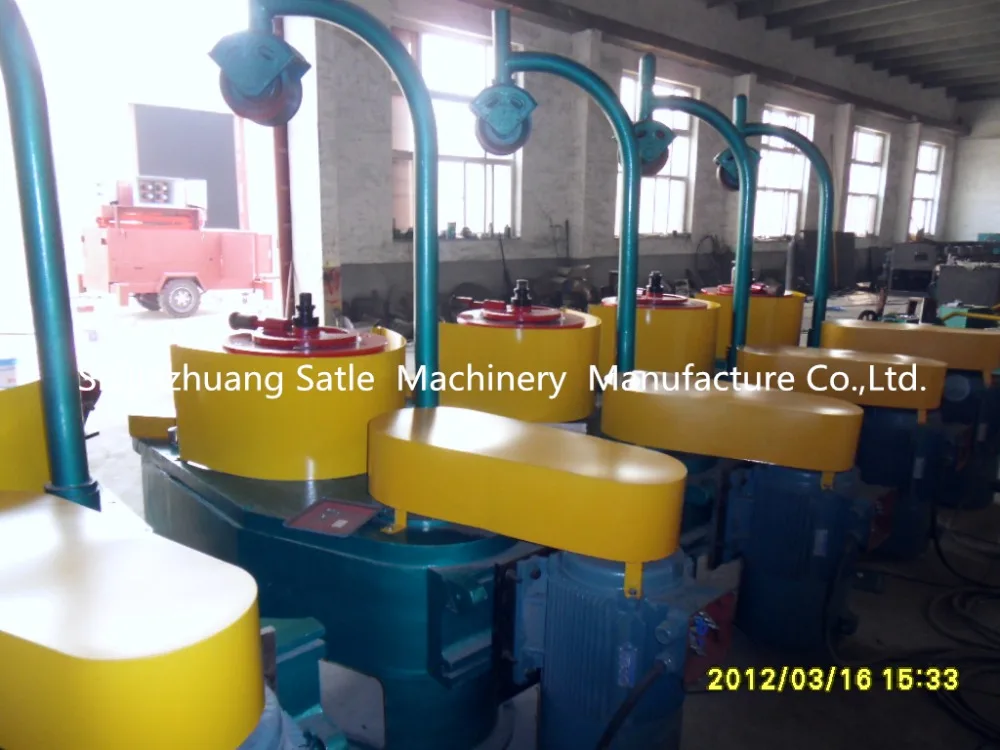

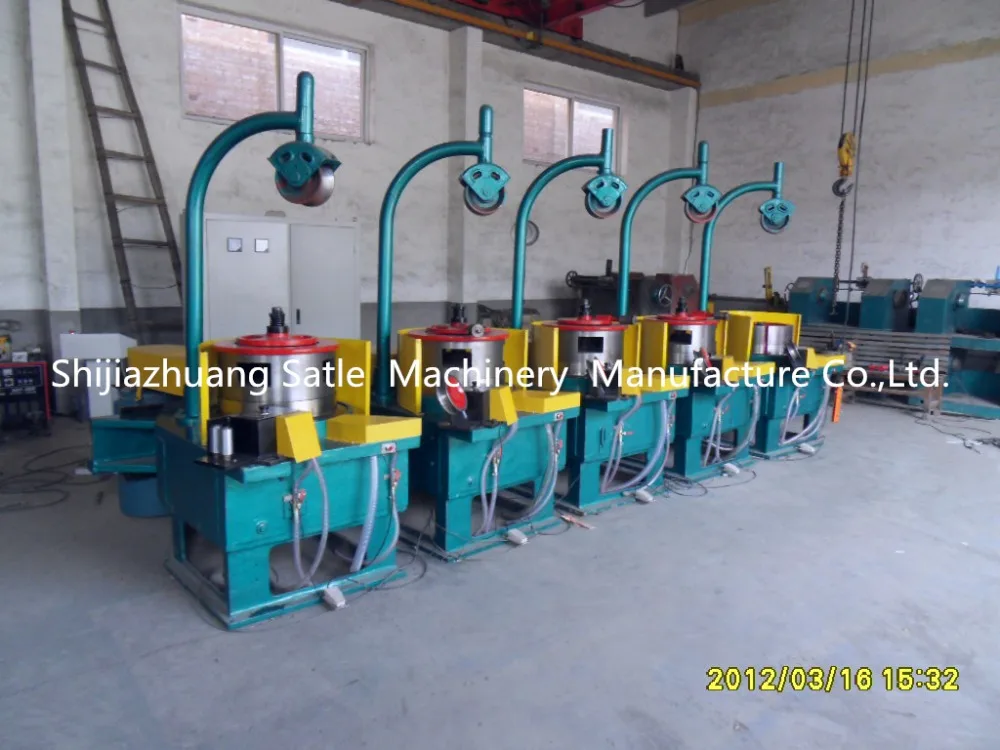

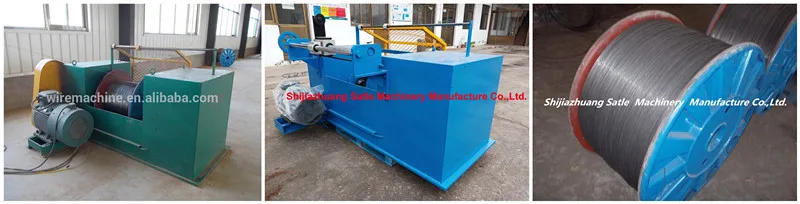

PULLEY WIRE DRAWING MACHINE

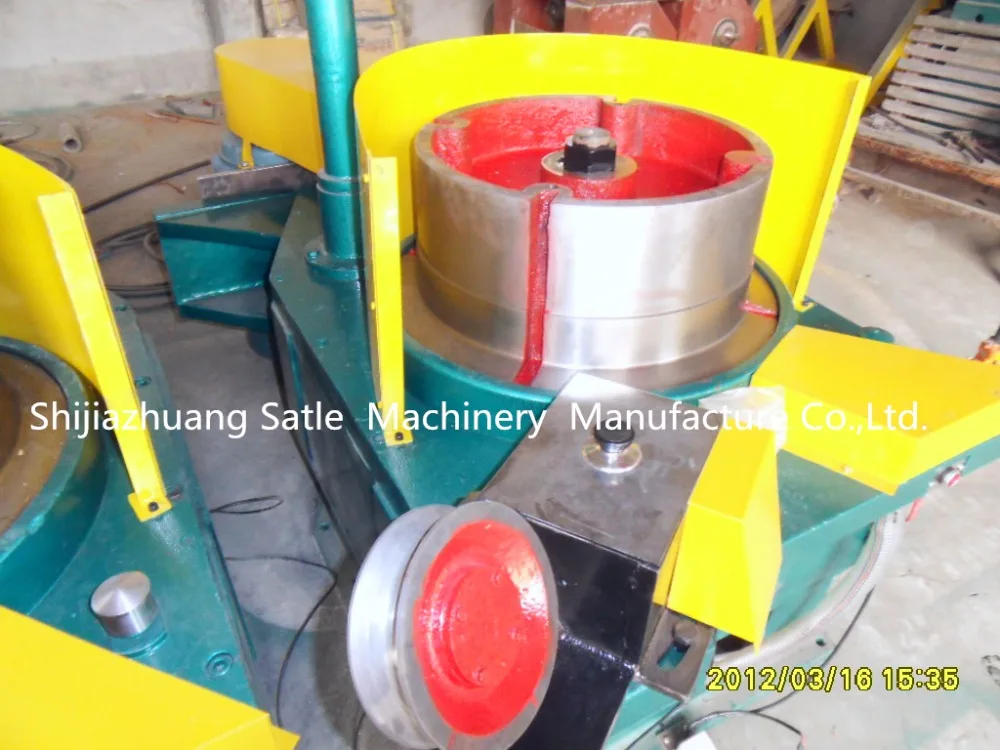

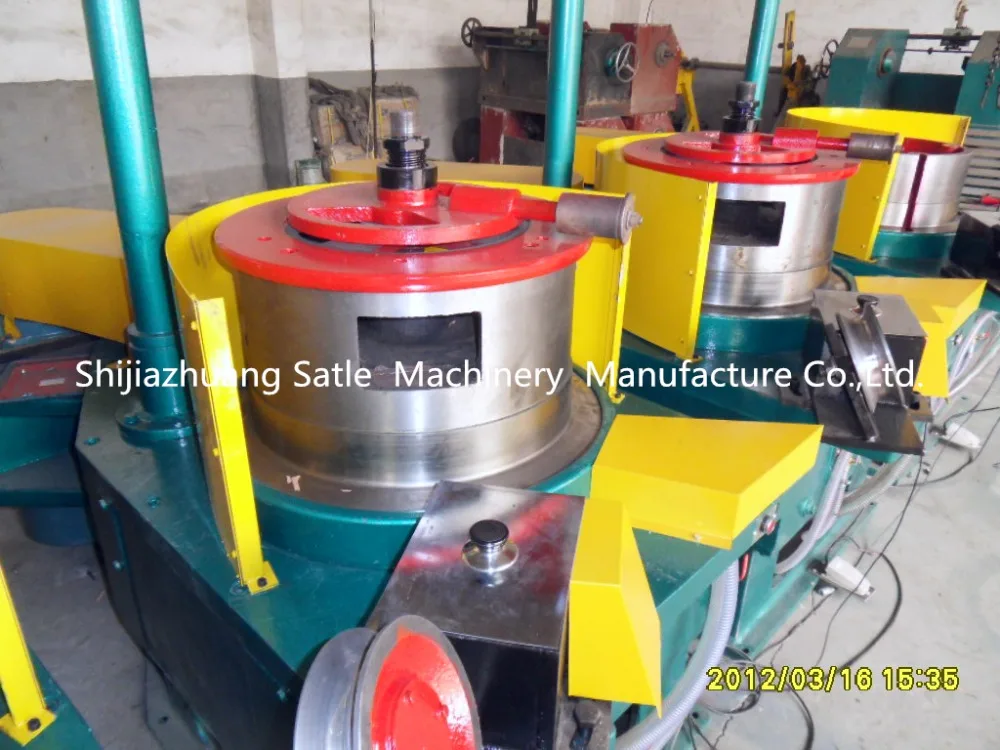

This machine are composed of several of several single block in parallel , which are controlled by the PLC programme. The speed of the machine is controlled by inverter. It can be used to draw metal wires including steel, aluminum, and copper etc. This machine is composed by structure members including capstan device, bridge device, die box, pulley device, cooling device, protective cover, and frame. The material of the capstan is ZG45 spray painting tungsten carbide. The surface is Mirror-surface treated and is rigid and wear without damaging the surface of the welding wire. The capstan adopts inner wall slit-type cooling and box direct cooling. which will provide sound effect .Additionally this wire drawing machines can be used with bobbin take-up machine or trunk type take-up machine.
Parameters
Model | LW400(high configuration) | LW560(high configuration) | LW650(high configuration) | |
Inlet Wire Dia. | mm | 3.2 | 6.5 | 9 |
Outlet Wire Dia. | mm | 0.8 | 2.3 | 3 |
Drawing time | 6-8 | 6-8 | 6-8 | |
Number of drawing capstan | 5 | 8 | 8 | |
Motor | Inverted motor | Inverted motor | Inverted motor | |
Motor Power | kw | 11 | 22 | 22 |
Max speed | m/s | 9 | 7 | 7 |
Dia.of capstan | mm | 400 | 560 | 650 |
Material of the capstan | Steel coated tungsten carbide | Steel coated tungsten carbide | Steel coated tungsten carbide | |
Warranty of capstan | month | 24 | 24 | 24 |
Size dimension (L*W*H) | m | 1.1*1.6*1.6 | 2.3*1.15*1.53 | 2.3*1.15*1.53 |
Weight | kg/set | 853 | 2360 | 2360 |
Warranty | month | 12 | 12 | 12 |
Drive mode | Belt | Gear box | Gear box | |

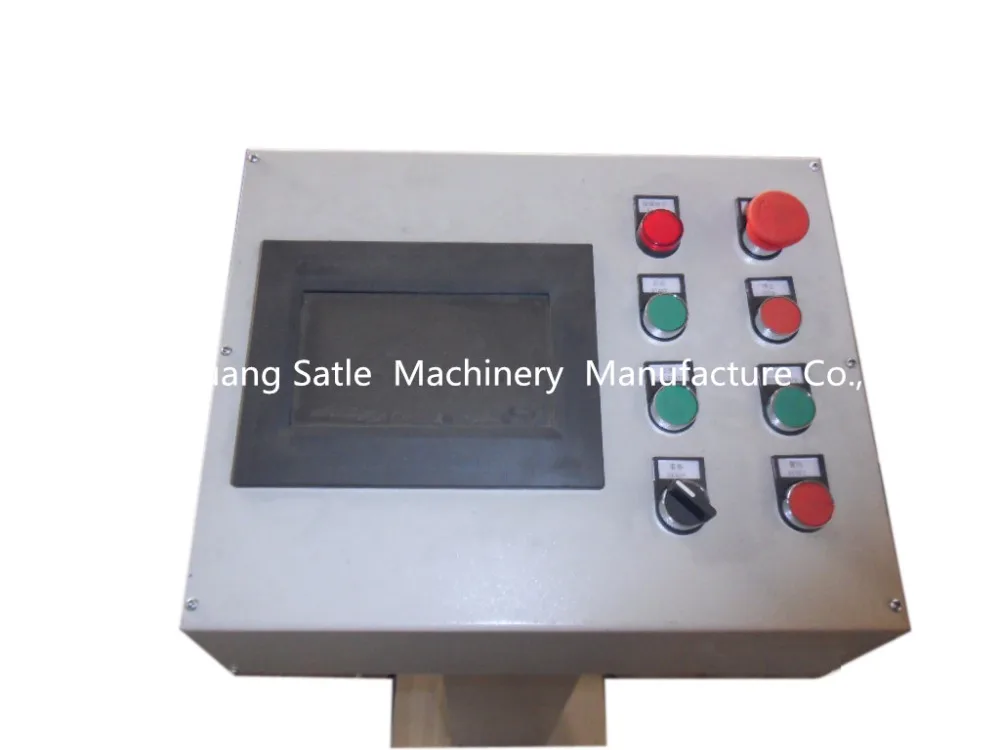

Control system | PLC | PLC | PLC | |
Inverter | Delta | SINEE | SINEE | |
PLC | Siemens | Siemens | Siemens | |
Lubricant type | Powder | Powder | Powder | |
Cooling system | Water cooling | Water cooling | Water cooling | |

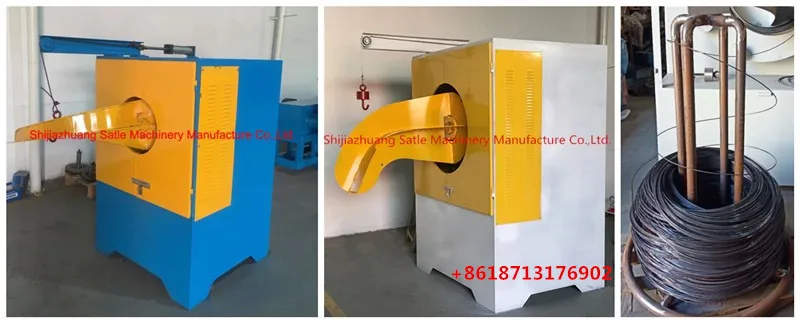

Paying Off Manner | Automatic damping wire paying off | Automatic damping wire paying off | Automatic damping wire paying off | |
Taking Up Manner | Spooler takeup630 | Spooler takeup800 | Spooler takeup900 | |
Motor of coiler | kw | 11 | 11 | 15 |
Accessory | Automatic wire download machine | Automatic wire download machine | Automatic wire download machine |
Notice:Our machines are customized,Control system(PLC,inverted motor,touch screen) is optional,different price is against your need.Contact me for details.
Related products
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q:Why choosing you ?
A: we have more than 15 years of experiences in wire prodution.
Professional technical team
Good after-sale service team
Excellent production management team
Q:What is your delivery date ?
A:10-40days.
Q: What is your terms of payment ?
A: TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
Q: What is your available Shipment:
A:FOB Tianjin.
Packaging & Shipping
Clients visit

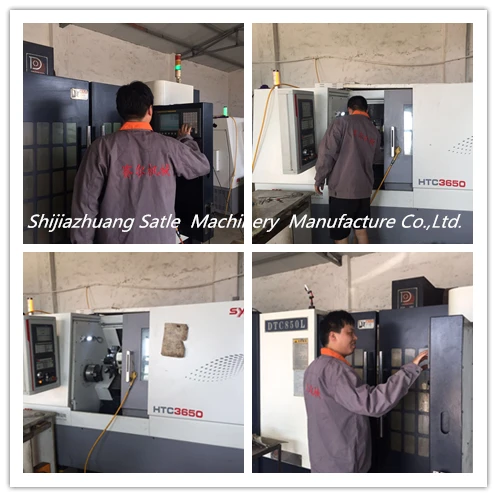

Workshop
