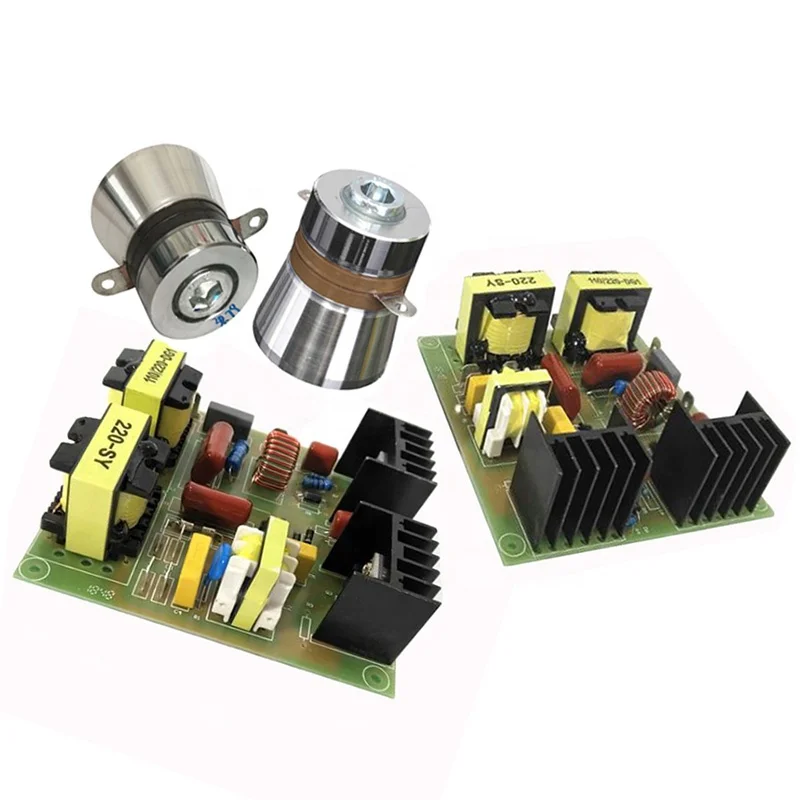

Superior Performance 60W Pcb Generator Circuit Schematic Circuit 40K Ultrasonic Sensor Circuit
- Category: >>>
- Supplier: Beijing Quanxin Ultrasonic Co. Ltd.
Share on (60691814826):
Product Overview
Description
Products Description
Application of Ultrasonic Driver Circuit:
ultrasonic generator also called ultrasonic power supply, electronic box and ultrasonic controller.
The pcb generator is the main parts of ultrasonic cleaning syste,
ultrasonic generator also called ultrasonic power supply, electronic box and ultrasonic controller.
The pcb generator is the main parts of ultrasonic cleaning syste,
Ultrasonic Cleaning Equipment Ultrasonic parts of divided into two parts; one ultrasonic transducer, said ultrasonic vibration (or head); the other is the ultrasonic generator, ultrasonic transducer is the ultrasonic generator is converted to electrical signals provided by the mechanical vibration.

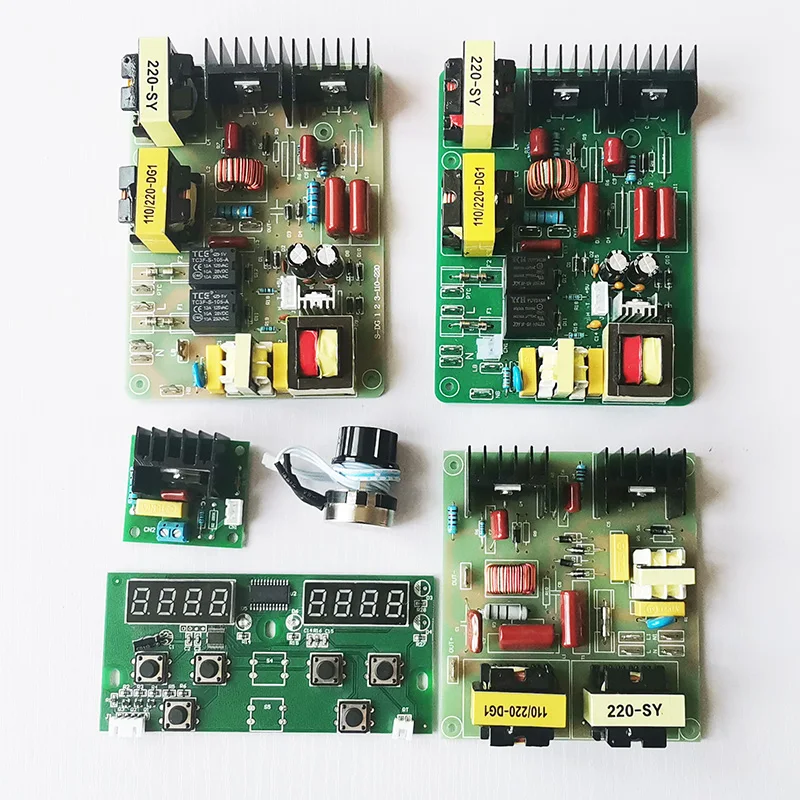

The Main Specification of 40KHZ Ultrasonic PCB Generator (Type: DG1 DG2 DG3) | ||
Powe Supply: AC110V (-15/+10%). 60HZ. 60-120w for the 110V PCB Generator AC 220V (-15/+10%). 60HZ. 60-180w for the 220V PCB Generator | ||
Environment Temperature: -10-40 ℃ | Environment Humidity: 35-85% | |
Attentions: | 60W PCB can drive 1pcs 60w transducer 120W PCB can drive 2pcs 60w transducers 180W PCB can drive 3pcs 60w transducers | |

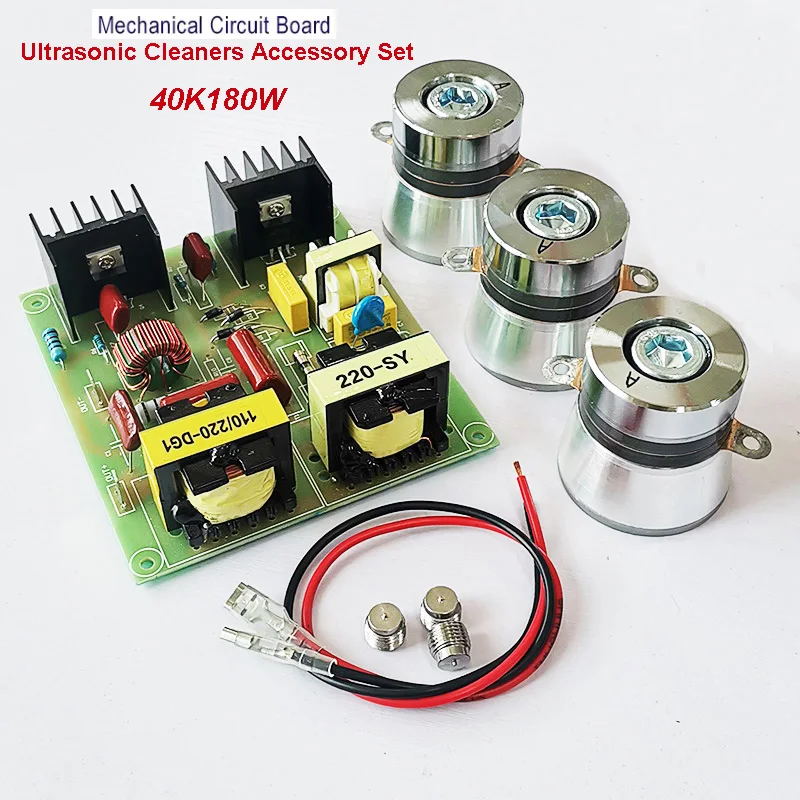

Size of PCB generator (Mechanical version which can not connect the display panel) | 103mm*101mm*40mm | |

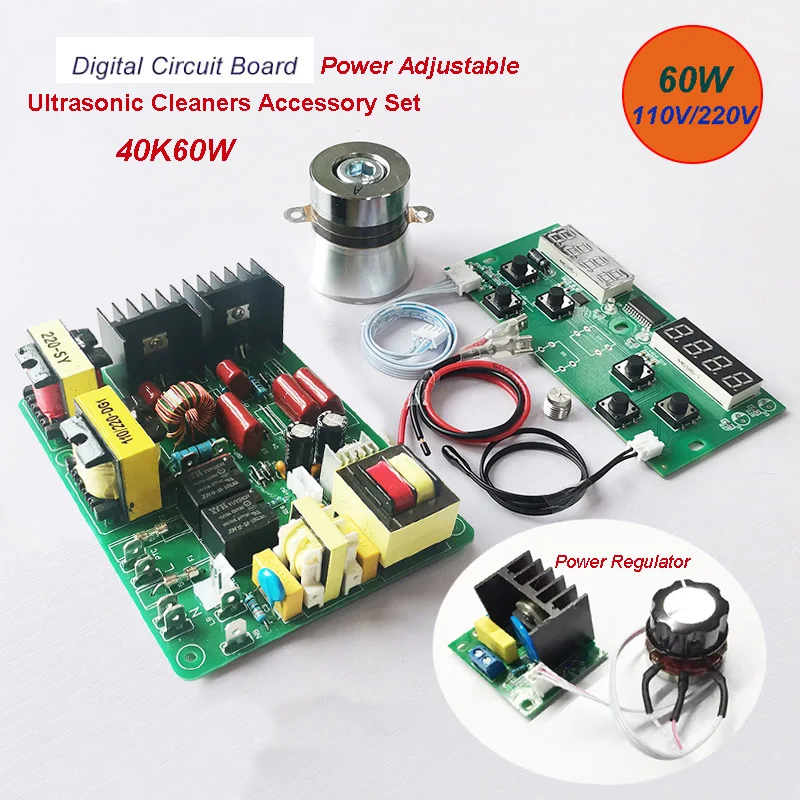

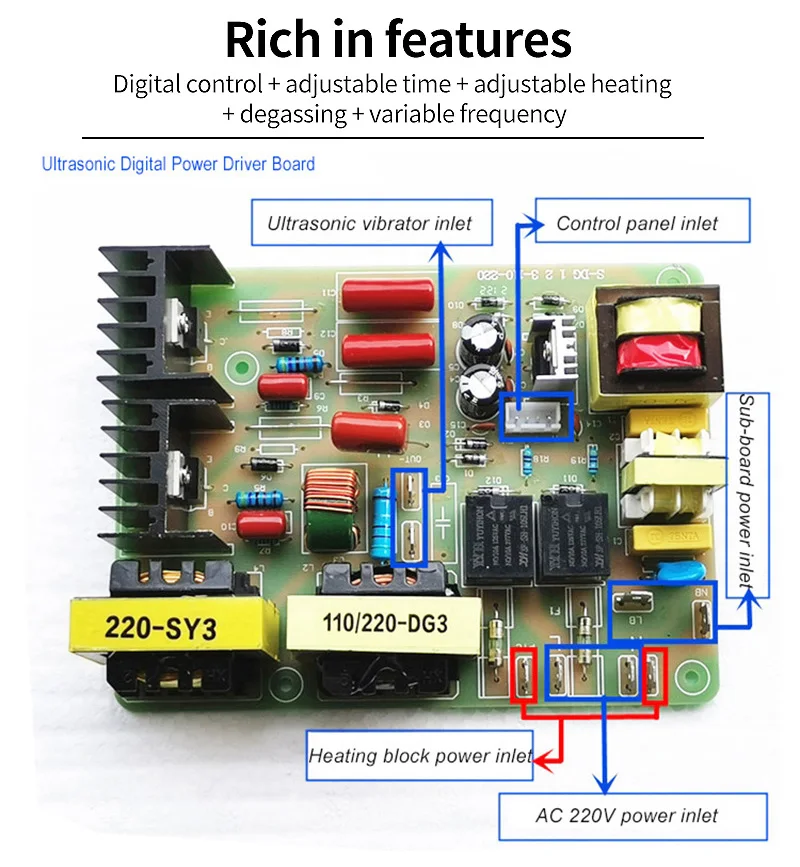

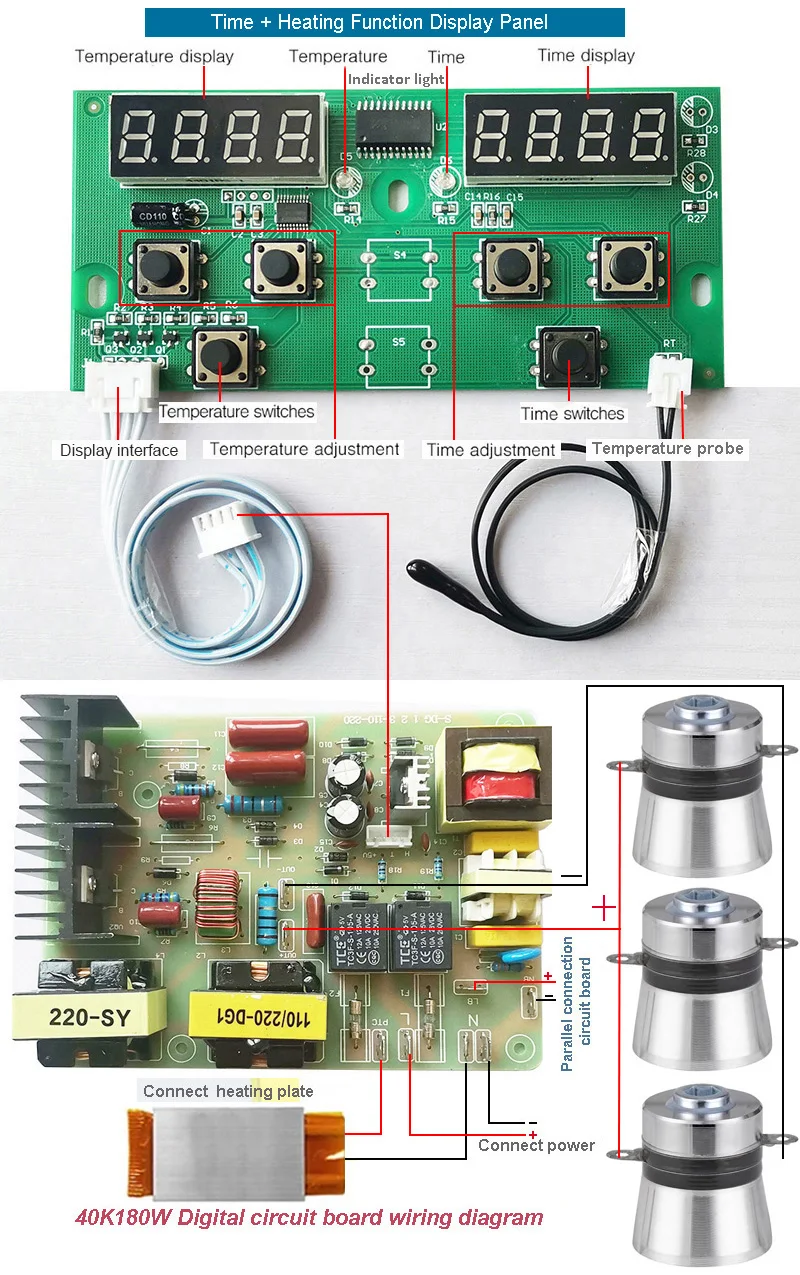

Size of PCB generator (Digital version which can connect the display panel) | 140mm*105mm*40mm working time(0-30mins) and temperature can be adjusted by display panel | |
Get More Free Technical Informations How to Build High Quality Ultrasonic Cleaner ! ----- Contact Us Now | ||
Some Common Technical Problem of Ultrasonic Generator
& The ultrasonic generator can't power on under no-load condition.
& After installed, we can not power on until lay cleaning fluid.

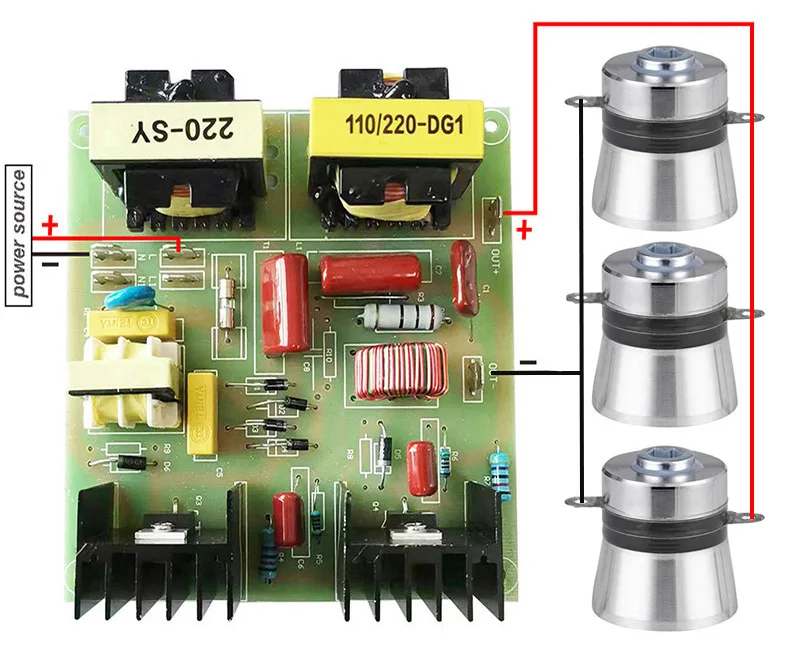

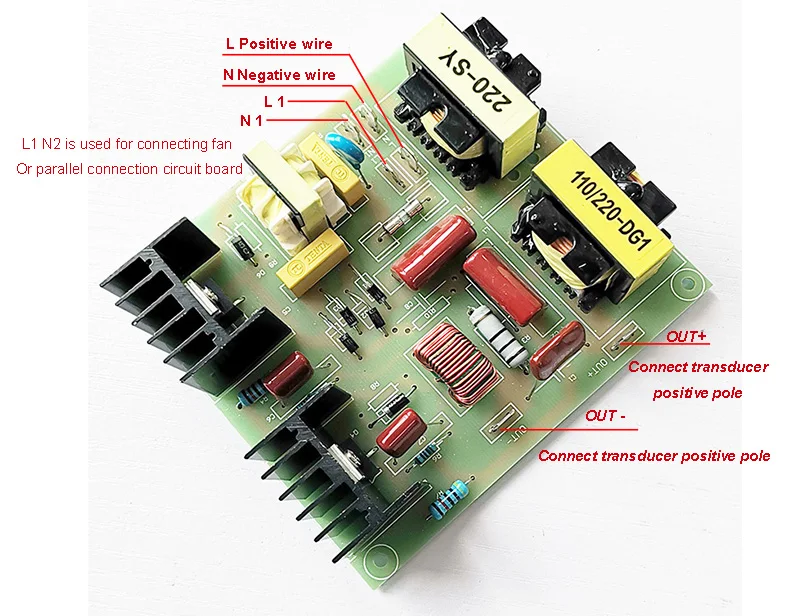

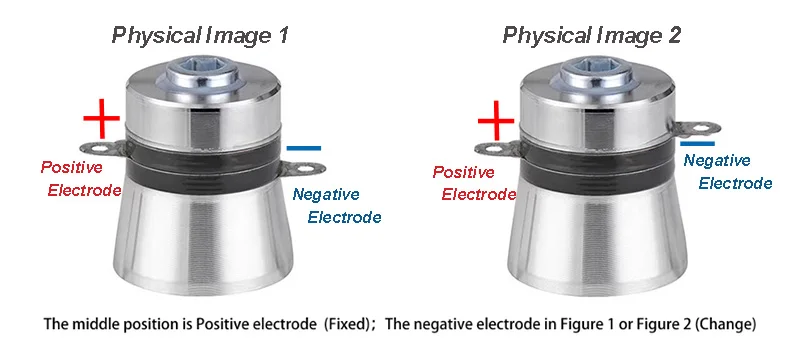

& Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower metal column. Please do not make wrong when wiring.

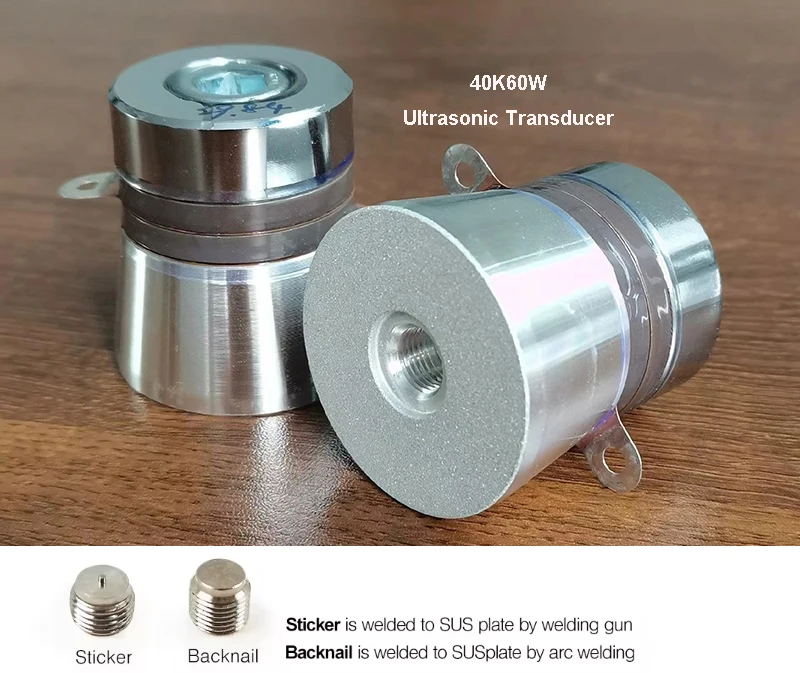

& The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning machine. And please make sure the cleaning machine is safely grounding
& The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick. but the effect is a bit poor, or use epoxy resin with proportion of 10:4.
& The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v.Please ensure the cleaning machine is safely grounding. Please make sure leakage protection switch assembled on the power supply in
Related Products
Product Application
Wide Application Range:
Ultrasonic Cleaners in Scientific Labs, Ultrasonic Cleaners in Industrial Manufacturing,Ultrasonic Cleaners in Electronics Manufacturing ,Ultrasonic Cleaners in Medical & Dental Labs Ultrasonic Cleaners in Jewelry Manufacturing Ultrasonic Cleaners in Auto Indus.
Company Profile
FAQ
Q: Are you ultrasonic generator manufacturer or trader?
A:Yes, we are manufacturer.
Q: What is the MOQ of ultrasonic generator ?
A: 1pcs as you need.
Q: Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: When will you send out the ultrasonic generator after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
Q: How about the quality guarantee period of ultrasonic generator ?
A: One year!
Q: How can you guarantee the production quality?
A: We have more than 12 years production experience and we have strictly quality
control system in our production process. 2times inspection for each ultrasonic generator before the delivery.
Q: What is the MOQ of ultrasonic generator ?
A: 1pcs as you need.
Q: Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: When will you send out the ultrasonic generator after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
Q: How about the quality guarantee period of ultrasonic generator ?
A: One year!
Q: How can you guarantee the production quality?
A: We have more than 12 years production experience and we have strictly quality
control system in our production process. 2times inspection for each ultrasonic generator before the delivery.
