Светодиодное освещение для выращивания растений, полный спектр, для многослойных систем выращивания овощей

Share on (60691875271):


Price:19,95 $

Quantity:


Product Overview

Description


Specification

---RX-PT5-M

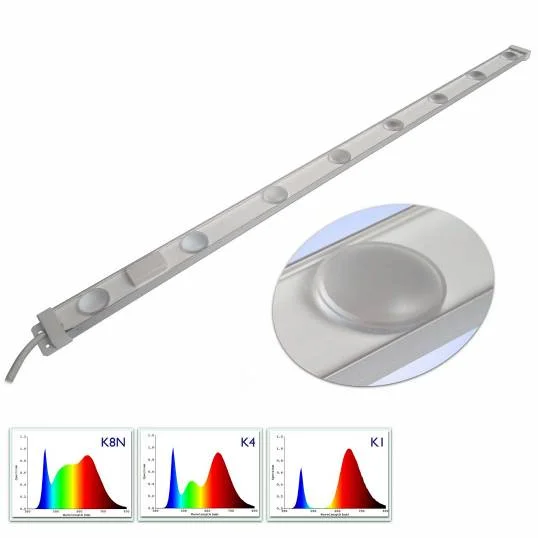

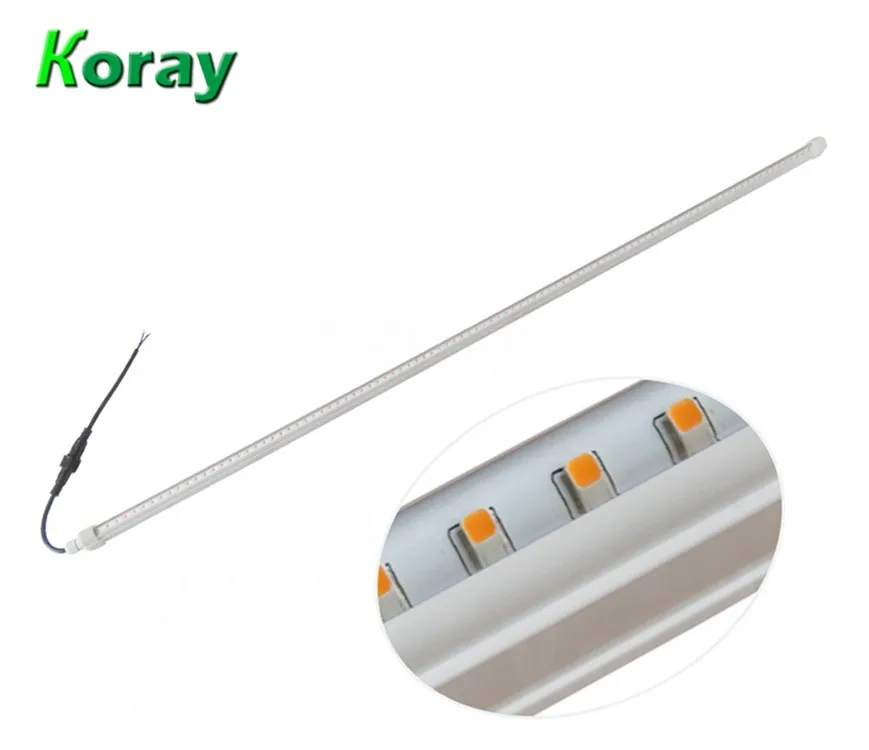

plant factory special economic plant light tube, used for shelf structure plant factory, 50% energy saving than ordinary T5 lamp, you can create your plant factory with fewer lights, New design patent product waterproof IP64, suitable for the cultivation of seedlings and vegetable vegetative growth, is ideal for plant factories and home planting.

\t
Description
\t
Model Number
\t
RX-PT5-M
\t

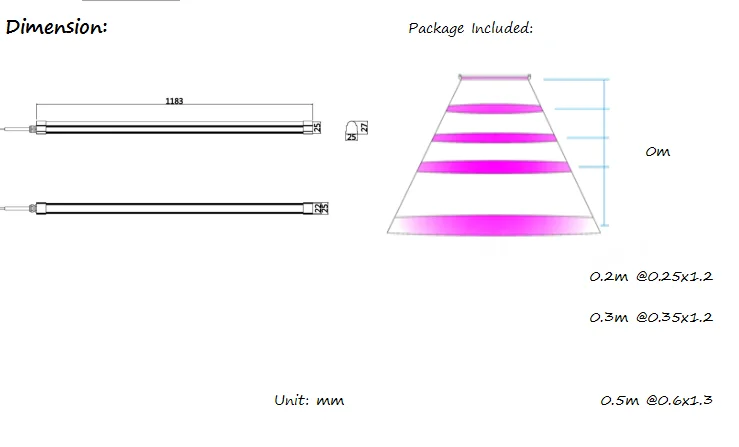

Dimension
\t
22x25x1183mm
\t
Power
\t
18W,  AC100-240V
\t
Beam Angle
\t
60°
\t

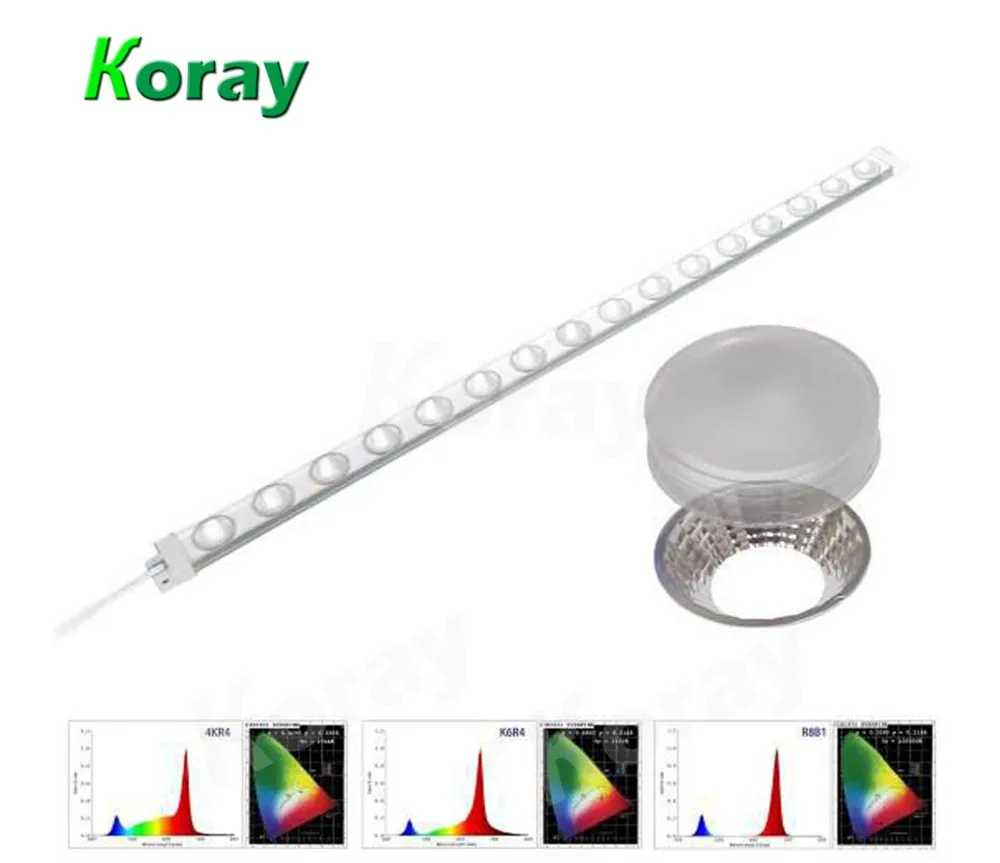

Spectrum
\t
K6  6k6R1B1  6K2R6
\t
Temperature Rise
\t
28K
\t
Working Lifetime
\t
50000H
\t
Model
\t
RX-PT5-K6
\t
RX-PT5-6K6R1B11
\t
RX-PT5-6K2R6
\t
Dimension
\t
22x25x1183mm
\t

CRI & Color temperature
\t
Ra 90
9000K
\t
Ra 63
3000K
\t
Ra 89
2500K
\t
Photon PPFD
µmol/m²/s
\t
92µmol @0.2m 4463Lx
60µmol @0.3m 2895Lx
30µmol @0.5m 1465Lx
\t
108µmol @0.2m 6351Lx
68µmol @0.3m 3973Lx
35µmol @0.5m 2007Lx
\t
110µmol @0.2m 4293Lx
70µmol @0.3m 2752Lx
36µmol @0.5m 1403Lx
\t
Luminous flux
Radiation Power
\t
1134Lm
\t
1649Lm
\t
1124Lm
\t
Power Input
\t
18W,AC100-240V
\t
Comment
\t
Ornamental plants
General Spectrum
\t
Tissue culture,Nursery, rhizome plants ,Aquarium
\t
Leaf vegetable production
\t
Surface temperature rise Tc 28 K, Operating temperature: -30 °C ~ 40 °C, Lifespan: 50,000 hrs (Note: Ta ≤ 25 °C)
Tolerance range for optical and electrical data: ± 10%.
Beam angle: 60° Recommended irradiation distance: 0.2~0.5m( Tissue culture and nursery) 0.1~0.3m (Vegetable production)

Unparalleled Advantages---You'Re Worth It

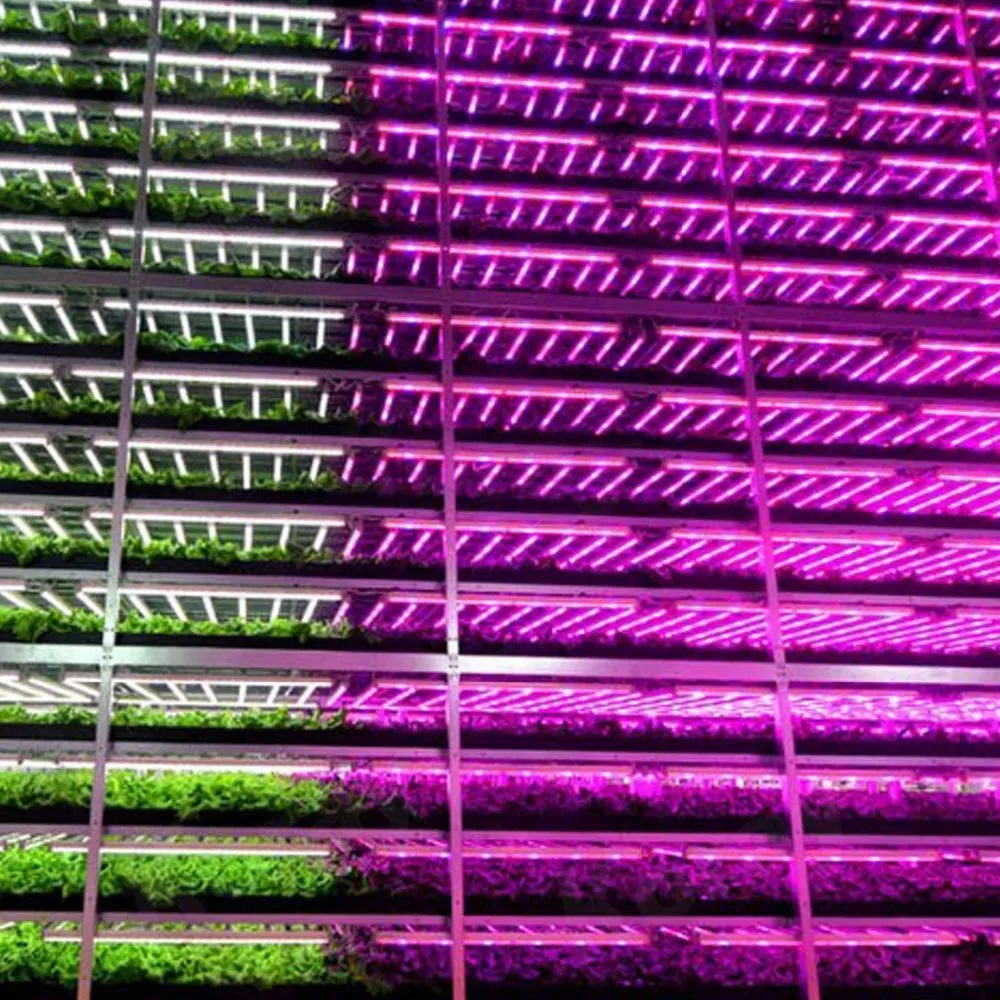

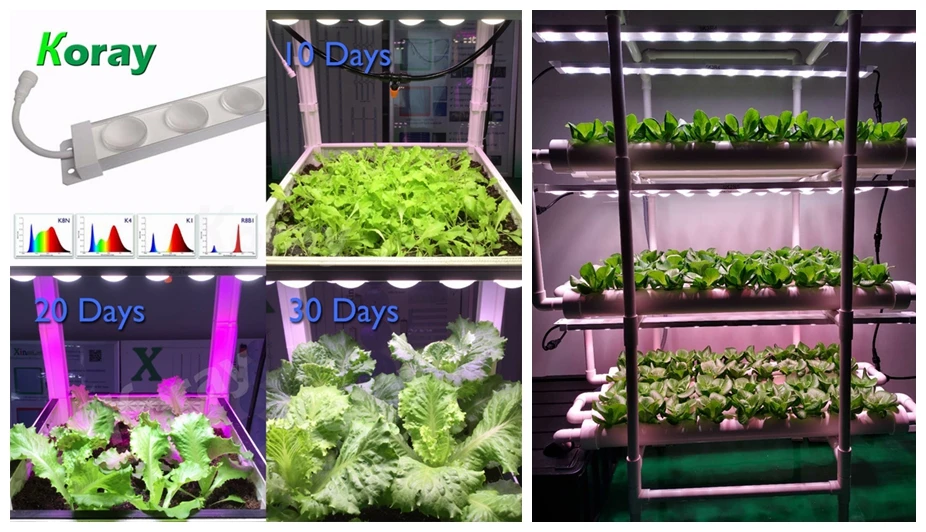

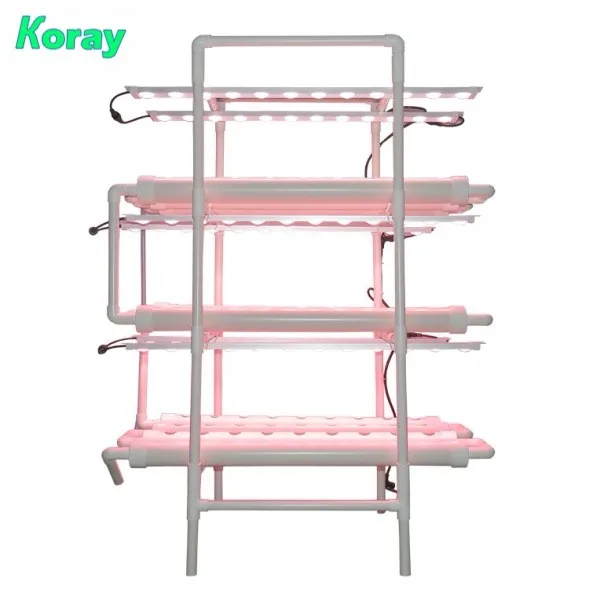

1.Urban Vertical Agriculture - High cost performance plant factory grow tube

2.High PPFD, One tube equivalent to 2 T5 Tube, Build your plant farm with fewer lights!

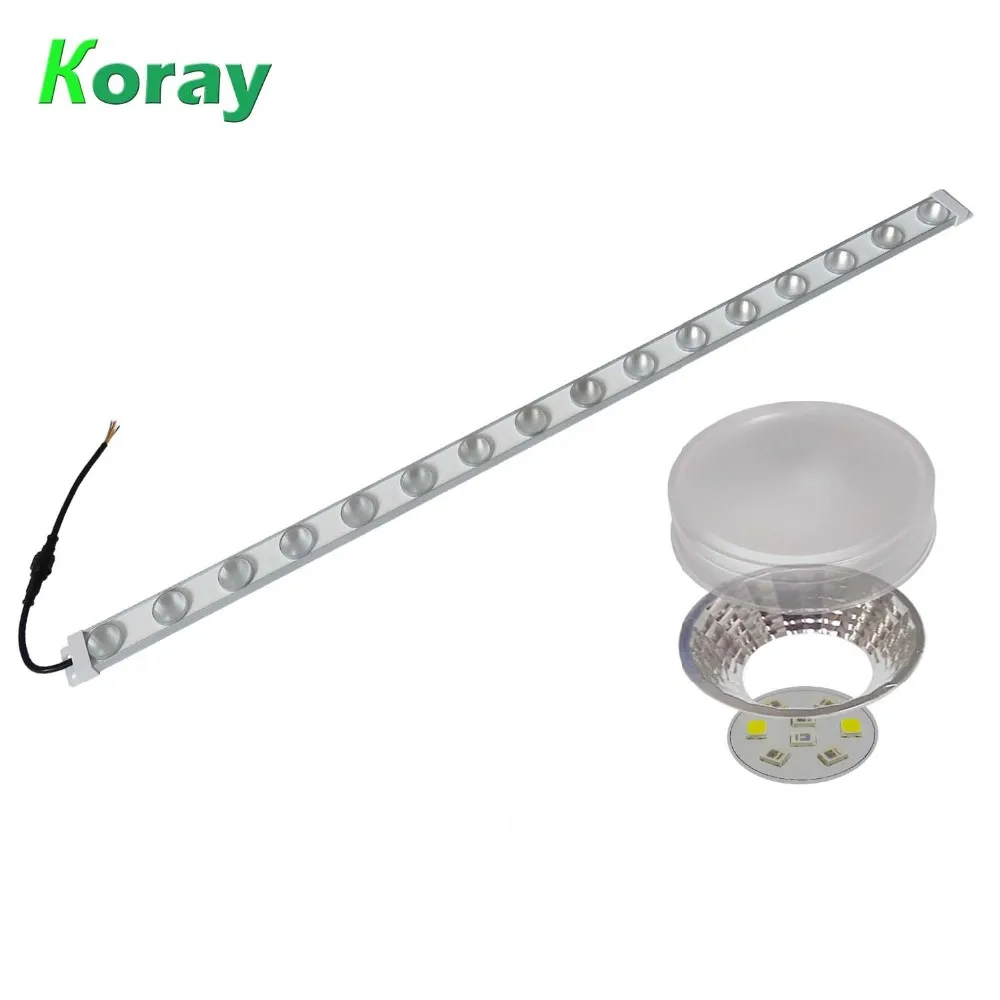

3.Patented one-piece condenser lens, high PPFD, shelf planting, more than 50% energy saving than T5 and T8 lamps

4.Meet the safety requirements around the world

5.Height 25mm,multi-shelf lighting plant growth lights

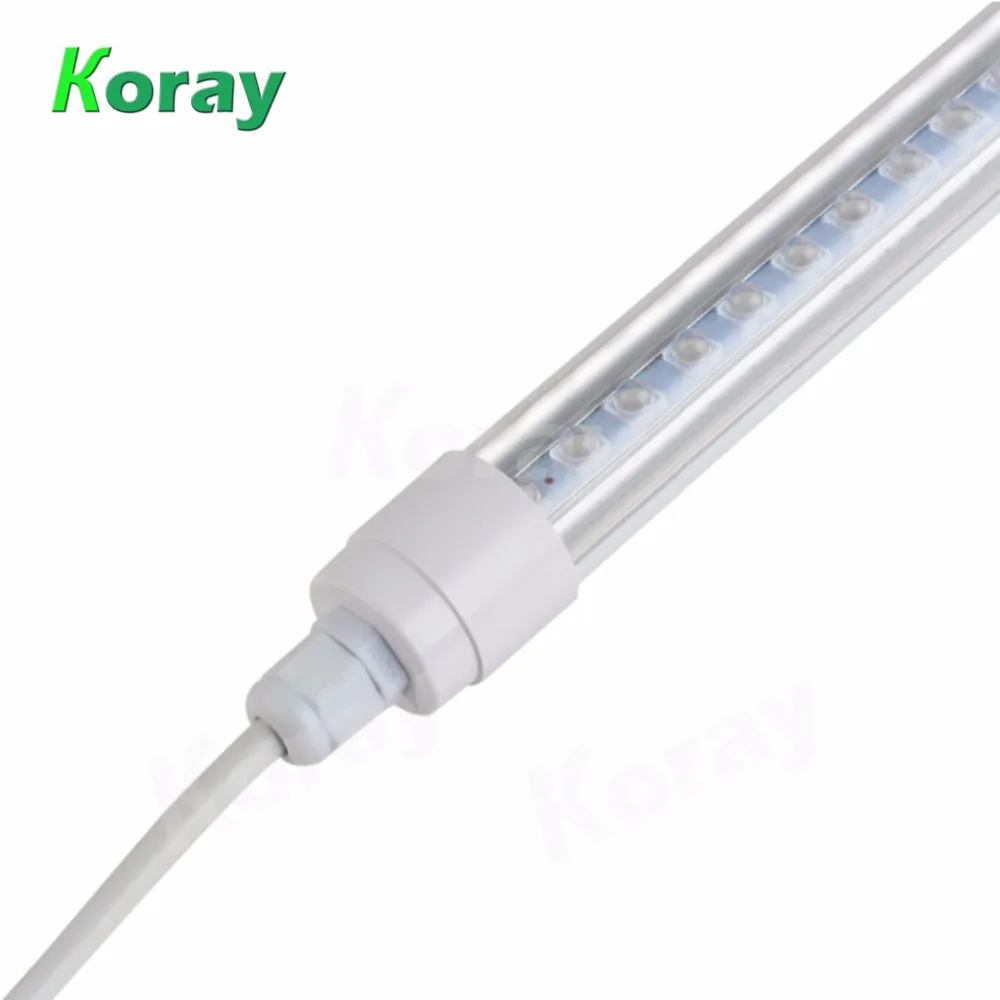

6.Waterproof IP64, Water splashing against the enclosure from shall have no harmful effect

7.Input: AC100 ~240V, Rated power 18W

8.Lifespan: 25000hours

9.CE RoHS FCC


-----Suitable for various kinds of plant cultivation and


----especially for high-density shelf structure Plant Factories.

Related Products
                                                                            RX-GW45-DC980-22W
Suitable For Various Kinds Of Plant Cultivation Especially For High-Density Shelf Structure Plant Factories.

GWB-108-Indoor Hydropoincs system

For Vegetable Cultivation, Flower Cultivation, Ornamental Plant Cultivation, Succulent Plant Cultivation, Waterproof Design, Especially For Plant Cultivation Of Greenhouses

RX-GW45-AC120-20W   Horticulture LED Tissue Culture Module

Suitable For Lighting in plant factories with multi-layer cultivation systems

  RX-GW45-120-4H   LED Grow Module

 4 individual spectrum channels design, Adjust the spectrum you need.

RX-GW28-250250-30W

Suitable For Lab Plant Factory Germination And Planting.

RX-GW45-X60W-4K2R4B1

Suitable for Fruits and vegetables, medicinal plants, flowers and plants

RX-GW28-YT8-K4-24w

Universal type plant light ,The vast majority of plants and vegetable cultivation

Basic Knowledge


It's wrong concept brightness and illumination of grow light.


Here below it's explanation;


PPFD (Photosynthetic Photon Flux Density): the PPFD plants completely irrelevant to Lux and Lumen.

PPFD is the important data of photosynthesis. According to PPFD to make out perfect light for plants. What plant needed is the light quantum in chlorophyll Effects of photosynthesis. Lux and Lumen is for human Perceiving.

Luminous flux and illumination of grow light:

Lux and Lumen is human Perceiving. It's not for grow light. If someone calls lm/w or lux for grow light, so he is not in the field or unprofessional.

PPFD it’s for grow light .Unit: µmol.m­²s­¹

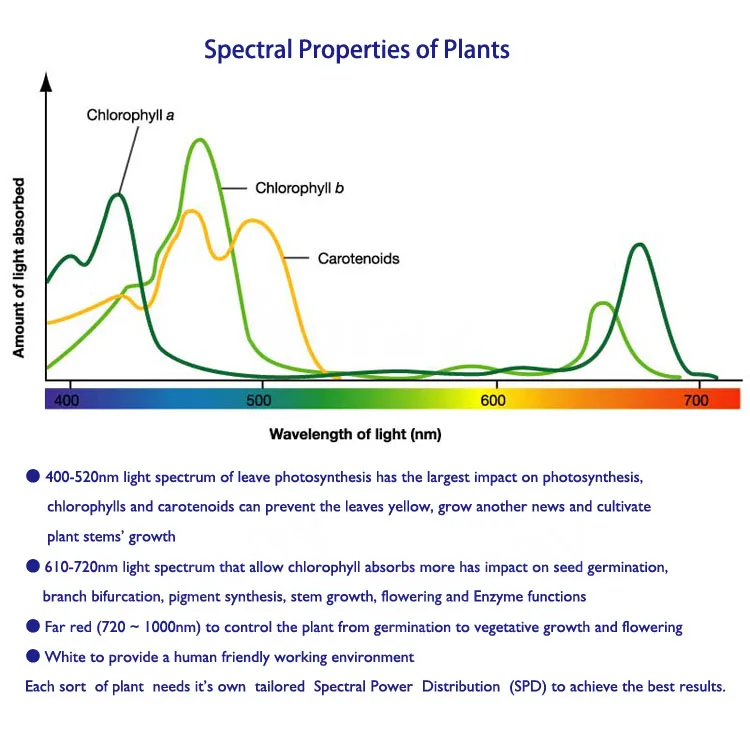

Full spectrum-Simulated Solar Light

Some manufacturers extend the spectrum to red +blue+ other wavelength. Its not real full spectrum.

Not only higher CRI of plant photosynthesis is better. The green wavelength is useless and wasted .

But in some Ornamental plants high CRI can shows real color .

Using high CRI grow light for Ornamental planets, It will takes a good effect when the grow lights works in 660nm red part has to be strengthened.

LCP(Light compensation point): LCP is the lowest photosynthesis demands of PPFD unit : µmol.m-²s-¹.its effective only when PPFD exceed LCP.

LSP(light saturation point ): When PPFD reaches a certain intensity, the photosynthetic rate will no longer be increased. This is call PSP of PPFD.

FAQ

Q1. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100-200pcs.


Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1pcs for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.


Q5. How to proceed an order for LED light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6. How to send the Payment ?
A: Bank transfer, Western Union, Paypal, Credit Card and Cash is also acceptable.


Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
