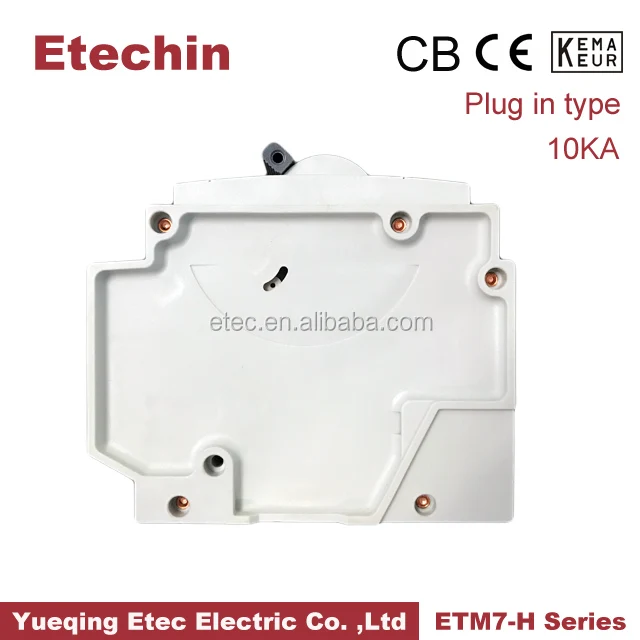

ETM7 3P KEMA Mini Circuit Breaker
ETM7 3P KEMA Mini Circuit Breaker
ETM7 3P KEMA Mini Circuit Breaker
ETM7 3P KEMA Mini Circuit Breaker
ETM7 3P KEMA Mini Circuit Breaker

ETM7 3P KEMA Mini Circuit Breaker

Share on (60691904642):


Price:

Quantity:


Product Overview

Description


Product Description

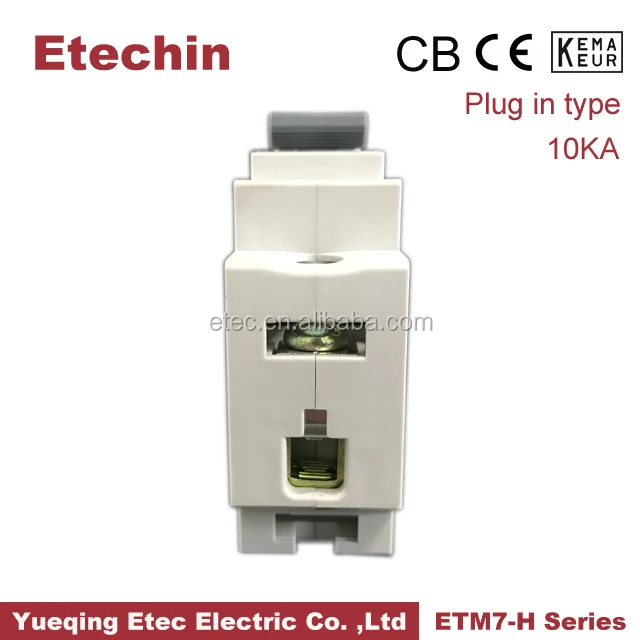

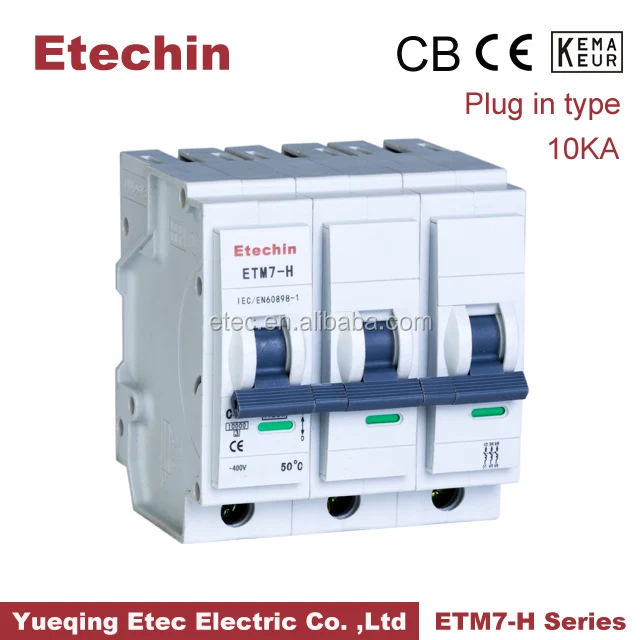

ETM7 Sereis Mini Circuit Breaker were design with 10/6KA breaking capacity. And it was approved by KEMA type tested under EN/IEC60898-1.  and mainly used for protection against overload and short circuit.  And they could install after the ELCB in the circuti to protect the electric safe.

\t
Technical date
\t
  Certificate
\t
KEMA/DEKRA/CE/CB
\t
  IEC/EN 60898-1
\t
\t
   Rated current in
\t
1,2,3,4,5,6-63A
\t
   Poles
\t
1,2,3,4,1+N  Poles
\t
   Rated voltage Ue
\t
110,127,230/400,240/415V
\t
   Insulation coltage Ui
\t
500V
\t
   Rated frequency
\t
50/60Hz
\t
   Rated breaking capacity
\t
10KA,6KA
\t
   Rated impulse withstand voltage (1.2/50)Uipm
\t
6000V
\t
   Dielectric test voltage at and ind.Freq.for 1min
\t
 2  KV
\t
   Pollution degree
\t
 2
\t
   Tripping curve
\t
B,C,D
\t
   Electrical life
\t
above 4000
\t
   Machanical life
\t
 above 10000
\t
   Contact position indicator
\t
 Yes
\t
   Protection degree
\t
IP 20
\t
   Reference temperature of setting of thermal element
\t
30 or 50 °C
\t
   Ambient temperature(with daily average≤35°C)
\t
 -5~+50 °C
\t
   Storage temperature
\t
 -25...+70   °C
\t
   Terminal connection type
\t
Plug in type
\t
   Terminal size top/bottom for cable
\t
 25MM
\t
   Terminal size top/bottom for busbar
\t
 25MM
\t
   Tightening torque
\t
 3.0 N*m
\t
   Mounting
\t
OnDIN rail FN 60715(35mm)
\t
   Connection
\t
From top and bottom
Our Company

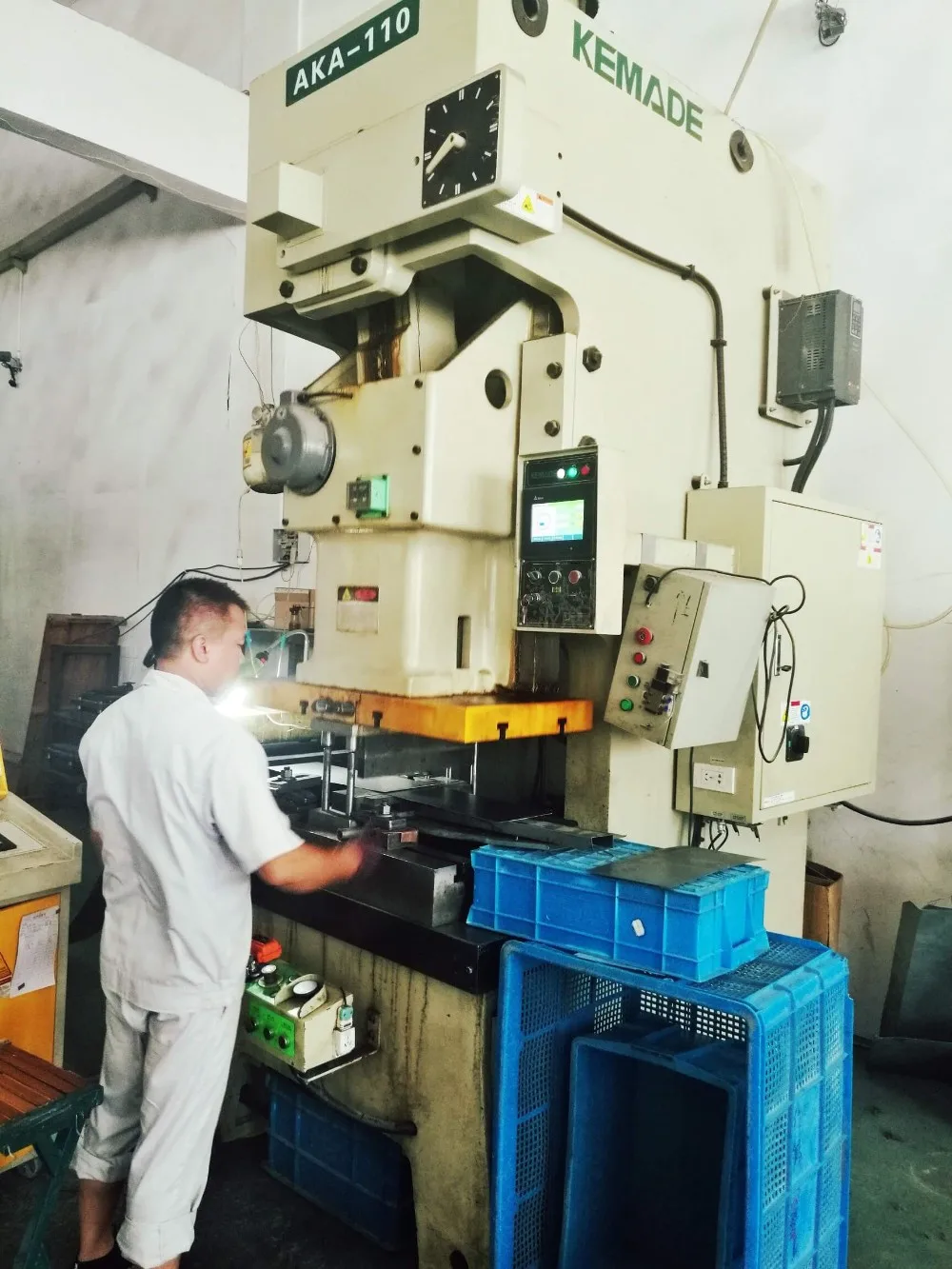

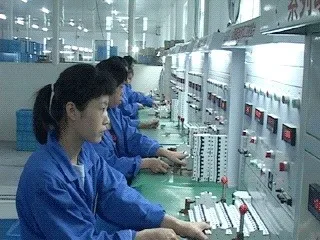

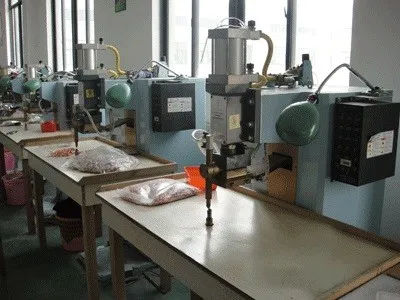

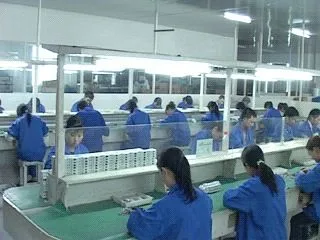

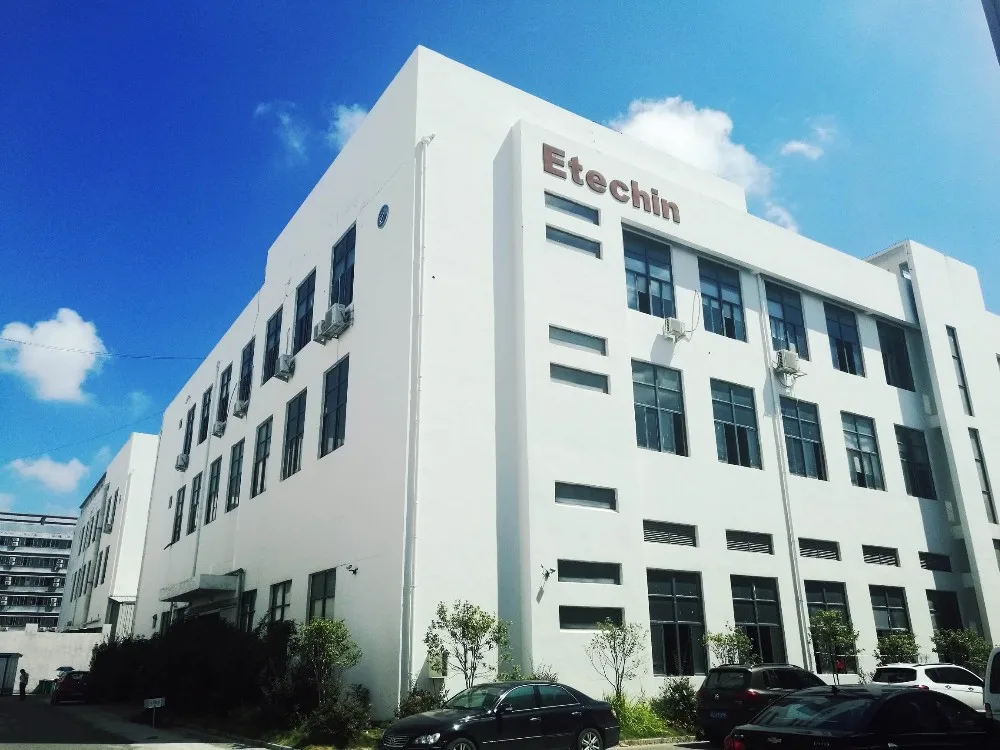

Our company named Yueqing Etec Electric Co.,Ltd(Etechin Electric), take 21,000 plant area with more than 100 emploees, and 10 R&D unders ISO9001 management standard.  And products approved by KEMA type Tested.

As the manufacturer, we do well in the customization in Mini Circuit Breaker, Distribution board, pan assembly and so on.

With 15years of manufacturering and export experience along with excellent quality, advanced services and competitive prices, We has won numerous customers' trust and support.

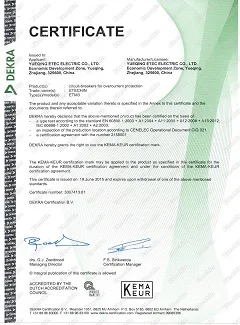

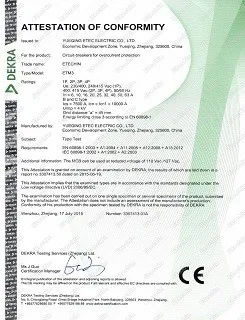

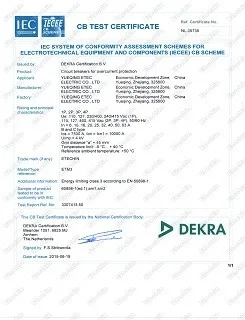

Certifications
Packing & Delivery

Packing

Blank without brand box and carton, or to be negociated

Delivery

25-45days,  or to be negociated
FAQ

Q:Are you a manufacture factory?
Yes, we are professional in manufacturing low voltage electric products for 15 years, special owned high quality control team to ensure every detail.

Q. What advantages do you have?
Etechin are the Manufacturer in Wenzhou China from 2003, and approved ISO9001,KEMA,Dekra,CE,CB, SASO.  we professional in developing, marketing & producing MCB, Distribution board and pan assembly.

Q:What’s your main product?
Circuit breaker, Final distribution board, Consumer unit, Pan assembly

Q: Can I get a sample before the order because I really don’t know how is your quality?
Of course! We also agree that sample order is the best way to build the trust for our cooperation.
Q: Does your products can print a logo?
Our company are available for Retail & Wholesale & OEM & ODM.
Q: What's your warranty?

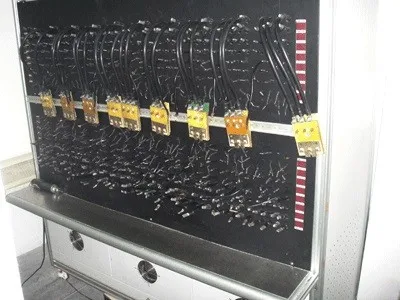

Normally 3 years, or customized products need be negociated. Our  circuit breaker will be inspected

3 times in 100%. and one time spot inspection by the standard test.
Q. What is your payment terms?
Our Payment term is T/T, , Western Union, PayPal, , L/C at sight,other to be negociated
Q. Any certification of your company or product?
We have ISO 9001,KEMA,Derka,CE,CB,
