Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit
Manufacturer for Steel Rigid/EMT/IMC electrical conduit

Manufacturer for Steel Rigid/EMT/IMC electrical conduit

Share on (60691917802):


Price:

Quantity:


Product Overview

Description



Product Description




                         CAT#
Nominal Diameter
Outside Diameter
Wall Thickness
Length
Weight
Inch
Inch
mm
Inch
mm
FT
mm
KG/PC
XKCR-12
1/2"
0.84
21.3
0.104
2.6
10
3050
3.72
XKCR-34
3/4"
1.05
26.7
0.107
2.7
10
3050
4.94
XKCR-1
1"
1.315
33.4
0.126
3.2
10
3050
7.3
XKCR-114
1-1/4"
1.66
42.2
0.133
3.4
10
3050
9.89
XKCR-112
1-1/2"
1.9
48.3
0.138
3.5
10
3050
11.93
XKCR-2
2"
2.375
60.3
0.146
3.7
10
3050
15.87
XKCR-212
2-1/2"
2.875
73
0.193
4.9
10
3050
25.35
XKCR-3
3"
3.5
88.9
0.205
5.2
10
3050
32.97
XKCR-312
3-1/2"
4
101.6
0.215
5.5
10
3050
39.91
XKCR-4
4"
4.5
114.3
0.225
5.7
10
3050
46.71


Notes: Application tolerance
Length:10FT±0.197inch, 3050mm±5mm
Outsider Diameter:1/2’’ to 2’’±0.015inch.(21.3mm to 60.3mm±0.38mm)
2-1/2’’ to 4’’±0.025inch.(73mm±0.64mm)
5’’ to 6’’±1%



Detailed Images

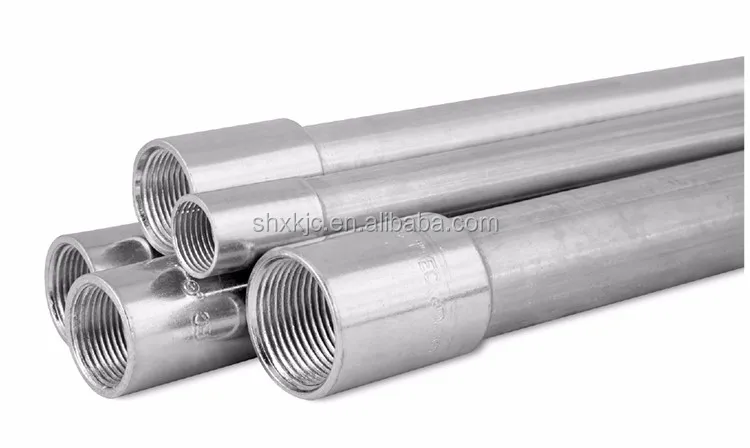

Features of our metal steel conduit rigid:
1.through the electrical wires with the purpose of protection for the electrical raceway system.
2.pre-galvanized / hot dip galvanized / costomer's request.
3.uesd for chemical industry, machinery, construction, untilities, shipbuilding,oil field...

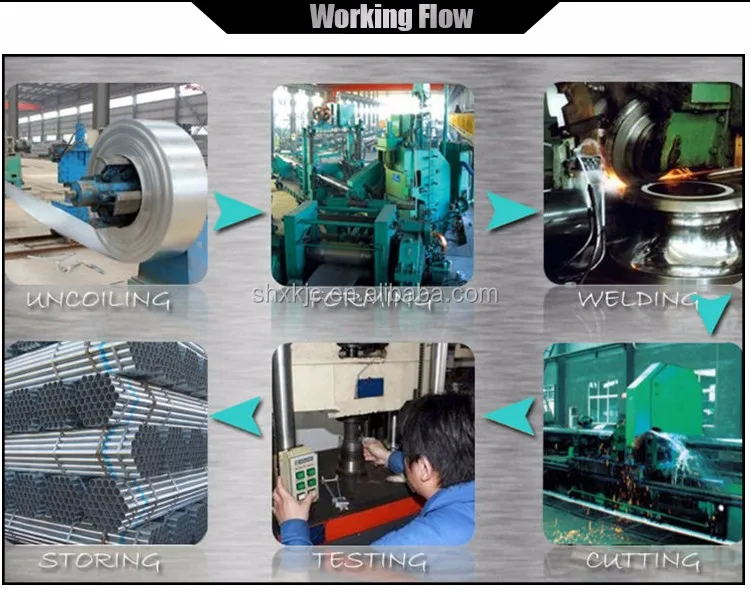

Working flow




Packing & Delivery




Application

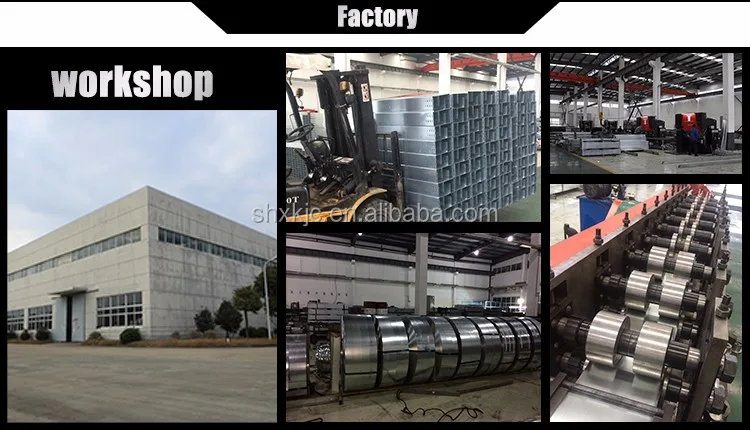

Our company


Brief Introduction of China XIAOKAI:

Shanghai Xiaokai Building Material Co.,Ltd is a professional manufacturer which specializing in manufacturing and selling the modern constructive conduits, cable trays and C purlin and other relative products. The company located in the famous financial city – Shanghai.

Main products including: HDG conduit, GI conduit, GI C purlin, SS cable tray, GI cable tray and others. Our products could be manufactured according the BS, UL, AMSI, JIS and GB standard which is widely used in the markets, hotels, power plant, underground construction and mansion. etc

Shanghai XK building Material Co.Ltd has won great reputation over the world , Our production has been exported to Russia, Korea, Japan, Saudi Arabia, United, Australia, etc, and get well appreciated by the clients, Our target is offer the best quality and service forever.






Eight Advantages:
1. Φ16-Φ114mm full automatic steel conduit production line.
2. As a manufacturer, we could delivery more faster, 10days for a 20ft container.
3. Competitive price, comparing with the distributor and warehouse, we are more cheaper.
4. Faster and effective solution to problem.
5. Importing the American advance metal cold roll forming technology, high product capacity; high precision.
6. Using PLC control system for cutting the sizing products.
7. Automatic production line for printing the code.
8. Master the advance Techniques, use the well-equipped facility.







Our Service


Xiaokai Company’s mission“To give the best Service, Superior quality, Competitive prices fit for the needs and demand. Lead market trend.’’
Best quality and reasonable price will be provided.We can produce the steel conduits according to your samples or drawings, we also can make them with your own brands.Our factory can makes all kinds of conduits and conduits fittings.
Steel Thinwall conduit is easy to cut and easy to bend - reducing waste and installation time. Metal conduit is non-combustible and easily adaptable to future wiring changes. Metal conduit is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%.

You can be assured that we provide good quality and fast, consistent, For off-the-shelf orders we can provide:
>rapid quotes.
>computerized estimates.
>customized packaging.
If you're looking for more than an off-the-shelf product, we can help you by providing:
>design assistance.
>special plating.
>fasteners from a variety of materials.
>real solutions for difficult applications.







FAQ & Connection


1.Q.Are you a factory or not?
A.Yes we are a leading pipe manufacturer whose factory in Shanghai. Welcome to visit our factory.
2.Q.How about the Delivery Time?
A.The products will be produced since we get your deposit by T/T or your original L/C.For normal sizes,some stocks in our factory now,we can supply once you need.
3.Q.What kind of payment does your company support?
A.T/T,100% L/C at sight,Cash,Western Union are all accepted.
4.Q.What's your warranty?
A.Free samples;mill test certificate;shipping inspection or any third party inspection in your site.
5.What's your advantages ?
More than 100 employers who work at our factory.Key projects: the 2008 Olympic games venues,the 2010 Shanghai world expo exhibition hall,the capital international airport,etc.
