Cinterion MC55I m2m industrial gprs gps gsm rs232 modem for Vending Machine,Control System,Telemetry

Product Overview

Description

Cinterion MC55I m2m industrial gprs gps gsm rs232 modem for Vending Machine,Control System,Telemetry



General features

Industrial design
Aluminum casing
Wireless access to internet
Based on Cinterion(Siemens) module MC55i
with TCP/IP stack
Internet Services: PPP,TCP, UDP, HTTP, FTP, SMTP, POP3
850/900/1800/1900MHZ
Compliant to GSM phase 2/2+
Output power:
Class 4 (2 W) for EGSM850-1800
Class 1 (1 W) for GSM900-1900
Control via AT commands
SIM Application Toolkit
Supply voltage range: 7-30 V
Temperature range
Normal Operation: -20°C to +70°C
Restricted Operation: -25°C to +75°C
Switch off: +80°C
Storage: -40°C to +85°C
Size 65*74*33mm
Weight 95g

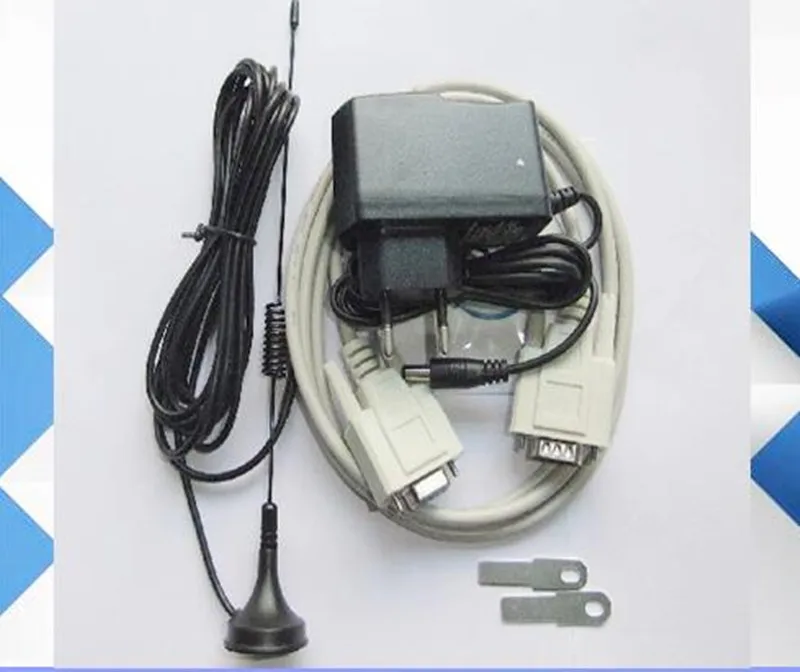

Accessories: AC/DC adaptor, RS232 cable, antenna with 3-meter cable and
magnetic stand
Specification for GPRS data transmission
GPRS class 8: max. 85.6 kbps (downlink)
Mobile station class B
PBCCH support
Coding schemes CS 1-4
Specification for CSD data transmission:
Up to 14.4 kbit/s
V.110
Non-transparent mode
USSD support
Specification for SMS
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for fax
Group 3, class 1, 2
Specification for voice
Triple-rate codec for HR, FR and EFR
Basic hands-free operation
Echo cancellation
Noise reduction

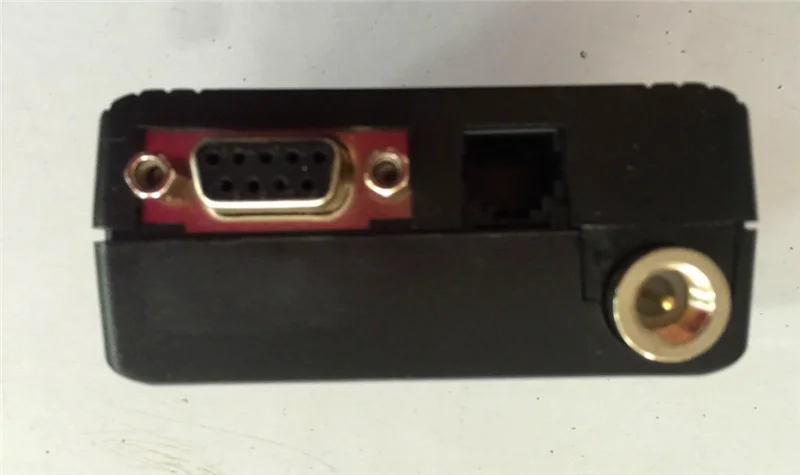

Interfaces
Antenna connector FME (male)
Plug-in power supply
Handset audio interface
Mini-SIM card reader
V.24/V.28 interface on the 9-terminal
Sub-D socket
Operating status LED
