factory supply of DYDLF15L hydraulic solenoid valve 24V for forklift

factory supply of DYDL-F15L hydraulic solenoid valve 24V for forklift

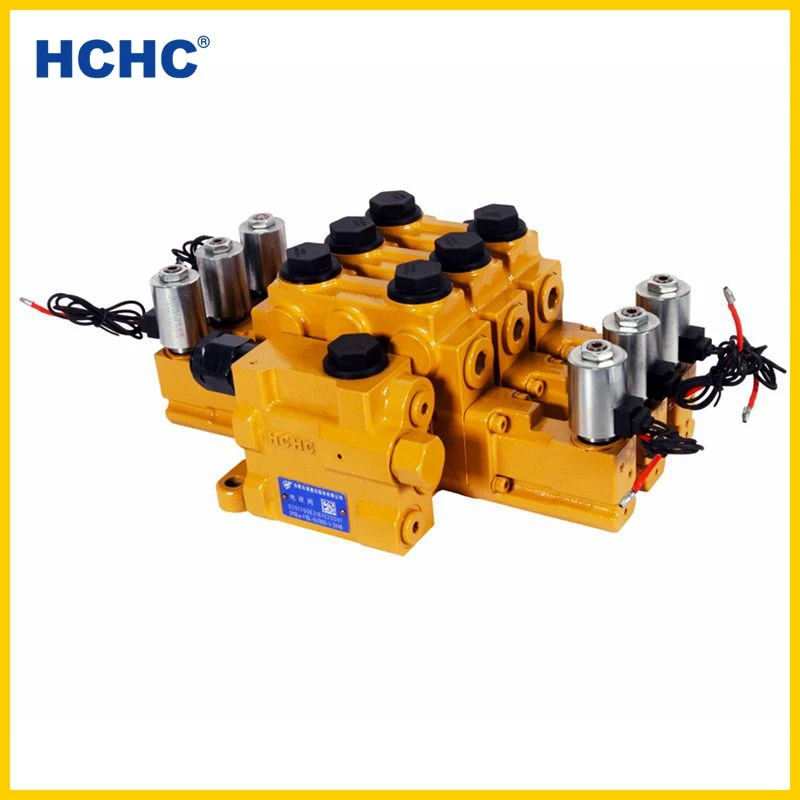

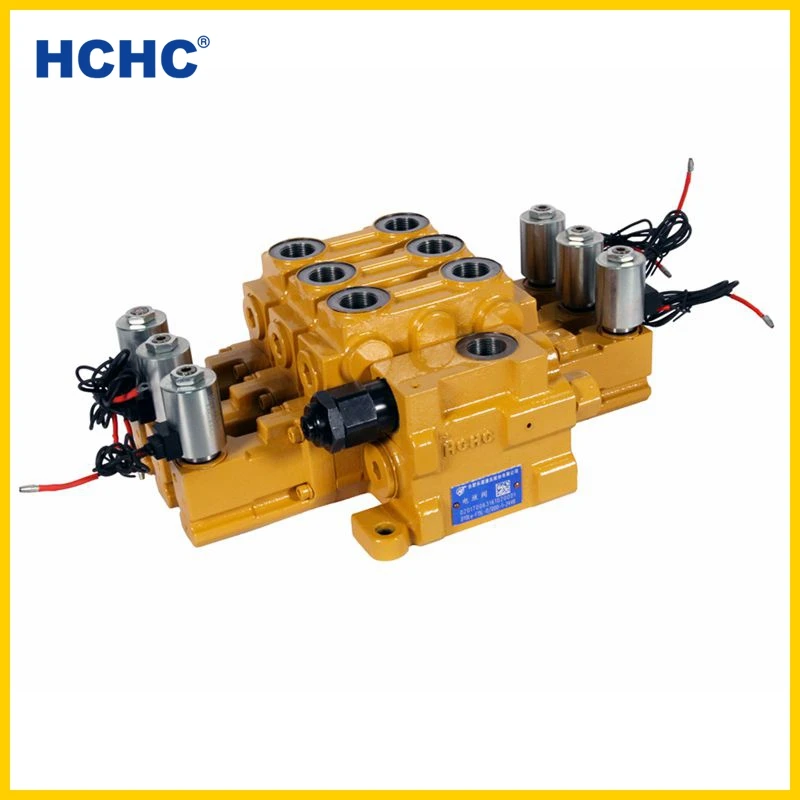

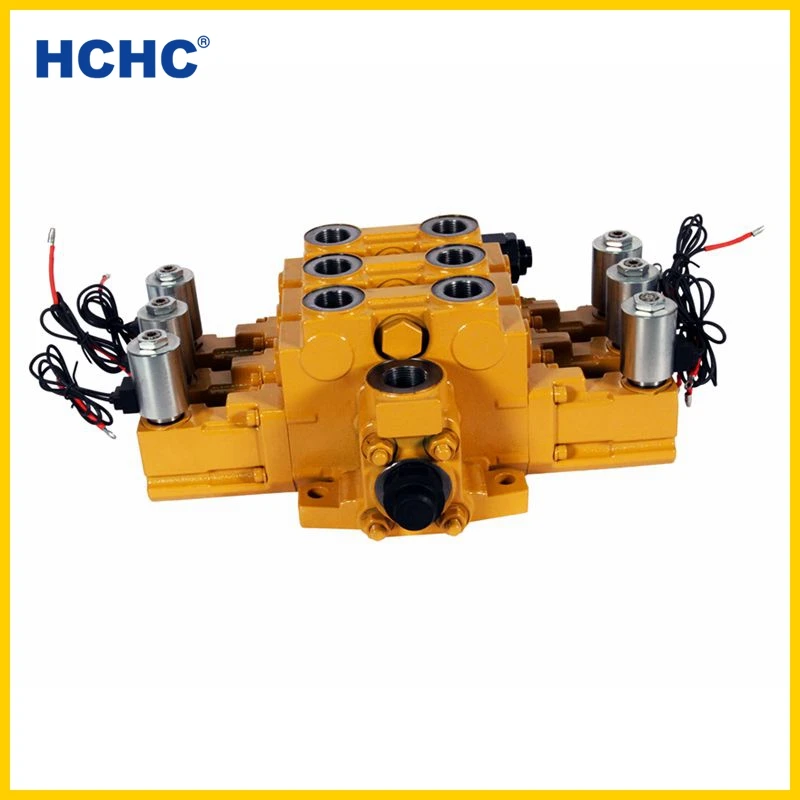

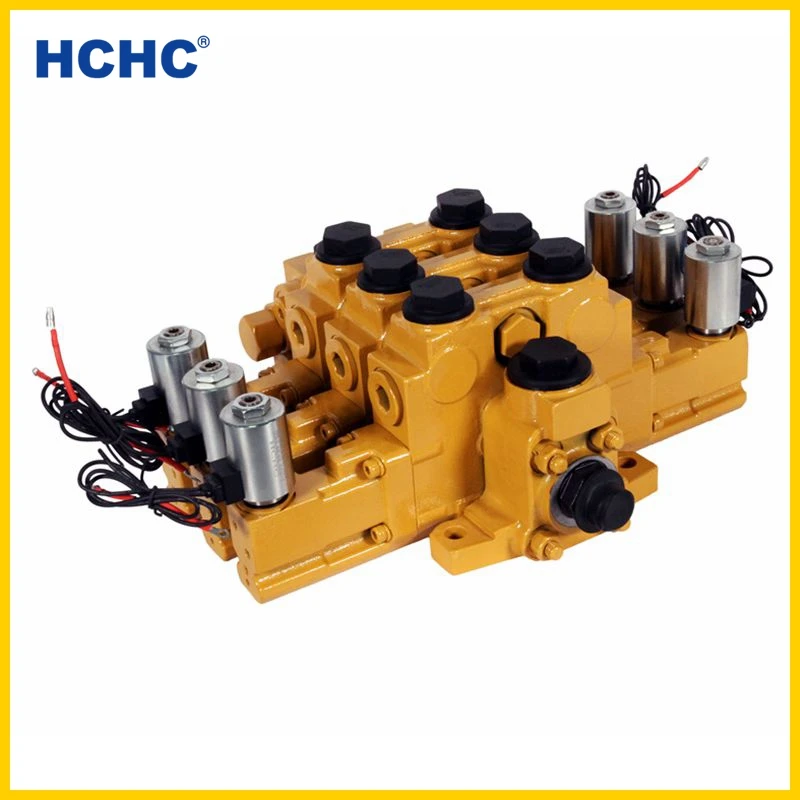

Multi-direction valve DYDL-F15L is a combination of solenoid valve, pressure reducing valve, overload valve, oil filling valve, relief valve, throttle valve and multi valve. The oil circuit can implement parallel, series and series parallel combination to meet the needs of different complex systems. Equipped with 2 control methods, electro-hydraulic type and manual type, it can implement remote control.

It is featured with full function, high safety, compact structure, advanced & reliable performance and easy to repair and maintain, widely applied to the hydraulic system of self-handling compressing garbage truck, heavy-duty transport machinery, mining machinery and sanitation equipment.

Internal pressure reducing valve: the oil inlet section with pressure reducing valve to provide the pre-oil source.

Internal check valve: each valve section has an internal check valve to prevent the oil backflow.

Electro-hydraulic and manual control: equipped with electro-hydraulic control and manual control, not only carry out remote control, but also easy to test and emergency usage.

Reversing cushion: set the flow adjustment function in the pre-returning oil circuit, to make the valve shaft move smoothly and reduce the impact of oil reversing.

Additional valve: according to the requirement, overload valve and oil filling valve can be added at both ends of valve section.

Structure type: sectional valve, any 1-6 sections may combine upon customer’s requirement.

Spool function at neutral position: O, Y.
