All Dacheng Inflatable pipeline rubber pipe plug are manufactured in China. Dacheng is one of China's largest manufacturers of advanced rubber products.
Trough the design of professional, Inflatable Pipe Plug is used in leaking hunting for drainage pipeline. The Inflatable Rubber Pipe Plug is made of high quality polymer materials and because of good gas tightness and light weight; Inflatable Rubber Pipe Plug could be used in all kinds of non-pressure and low tension pipeline
Item

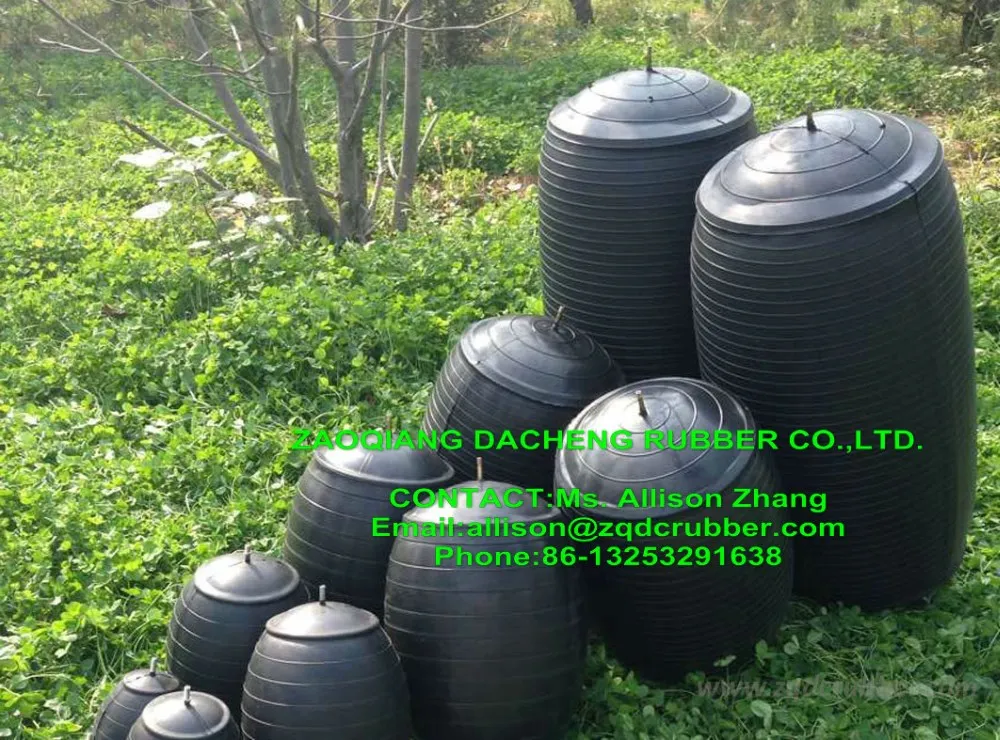

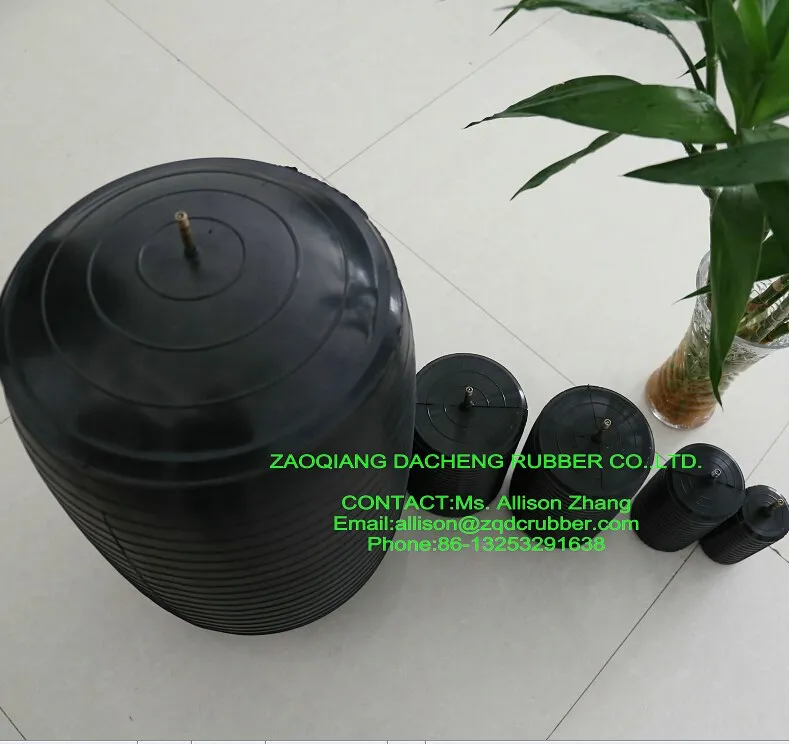

Inflatable pipeline rubber pipe plug
Material
Rubber
Temperature
-40ºC-230ºC
Color
Black
Hardness
Shore A 30-85
Application
Pipe repairing or testing
Performance
Cold/heat resistance/weather proofing/water and oil resistance

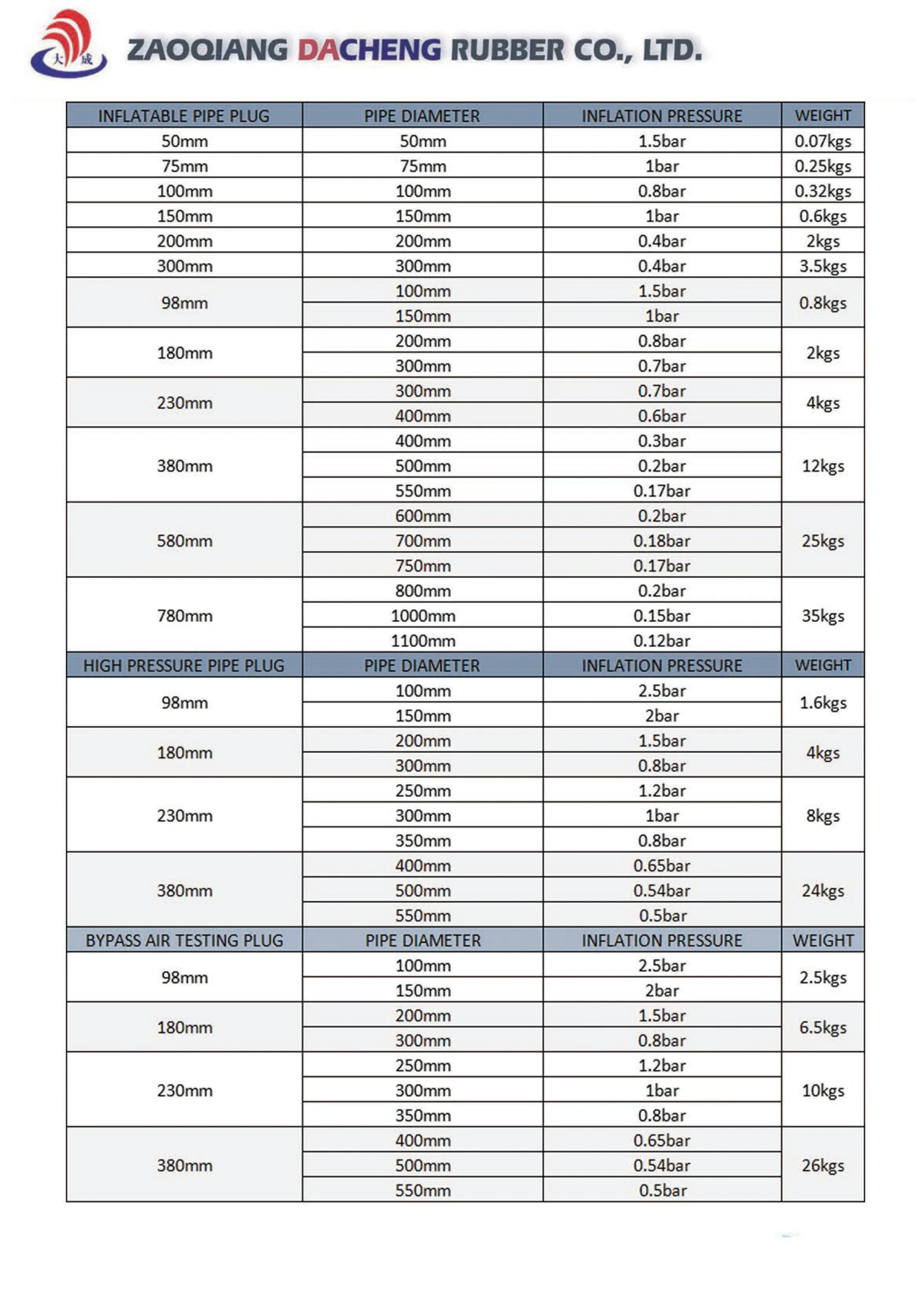

Dimension

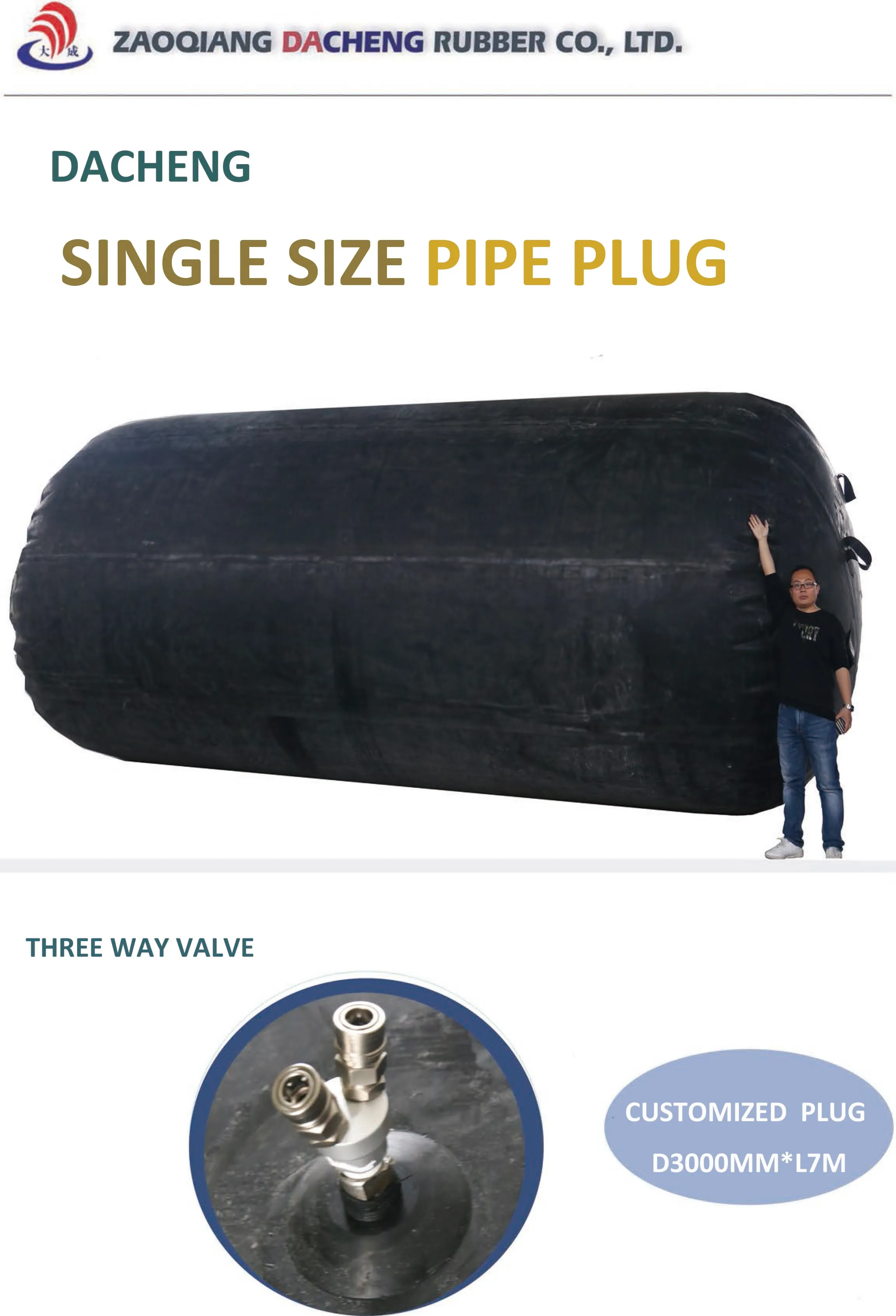

According to customer's requirements
MEDIUM:
SEWER WATER,PURE WATER,OIL,AIR,SMOKE ETC.
Working principle :
The Inflatable pipeline rubber pipe plug is made of high quality rubber sealing gasbag, and the Inflatable pipeline rubber pipe plug will be expanded by filling with compressed air, when the gas pressure of sealing gasbag reach formulary requirement, the Inflatable Rubber Pipe Plug will fill in the whole pipeline section, and blocks the leaking because of the friction, thus achieved the goal without ooze water in pipe.
Usage method :

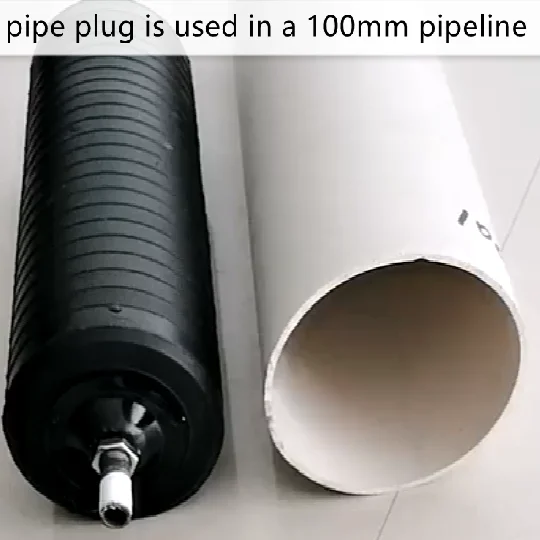

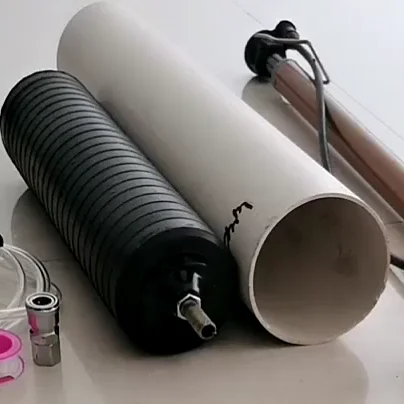

Before operation of pipeline work of flow condition, measure the diameter of the sealing pipe; Hold on the side of the Inflatable Rubber Pipe Plug with air cock, slowly put the Inflatable Rubber Pipe Plug into pipes. Before inflate the Inflatable Rubber Pipe Plug, insert it completely in pipe, and connect the barometer and pump, then opened slowly the valve of pressure control table. The air pressure is controlled in safety area outside of pressure marked red. Taut drawing rope in sleepers on rope binding firm, through pressure control list, observation data, while it reaches the formulary requirement, close the vales of pressure control, and inflating is end. After that, within 20 minutes, keep connection between pressure control tables and pipe, observe data of air pressure sealing variation, if everything is normal, and then starts the work of pipeline construction.

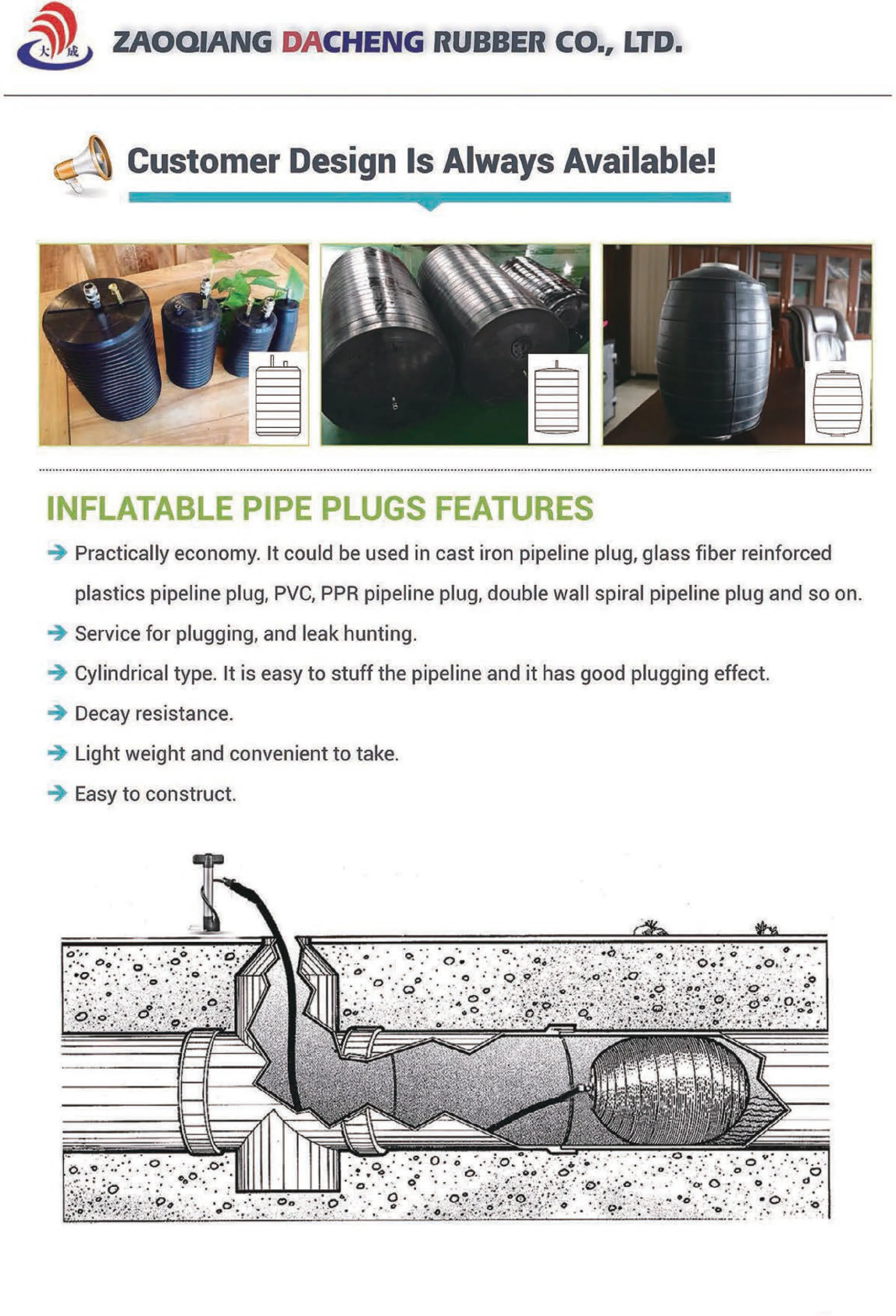

Features :
1. economy practical. it could be used in cast iron pipeline plug, glass fiber reinforced plastics pipeline plug, PVC, PPR pipeline plug, and double wall spiral pipeline plug and so on.
2. used in plugging, and leak hunting.
3. elliptic type. It easy to stuff the pipeline and it has good plugging effect.
4. decay resistance.
5. super strong expansibility.
6. light weight and it is convenient to take, and easy to construct.
Application :
Inflatable pipeline rubber pipe plug is always used in pipe and culvert in order to excreting the sewage and waster water. And Inflatable Rubber Pipe Plug is also used as the repairing rubber appliance. Because of its various specifications, Inflatable Rubber Pipe Plug can be used to block the stream in various situations.
We are in the area of pipeline solution products manufacturing.
Company Information
Zaoqiang Dacheng Rubber, a manufacturing company built in the year 1996, Located in Northern of China. In 2005,Zaoqiang dacheng Rubber Company mergersed with Fengze Rubber technology company and other construction products producing companies to become a strong grouped company, which takes important part in standards correcting and the construction manufacturing area in China and part of the company is listed in the year 2012.
Our main products include: Bridge and Road Construction products as various elastomeric bearings, bridge pot bearings, spherical bearings,bridge flexible equipment; seismic isolation as lead rubber bearings, high damping rubber bearings, steel type seismic bearings, waterproofing products as various waterstops, etc. We also in the area of pipeline solution products manufacturing.
