3V 6V 12V DC Electrical Motor with Gearbox

Product Overview

Description

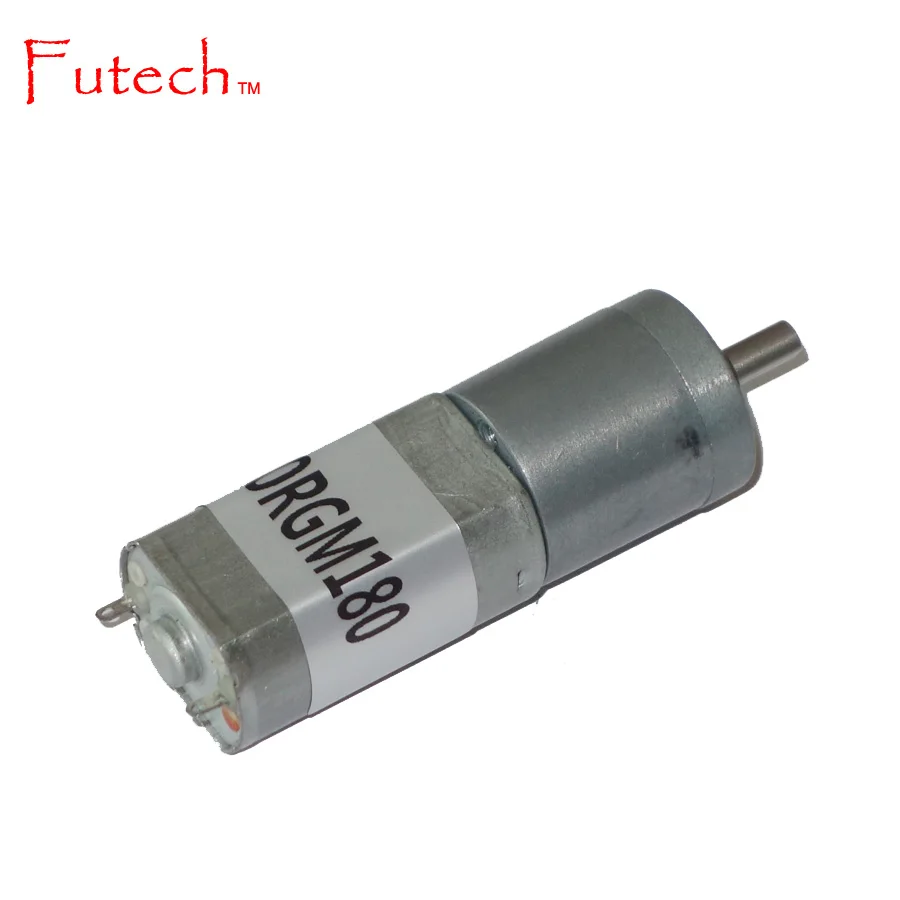

FT-20RGM180  20mm 3V 6V 12V DC Electrical Motor with Gearbox

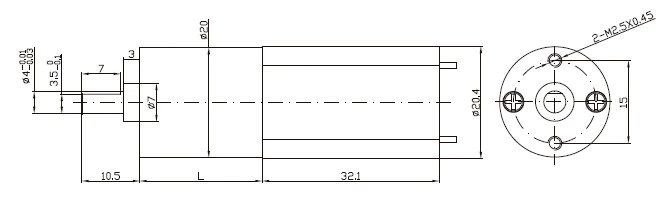

DRAWING (mm)

 Remark: find the dimension "L" in the GEARBOX DATA below.



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-20RGM1800067700-35K	6V	220	140	179	530	0.4	0.73	2400	1.7
FT-20RGM1800064000-44K	6V	91	75	74	180	0.25	0.19	300	0.83
FT-20RGM18000612000-105K	6V	114	300	94	850	0.9	0.87	4500	3
FT-20RGM1800066000-316K	6V	19	150	14	450	2.6	0.37	780	9
FT-20RGM18001211000-55K	12V	200	150	159	400	0.8	1.31	1150	3.8
FT-20RGM1800123500-84K	12V	40	25	19	110	0.4	0.08	130	0.9
FT-20RGM1800128000-105K	12V	76	120	60	280	0.9	0.55	1400	4
FT-20RGM1800128000-252K	12V	32	125	23.5	300	2	0.48	1000	7
FT-20RGM1800124000-316K	12V	12	45	8.5	110	2	0.17	200	7.3
FT-20RGM1800123000-316K	12V	9	40	5.5	60	1.8	0.10	90	4.9
FT-20RGM1800128000-484K	12V	16.5	100	12	300	3	0.37	550	12
FT-20RGM1800128000-758K	12V	10.5	80	8	350	6	0.49	760	25
FT-20RGM1800123500-758K	12V	4	25	2.9	70	2.4	0.07	120	7
FT-20RGM18001816500-132K	18V	125	150	105	550	2	2.16	2050	11
FT-20RGM18002417000-105K	24V	162	200	133	560	1.9	2.59	1800	8.5
FT-20RGM1800248300-202K	24V	41	60	35.5	150	1	0.36	800	8
FT-20RGM1800249500-316K	24V	30	75	22	200	3.6	0.81	420	14.6
FT-20RGM18002414000-484K	24V	29	130	27.6	250	2.2	0.62	/	/
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	4-stage	5-stage	6-stage	7-stage	8-stage
Reduction ratio	18, 23	35, 44, 55	67, 84, 105, 132	161, 202, 252, 316	386, 484, 606, 758
Gearbox length (L) mm	16.2	17.7	19.2	20.7	22.2
Max rated torque Kgf.cm	0.6	0.6	1	1.5	2
Max momentary torque Kgf.cm	1.8	1.8	3	4.5	6
Gearbox efficiency	65%	59%	53%	48%	43%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-180	3	≤260	5000	≤158	4000	19	0.8	≥80	≥790
FT-180	5	≤75	12900	≤1510	11000	25.2	2.86	≥174	≥9100
FT-180	12	≤35	8000	≤300	6200	26	1.69	≥100	≥770
FT-180	24	≤36	9000	≤120	7600	15	1.19	≥60	≥470



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
