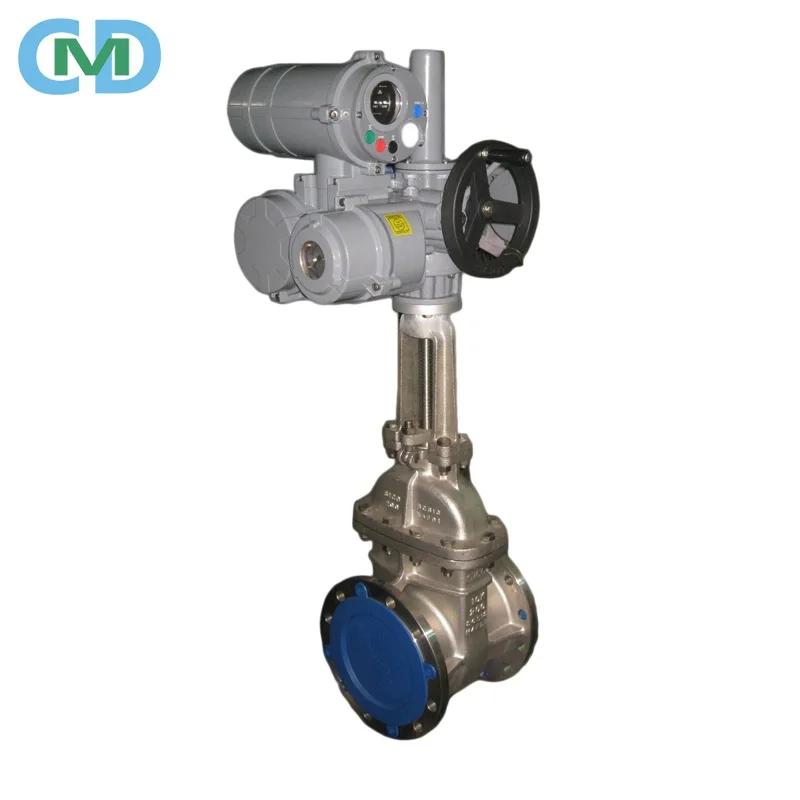

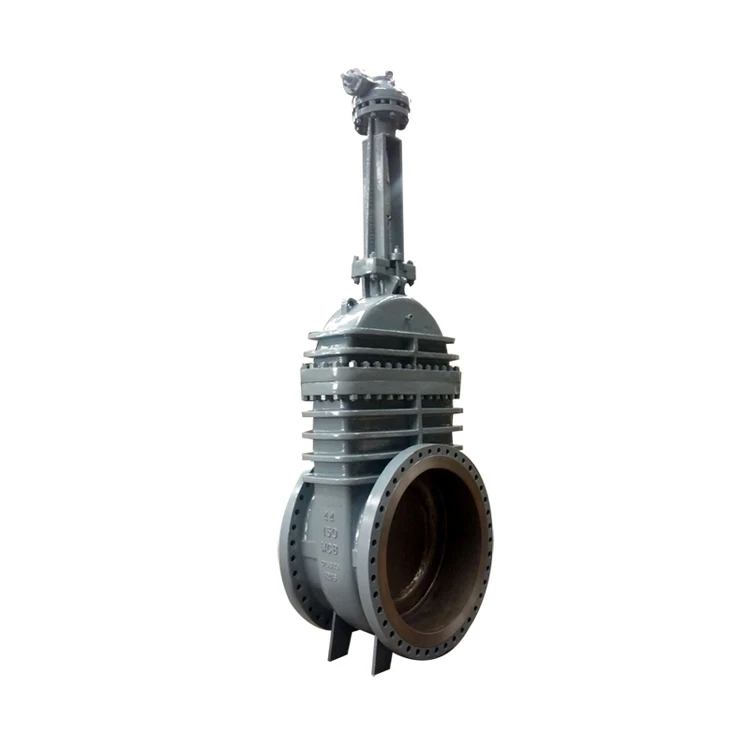

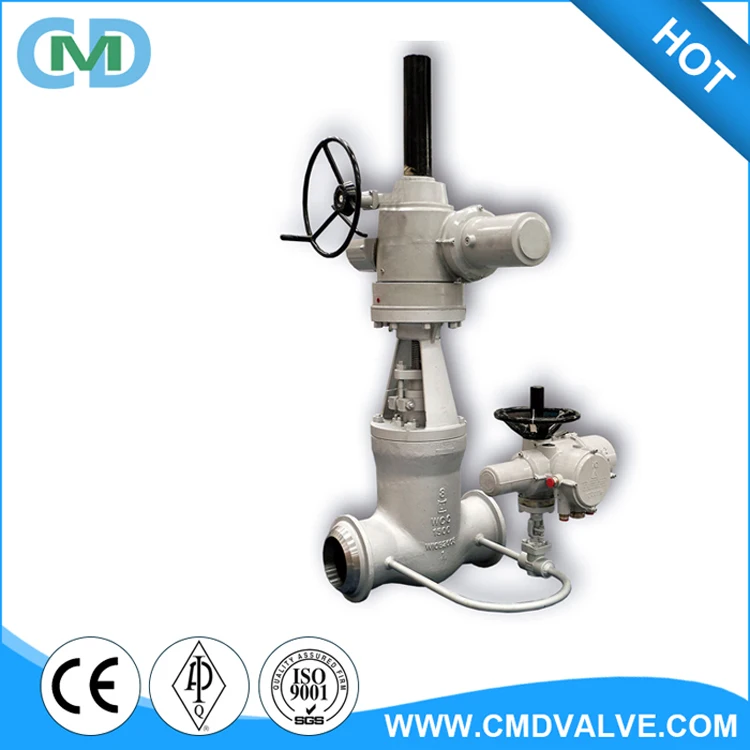

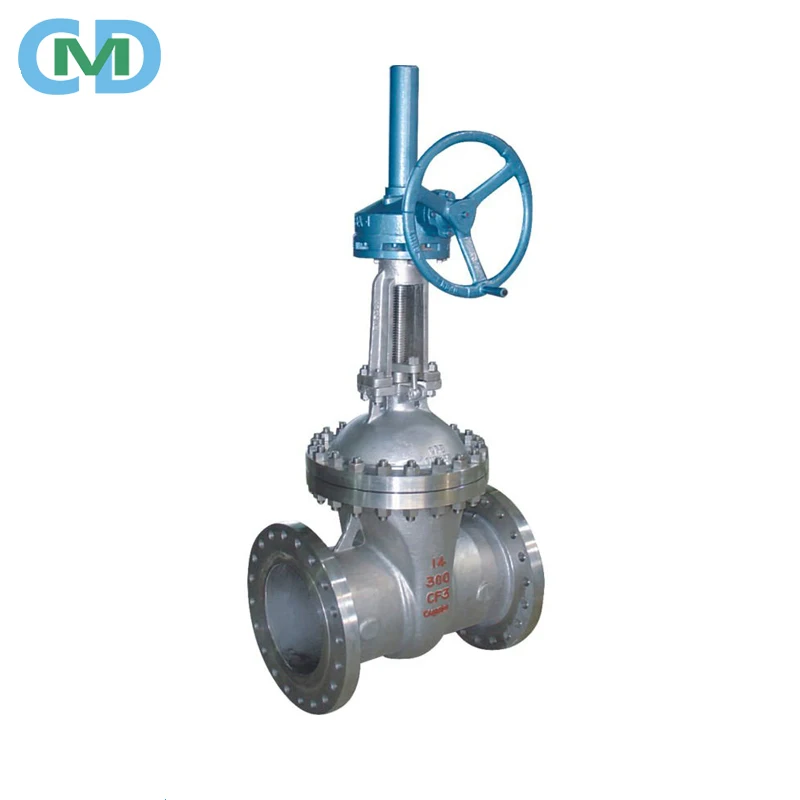

Automatic 12 14 16 18 20 24 40 Inch DN450 ANSI 600 Electric Actuator Gate Valve

Name: Automatic 12 14 16 18 20 24 40 Inch DN450 ANSI 600 Electric Actuator Gate Valve
SKU: 60692178288
Availability: InStock

Price:

Quantity:

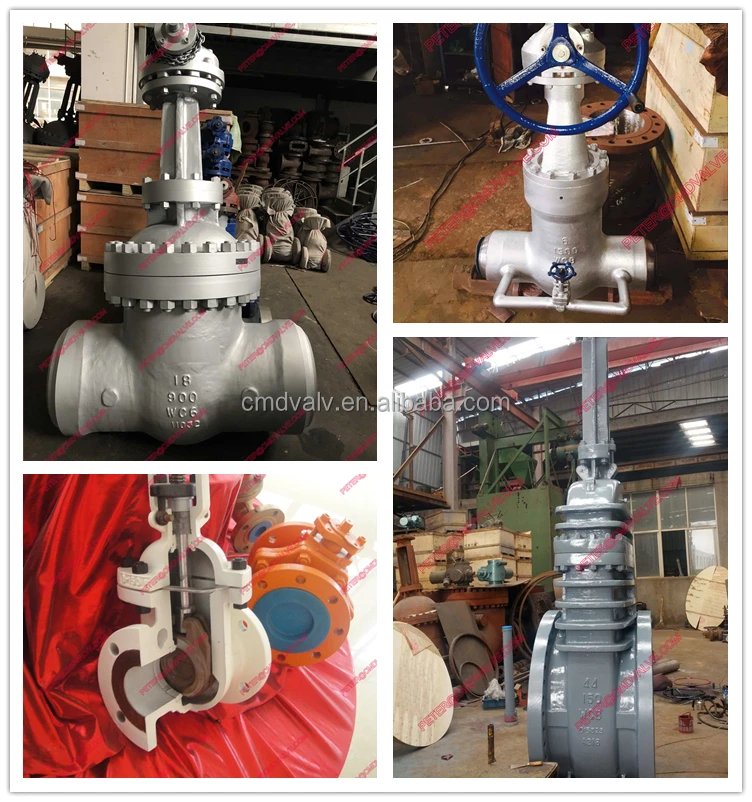

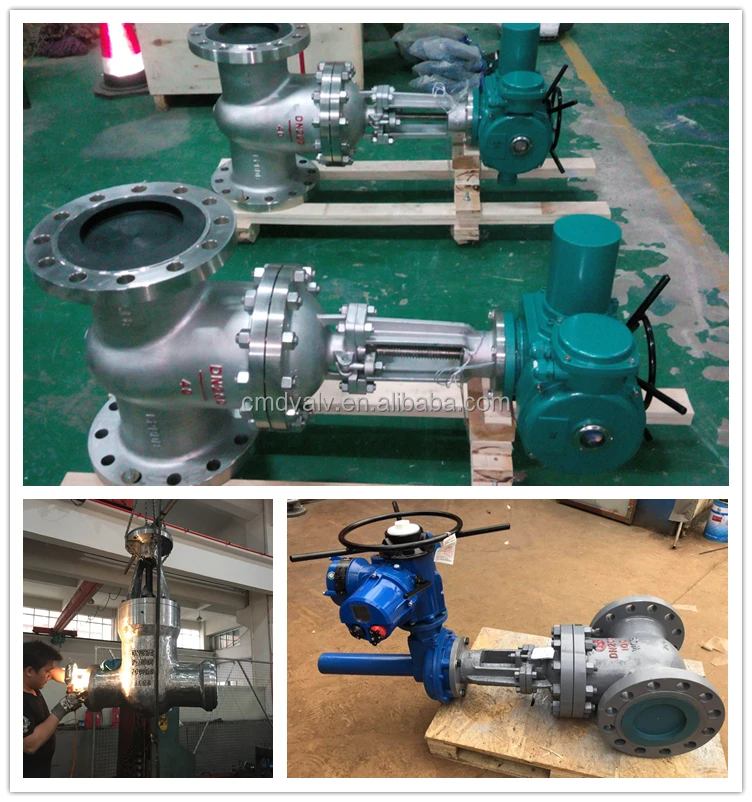

GA 1.jpg GA 2.jpg

GA - .png GA 150#.jpg

SPECIFICATIONS FOR STANDARD STEEL GATE VALVES
Pressure rating and size:	PN10 to PN160, CL150 to 2500
	DN50 to DN1200
	2"~48"
Material:	Body : WCB, CF8, CF8M, CF3, CF3M, LCB, LCC
	Disc : WCB, CF8, CF8M, CF3, CF3M, LCB, LCC
	Stem : F6a, SS304, SS316
	Seat : A105, SS304, SS316, STL
	Bonnet : WCB, CF8, CF8M, CF3, CF3M, LCB, LCC
Operated type	Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc.
Structure:	Bolt bonnet/pressure seal bonnet, os&y, rising stem
Flange connection:	EN1092, ANSI B16.5
Medium:	W.O.G
Temperature:	-196 to 650°C
