Lead Fluid Intelligent Laboratory Dispensing Peristaltic Pump BT100L with DT Series Head

Product Overview

Description

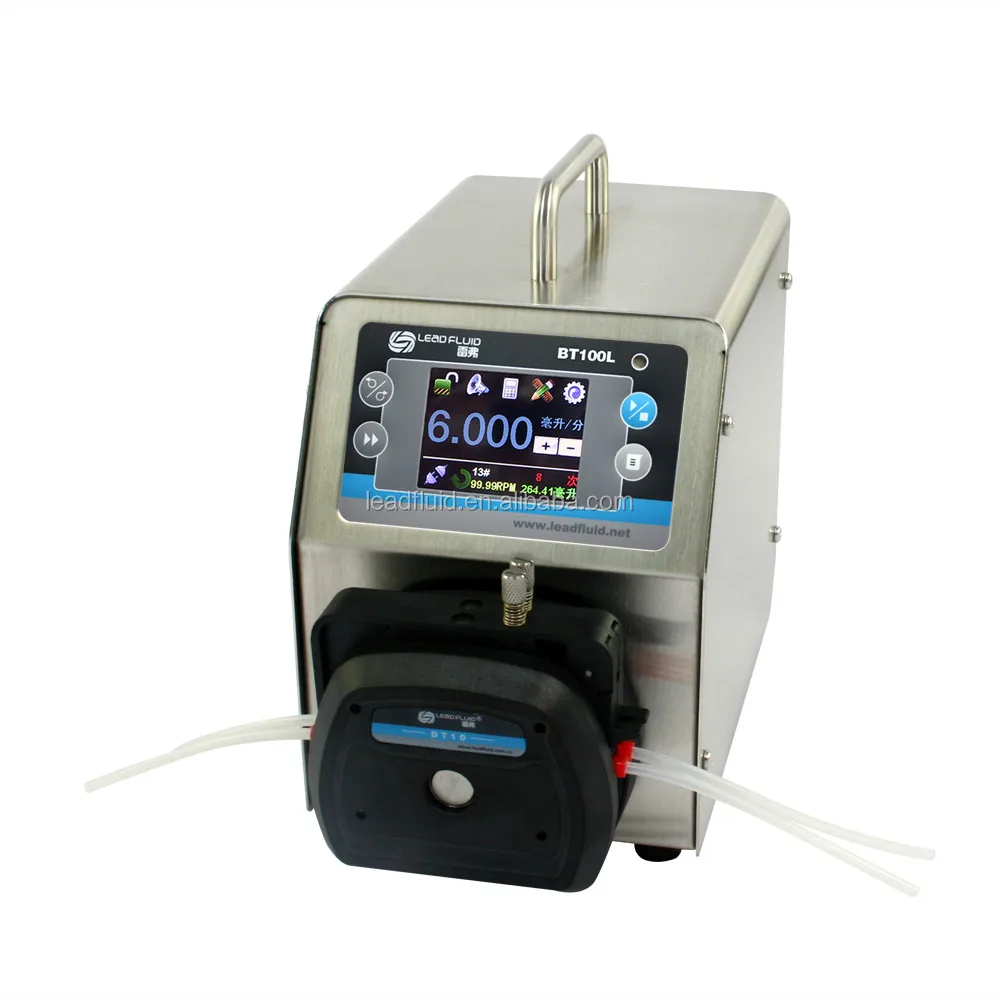

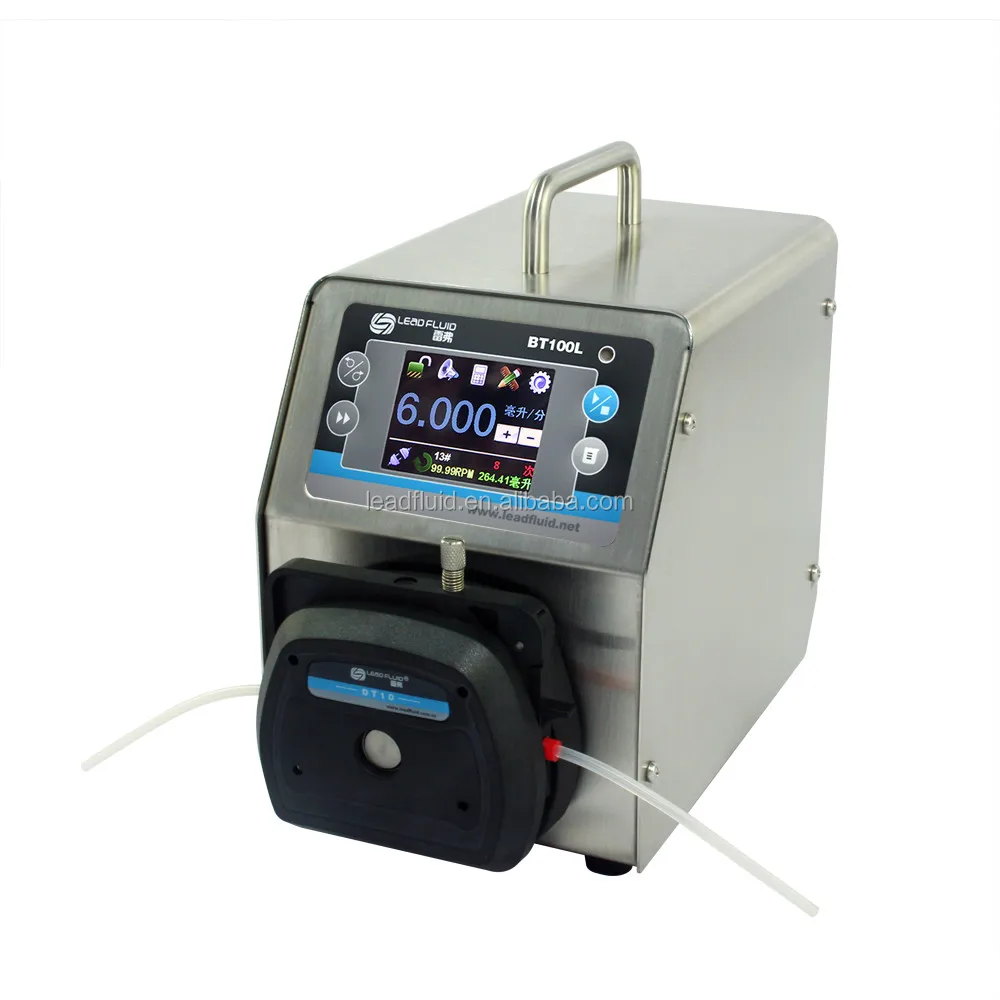

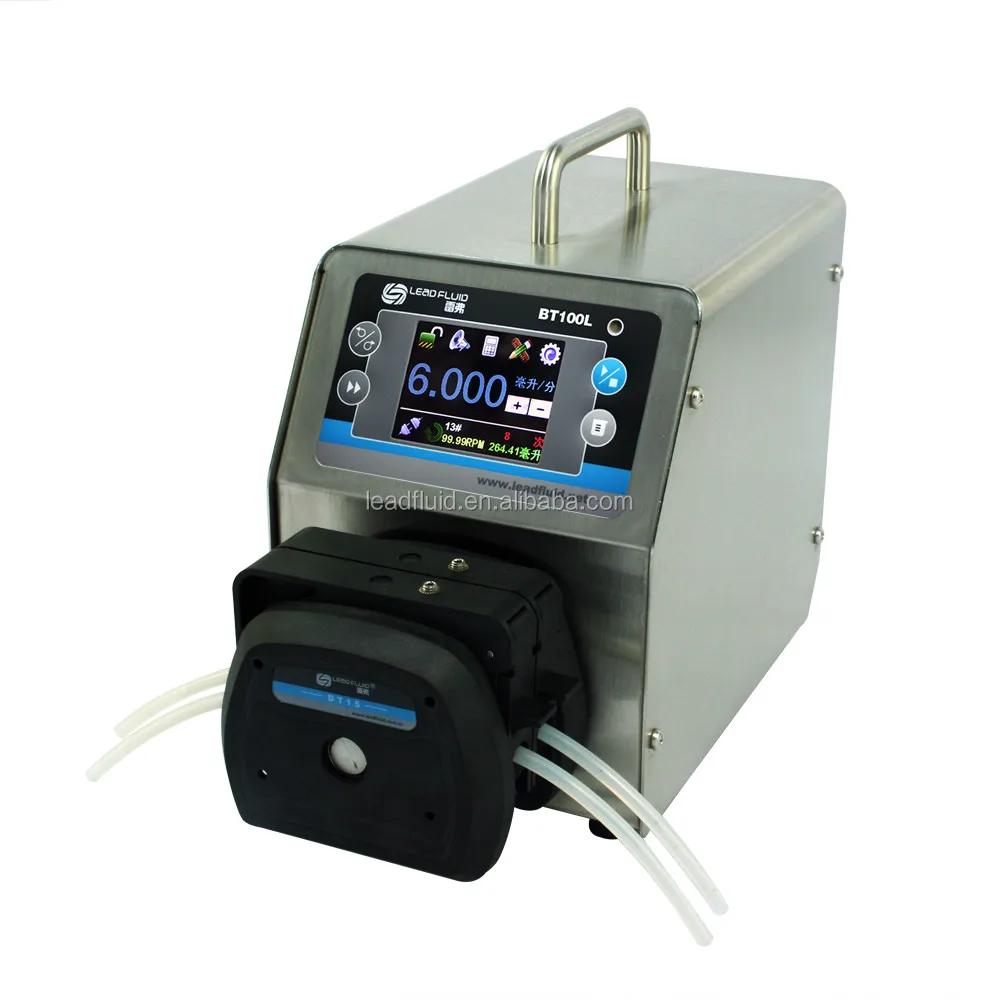

Lead Fluid color LCD Flow-Control peristaltic pump BT100L





BT101L-DG4 flow rate: 0.00011 to 26ml/min Intelligent flow peristaltic pump adopts color LCD and touch screen technology. the operator can input the flow rate directly.Simple operation,the operating interface is intuitive.This product mainly uses in

Controlling the flow transmission,the highest accuracy of controlling flow is 0.5%.Unique dispensing function realizes the repeat timing quantitative Dispensing.RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.



Function and Feature

• Color LCD displaying, touch screen and keypad for operating

• Reversible direction, start/stop and full speed, state memory (power-down memory).

• Speed resolution is above 0.1rpm.

• Display and control flow rate, accumulate dispensing volume automatically.

• Calibrating Flow function.

• Easy dispensing function, it realizes the repeat timing quantitative dispensing, without the time controller.

• The operating expert system guides users setting parameters correctly.

• Intelligent temperature-control technology reduces working noise.

• External high-low electrical level controls the start/stop,reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.

• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

• ABS plastic housing, creative streamlined appearance.

• Can drive multi-channels and various types of pump heads.

• Optional footswitch or timer for dispensing fluid.



»Technical parameters
• Flow range :0.00011-26ml/min
• Flow accuracy:<0.2%
• Speed range:0.1-600rpm.
• Speed resolution: 0.1-100 rpm, the speed resolution is 0.1 rpm.
100-150 rpm, the speed resolution is 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard), AC 110V±10%,50Hz/60Hz(optional)
• Power consumption:<30W
• External control:Input electrical level 5V, 12V (standard),24V(optional).
External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface:RS485 communication interface,support the MODBUS protocol.
• Ambient temperature:0 ~ 40℃
• Relative humidity:<80%
• IP grade:IP31

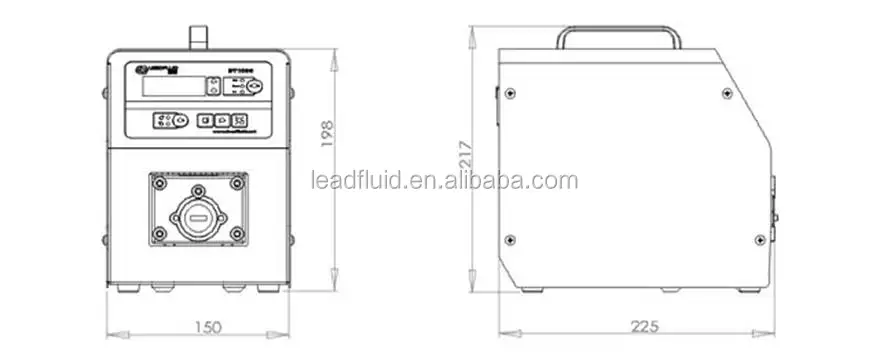

• Dimensions(LxWxH)257mmx180mmx197mm
• Weight:4.5KG

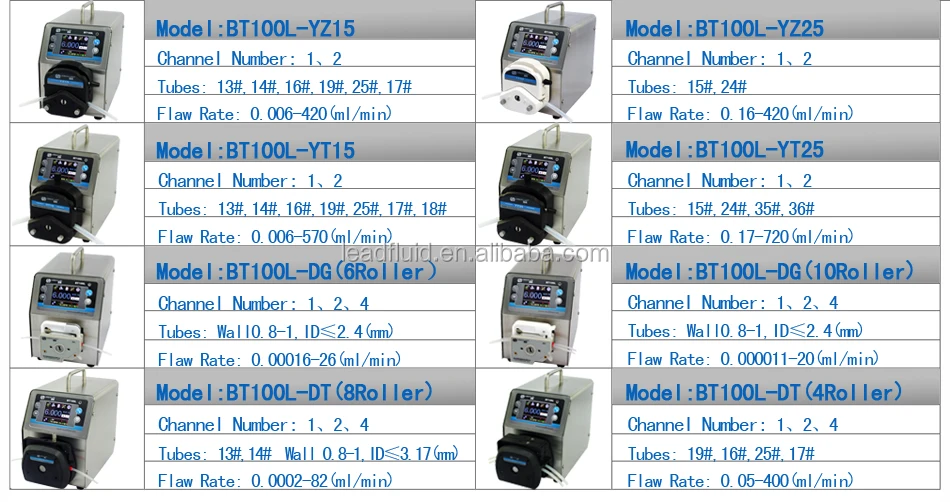

BT101L Applicable pump head and tubing, flow parameters



Drive type	Pump head	Channel number	Tubing(mm)	One channel flow rate  (ml/min)
BT101L	DG(6 rollers)	1,2,4	Wall 0.8~1,ID≤2.4	0.00016~26
	DG10(10rollers)	1,2,4	Wall 0.8~1,ID≤2.4	0.00011~20
	DT10-18	1	13#14# Wall 0.8~1,ID≤3.17	0.0002~82
	DT10-28	2	13#14# Wall 0.8~1,ID≤3.17	0.0002~82
	YZ15	1,2	13#14#16#19#25#17#	0.0006~420
	YZ25	1,2	15#24#	0.16~420
	YT15	1,2	13#14#16#19#25#17#18#	0.0006~570
	YT25	1,2	15#24#35#36#	0.17~720
