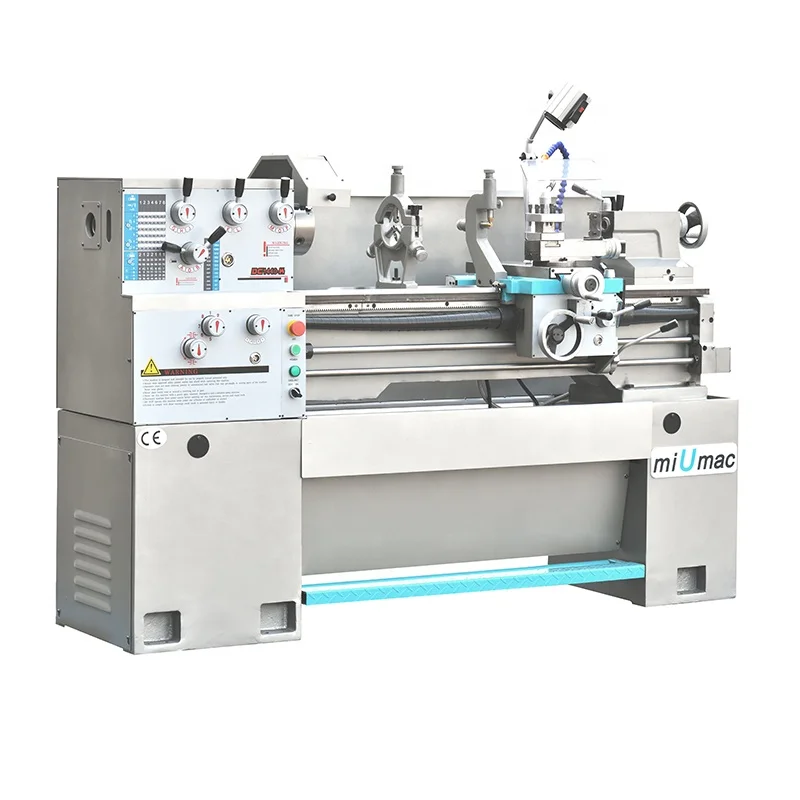

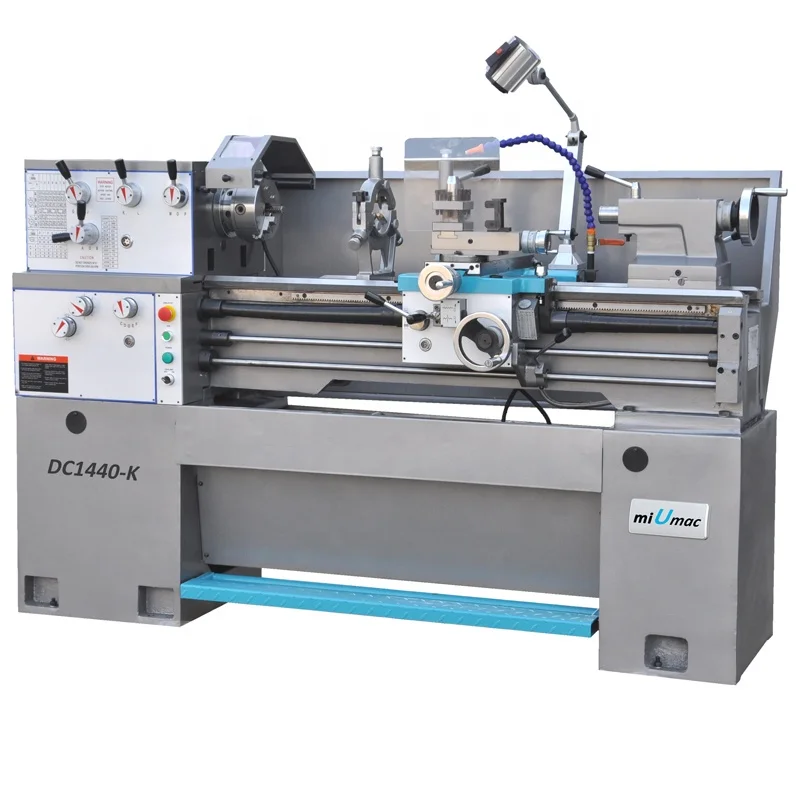

GH 1440K(360mm) metal lathe machine bench drehmaschine
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (60692211677):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings,
3. Headstock gears are made of high quality 4. steel ground and hardened.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
MODELS | GH-1440K |
CAPACITY | |
Max.swing over bed | Ф356mm (14") |
Max.swing over carriage | Ф210mm (8-1/5") |
Max. swing over gap | Ф508mm (20") |
Width of bed | 260mm (10-1/5") |
Distance between centers | 1000(40") |
SPINDLE | |
Spindle bore | Ф40mm (1-1/2") |
Taper bore of spindle | M.T.NO.5 |
Steps of spindle speed | 12 |
Range of spindle speed | 40~1800rpm |
Spindle nose | D4 |
FEED | |
Range of longitudinal feeds | 0.043-0.653 (0.0012″~0.0294″) |
Range of cross feeds | 0.024-0.359 (0.0004″~0.0103″) |
THREADING | |
Metric threads | 0.4-7mm/ 37kinds |
0.45-7.5mm/ 23kinds | |
Whit-worth threads | 4-56TPI/ 28kinds |
4-112TPI/ 40kinds | |
LEADSCREW | |
Diameter of leadscrew | Ф22mm (7/8") |
Pitch threads of leadscrew | 4mm or 8TPI |
TAILSTOCK | |
Travel of tailstock quill | 120mm (4-3/4") |
Diameter of tailstock quill | Ф45mm (1-25/32") |
Taper bore of tailstock quill | M.T.NO.3 |
POWER | |
Power of main motor | 2.4kw(3HP) 3Ph |
Coolant pump motor power | 0.04kw(0.055HP) |
OTHERS | |
Dimension(L×W×H) | 1900×710×1170mm |
Net weight | 1250kg (2750lbs) |
Gross weight | 1380kg (3040lbs) |
PRODUCT CONFIGURATION

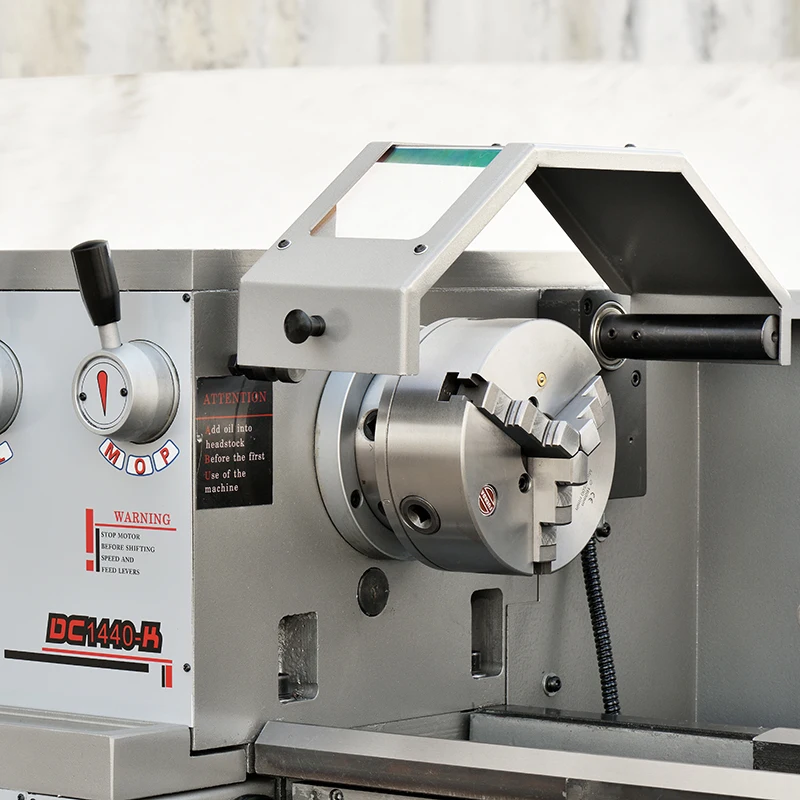

Chuck cover, tool post cover and leadscrew cover are optional.

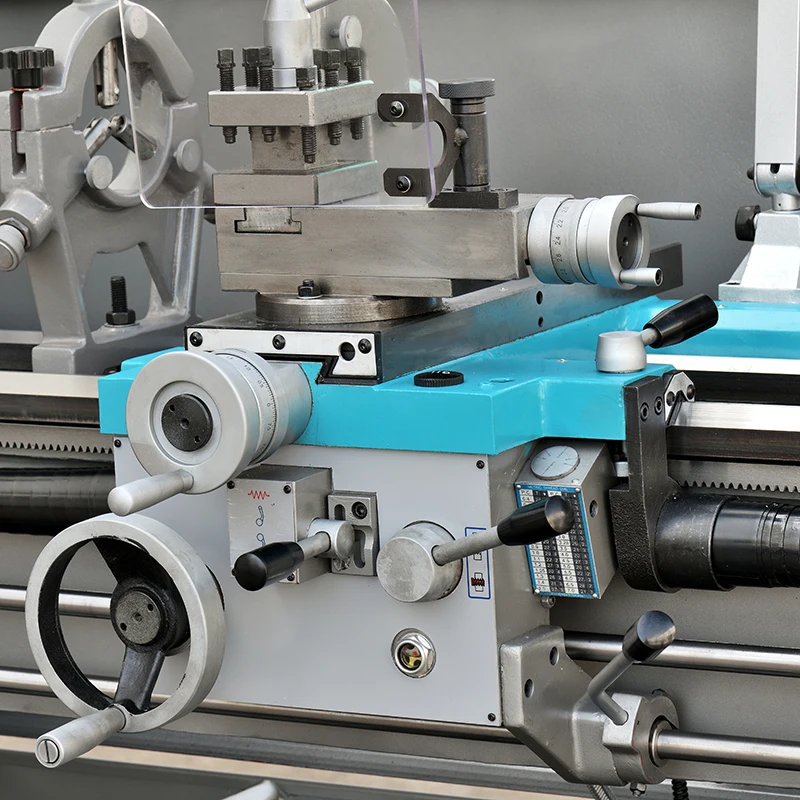

Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.

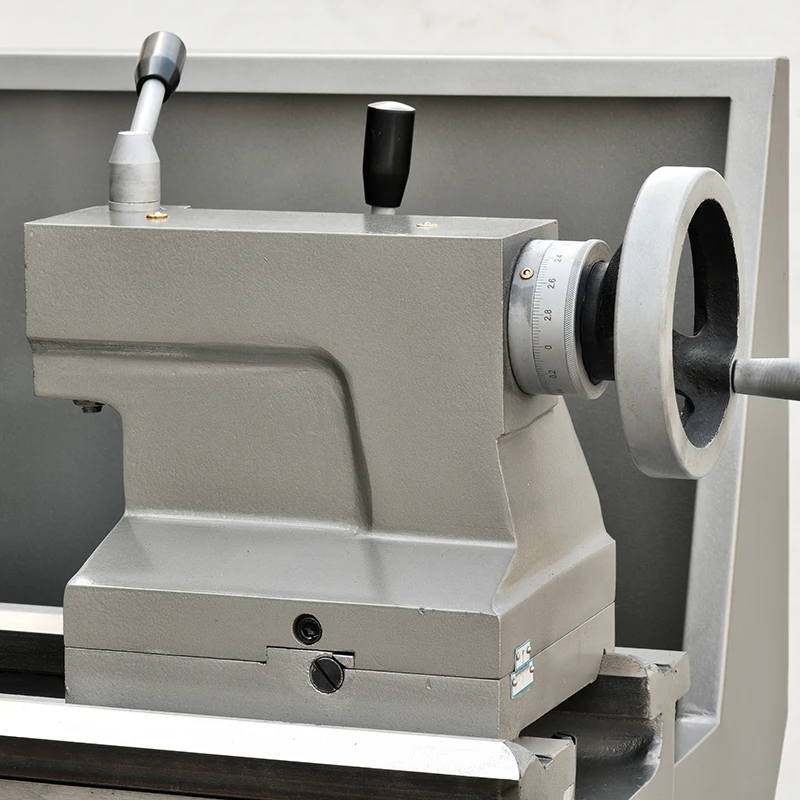

Manual tailstock
Tool box with accessoires.
