Польский край плоский шелкография красочная закаленная Автомобильная панель сенсорный чувствительный 3 мм прозрачный закаленный лист стекло
- Category: >>>
- Supplier: Dongguan,GL,Glass,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

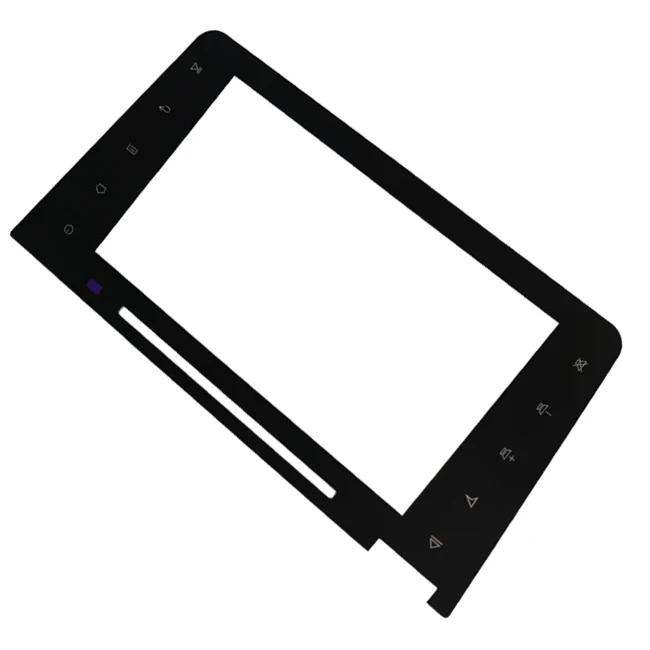

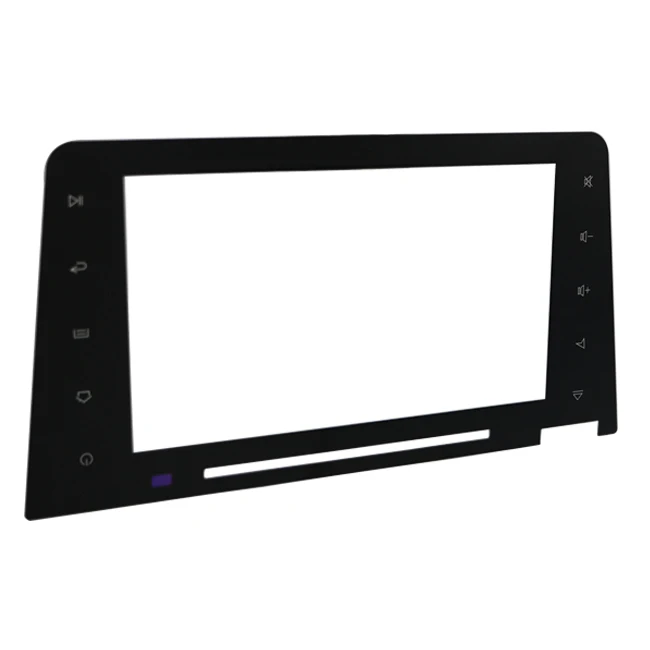

3mm clear tempered glass sheet
Application for touch screen ,display screen,control panel etc.
Quality
Quality difference between good quality (ours) & bad quality
| Item | Our quality | Bad quality |
| Toughened | 6H+ | Easy broken |
| Edge breakage | No such problem | There may teeth exist |
| Silk print | Neat and orderly | Incline, holes, inhomogeneous, lose colour |
| Surface | Smooth | Scratch, white spot and blue shade |
| Drilling hole | 100% satisfy with tolerance request | Exceed tolerance may couse problem in assembly |
| Edge work | No sharp and can meet all bevel shapes request | Coarse |
Tempered Glass Intro
Description of tempered glass
Tempered glass is a kind of pre-stressed glass, to improve the strength of the glass, typically using a chemical treatment or physical hardening hardening treatment method, form a pressure in the glass surface, the glass surface exposed to external stress when the first offset, thereby improving the carrier ability to enhance glass itself wind pressure resistance, cold and heat resistance, impact resistance and so on.
Advantages of tempered glass
1.Security: When the glass is external damage, Debris will become very small obtuse angle grains and difficult to cause harm to humans.
2.High strength: the impact strength tempered glass of the same thickness of ordinary glass 3 to 5 times more than the ordinary glass ,bending strength 3-5 times.
3.Thermal stability: Tempered glass has good thermal stability, can withstand the temperature is more than 3 times that of ordinary glass, can withstand 200 °C temperature changes.
Standard Edge Work
FAQ
Q: What GL Glass role as?
A: GL is a glass OEM mainly focus on high quality flat/bending glass + mirror process.
A: GL is a glass OEM mainly focus on high quality flat/bending glass + mirror process.
Q: What kinds of glass will be used?
A: (Lighting)We will use clear / ultra float glass for production, depends on customer's product need.
(Touch screen)We usually use AGC(Dragontail) for production, but available in gorilla/NEG etc base on customer's need.
A: (Lighting)We will use clear / ultra float glass for production, depends on customer's product need.
(Touch screen)We usually use AGC(Dragontail) for production, but available in gorilla/NEG etc base on customer's need.
Q: Should glass be tempered and what's the effect?
A: It depends on glass sizes / thickness.
To small size/thickness less than 3.2, we recommend chemical tempered(surface toughen by 6-7H).
To bigger size/thickness 3.2 or above, we recommend full thermal tempered.
Base on thermal tempered, the fragmentation test standard / partical sizes & quantity could be set base on different thickness.
The glass flatness could be asked after tempering.
A: It depends on glass sizes / thickness.
To small size/thickness less than 3.2, we recommend chemical tempered(surface toughen by 6-7H).
To bigger size/thickness 3.2 or above, we recommend full thermal tempered.
Base on thermal tempered, the fragmentation test standard / partical sizes & quantity could be set base on different thickness.
The glass flatness could be asked after tempering.
Q: What's the edge treatment could meet?
A: We could make direct cut(cut chips, cheapest), fine grinded(CNC) and polish edges base on your need.
The chamfer / radius could be set.
Q: What's the cut hole effect?
A: It depends on different thickness and for thick glass, we usually use waterjet + CNC.
For thin glass, we use CNC for cut hole to make sure no breakage chips exist from hole edge.
Q: Could irregular shape glass available?
A: No problem because we will use shape cutting machine + CNC to make sure about the quality.
Q: How's the silk print effect?
A: GL received lots of praise in silk print quality base on import paints + auto silk print machine + dustfree room
Available in high temperature silk print(The paint melt into glass) and low temperature paint(Pass adhesion test).
Paint injection for holes, edges & grinded surface.
Q: What's the surface treatment available in GL?
A: AR(Anti-reflective), AG(Anti-glare), AF(Anti-fingerprint), sandblasted/etching available.
