Top Performance Screw Air Compressor with CE Widely Used Air Compressor Clean Compressed Air General Industry Stationary
- Category: >>>
- Supplier: Hangzhou Fuyang Longwell Industry Co. Ltd.
Share on (60692225603):
Product Overview
Description
The Production Line
Product Description

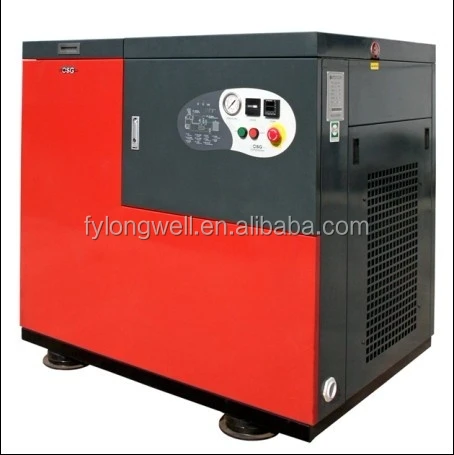

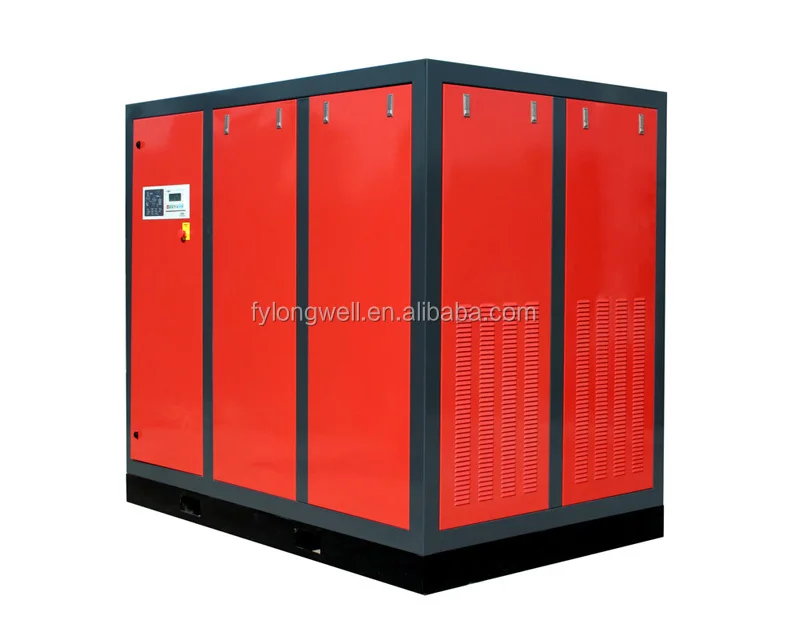

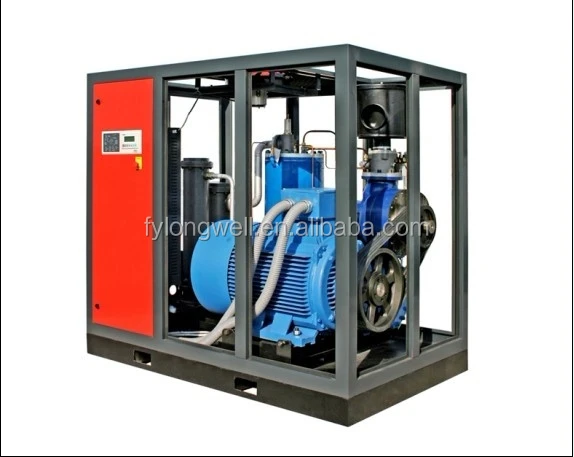

Top Performance Screw Air Compressor with CE
Technical Data | ||||||||||||||||||
Model Item | E-8A | E-11A | E-15A | E-18A | E-22A | E-30A | E-37A | E-45A/W | E-55A | |||||||||
Exhaust volume /Exhaust pressure (m3/min/MPa) | 1.1/0.7 | 1.8/0.7 | 2.5/0.7 | 3.0/0.7 | 3.7/0.7 | 5.0/0.7 | 6.5/0.7 | 8.0/0.7 | 10.8/0.7 | |||||||||
1.0/0.8 | 1.7/0.8 | 2.3/0.8 | 2.9/0.8 | 3.5/0.8 | 4.8/0.8 | 6.2/0.8 | 7.5/0.8 | 10.2/0.8 | ||||||||||
0.9/1.0 | 1.5/1.0 | 2.0/1.0 | 2.7/1.0 | 3.1/1.0 | 4.3/1.0 | 5.6/1.0 | 6.8/1.0 | 9.0/1.0 | ||||||||||
0.7/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.6/1.3 | 3.6/1.3 | 4.5/1.3 | 5.5/1.3 | 7.2/1.3 | ||||||||||
Power (KW/HP) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | |||||||||
Noise dB(A) | 68±2 | 70±2 | 73±2 | |||||||||||||||
Overall size(mm) | 1290*900*1190 | 1520*955*1365 | 1900*1260*1600 | |||||||||||||||
Weight (kg) | 350 | 515 | 550 | 600 | 650 | 700 | 850 | 1200 | 1280 | |||||||||
Specifications of Top Performance Screw Air Compressor with CE
1. The machine has a comprehensive noise protection, environmental protection, energy saving, quiet.
2. Rational design reduces the number of pipe fittings, ensuring no leakage phenomenon.
3. With a unique outer box to disassemble the whole structure, making the repair and maintenance work real barrier.
Advantages of Top Performance Screw Air Compressor with CE
1. One year quality guarantee, spare part for free .
2. Two engineers go to install EPS production line.
Company information
Hangzhou Fuyang Longwell Industry Co.,Ltd has focused on top quality EPS machines & relevant equipment, With 20 years' experience in EPS industry.
Longwell Industry insist on cooperating with customers, offers one-stop services, including factory checking, machines selection, production arrangement, production tracking, before-delivery inspection, load-container checking, document confirmation and after-sales service. Timely report is given to clients for all details. so as to improve working efficiency, competitiveness and realize mutual benefits.
EPS pre-expander
1. Full automatic and continuous production.
2. Controlled by touch screen and PLC, easy to operate.
3. High output and save energy.
4. Stable quality and less.
EPS shape machine
1. Controlled by PLC and touch screen, easy to operate.
2. With vacuum system creates fast product molding and cooling, while decreasing water content.
3. With multiple de-molding device, it can handle any difficult to de-mold product.
EPS block machine
1. All block mold frames are treated by heat-treatment to ensure strength.
2. Taiwan original hydraulic station and all good quality parts.
EPS mould system
1. Made of high quality aluminum material, and mould frame is made by extruded aluminum alloy profile, strong and long lasting.
2.Processed by CNC machines, mould sizes are precise.
3. All cavities and cores coated by Teflon.
Production Process: whole advanced processing equipment, every procedure under quality control.
Projects in clients' factories
LONGWELL at Exhibitions
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal & use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Hangzhou station
By truck from Kashgar, Urumuqi or other checkpoint
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. Other payment terms can also be negotiated.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
