waste plastic continuous pyrolysis plant
Product Description

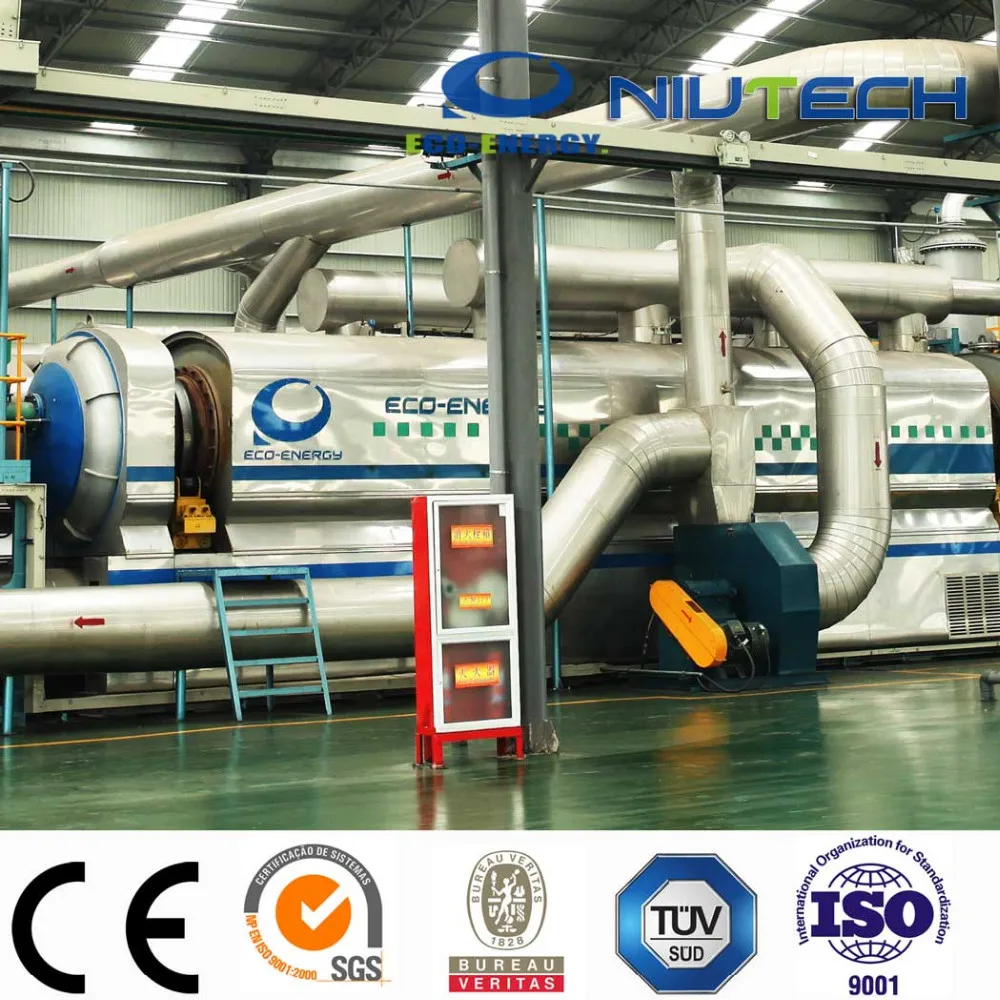

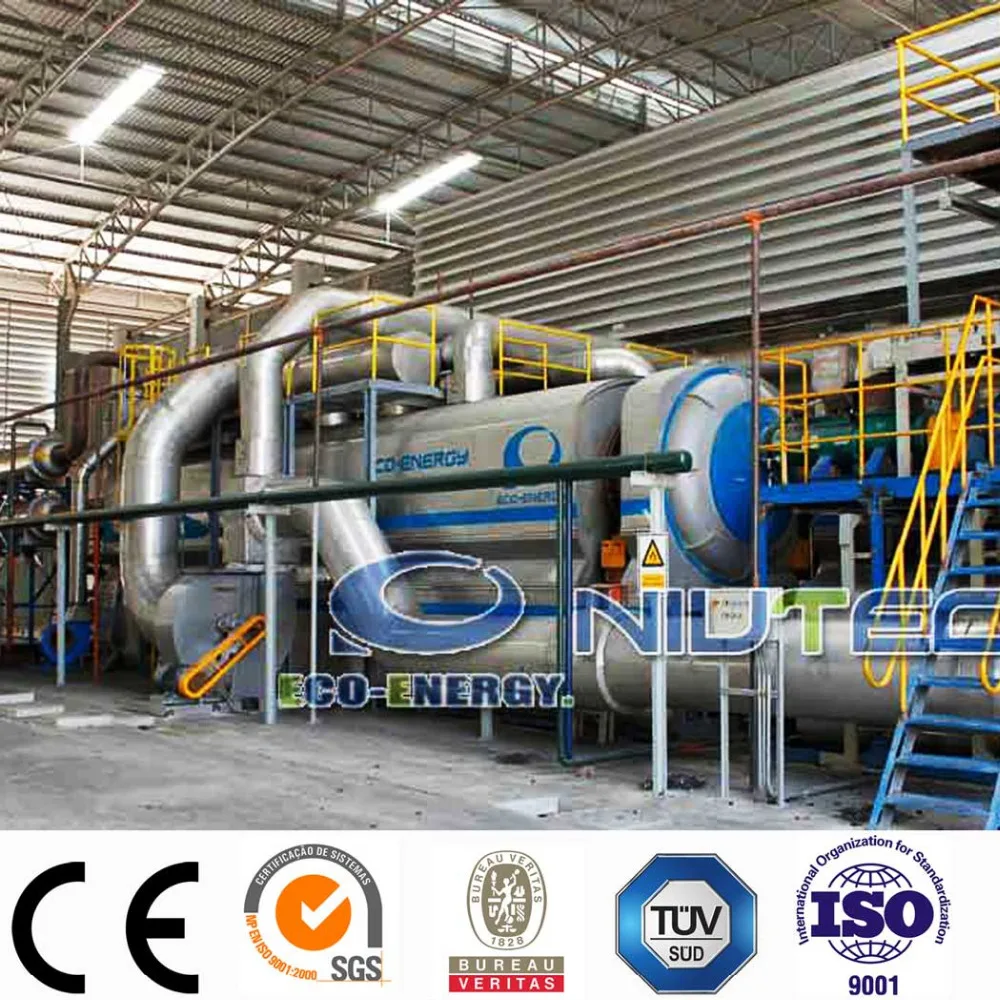

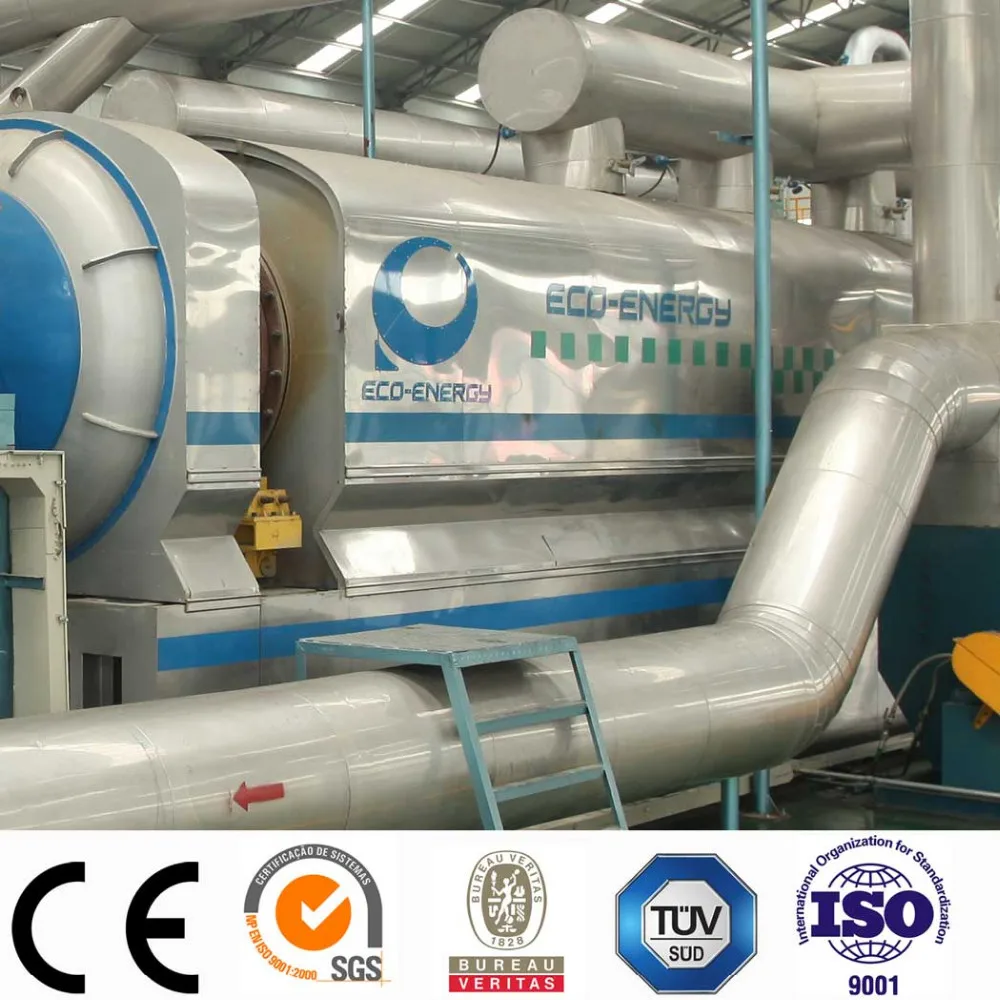

One. Product Show
Two.Brief introduction of the technical process
→ Niutech Pyrolysis Technology Process starts from plastics shredding waste plastics will first be shredded into proper size of chips and then continuously fed into the Niutech pyrolysis reactor for the normal-pressure low-temperature pyrolysis reaction together with the low-temperature sulfur transfer catalyst through the hot sealed device.
→ The oil gas produced by the pyrolysis process will be converted into fuel oil and little combustible gas (recycling use after scrubbing) after fractionation and cooling through oil separator.
→ The combustible gas will be used as fuel for the heating system after scrubbing process. The heating system applies residual heat recycling technology, which far saves energy and reduces the running cost. The exhaust gas produced by the production line will be purified to meet the environmental standards and then discharged.
Three. Main parts of the system and their function
| No. | Part | Function |
| 1 | Shredding system (optional) | This system shreds waste plastics into small chips. |
| 2 | Continuous pyrolysis system | Plastics chips, which are continuously fed into the reactor with low-temperature sulfur transfer catalyst through the feeder, have a complete pyrolysis reaction in the atmospheric condition. |
| 3 | Heat supply system | Reactor heat supply system consists of heat supply equipment and flue gas heat recovery equipment. The high-temperature flue gas generated from fuel burning is mixed with recycled flue gas to supply heat for pyrolysis so as to reduce energy consumption and exhaust gas emission. The incondensable combustible gas produced from pyrolysis reaction is the main fuel of the heat supply equipment. |
| 4 | Oil and gas cooling and separation system | After cooling and separation, the oil gas from the continuous reactor is separated into fuel oil and incondensable combustible gas. The fuel oil will be conveyed into oil tank and then transferred to the tank farm by oil pump; the incondensable combustible gas will be taken into combustible gas scrubbing system. |
| 5 | Combustible gas scrubbing system | The incondensable combustible gas generated from pyrolysis reaction will be taken into the gas tank by fan. NaOH solution was applied to absorb the harmful content like sulfide in the combustible gas. All the scrubbed incondensable combustible gas will be transferred into heat supply system as fuel. |
| 6 | Discharging System | The solid outputs produced from pyrolysis are cooled through water cooling discharger and water cooling elevator. Steel is separated from carbon black by magnetic separator, entering a receiving hopper, and carbon black is delivered to a buffer silo. The small amount of dust produced in transportation and separation will be collected by dust collector. |
| 7 | Gas Purification System | After cooling, the flue gas from the heat recovery device will enter in alkali absorption tower and purification tower for multi-stage purification, through which the SOx, NOx, particles and other harmful contents in flue gas can be eliminated effectively. The activated carbon in the filling material tower i can precisely treat the SOx, NOx, particles and other harmful contents in flue gas. |
Four. Main features and advantages:
1. Real-sense industrial continuous pyrolysis equipment with clients operating both in China and abroad.
2. Unique low-temperature catalytic pyrolysis technology, non-coking heat distribution technology,

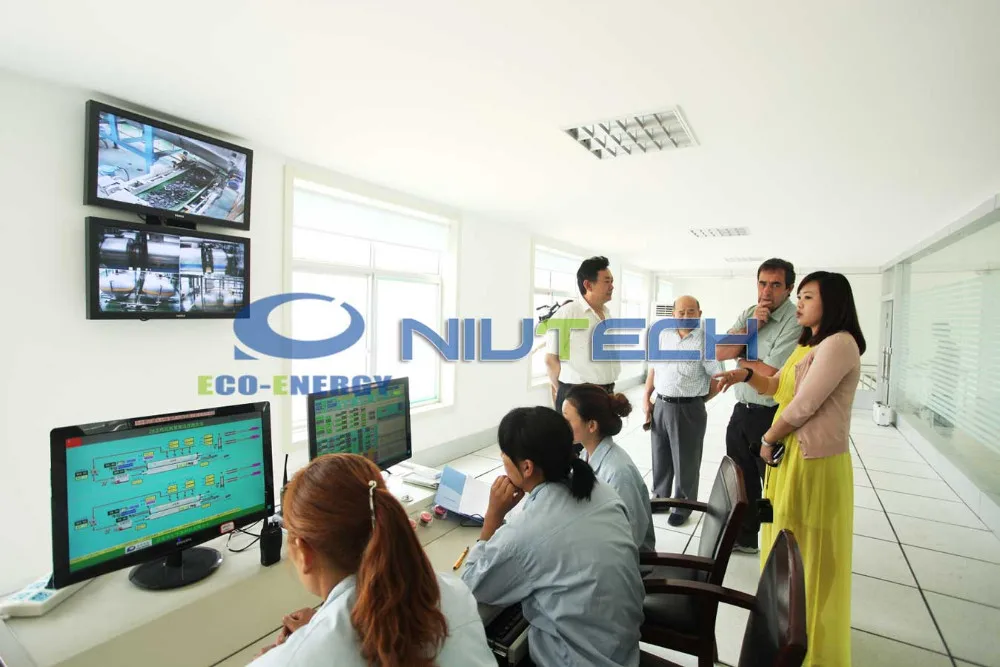

3. Fully automatic; PLC is applied in the whole system.
4. Low labor demand, only 3~4 workers are required
5. Over 30 years’ experience ensures the stability and safety in operation
6. Extremely environment-friendly
Five. Technical parameters
| NO. | Item | Technical Parameter |
| 1 | Suitable Raw Material | Plastics chips size around 100x100mm |
| 2 | Operation Mode | fully continuous operation |
| 3 | Structure | horizontal type |
| 4 | Loading and Discharging | fully automatic feeding and discharging |
| 5 | Capacity(24h) | >=30Mt/Day (customized) |
| 6 | Work Pressure | normal pressure(slightly negative) |
| 7 | Oil Yield | 40~70% |
| 8 | Power | 50~60kw/h |
| 9 | Cooling Method | cycle water |
| 10 | Heating Method | hot air |
| 11 | Noise | <=85(dB) |
| 12 | Main Reactor Weight | 40Mt |
| 13 | Installation Space Required | 48mx20m |
Company Information
One. About us
Founded in 1980’s, Niutech Environment Technology Corporation specializes in technological R&D and equipment manufacture for pyrolysis and harmless treatment of Scrap Tire, waste plastic, oil sludge and biomass. Sticking to the business philosophy of “developing recycling economy and building an international brand by relying on technological innovation”, Niutech has found a unique road of combining independent innovation and recycling economy. The main products are industrial continuous Scrap Tire pyrolysis production line, industrial continuous waste plastic pyrolysis production line, industrial continuous oil sludge pyrolysis production line, oil purification system, carbon black further processing system, industrial harmless treatment and biomass pyrolysis production line.
Two. Why us
Niutech is leading the world in the industry of pyrolysis, the main drafter of related national standards and was awarded with National Prize for Progress in Science and Technology (very big honor).
Three. Our certificates
Niutech obtained CE, TUV and ISO certificates, as well as over 70 national and international patents.
Four. Our market
Our clients are distributed in Europe, North America, South America and Asia, including Germany, Estonia, Hungary, US, Brazil, India, Thailand, Malaysia Taiwan and China.
Our Services
| No. | Pre-Sales Service | After-Sales Service |
| 1 | Inquiry and consulting support | Installation and commissioning on site |
| 2 | Sample testing support | Training for operation and maintenance |
| 3 | Visit our project sites in operation | Warranty: 2 years |
