Product Overview
Description
belt scale
Brief Introduction

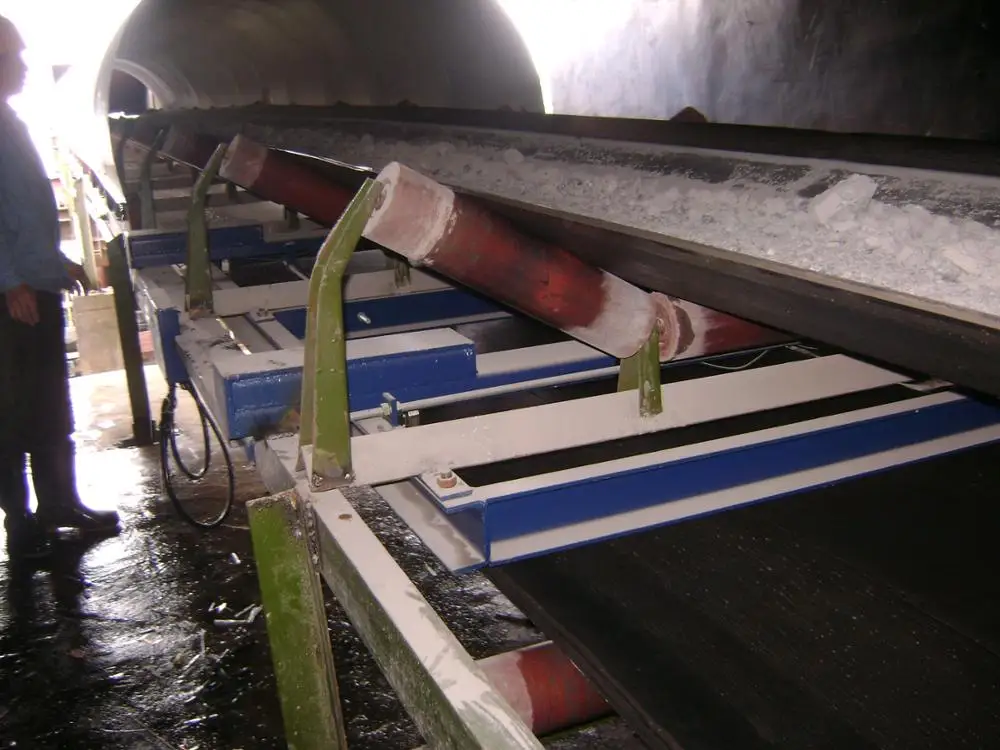

Belt scale developed by Zonjli has suspension weighing platform, load cell, velometer, weighing indicator. Belt scale is ideal weigher for conveyer system in many industrial applications due to following features:
Simple assembly, easy installation and un-installation, maintenance free, long-term durability and repeatability.
Technical Data
Accuracy level: 0.5%~1%
Operating environment humidity: ≤90%RH
Operating environment temperature: -10 ~ 40℃
Power supply: 220V AC, 50Hz or customized
Load cell sensitivity: 2.0± 0.002mv/v
Load cell quantity: 4pcs
Power supply of load cell: 10~ 12V DC
Max. safe overload percentage: 150%
Ultimate overload percentage: 200%
Max belt speed: 4m/s
Max Weigh flow: 1000ton/ hour
Accessory list:
DZ2008-L2B indicator,
DZHM-44J load cell,
CXS-GF-150 velometer.
AJ4-4L-6J unction box
Applications:
Cement industry, Coal industry, Bulk loading in ports, Mines, Metallugry, Electricity Power Plant, Construction materials.
