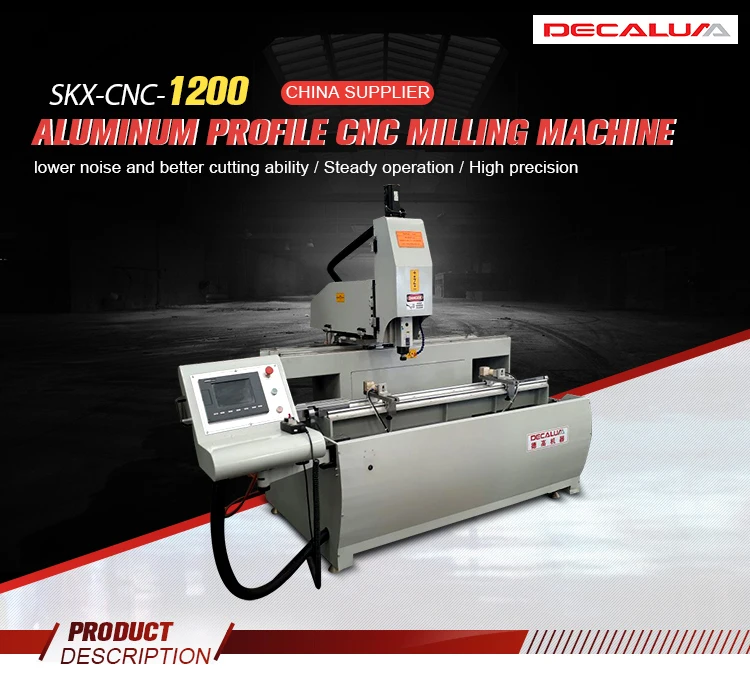

Aluminum Profile Cnc Milling And Drilling Machine for Lock Hole Window

Product Overview

Description

 Aluminum Profile Cnc Milling And Drilling Machine for Lock Hole Window

1. Applicable for drilling holes ,milling groove ,circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.

2. It Adopts Taiwan SYNTEC CNC system,which makes sure smooth running of machine.

3. Adopt with high precision electric axis , keep working safety.

4. Electrical spindle is HSD brand(3KW, 18000r/min).

5. X axis adopt with high precision bevel gear ,while Y axis and Z axis adopt with high precision ball screw ,thus keep transmission smooth .

6. CAD-CAM Programming software can automatically convert G code,you can drawing any holes on computer.

7. Worktable can be rotated to 180°  (-90° -0°- +90°), Clamping profile one time, three sides processing. it can process deep and special-shaped holes through workbench;high efficiency and precision.

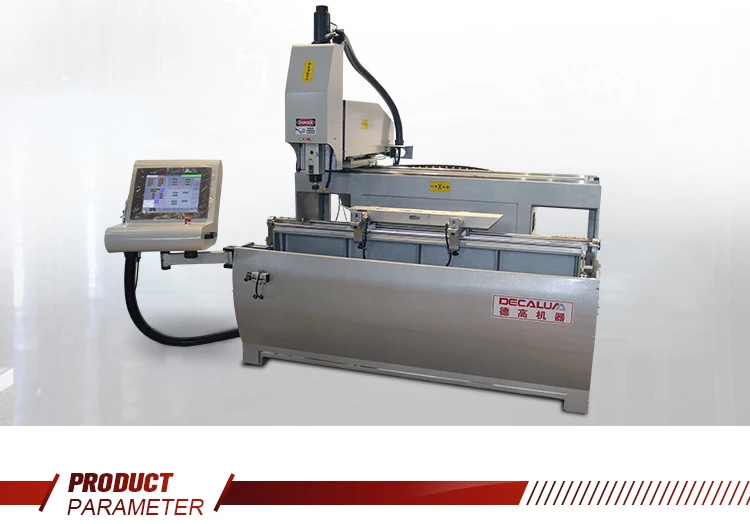

Power supply	Made to order
Spindle power	3KW
Spindle rotary speed	18000r/min
Operation air pressure	0.5~0.6Mpa
Processing range of X/Y/Z	X=1200mm,Y=300mm,Z=280mm X=2500mm,Y=300mm,Z=280mm
The specification of blade	ER25 *8 diameter
System	SYNTEC
Max.Processing range of hole	100*140mm
Dimension	2200*1500*1950mm
Weight	610kg



  Jinan DEGA Machine CO., LTD (DECALUMA) is a well known company specialized in researching, sales and manufacturing of high quality aluminum profile and window door and curtain wall processing machine, we have already exported to many countries.In those years of persistence efforts,DECALUMA has gained great popularity both at home and abroad. After all, we will try our best to satisfy your mind.

1."Quality is our culture"

2."with us your money is safe" full refund in case of bad quality or delay delivery time

3."Time is gold" for you and for us, we have professional team work whom can making aluminum window making  machine in possible time.

4."Quality is the sole of an enterprise" we hope to have the chance to serve you.
