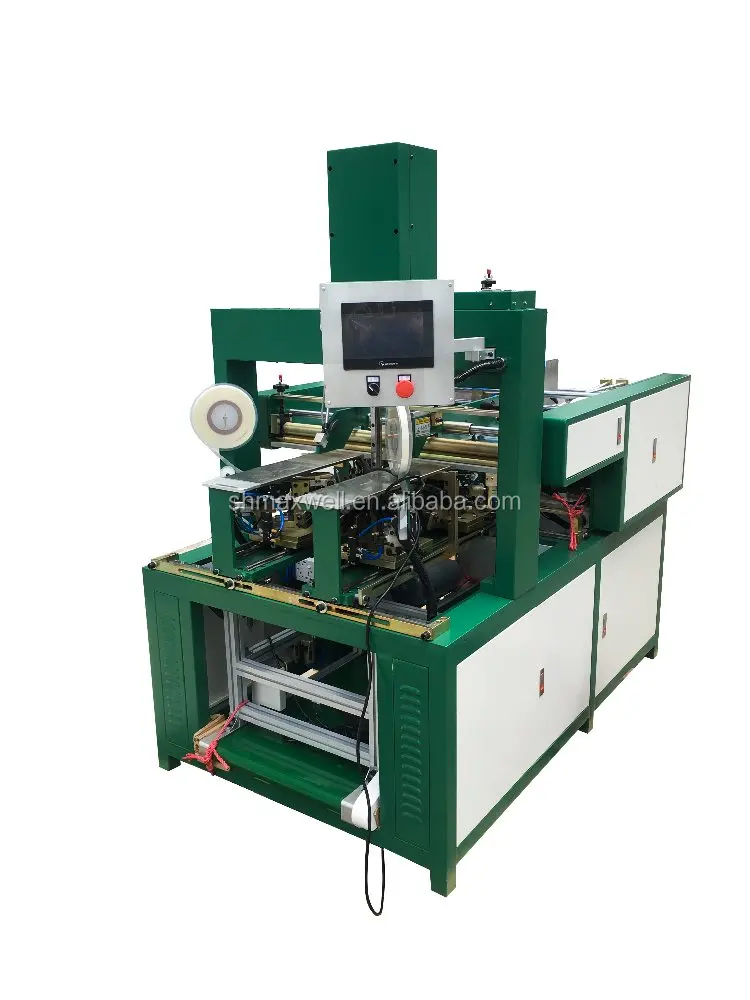

PLC Control Rigid Box Making Machine / Corner Pasting Machine Easy Change Mold

Product Overview

Description

Automatic rigid box making machine automatic paper tape gift box four corners taping,pasting machine



Introduction:



automatic box four corners taping/pasting machine is a good equipment for making high-grade boxes for shoes, shirts, jewelry, gifts, etc.





Features:

1. It adopts PLC control and friendly HMI

2. Automatic feeding cardboard, Max. stacking height 1000mm

3. In order to improve working speed, cardboard table adopt on-line feeding

4. Easy to change mold, suitable for different sizes of products

5. The hot-melting glue tape auto conveying, cutting and four-angle sticking, forming the box in one process.

6. Auto alarm when tapes run out.

Main Technical Parameter:

Remark:

The production capacity is 35 boxes per minute. But the speed of the machine depends on the sizes of the boxes.

Max size	L450*W360*H100mm
Min size	L90*W40*H20mm
Tape Length	8
Stack Height	300mm
Cardboard thickness	1-3mm
Speed	20-40 pcs/min
Power	380V 2.6KW
Weight	1000Kg
Dimension	L1850*W1250*H1900mm
