industrial air and water york air cooled chiller manufacturer
- Category: >>>
- Supplier: Shanghai Ok Machinery Co. Ltd.
Share on (60692318661):
Product Overview
Description
industrial air and water york air cooled chiller
manufacturer

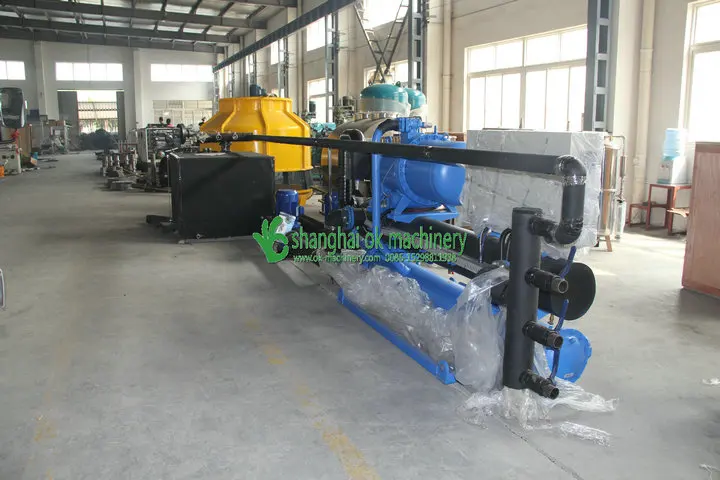

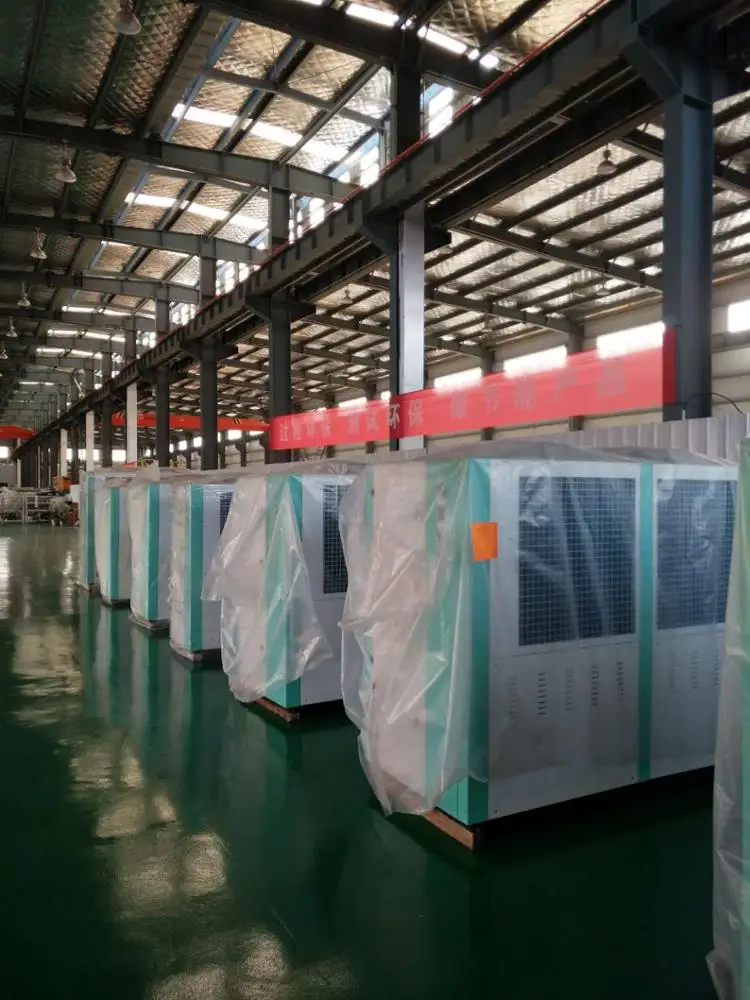

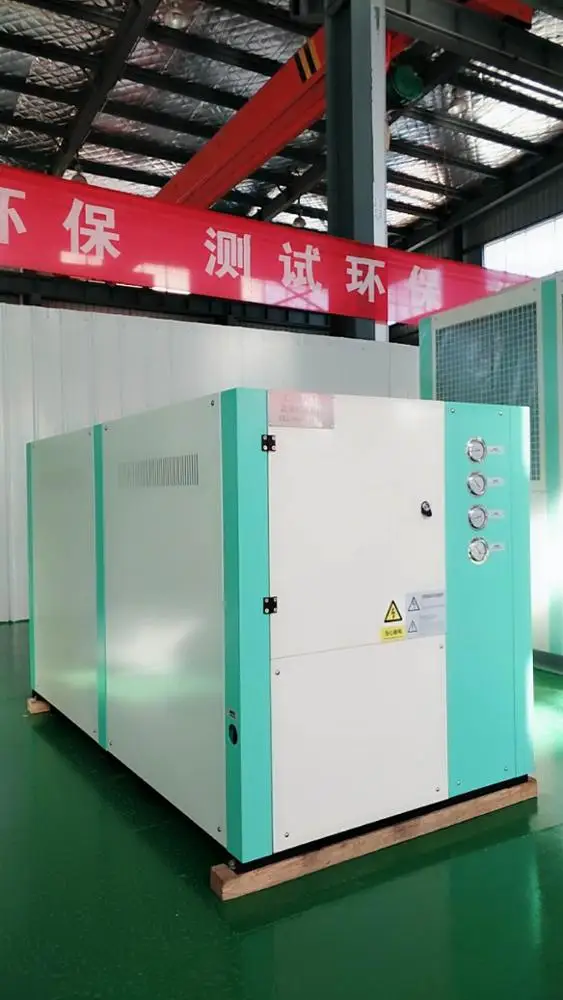

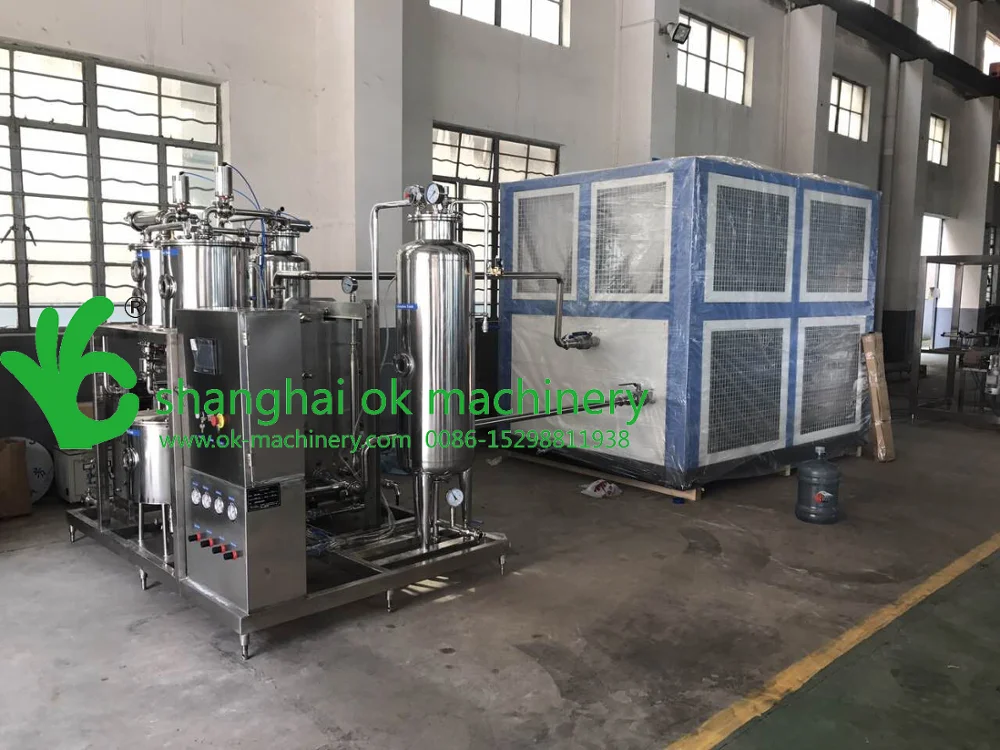

industrial air and water york air cooled chiller manufacturer detail picture
industrial air and water york air cooled chiller manufacturer model list
Model | MG-310W | ||
Nominal cooling capacity | kcal/h | 269,700 | |
kw | 313.7 | ||
Running current | A | 98.2 | |
Input power | kw | 58.4 | |
Chilled fluid flow | M3/h | 53.9 | |
Cooling water flow | M3/h | 64 | |
Power supply | 3PH-380V-50HZ | ||
Refrigeration oil | Type |
| HBR-A01 |
Charge | L | 12 | |
Refrigerant | Type |
| R22/R134a/407c |
Charge | Kg | 46 | |
Type of control |
| Thermostatic expansion valve | |
Compressor | Type |
| Semi-hermetic screw type |
Quantity |
| 1set | |
start-up mode |
| Y- | |
power | Kw | 58.4 | |
Capacity control | % | 0,33,66,100 or 0,25,50,100 | |
Evaporator | type |
| Shell and tube |
Inlet and outlet pipe diameter | inch | PT3" | |
Condenser | Type |
| Shell and tube |
Inlet and outlet pipe diameter | inch | PT3" | |
Dimension | Length | mm | 2600 |
Width | mm | 850 | |
Height | mm | 1700 | |
Net weight | Kg | 1540 | |
Packaging & Shipping
- Packaging Details:
- wooden case
20GP:5898*2352*2385
40GP:12032*2352*2385
40HQ:12032*2352*2690
The machine are packed in wooden case to protect the machine from impact and friction,the size is acrrording to the machine. - We will choose good public praise shipping company to transport your machines that makes the transportation time be short and
- make sure that your machine are safe.
- Port :FOB Shanghai
- Lead Time :Shipped in 30 days after payment
Certifications
CE,SGS
Our Services
One year warranty
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineers available to service machinery overseas
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines. Operating manuals will be sent with machine or by email.
overseas service center and third party support available
