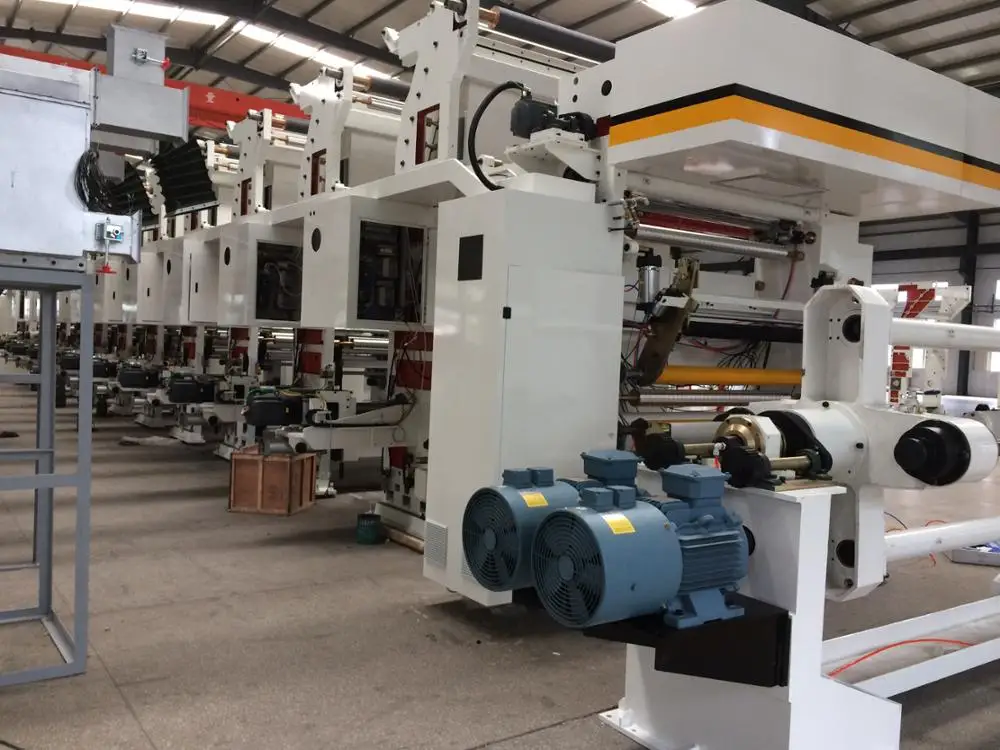

multi color rotogravure printing machine semens motor rubber roller cylinder printing machine for plastic film
- Category: Rotogravure Printing Machines >>>
- Supplier: Yuncheng Plate Making Printing Machinery Co. Ltd.
Share on (60692345576):
Product Overview
Description
Product Description
Product Description
Product Application
Rotogravure printing machine is used in different kinds of package industries, like food, medicine and living products package.
Mainly printing BOPP OPP CPP PE PVC AND OTHER PLASTIC FILM
MAIN PERFORMANCE PAREMETER | ||
Printing color | 10 | color |
Printing sequence | from left to right |
|
Max .width of feeding | 600-1250 | mm |
Maximum printing speed | 300 | m/min |
Unwinding diameter | 800 | mm |
Rewinding diameter | 800 | mm |
Accuracy of registration | Longitudinal≤±0.1mm (auto)(constant speed) | Horizontal≤±0.1mm (auto) (constant speed) |
Tension range | 3~30 | kg |
Accuracy of tension | Unwind and rewind±0. | Traction ±0.3kg |
Paper core diameter | Φ76× Φ92 | mm |
Reciprocation of doctor blades | ±5 | mm |
Film length in drying chambers | 1.6m 2m for last color | m |
Power supply | 3-phase 50Hz | 380V±10% |
Main Features
1)Double-armed rotary turret and rack combination with double working positions in single tower style.
2) Rotary arms can revolve 360° clockwise and anti-clockwise
3) The drawing steel roller is driven by converter motor
4)Pressing rubber rollers are integrated mode with good rigidity and convenience, the roller can be locked when machine stops.
5) Rubber rollers can press the cylinders in automatic sequence; and can separate upward automatically as machine stops
6) Ink tank covers are equipped

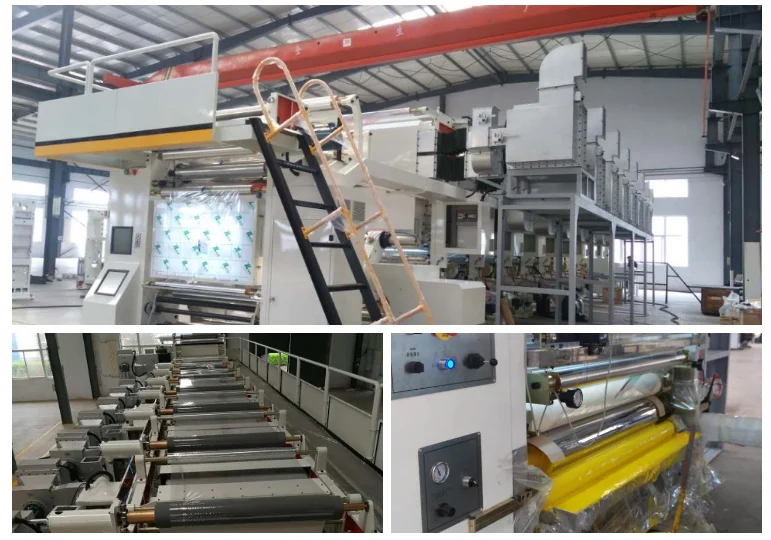

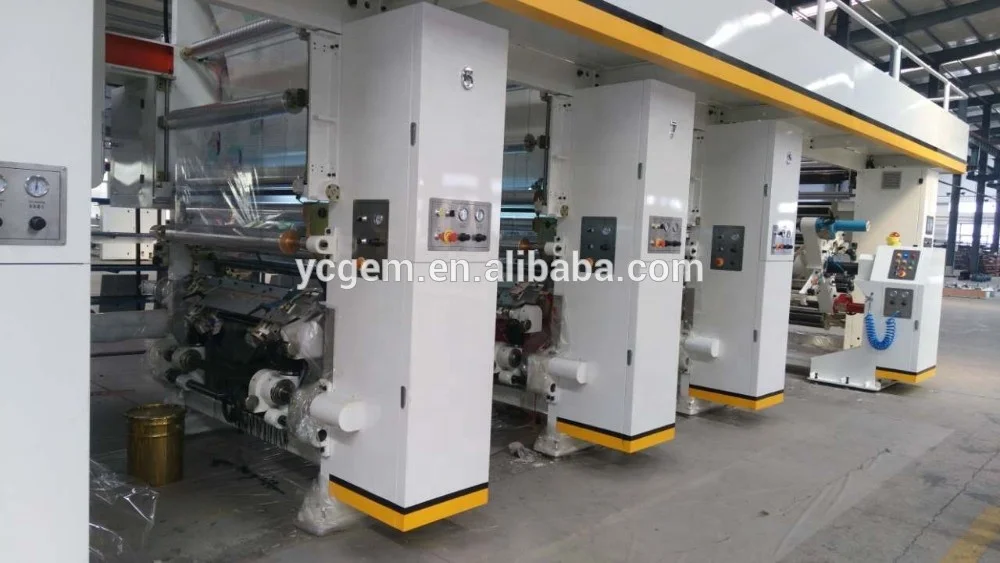

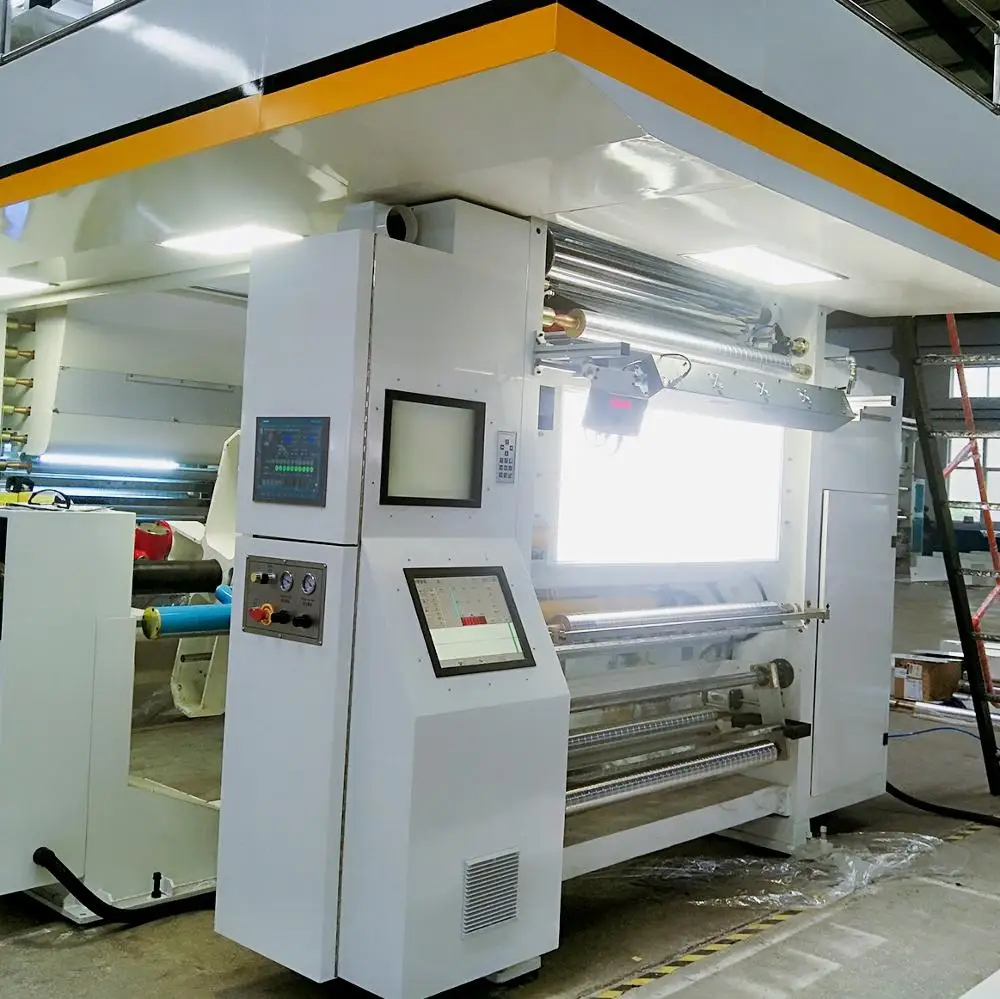

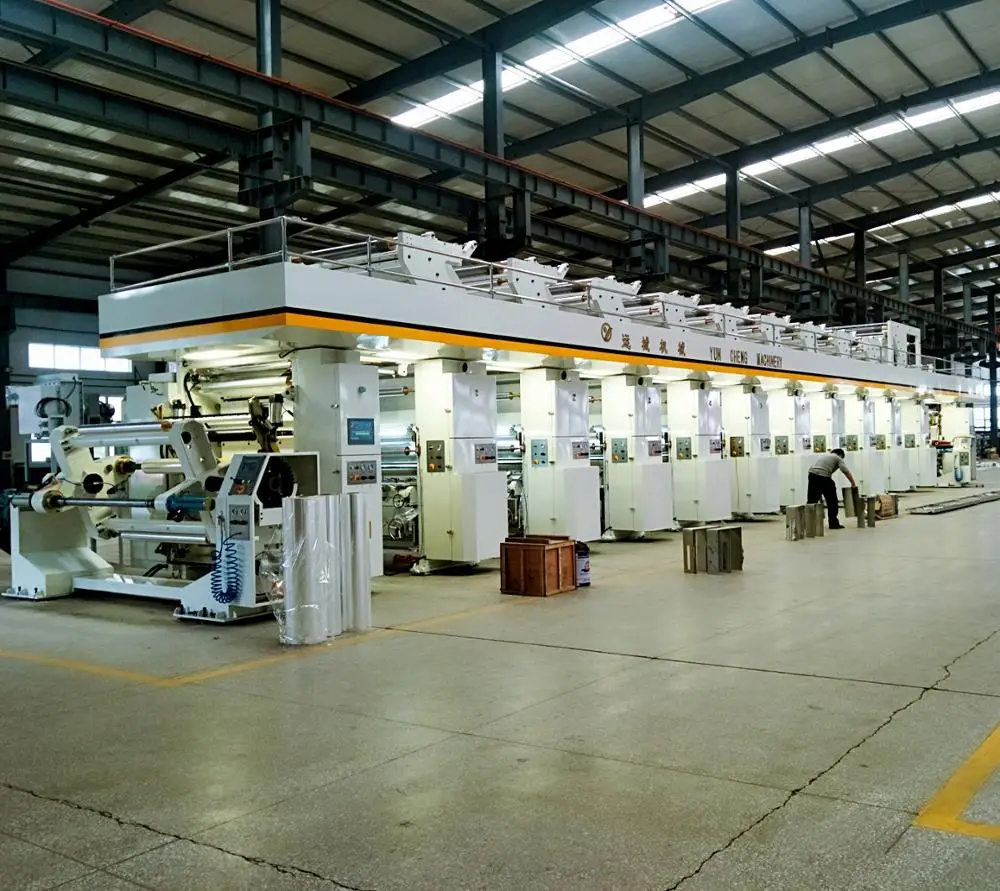

Detailed images
Our Services
Pre- Sales Service After-Sales Service
* Inquiry and consult support * Training how to install machine, training how to use machine
* View our factory * Engineers available to service machinery overseas
* Machine testing run before shipping * One- year warranty
Company Information
Yuncheng Plate Making Printing Machinery Co., Ltd, subsidiary of Yuncheng Plate Making Group, is the professional manufacturer of rotogravure printing machine, plate-making production line for rotogravure cylinder, laminating machine, slitting machine and digital fabric printing machine. Now it has been fully developed for more than 20 years pursuit for a faith of good quality, creativity and service at great passion.
The Group Company, founded in 1981, has been specialized in the process and manufacture of gravure cylinder for about 30 years. As the leading enterprise in the printing and cylinder making industry, the group possesses excellent technology, advanced manufacturing equipment, productive capacity and large scale of production; its products are widely used by customers all over the world. Dedicating to provide high quality cylinders and perfect service for gravure printing factories is the group’s service purpose.
With the aid of Group Company’s sales network, we have successfully expanded the market in major cities throughout the country like Guangdong, Shanghai, Qingdao, Tianjin, Hangzhou, Chengdu and while several foreign countries such as Russian, Mexico, Turkey, Brazil, Egypt, Indonesia, Philippines, Thailand, Vietnam, Pakistan, Bengal and India and so on, the sales and service network spread all over the world.
We hope our friendship and cooperation will be honest and forever and our business will be promoted together.
