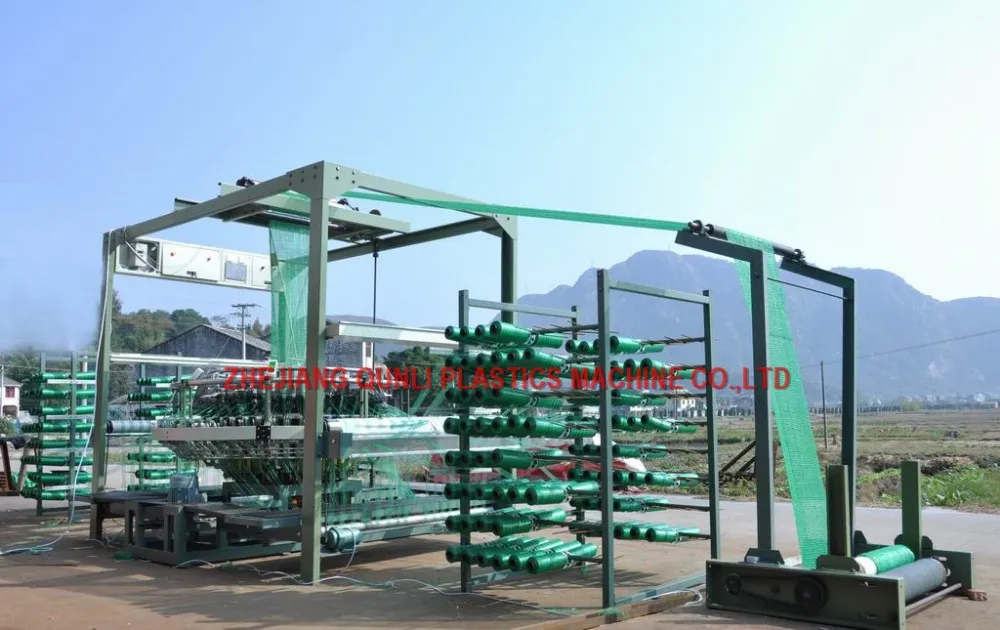

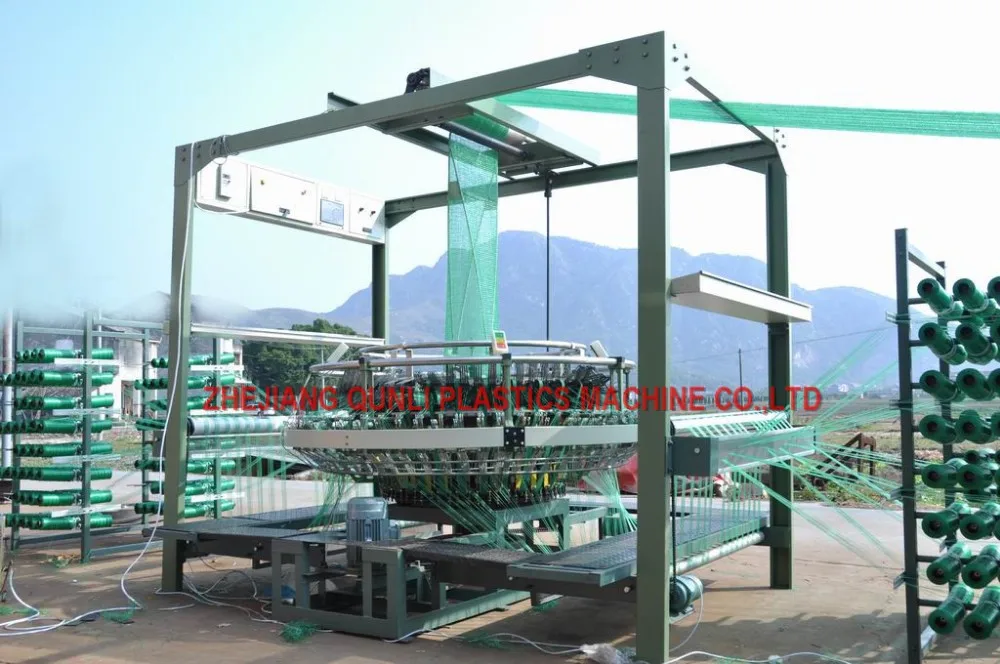

Mesh bag making machine / bag weaving machine / mesh bag circular loom

Share on (60692374631):


Price:

Quantity:


Product Overview

Description







Product Application




       This kind of circular loom has the advantages with lower friction and lower noise, high speed, It can produce the mesh bag for packing fruit, vegetable, etc.















































SPECIFICATIONS FOR MESH BAG MAKING MACHINE



Number shuttle


4


Lay-flat width(10-24warps/100mm)


300-750MM


Max. warp


512PCS


Rotaional speed of main body


40-60R/MIN


Power of main motor


2.7KW


Output


50-110m/h


Installing dimensions


7500X1400X2730MM


Weight


2000KGS



























Main Features




1)Replaced the traditional shuttle bottom plate which can change slipping friction into rolling friction, to avoid the problem of the original sliding fracture.


2) Save power, raise the speed and host frequency conversion stepless-speed.




















Machine Parts

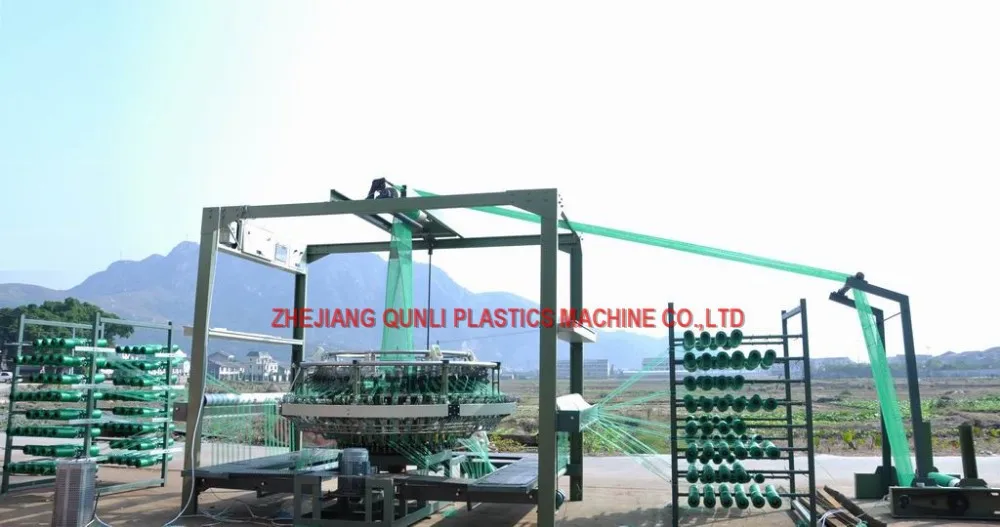

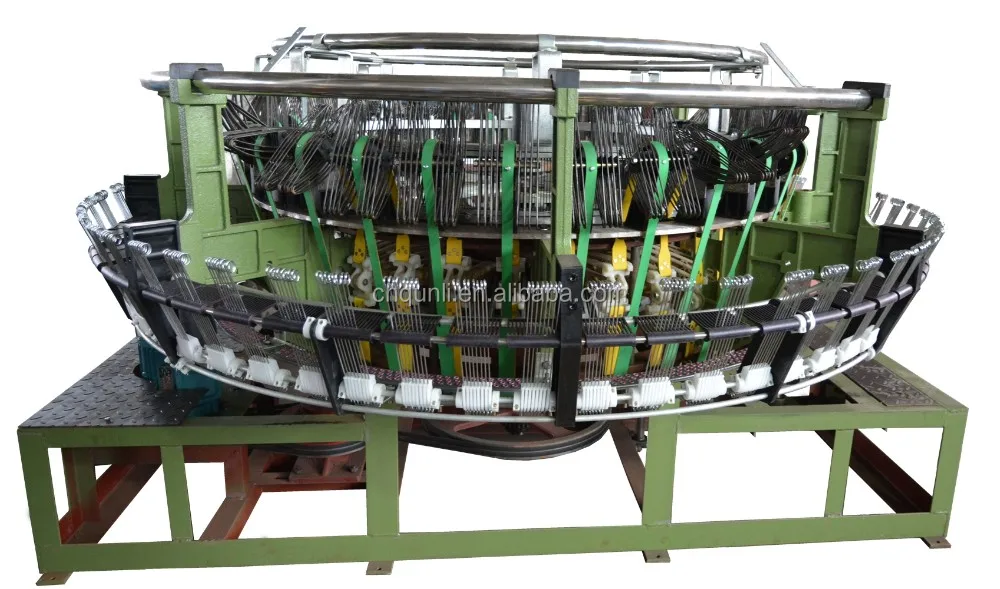

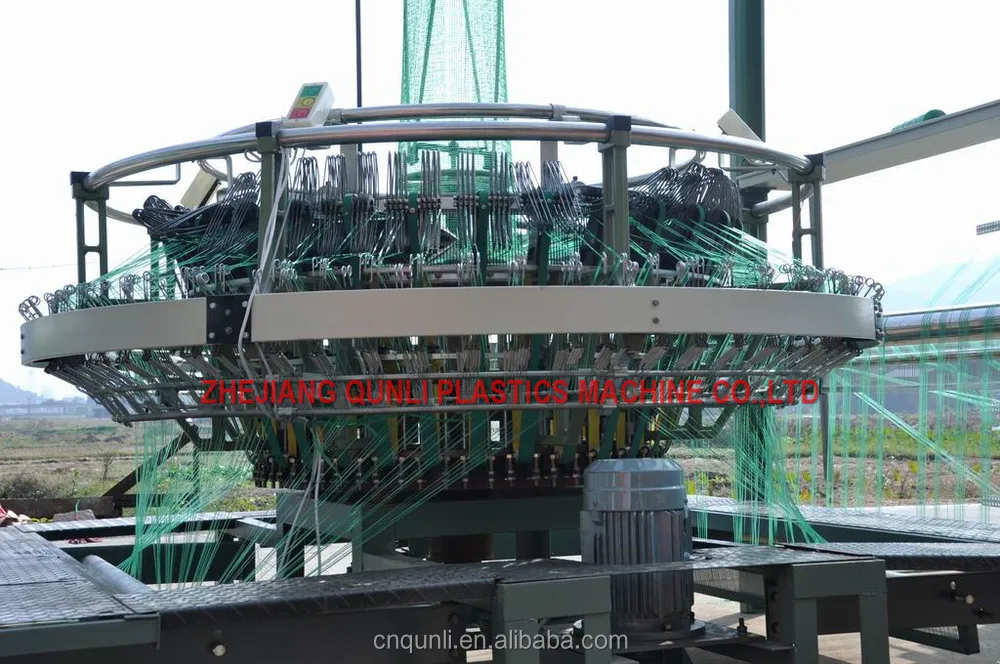

Name: Main body





Original: China





Main Features: lower friction and lower noise










Machine Parts

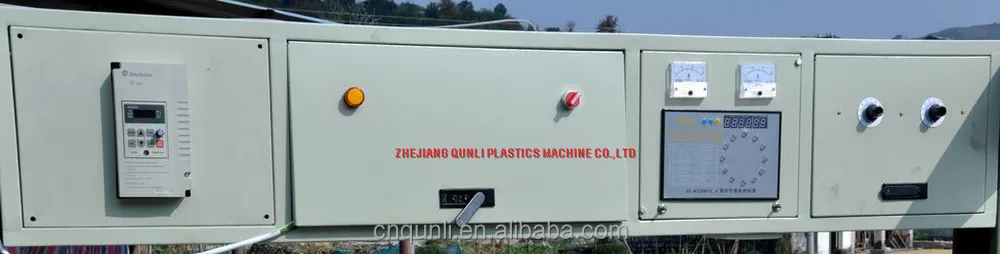

Name: Distribution box

Original: China














Machine Parts

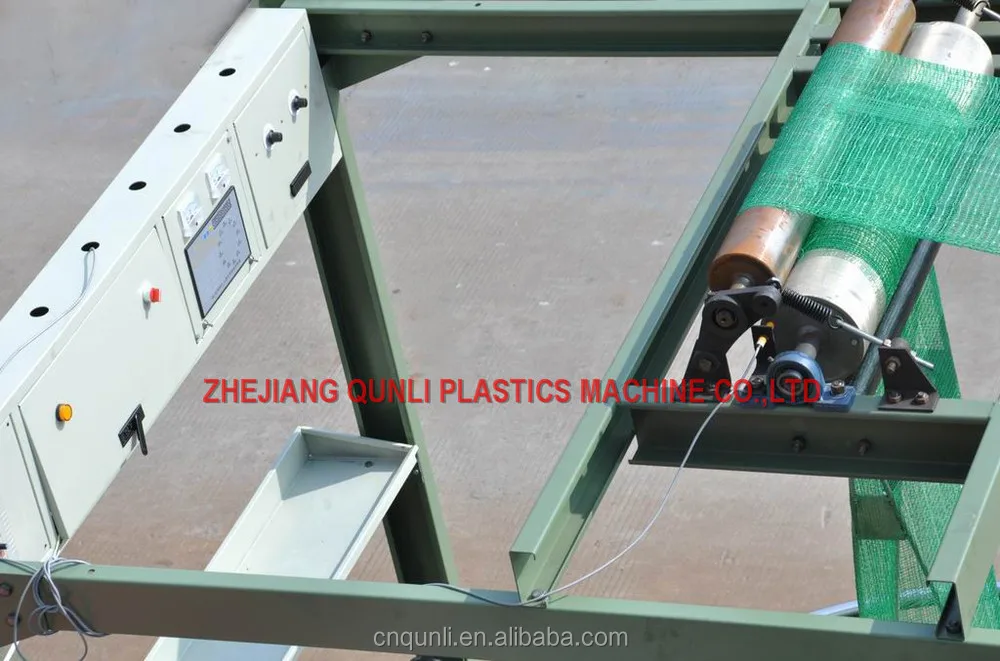

Name: Winder part

Original: China








Main Features

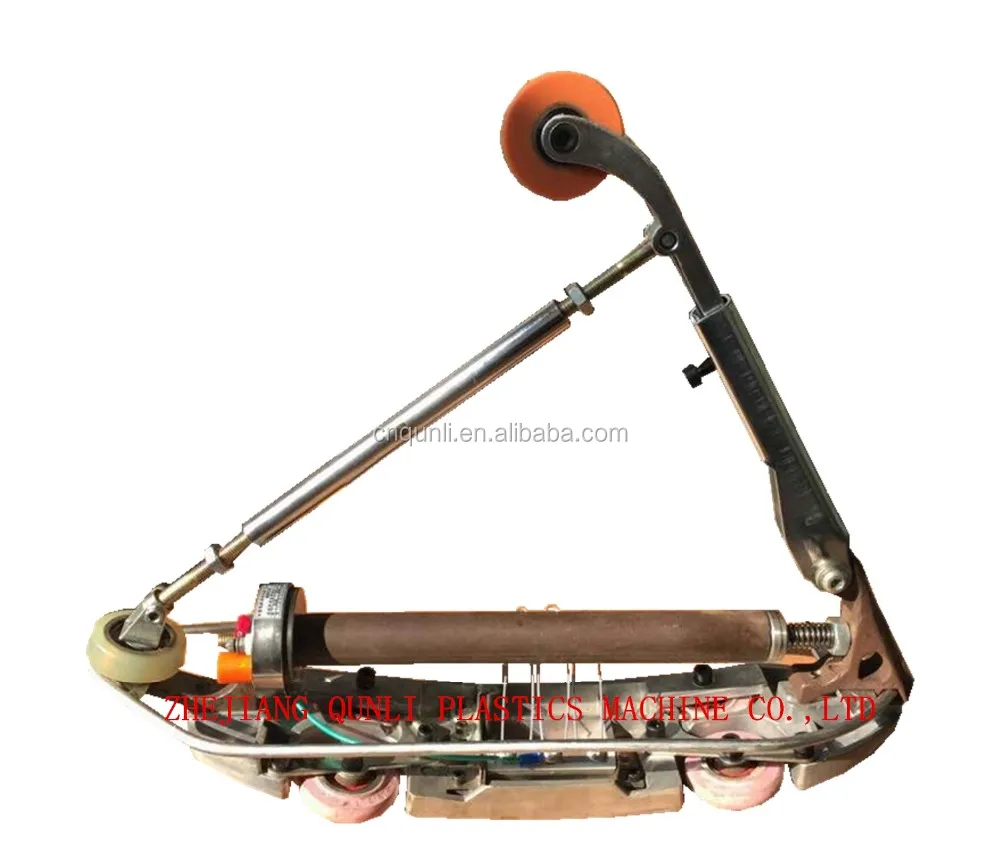

Name: Shuttle

Original: China

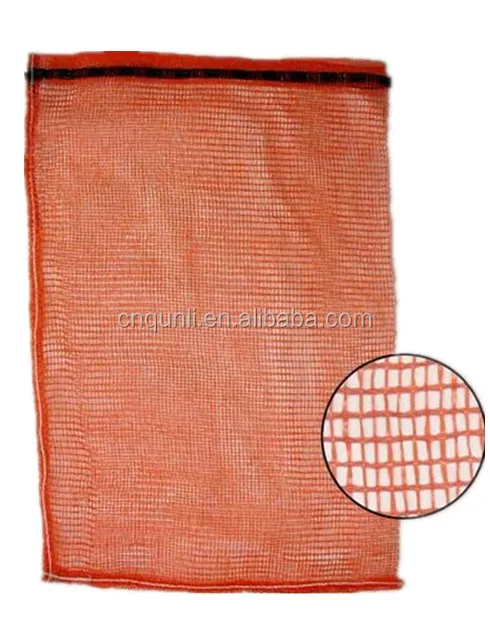

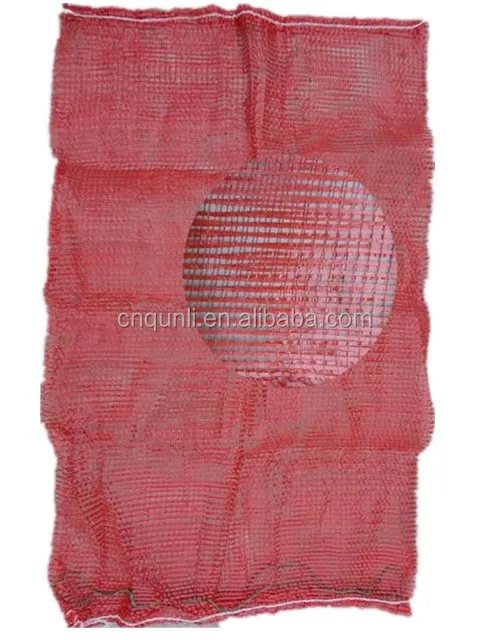

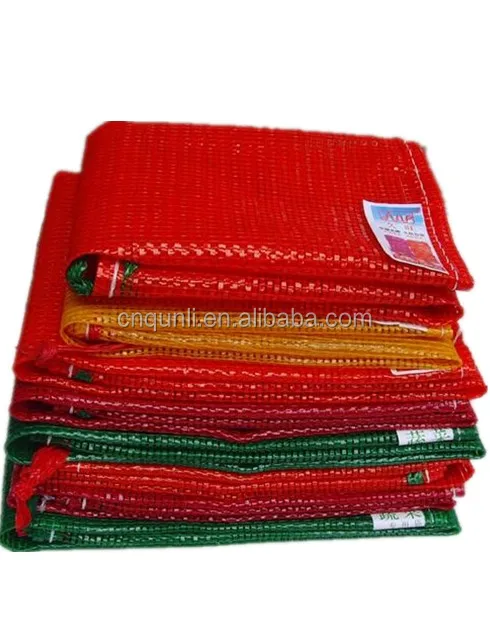

The bag samples






























Pre-Sales Service




* Inquiry and consulting support.


* Sample testing support.


* View our Factory.






After-Sales Service




* Training how to instal the machine, training how to use the machine.


* Engineers available to service machinery overseas.






































Packaging



Size



123 (L) * 456 (W) * 789 (D)



Weight



1.2 T









Packaging Details






3 sets need one 20'GP container



Packing in wooden case according to customer's requirements























Plastic flat yarn extruder




91.8% Response Rate

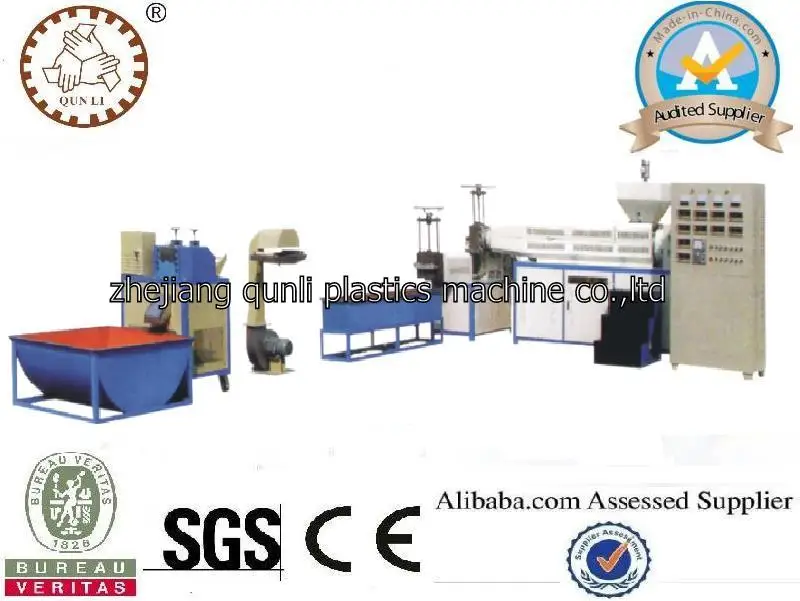

High-speed recycling granulator




91.8% Response Rate

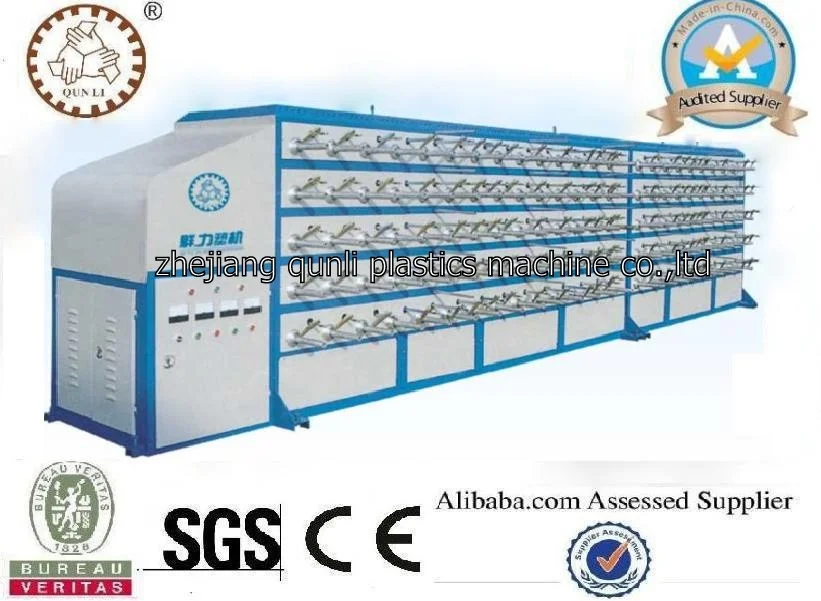

Plastic flat yarn winder
