12 Volt DC Miniature Worm Gear Motor

Product Overview

Description

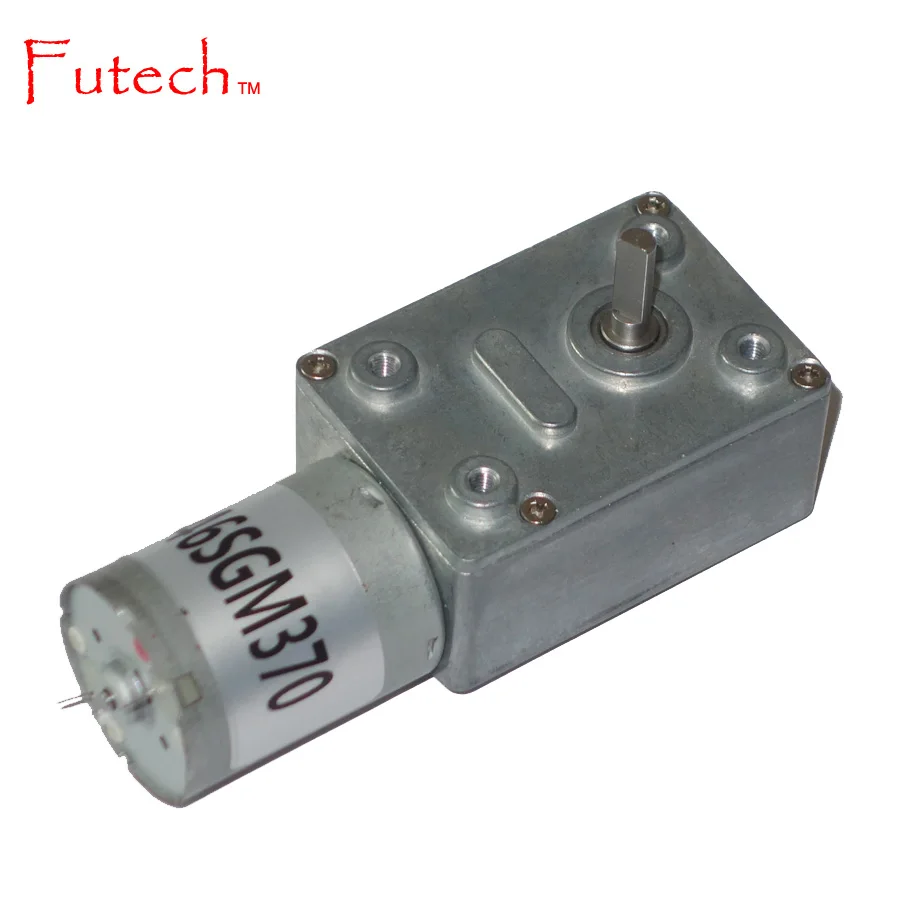

FT-46SGM370  12 Volt DC Miniature Worm Gear Motor

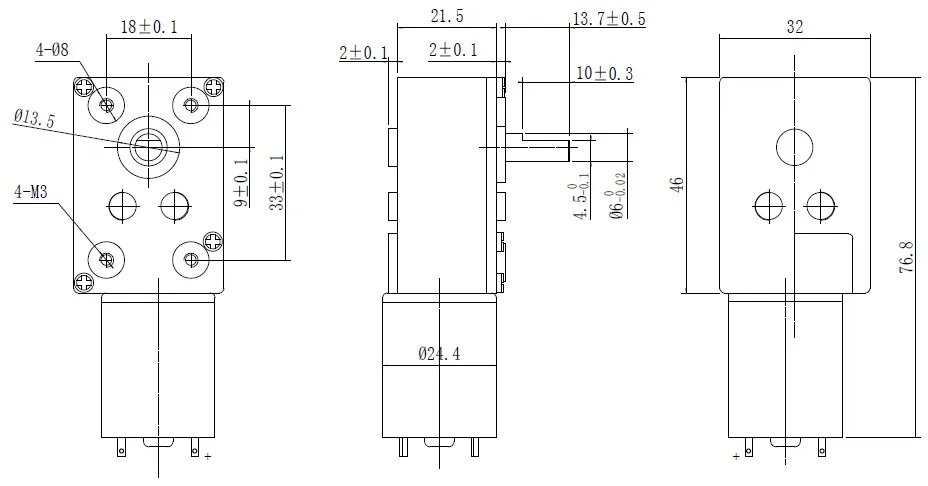

DRAWING (mm)





SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-46SGM3700063000-69K	6V	43	50	34	180	0.3	0.10	420	1
FT-46SGM3700063000-100K	6V	30	50	22	180	0.35	0.08	410	1.3
FT-46SGM3700066000-109K	6V	55	140	45	480	0.5	0.23	1100	3
FT-46SGM3700063000-180K	6V	17	50	14	150	0.6	0.09	380	2.4
FT-46SGM3700068500-330K	6V	25	160	19	650	2	0.39	1600	7.8
FT-46SGM3700065000-950K	6V	5.2	65	4.3	260	3	0.13	830	13.5
FT-46SGM3700062500-1650K	6V	1.5	55	1.2	120	5	0.06	370	22
FT-46SGM3700063200-5300K	6V	0.6	60	0.5	220	15	0.08	400	38
FT-46SGM3700125700-69K	12V	82	82	52	550	0.6	0.32	780	2
FT-46SGM3700126000-69K	12V	86	85	65	400	0.85	0.57	1150	3.5
FT-46SGM3700128500-100K	12V	85	50	75	240	0.42	0.32	1150	2.8
FT-46SGM3700128300-255K	12V	32	70	28	300	1.7	0.49	1100	9.9
FT-46SGM3700126500-330K	12V	20	80	16	300	2.5	0.41	700	9
FT-46SGM3700126500-950K	12V	6.8	50	5.6	300	5.5	0.32	1060	28
FT-46SGM3700123000-1650K	12V	1.8	60	1.4	110	6.2	0.09	250	25
FT-46SGM3700248500-69K	24V	123	70	87	550	2	1.79	1200	6.2
FT-46SGM3700248500-180K	24V	47	40	43	160	1.1	0.49	670	7.2
FT-46SGM3700248500-330K	24V	25	40	23	180	2.3	0.54	690	13
FT-46SGM37002410000-1650K	24V	7	70	5.8	280	11.5	0.68	8600	53
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	3-stage	4-stage
Reduction ratio	69, 108, 200	323, 412, 540, 600, 727, 806, 900, 1012, 1320
Max rated torque Kgf.cm	2	4
Max momentary torque Kgf.cm	5	7
Gearbox efficiency	53%	48%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-370	6	≤45	5000	≤240	4200	20	0.88	≥110	≥1100
FT-370	12	≤42	6000	≤150	5000	20	1.05	≥120	≥980
FT-370	12	≤90	12000	≤520	10300	28	3	≥190	≥2500
FT-370	24	≤21	6000	≤110	5100	21	1.12	≥170	≥440
FT-370	24	≤43	9000	≤210	7800	27	2.2	≥210	≥950



CERTIFICATES: CE & ROHS
