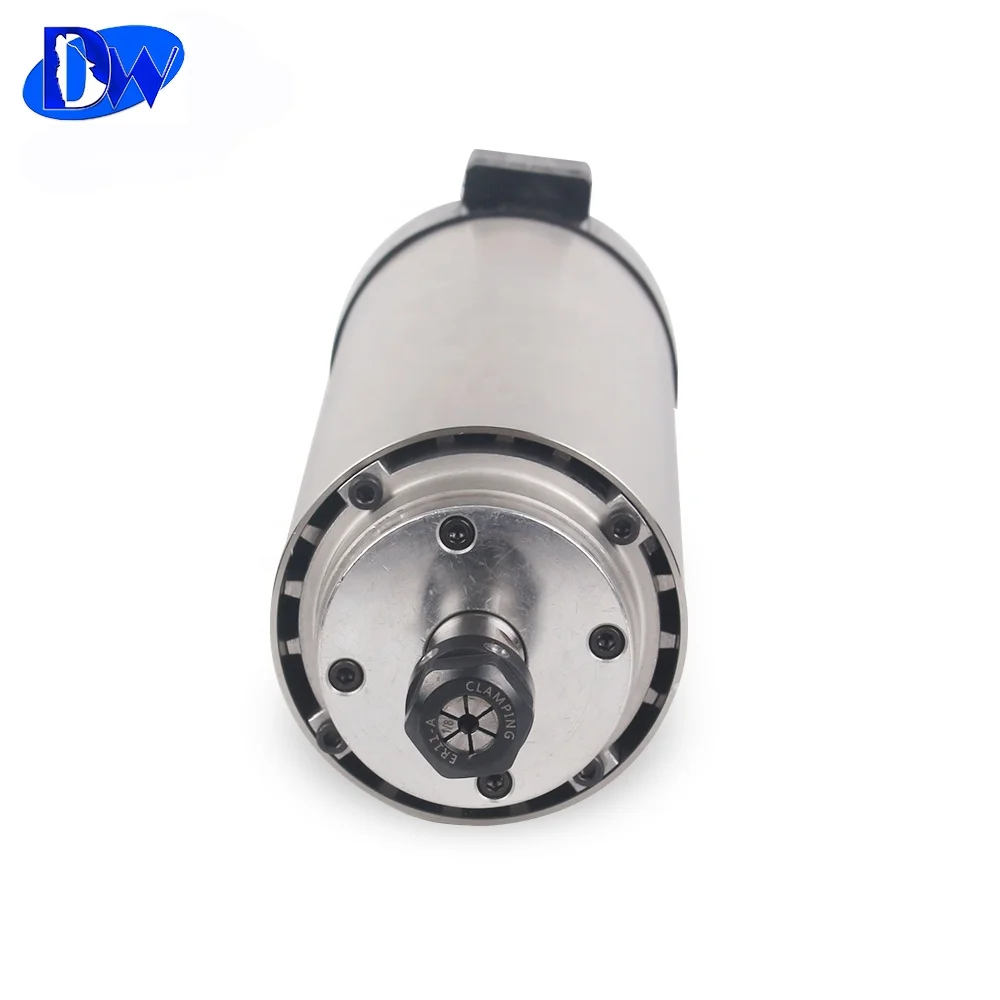

2.2kw GDZ80 2.2 water cooled cnc spindle motor
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60692504411):
Product Overview
Description
2.2KW water cooling spindle motor ( GDZ80-2.2B)
Feature Product
| Model:GDZ80-2.2B | Torque: 0.91Nm | Collet: ER20 |
| Power: 2.2KW | Voltage:220V or 380V | Current:8.0A or 5.0A |
| Frequency:400HZ | Speed: 24000rpm | Cool: Water Cooling |
| Lub:Grease | Weight:5.0kg | |
| Warranty period: Bearings=half a year, other parts a year | ||
The datasheet of our water cooling spindle motor
| TYPE | speed (rpm) | motor | Collect | Product size | Weight (kg) | ||||||
power (kw) | voltage (V) | current (A) | frequency (HZ) | diameter (mm) | L1 | L2 | L3 | ||||
| GDZ48-300 | 60000 | 0.3 | 75 | 4.5 | 1000 | Φ48 | ER8 | 125 | 5 | 16.5 | 1.5 |
| GDZ62-1.2 | 24000 | 1.2 | 178 | 5 | 400 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 36000 | 1.2 | 220 | 4.5 | 600 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ62-1.2 | 60000 | 1.2 | 220 | 4.5 | 1000 | Φ62 | ER11 | 202 | 5 | 30.5 | 4.4 |
| GDZ65-800 | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 161.5 | 5 | 28.5 | 2.6 |
| GDZ65-800A | 24000 | 0.8 | 220 | 1.9 | 400 | Φ65 | ER11 | 197 | 5 | 28.5 | 3 |
| GDZ65-1.5 | 24000 | 1.5 | 220 | 5.5 | 400 | Φ65 | ER11 | 208 | 4.5 | 28.5 | 3.6 |
| GDZ80-1.5C | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 181.5 | 12 | 27 | 4.4 |
| GDZ80-1.5E | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 208 | 12 | 30 | 4.4 |
| GDZ80-1.5,ER16 | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER16 | 210 | 18 | 32 | 5 |
| GDZ80-2.2B,ER20 | 24000 | 2.2 | 220 380 | 8 5 | 400 | Φ80 | ER20 | 210 | 40 | 20.5 | 5 |
| GDZ85-1.5 | 24000 | 1.5 | 380 | 5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ85-2.2 | 24000 | 2.2 | 380 | 7.5 | 400 | Φ85 | ER20 | 251 | 5.5 | 40.5 | 13 |
| GDZ100-3 | 24000 | 3 | 220 380 | 10 5.8 | 400 | Φ100 | ER20 | 221 | 31.5 | 44 | 9 |
| GDZ100-3B | 24000 | 3 | 220 380 | 12 7 | 400 | Φ100 | ER20 | 246 | 31.5 | 44 | 9.6 |
| GDZ100-4 | 24000 | 4 | 220 380 | 13.8 8 | 400 | Φ100 | ER20 | 261 | 31.5 | 44 | 11.6 |
| GDZ105-3.0N | 24000 | 4 | 220 380 | 11.3 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ105-3.2S | 24000 | 3.2 | 380 | 6.5 | 400 | Φ105 | ER20 | 235 | 30.5 | 40 | 13 |
| GDZ125-4.5 | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-5.5 | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 22 |
| GDZ125-4.5S | 24000 | 4.5 | 380 | 8 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
| GDZ125-5.5S | 24000 | 5.5 | 380 | 9 | 400 | Φ125 | ER25 | 267 | 53 | 48 | 28 |
Our Services
Different specification of products with competitive price for your choice:
First-class service:
Customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, please contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
