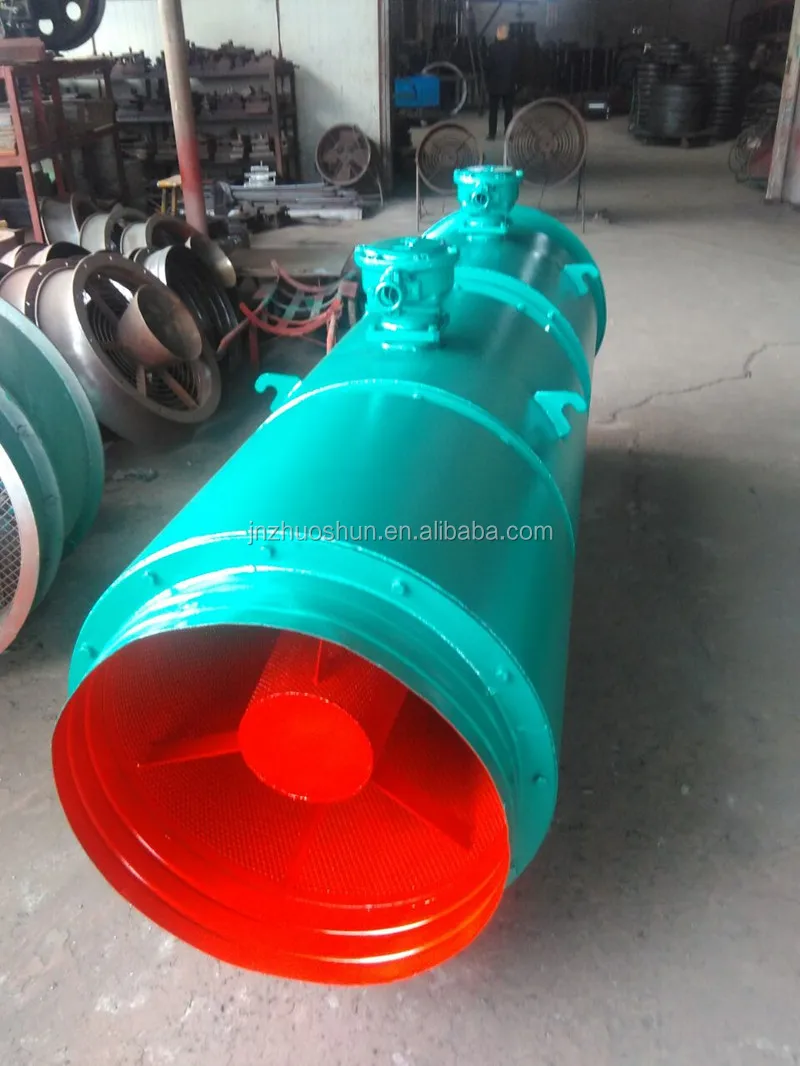

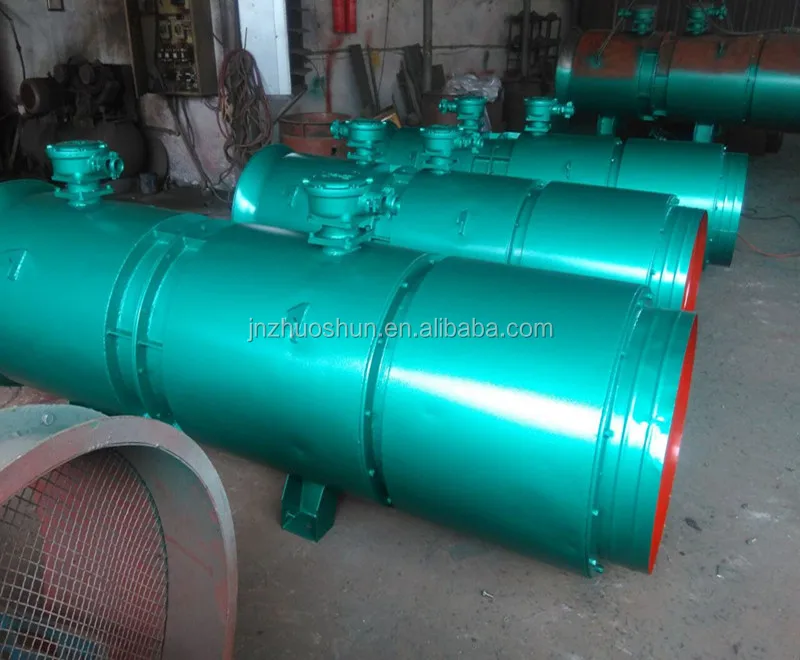

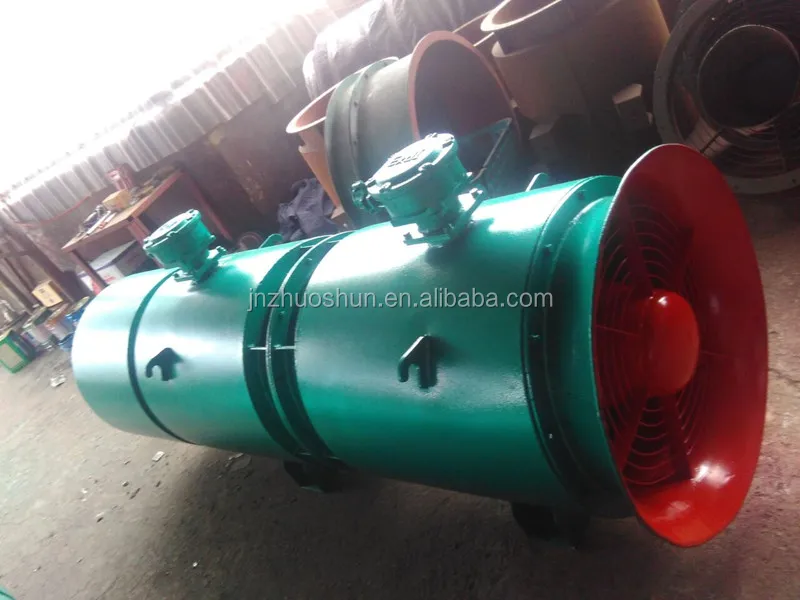

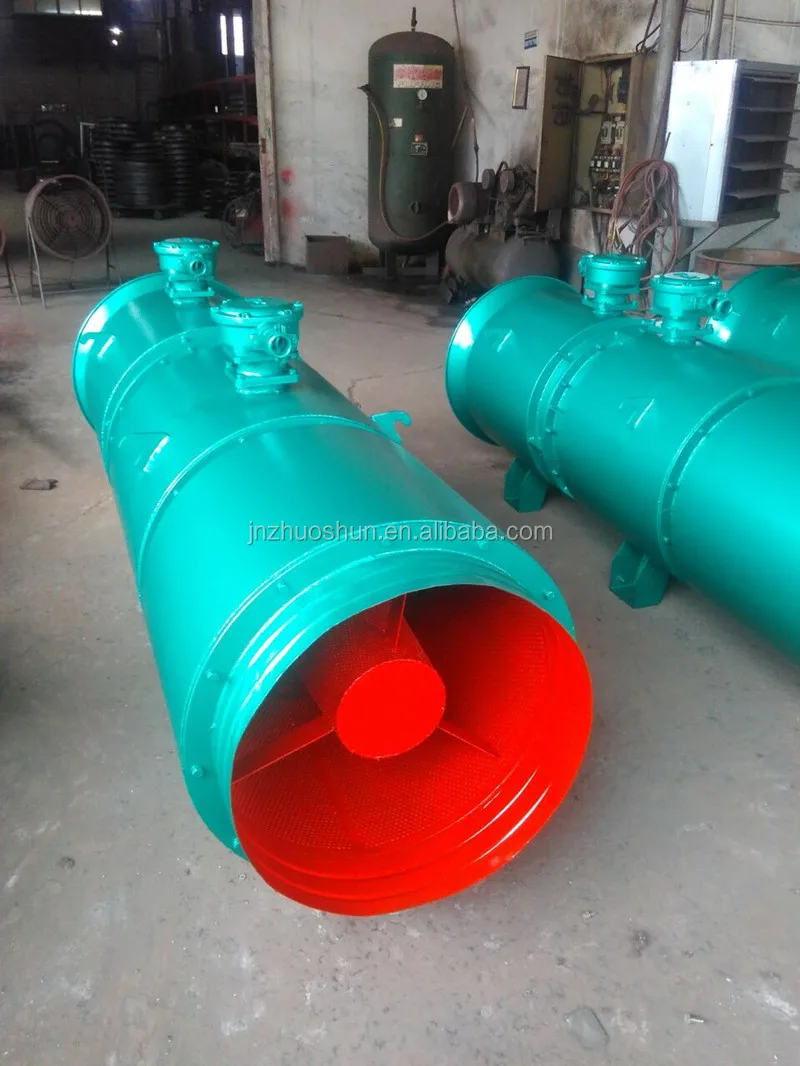

FBD Series explosion proof Axial Fan for Tunnel and Coal Mine

Product Overview

Description

Introduction of FBD explosion-proof Coal Mine Axial Blower Fan/ventilat

FBD explosion-proof Coal Mine Axial Blower Fan/ventilation fan

· Application:  Best choise ventilation fan for under mining coal, deep tunnel/  metal mining/ engineering tunnel

· Function:  far distance ventilation,  big power ventilation, low noisy, high efficiency, energy-saving,  various style available

· Temperatuer range:-20°C~+40°C


FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine  Feature:

1. The product is composed of explosion-proof motor, vanes, air duct and others;

2. It's in low noise, low consumption and perfect performance;

3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;

4. The enclosure material can be armor plate or fiber flass reinforced plastic;

5. Wiring with cable.

Main Parameter of FBD explosion-proof Coal Mine Axial Blower Fan

NO.	Rotater/min	Motor model	Power  kW	Pressure (V)	DC current  (A)	Air capacit m3/min	Pressure  (Pa)	Highest efficiency (%)	A sound  Level (dB)
4.0	2900	YBF2-90L-2	2×2.2	380/660	4.85/2.79	136~89	256~2050	≥75	≤30
		YBF2-100L-2	2×3	380/660	6.4/3.7	150~100	325~2500	≥75	≤30
		YBF2-112M-2	2×4	380/660	8.1/4.7	165~109	375~3040	≥75	≤30
5.0	2900	YBF2-112M-2	2×4	380/660	8.1/4.7	217~145	275~2060	≥75	≤30
		YBF2-132S1-2	2×5.5	380/660/1140	11.1/6.4/3.7	240~161	325~2540	≥75	≤30
		YBF2-132S2-2	2×7.5	380/660/1140	14.8/8.66/4.97	266~178	400~3155	≥75	≤30
5.6	2900	YBF2-132S2-2	2×7.5	380/660/1140	14.8/8.66/4.97	286~188	275~2850	≥80	≤25
		YBF2-160M1-2	2×11	380/660/1140	21.6/12.6/7.2	324~215	375~3690	≥80	≤25
		YBF2-160M2-2	2×15	380/660/1140	28.8/17.0/9.6	400~236	1107~4500	≥80	≤25
6.3	2900	YBF2-160M2-2	2×15	380/660/1140	28.8/17.0/9.6	410~237	400~4775	≥80	≤25
