Product Overview

Description


Product Description
  G-Series sensors feature a microprocessor-based design with enhanced diagnostics and programmability offering the flexibility to fit a wide range of applications. The sensor's head contains the active signal conditioning and a complete integrated electronics interface. Double shielding is used to ensure EMI protection for unsurpassed reliability and operating safety.

Main Features

-  Linear, Absolute Measurement

-  Non-Contact Sensing Technology

-  LEDs For Enhanced Sensor Diagnostics

-  Programmability, Analog Output Models: Voltage or Current, Fully Adjustable Outputs Within: -10 to +10 Vdc or 0 to 20 mA

-  Programmability, Digital-Pulse Output Models: PWM or Start/Stop

- Simultaneous Multi-Magnet Measurements Using Start/Stop

-  Linearity Deviation Less Than 0.02%

-  Repeatability Within 0.001%

-  Designed for Backward Compatibility with Legacy Temposonics Products

-  Standard 24 Vdc and extended input power supply options for compatibility with older controller interfaces

-  Integral connector replacement options including: Hanging (inline) connectors, Adapter cables, Field-installed connector kits

Detailed Images

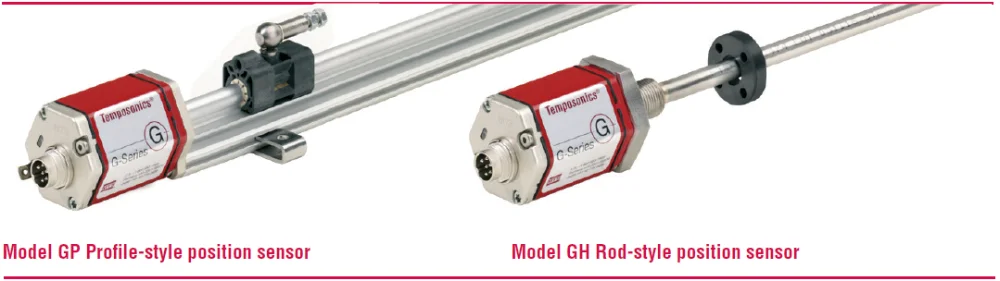

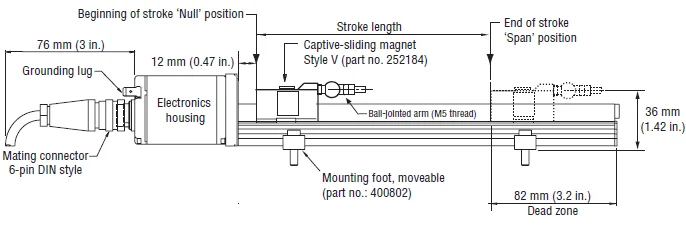

MTS offers two standard sensor housings, rod and profile extrusion. The rod housing is capable of withstanding high pressures such as those found in hydraulic cylinders. The profile extrusion housing provides convenient mounting options and captive-sliding magnets which utilize slide bearings of special material that reduce friction, and help mitigate dirt build up.




Main size

Pls contact us for details confirmation ,and the new catalogue.

Main Model

MTS- GBF0700MU05-1-SB1100
MTS- GHM2130MD601A0
MTS- GHM1020MD601A2
MTS- GHM1670MD601A0

MTS- GHM1570MD601A0
MTS- GHM1350MD601A0
MTS- GHM1040MD601A0

More models, pls contact us~

Packing & Delivery
\t
Packaging
\t
Size
\t
500(L) * 15 (W) * 15 (D)
\t
Weight
\t
1 kg
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
