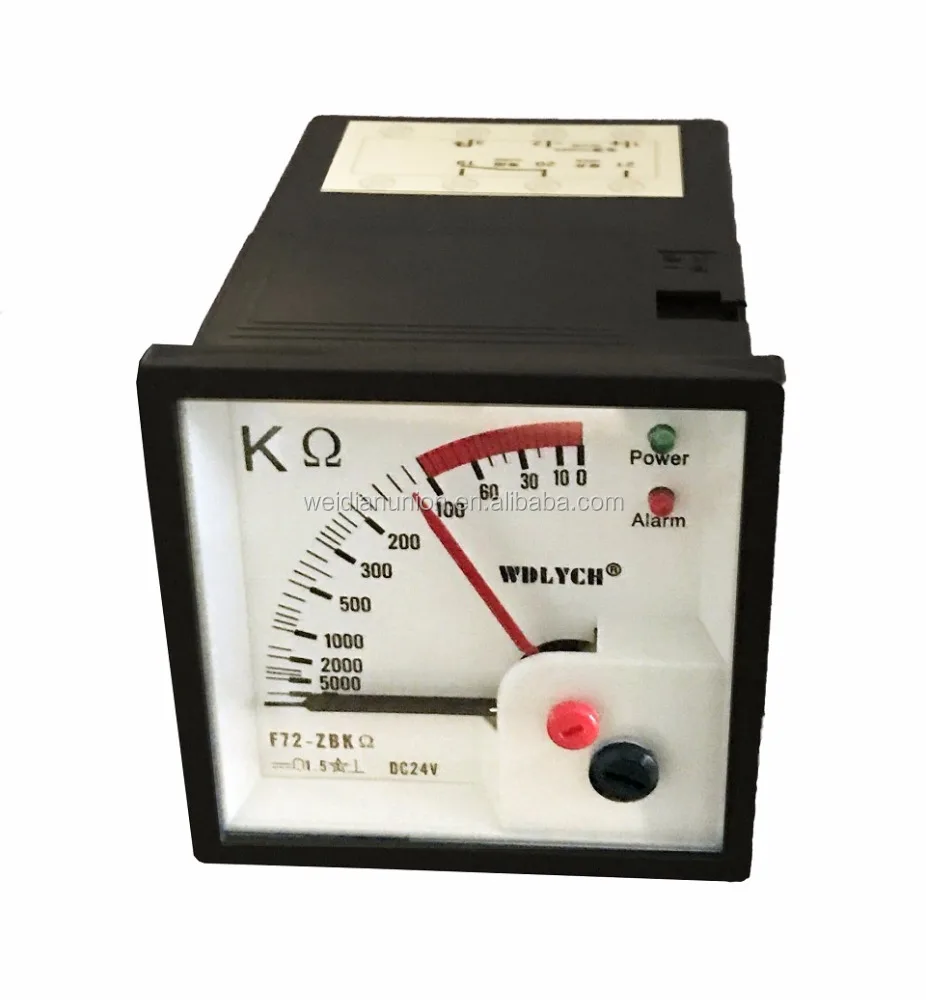

72mm Integrated Wide Scale DC Net Insulation Monitor
72mm Integrated Wide Scale DC Net Insulation Monitor
72mm Integrated Wide Scale DC Net Insulation Monitor
72mm Integrated Wide Scale DC Net Insulation Monitor

72mm Integrated Wide Scale DC Net Insulation Monitor

Share on (60692654142):


Price:RUB 5,710.73 - RUB 6,855.32

Quantity:


Product Overview

Description

Product Description
Model
WDG72-ZBMΩ
Indicating Angle
240°-270°
Dimension(mm)
72*72-108
Hole Size(mm)
68*68
Measurement
DC24V/DC110V/DC220V
Technical Parameters

Technical Data:


 1. DC net insulation monitor integrate indicating & monitoring;
 2. Insulation resistance lower than preset value, alarm signal release;
 3. There are switches at back of meter, and alarm value be set as: 10KΩ, 30KΩ, 60KΩ, 100KΩ;
 4. Power supply: DC24V±20%, DC220V±20%(Tested power network);
 5. Consumption of power alarm: 10VA;








Wiring Diagram
