Plastic PP Woven Bag Production Line



Performance and Characteristics:

 This machine is suitable for not only new PP raw material but also PP recycling materials.

 The machine using material of polypropylene & high density polyethylene, through heating extruding and drawing makes tape that is then winded for the weaving of thecircular loom.

Through our sustained improving , the machine can use 100% regenerated PP & PE ,powder or grain PP & HDPE to produce tapes .The screw and cylinder of extruder are of 38 CrMoAIA alloy steel, the hardness is over HV 950 after nitrogenation treatment. Helical gear reducer made of 20 CrMnTi Tially steel is applied to the extruder, the gears & chain wheels are made of 45# medium carbon steel and done the treatment of high frequency quench.The driving rollers are plated with hard Cr, tension self-controlling of winding-rollers are applied to the driving unit.



Main Technical Parameters:



Model	LH-FS110/800B	LH-FS110/1000B	LH-FS110/1200B	LH-FS110/1600B
Diameter of Screw (mm)	120	125	125-135	145
L/D ration of screw	24:1	24:1	24:1	26:1
Rotational speed of screw(rpm)	20-80	20-80	20-80	20-70
Width of Die(mm)	800	1000	1200	1600
Motor Power of Extruder (kw)	30	30	30	37
Heating Power of Extruder (kw)	75	80	80	85
Power of Driving Motor(kw)	3-5.5	3-5.5	4-7.5	4-7.5
Heating power of the oven (kw)	35	35	35	35
Thickness of tape(mm)	0.025-0.08	0.025-0.08	0.025-0.08	0.03-0.08
Capacity(kg/h)	50-100	60-120	70-140	90-180
Drawing speed(m/min)	20-150	20-150	20-150	20-150
Installing dimensions(L*W*H )( mm)	20200*1500*1450	20500*2200*1450	20500*2500*1450	21500*3000*1450
Weight (kg)	6500	8000	10000	16000

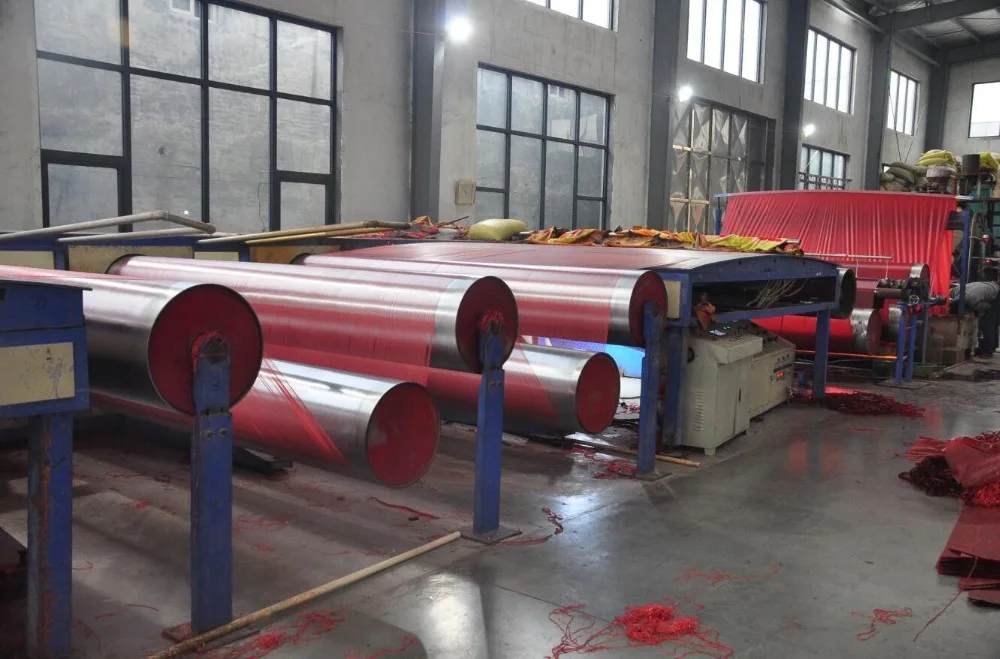

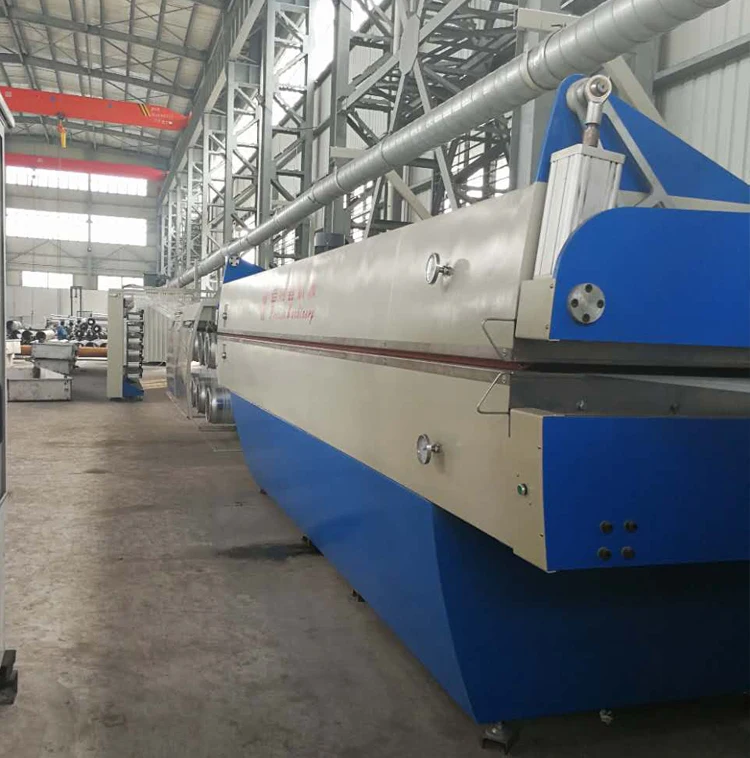

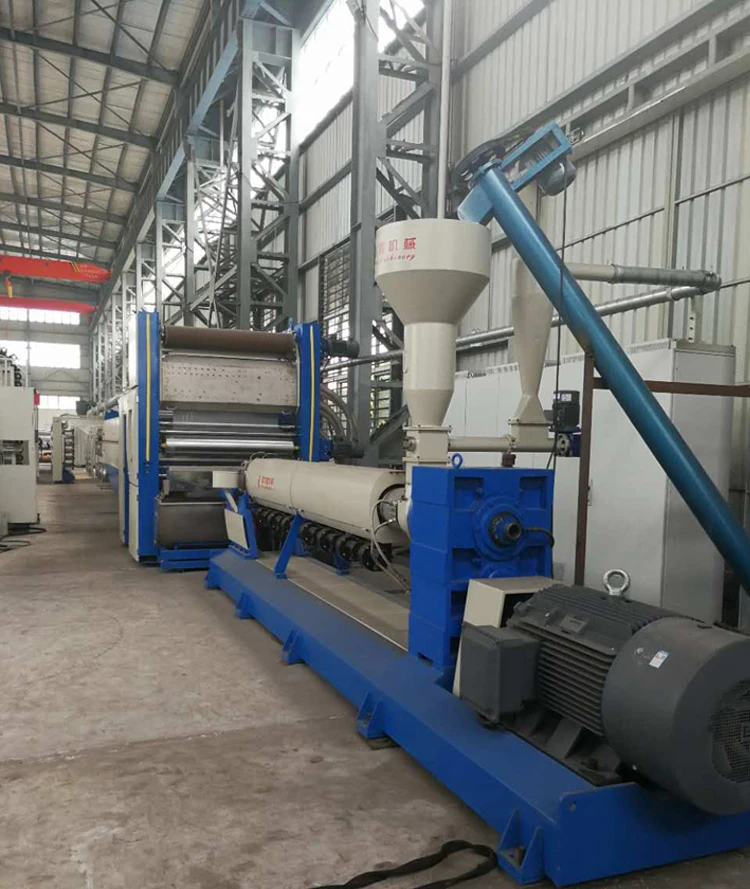

Machine Pics:
