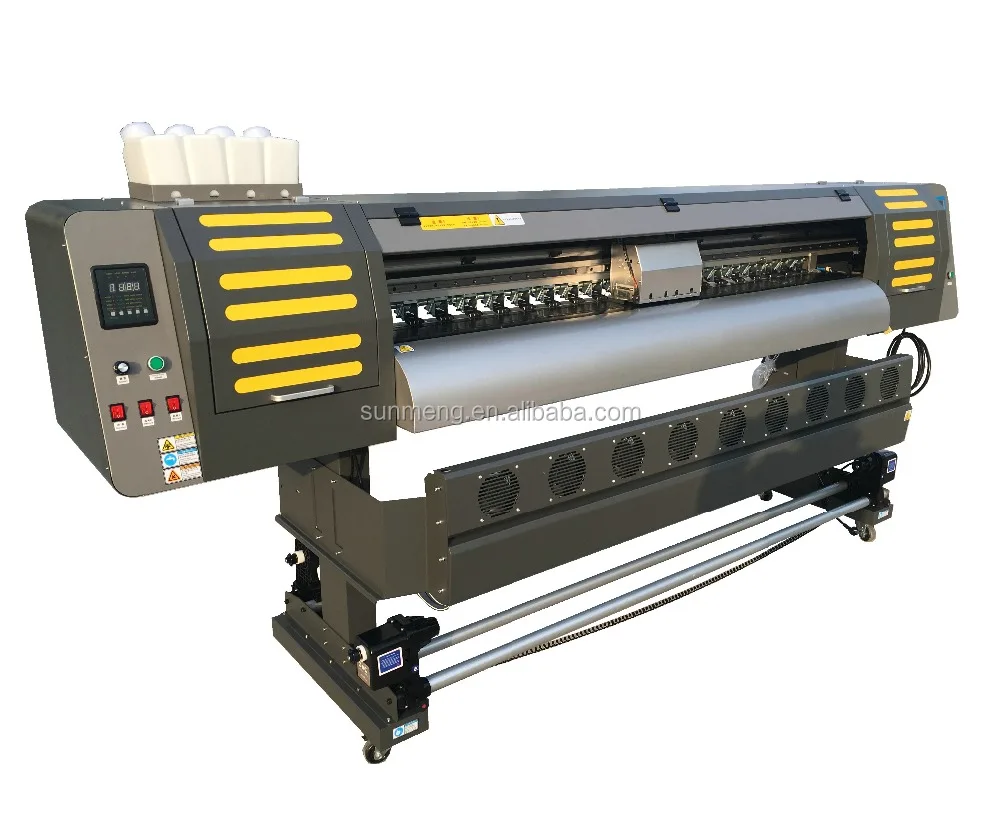

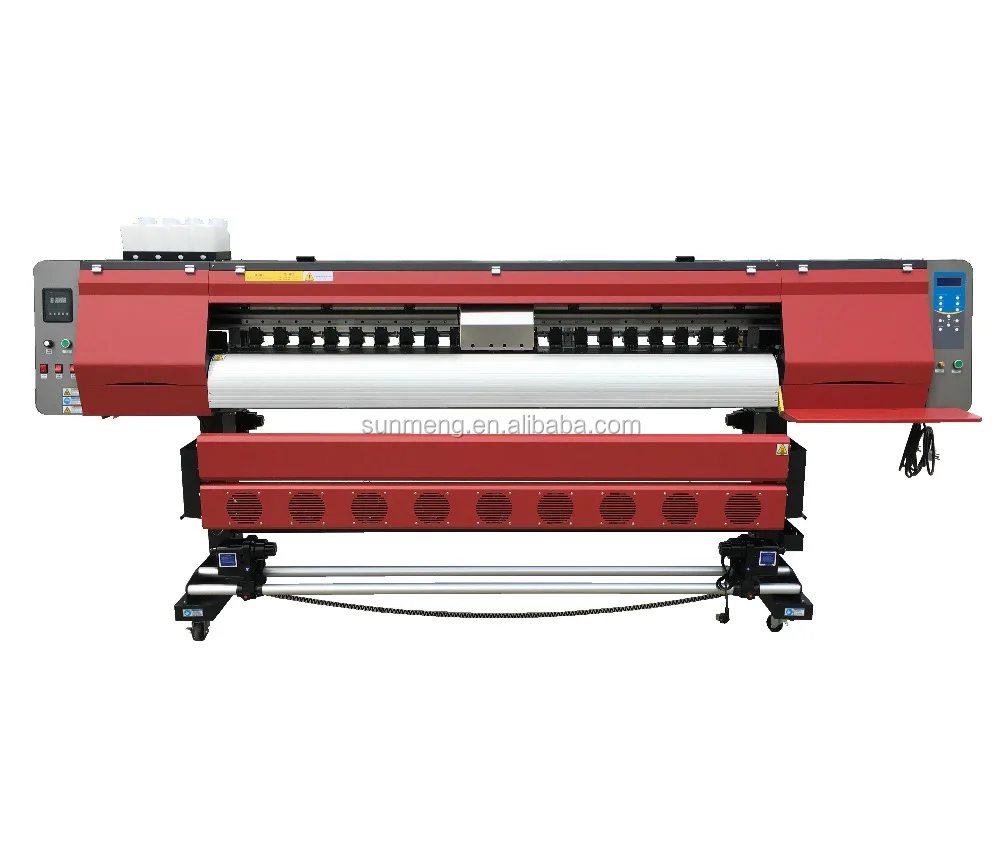

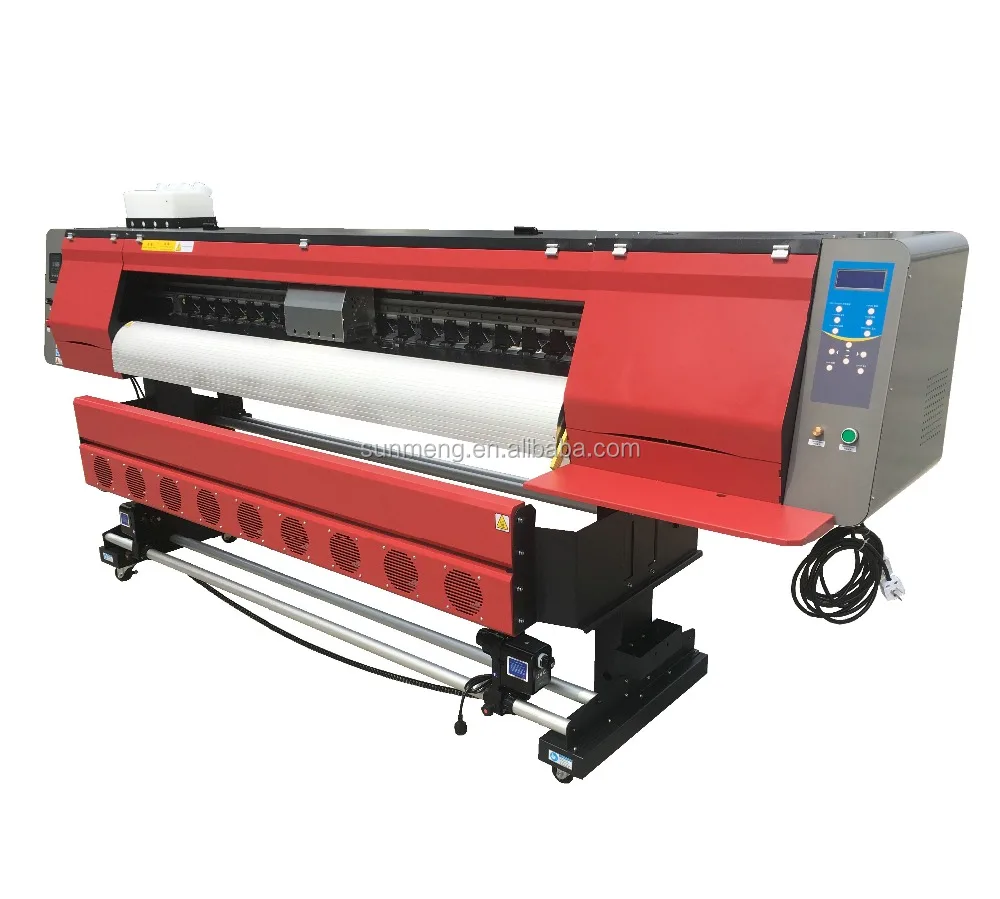

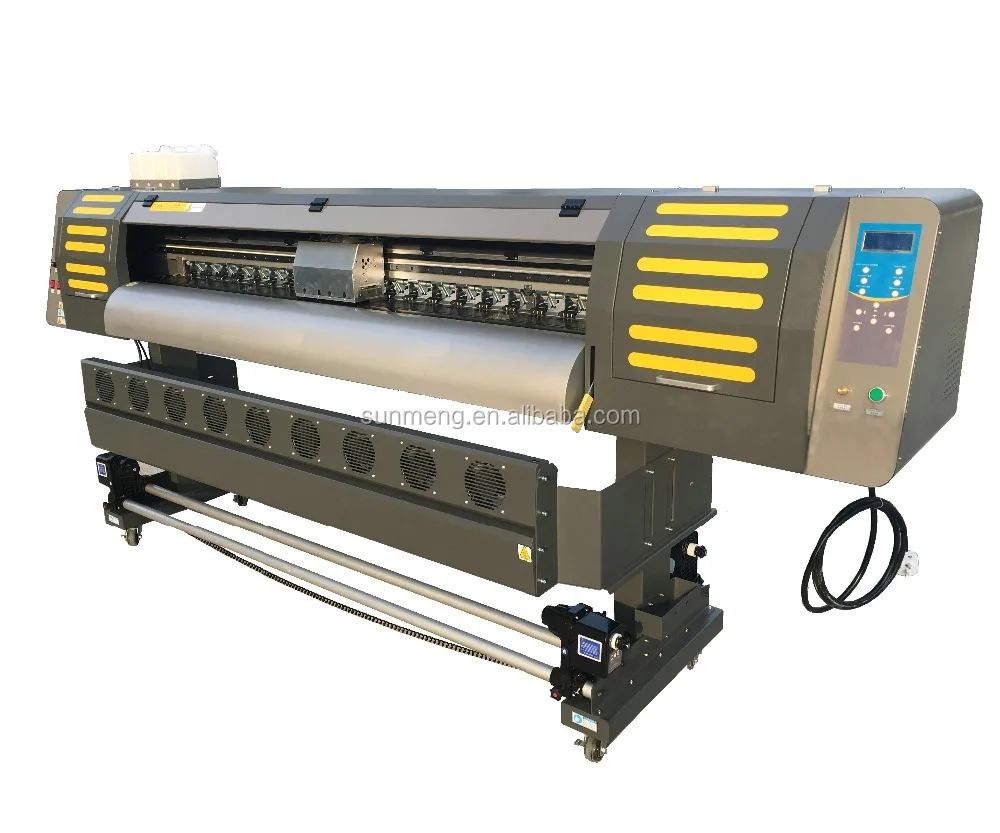

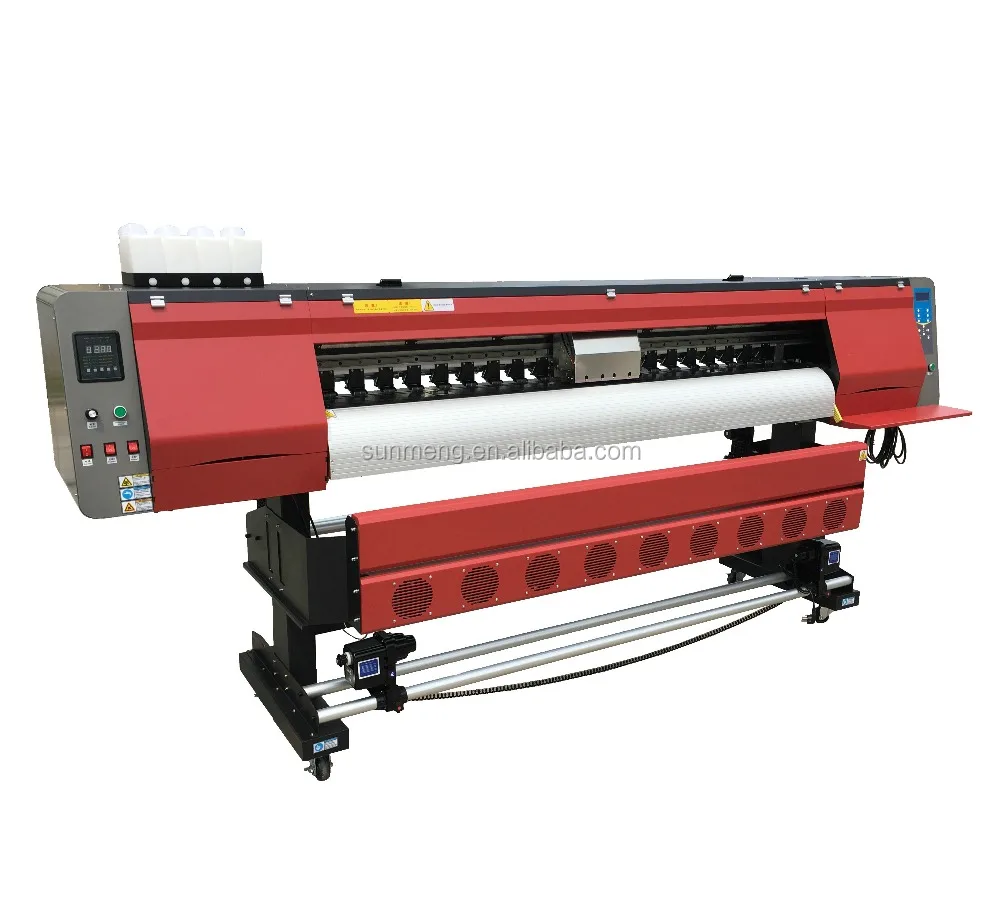

Digital Textile Printer

Product Overview

Description

Advanced Software Functions

High-efficient printing

Rip while printing;

Print selected area;

Skip white in X and Y printing directions;

Auto media sensor for setting print origin automatically.

(3 picture positions: left, middle and right)



Printing quality enhanced

Two feather printing modes :moist, gradient;

Simple printhead calibration mode can be easily mastered by operators;

Micro adjustment of printhead voltage.



Double heads speed

2pass:64m²/h     3pass:44m²/h     4pass:32m²/h

6pass:22m²/h     8pass:16m²/h     12pass:11m²/h



Human-based functions

Options of automatically sensing or manually setting media origin;

Adjustable step value during printing;

Operations both in computer interface and machine control panel;

Automatic and constant ink system cleaning function.



Ink saving function

Options for single head cleansing or double heads cleansing;

Options for light, medium and heavy printhead sucking.



Printhead liolonged

All color channels can be exchanged freely so as to prolong the printhead lifespan.



Special Features

High resolution

High mechanical precision ensures precise printing, Gethray uses high precise aluminum beam, two processes by high precision planomiller, ensures beam with high precision as international level.1mm error limit;

Printing resolution by four gray scale printing technology, three type variation dot, dark, middle and light, the minimum is 3.5pl,10 types difference size variable dot can be printed, enabling printing of small exquisite character more clearly.



High speed

Fire frequency 15K,running speed up to 1m/s, printing speed 15.5-21m²/h with one head, two heads with 29.2-37.4m²/h two times productivity than old machine.



More stable

Each color has independent control circuit, precision up to 0.04V without sharing, voltage keep the same, and has temperature compensation, printhead adapt temperature automatically, allowing outstanding performance.
