High Performance concrete floor grinder

Product Overview

Description

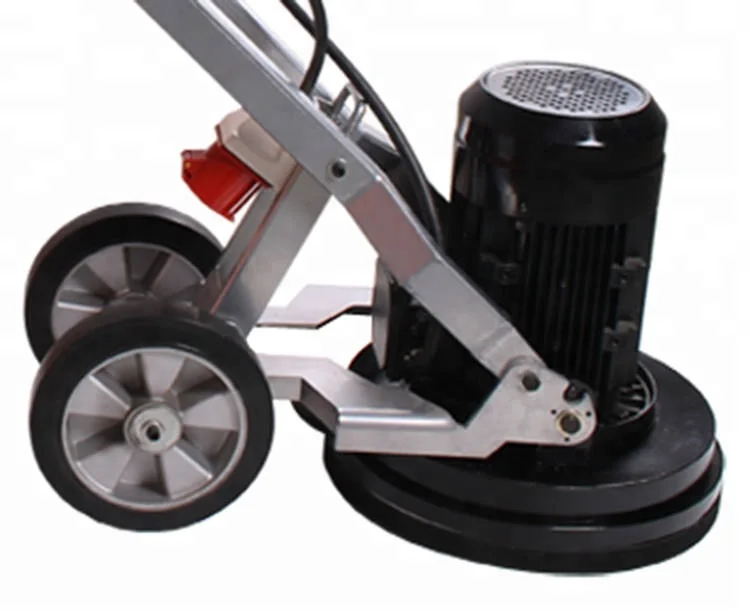

High Performance concrete floor grinder

HW-G2 is a professional floor grinder for epoxy floor. It has a high motor rotation rate (1440rpm), 5.5hp, grinding width 400mm, so it works effectively and continuously for a long time. The overload protect elements are Schneider, which avoids leakage and phrase protection.



Voltage:	380v, 3 phrase	Power output:	4kw, 5.5hp
Frequency:	50/60 HZ	Dast port:	Φ50
Grinding Width:	400mm/15.7’’	Current:	7.6A
Weight:	95kg / 205 lbs	Grinding Pressure:	69KG/152 lbs
No.of disc	Single plate	AdditionalWeight:	N/A

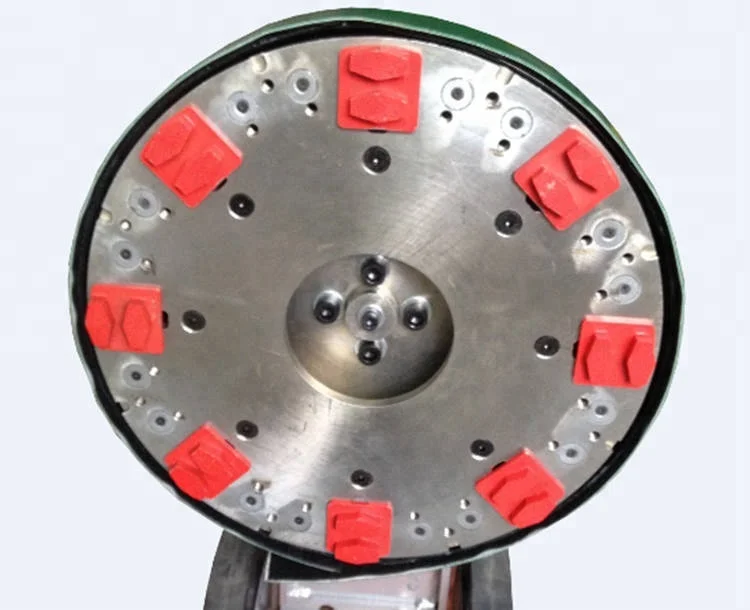

No.of tool	8piece	Head Speed:	1440rmp
MachineDimension:	760*420*1200mm	PackingDimension:	800*450*1000mm

PRE-SALE SERVICE

Once receive your question,we will offer you a total solution.

We offer 7/24 hours online service.(E-mail,Whatup,Facebook,Youtube,Twitter,etc)

Telephone and Mobile phone are also available,you can contact us in everywhere and any-time.



IN-SALE SERVICE

All the machines’ parts have pasted the quality control system before,during and after manufacturing.

We ensure that you’ll receive the machines within 15 days.

We ensure every single machine is in TOP quality before you get it.



AFTER-SALE SERVICE

1 year warranty for the machines.

Our strong R&D department offers immediate technology support.

Topwell care service will follow you and your machine for years.

Q:What voltage the floor grinder HW-G2?

A:  It is only for 380v,50/60hz.



Q:  How HW-G2 is driven?

A:  HW-G2 is driven by the motor;

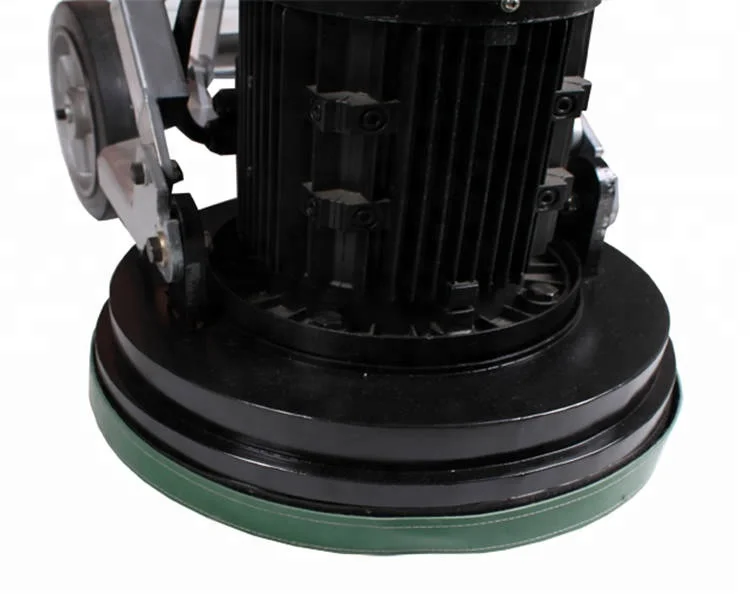

Q: How about the floating cover of HW-G2?

A: The floating cover follows uneven floor up and down, which prevents dus from entering the           work site.



Q: If the machine vibrates when it works?

A: HW-G2 has a chassis which is made of triangle structure. It is more stable and less anti-vibrate. Besides, the machine frame is made of steel tubes, not steel plate, so it could support machine more and decrease vibration.

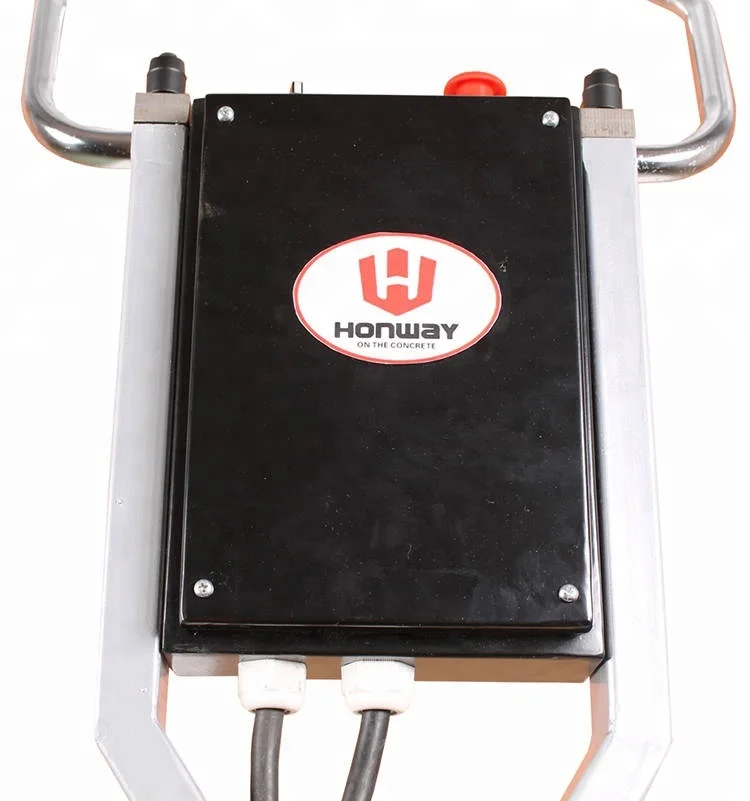

Q: How about the electrical elements of HW-G2?

A: The electrical elements are Schneider relay and contactor, world brand. Honway pays attention to the electrical safety, so all the eletrical connections and details are greatly assured.



Q: If HW-G2 could be attached to vacuum?

A: Yes, it can; the diameter of port is 50mm, common criteria.
