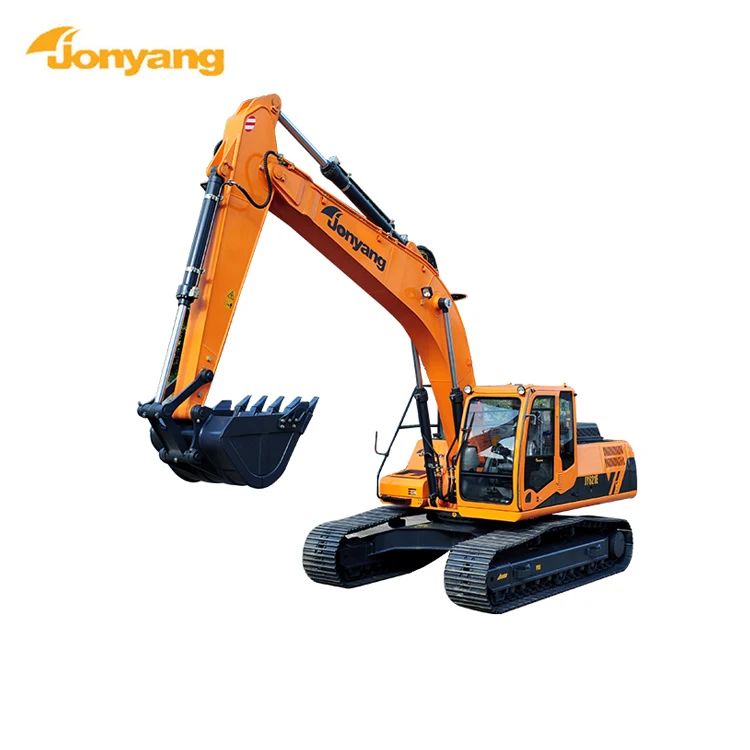

JY621E Middle Crawler Hydraulic Excavator ,with key components from famous international manufacures,combined with high-level hydraulic technology,machining technology, Mechanical and electrical integration technology. It provides the most efficient and reliable performance.The digger in excavator can be used for hydro-electric projects,mining,road construction,airport and port construction, urban construction, pipeline laying, etc.
Benifits & Features
*Efficient Operation
User-friendly,multi-function digital color monitor panel and electronic fuel control allow the operator to select the best setting for the job across a wide range of applications.Operational efficiency is thus maximized.

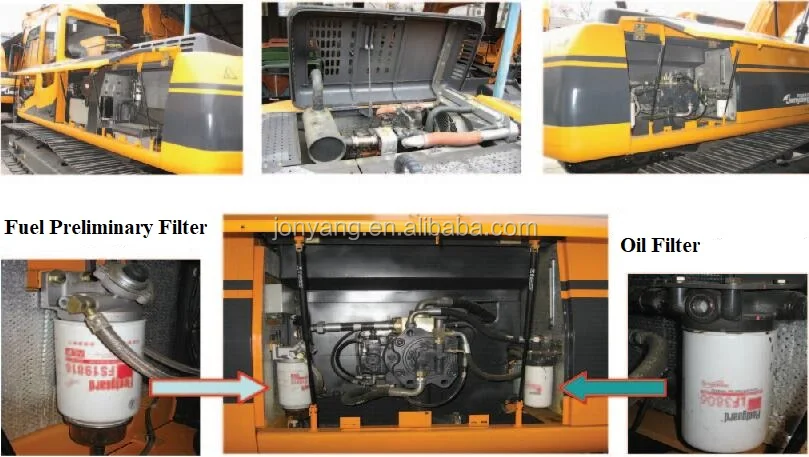

*Easy Maintenance
Service points are easily accessible for operator and service personnel.Centralized greasing is standard equipment.
*Superior Stability
Rational machine structure,solid working device ensure long-term stable operation of machine.
*Operator Comfort
Adjustable steering column and operator seat offers best operating position. High-capacity air-conditioner provides comfortable operating environment.Pilot-actuated low-effort control levers are designed for long hours of operation,thus helping to reduce operator fatigue.
*High Performance and Reliable Components
Industry-proven,high-torque 6-cylinder diesel engine,coupled with a reliable variable-displacement hydraulic pump and load-sensing hydraulic system,ensure high performance and reliability.
*Safety
Satefy is top priority in excavator.High-visibility cabin with pull-up front window gives better views of the working area. Large handrails make it easier and safer for operator and service personnel to get in and out of the cabin and maintenance areas,Emergency escape hatch is standard equipment.

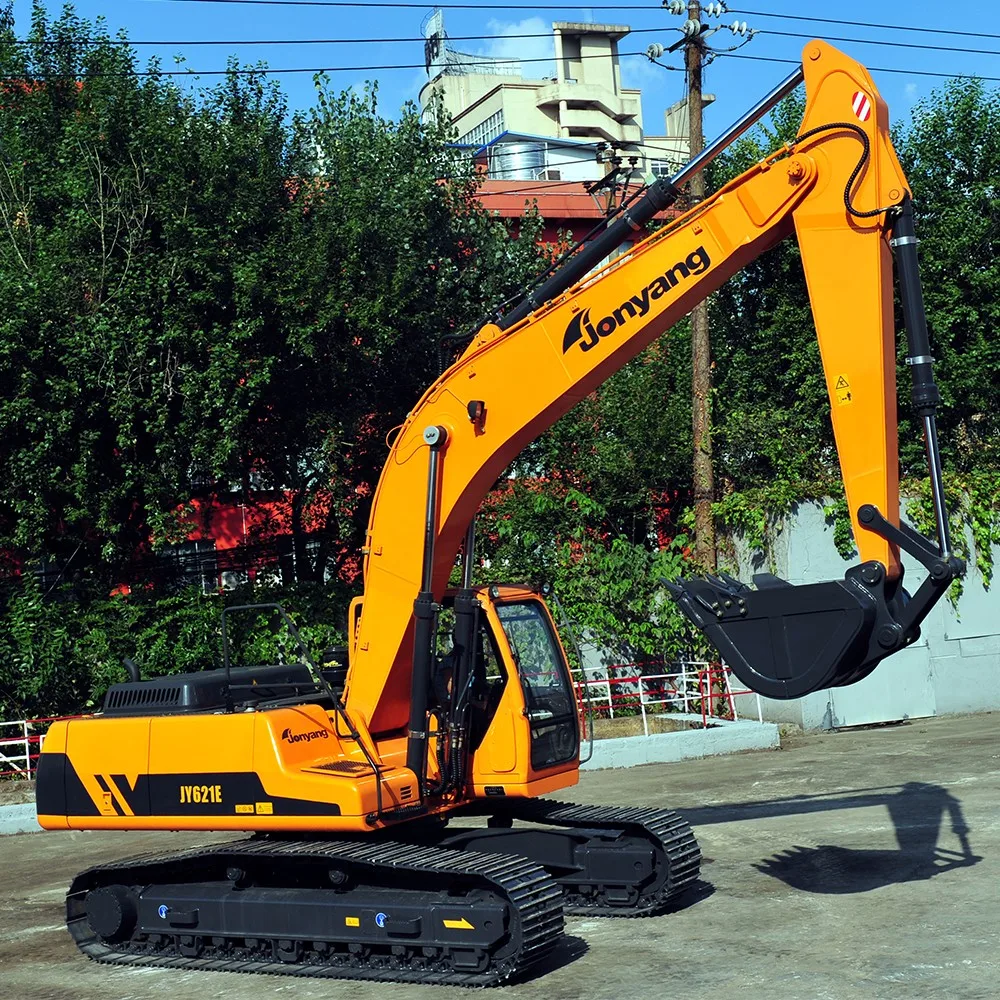

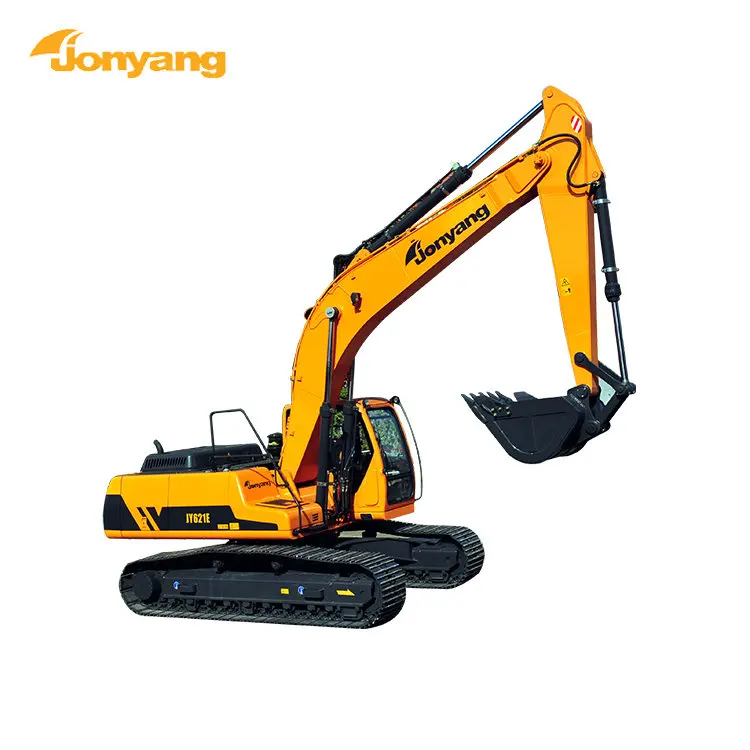

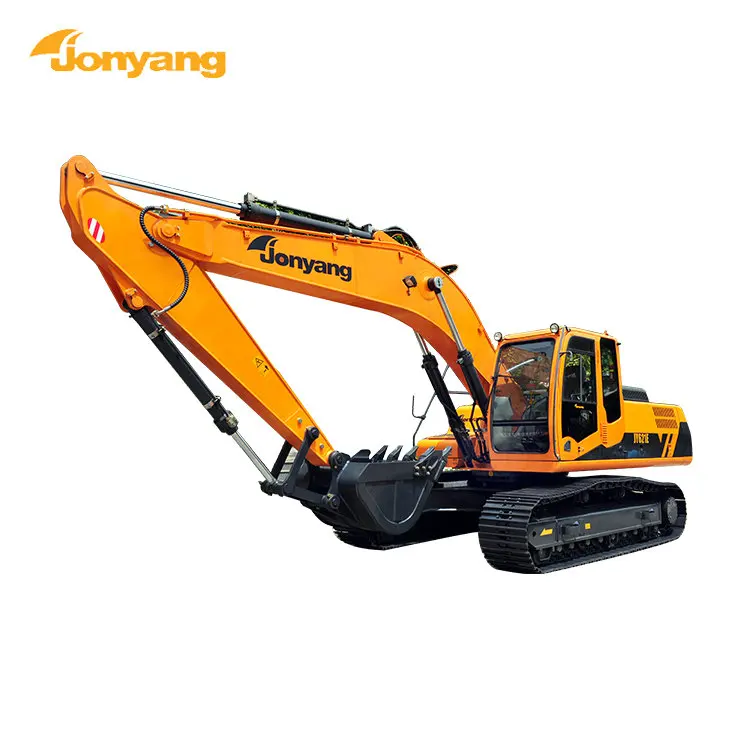

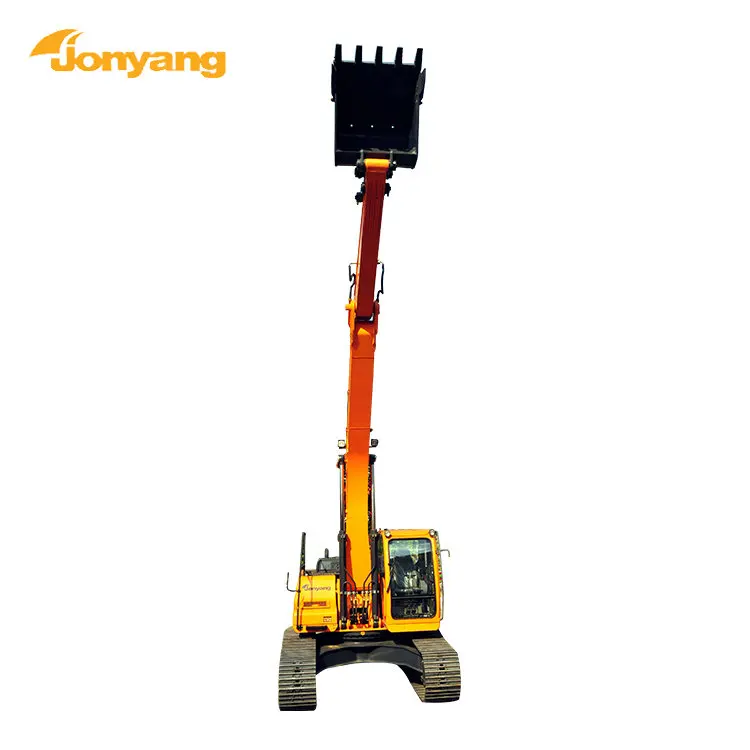

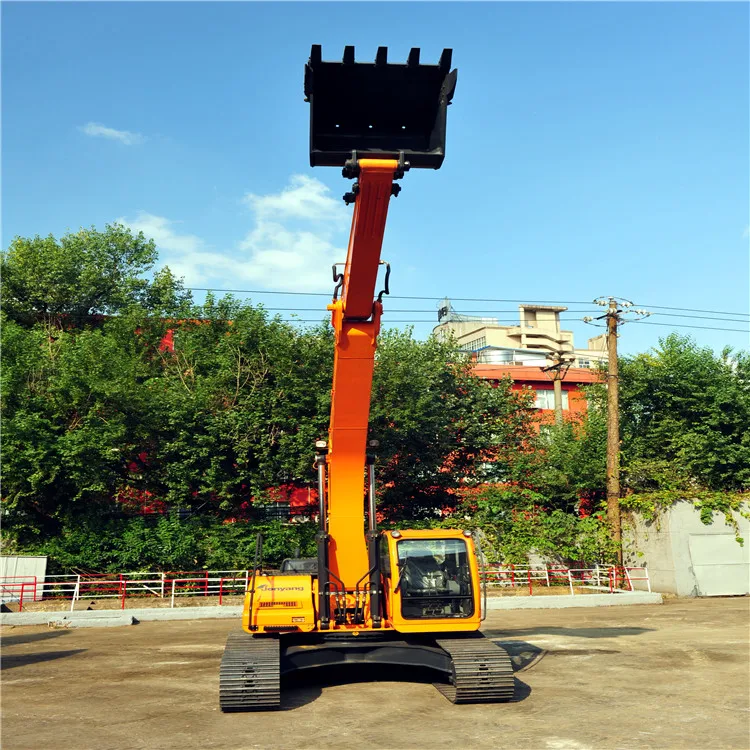

Product Show
Main Specifications
Main Specifications
Operating weight
21 t
Bucket capacity
0.9 m3
Diesel engine manufacturer
Cummins
Engine model
B5.9–C
Engine power
112/1950 Kw/r/min
Hydraulic flow rate
2*224 L/min
Hydraulic pressure
322 Mpa
Travelling speed
4.6 Km/h
Slewing speed
13 r/min
Grade climbing capacity
65%
Bucket digging force
132 kN
Stick digging force
108 kN

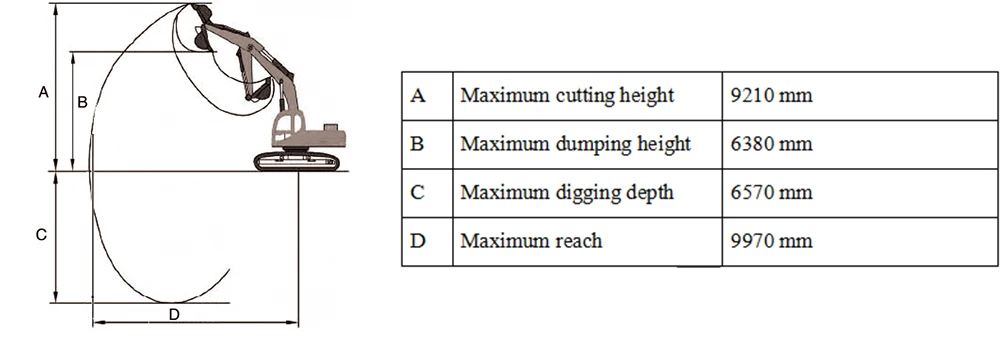

Operating Scope

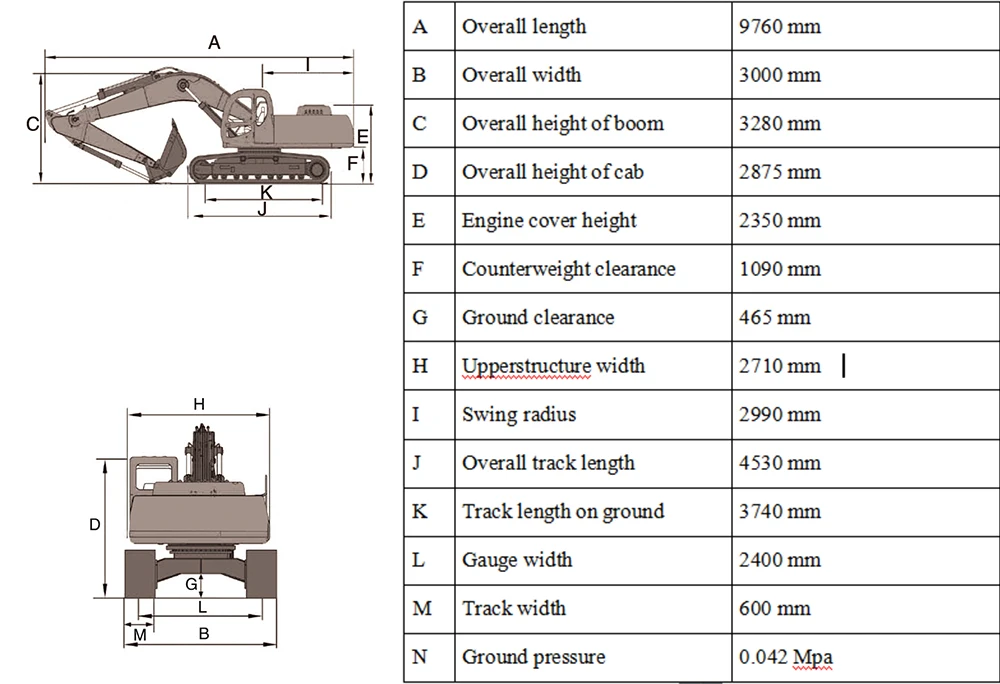

Dimensions
Our Services
Our Services
Pre-Sales Service
After-Sales Service
*Inquiry and consulting support
*Training how to instal the machine,training how to use the machine
*View our Factory
*Engineers available to service machinery overseas
Company Information
Our Company
Guizhou Jonyang Kinetics Co., Ltd. is a world leading company with more than 40 years’ experience in designing and manufacturing hydraulic excavators and special vehicles. For China, Jonyang is the birthplace of the first wheeled hydraulic excavator; Jonyang is the maker of the first scientific expedition machine landed on the South Pole; It is a supplier with high ability in research &development, manufacturing, sales and service for advanced special engineering vehicles.
Guizhou Jonyang Kinetics Co.,Ltd is located in Guiyang city,Guizhou Province.Our company registered capital is RMB362 million,and we research and develop,manufacture and distribute wheeled hydraulic excavator,crawler hydraulic excavators and special emergency rescue equipment.
Jonyang,a well-konwn construction machinery company with hydraulic excavator manufacturing technologies and sales management experience accumulated in more than 40 years experience,is the first to develop and manufacturing hydraulic excavators in China.We are a high and new technology enterprise that have already established a construction machinery research center in Guizhou,and a postdoctoral workstation and a provincial technical center.
At present,our products have formed a large scale and series.We assure the efficient performance of products and that the products can always meet the demand of customers due to the advanced and mature hydraulic technology,the mechanical processing technology andmechanicstechnology in the world,also the professional mechanical manufacturing capacity,testing capacity in process and excellent quality system(Jonyang obtained the quality management system certificate of ISO9001:2008 and national military standard of GJB9001N:2009).
FAQ
FAQ
1: What kind terms of payment can be accepted?
For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2:What are we advantages compared with other factories?
-Competitive price
-Quick response
-Fast delivery
3:Which incoterms can we work?
We normally work on FOB,CFR,CIF,EXW.
4:What logistics ways we can work for shippment?
We can ship the machine by various transportation tools:by sea by road or railway.
