Product Overview

Description

Product Description

3

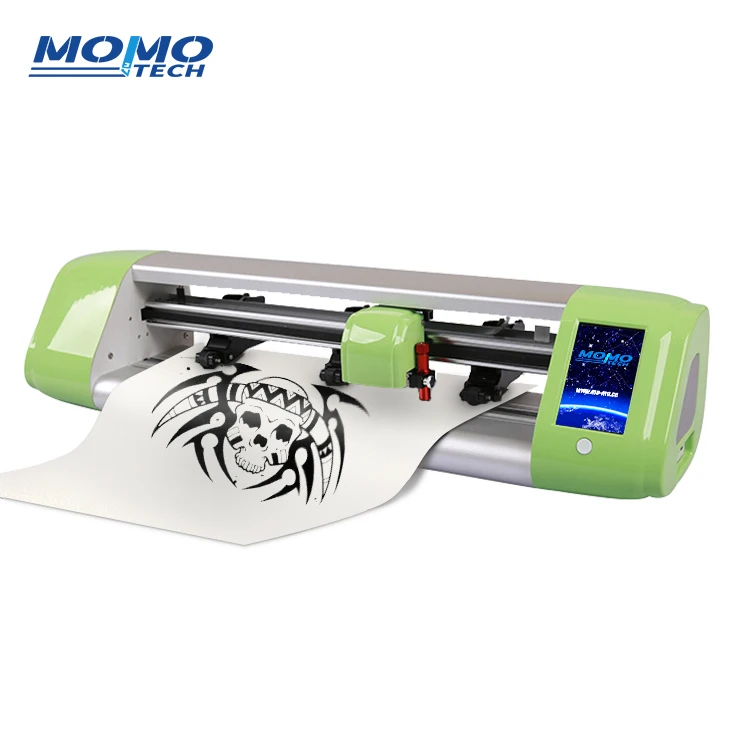

Vinyl Cutting Table graph plotter corel draw The Best China cutter plotter



Features:
1. Camera can identify any shape and any color Mark Point,
2. 4.3 Large Touch Screen for visualized fine-funing operation
3. Auto Contour Cutting, High accuracy
4. Auto Calibrating, Auto Repeat Cutting
5. Real USB( NO USB Driver), U Disk Connection
6. Adjust Cutting Force or Cutting Speed during work time
7. 32-bit ARM7 CPU, 8M Cache Memory,
8. One-Key Remote Upgrading
9. 160 Setting adjustable, Cutting Force 800g Max,
10. Alumimum alloy Housing & High Precision Steel Axes
11. Colorful LED light bar design
12. Feed material way: steel roller+pinchwheel
13. English/Italian/Spanish/Japanese/Portuguese/Finnish/French/German.

Tech Data

ModelMM-CAH16 (16 inch Basic version cutting plotter)
Acceptable media width500mm
Max cutting width410mm
16 inch
CameraSupport
Contour cutting functionFast ,automatically and high precision contour cut by using camera.
Operation4.3" TFT LCD Large touch screen
InterfaceHD large screen full-color APP information function display
ConnectorReal USB, U Disk
Contour cutting &calibrationEasy use and high precision calibrate
Mainboard32bit ARM cortex M4 MCU,8M memory. Support remote and one key update.
Location modeBound system. set origin freely
DriverDigital DC stepper motor,microstep driving
CommandHP-GL, DMPL
Max moving speed750mm/s
Max cutting speed600mm/s
Max cutting thickness1mm
ForceSingle head: 50g~800g ( 160 setting adjustable )
Cutting precision< ±0.1mm
Repeat precision0.082 mm
Power supplyDC24V 3A(AC100~240V/50Hz~60Hz 24V 3A)
Working environment+5℃~ +45℃,relative humidity 30%~70%
Support TypeDesktop
ColorSilver-green/silver-white/black-red(optional)
BracketOptional
Size720*165*10mm
Packing G/N weight9.0 / 6.9kg
SoftwareSignMaster / Flexi / Signcut / CorelDRAW driver Optional
Operation systemWindows2000 / XP / 2003 / win7 / 2003 / win7 /win10
MAC OSX10.2.8 or above
