CYT29 Low Cost High Power Wireless Transmitter 868MHz 433MHz RF Module

Product Overview

Description



FEATURES:

Frequency: 240 MHz – 960 MHz (ASK/FSK);
High output power: +14dBm;
Low operation voltage: VCC = 1.8 to 3.6V;
Static current: <20nA; 50% duty ratio transmitting current: 18.5mA;
Freq deviation: ±30KHz;
FSK deviation: ±35K
Circuit shape: PLL (10PPM), stable working frequency;
Temperature Range: -20℃ ~ 70℃ (-40℃ ~ 85℃)
The range can be up to 500m in the open space when matching with CY68
Dimension: 10.6*10.4*2.1mm

APPLICATION:
Remote Gate Controls, brake
Remote Keyless Entry
Mechanical and electrical control of strong interference;
Wireless Industrial Remote Control
Wireless Data Transmission
Remote Control Curtain

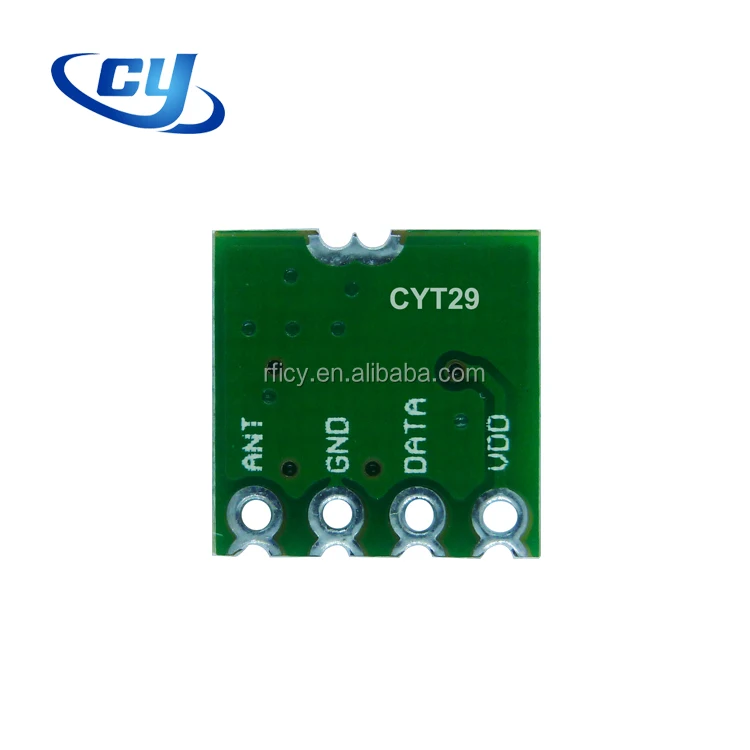

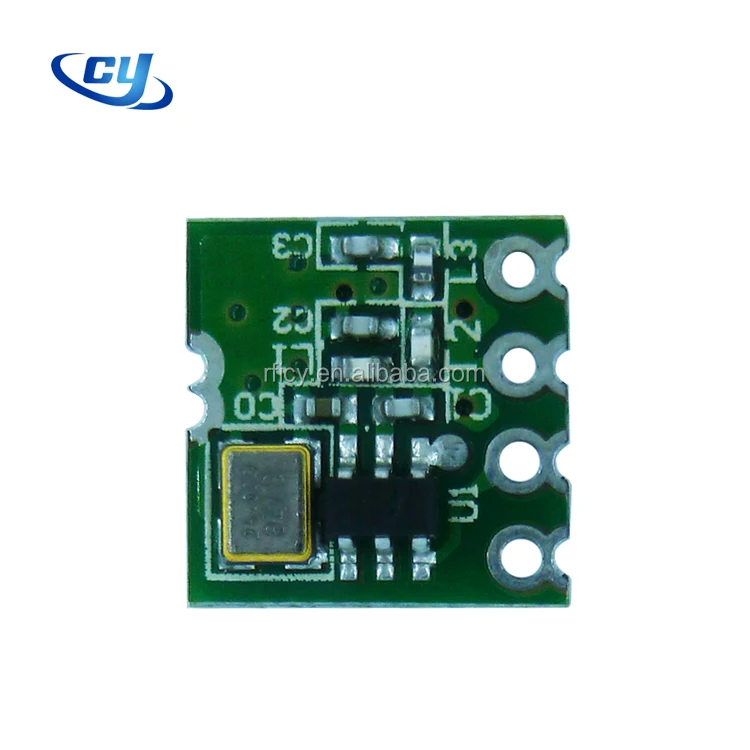

PIN DEFINITION:

Pin-out as showed in Fingure 1 above.

Pin Name	Pin Definition
VDD	Antenna OutConnect to positive power supply
DATA	Data input
GND	Ground
ANT	Antenna input
GND	Ground





ELECTRICAL CHARACTERISTICS:
Condition: Ta=25℃ Vcc=1.8-3.6V VDD-GDN

Characteristics	Value			Unit	Condition
	Min.	Typ.	Max.
Frequency	240		960	MHz
Modulation	ASK/FSK
Output Power		14		dBm	3.6V/50Ω
Data Rate	0.5	2.4	30	Kbps
Working Voltage	1.8		3.6	V
Current		18.5		mA
Frequency Deviation		±30		kHz
Working Temperature	-20		70	℃
