Product Overview

Description


5V parallel interface1602 character lcd module

Product Description



16 X 2 LCD module (CM162-11)

Number of character: 16 X 2

Size: 80 * 36 * 11.3mm

V.A: 64.9 * 15.9mm

Drive method: 1/16 duty, 1/5 bias

View angle: 6:00

Display: STN yellow-green or blue model

Voltage: 5 or 3.3V

Controller: SPLC780

TOP: -20 - +70 º C

TST: -30 - +80 º C



5V parallel interface1602 character lcd module

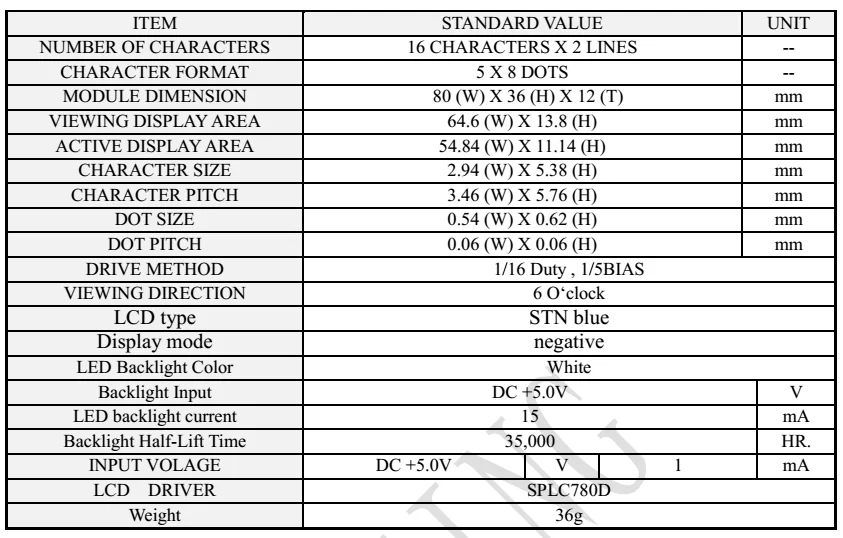

 16x2 LCD module.png





5V parallel interface1602 character lcd module

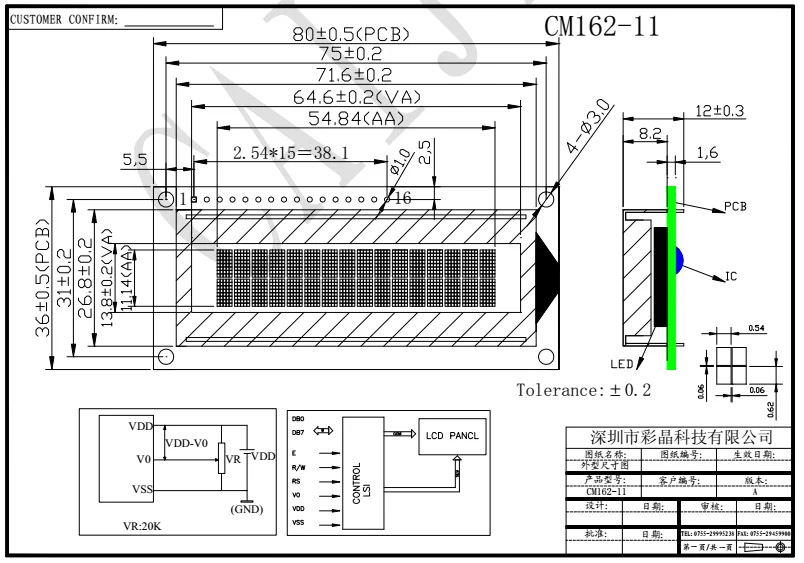

1602 LCD.png







5V parallel interface1602 character lcd module

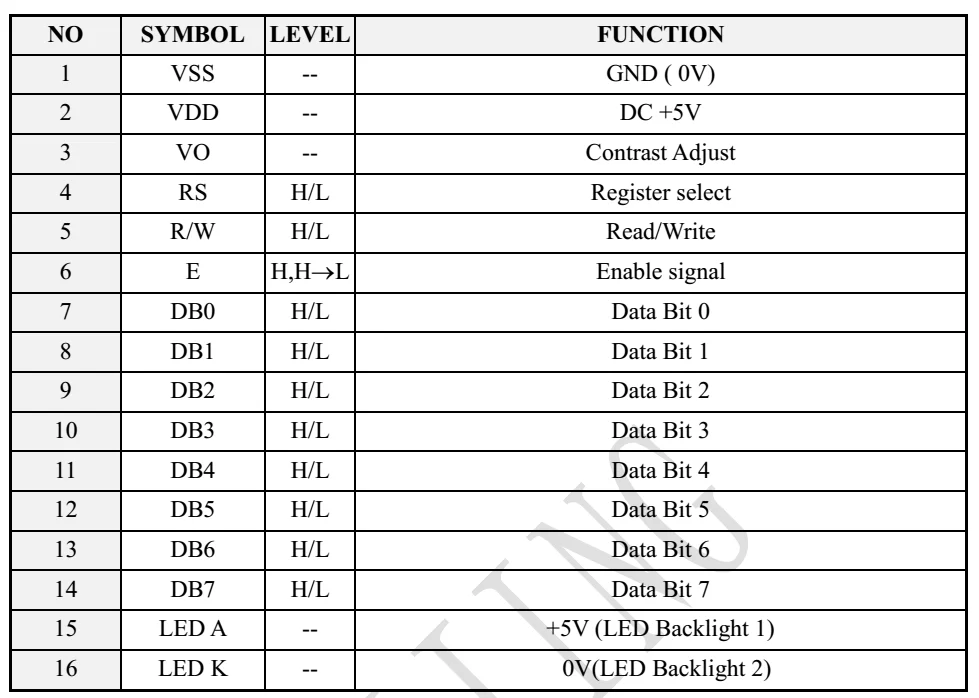

16x2 character lcd module.png

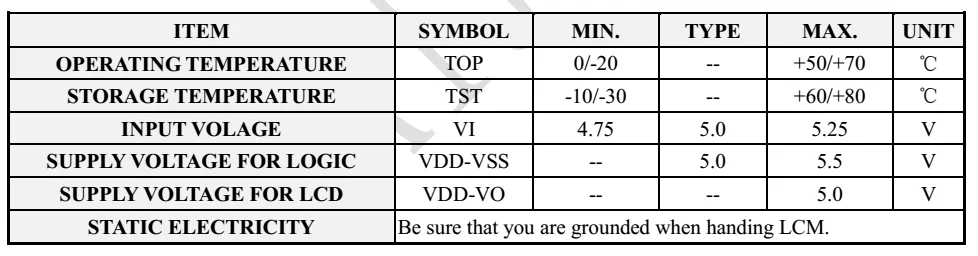

1602 LCD display.png

5V parallel interface1602 character lcd module

Product Certificates

5V parallel interface1602 character lcd module

8 characters 2 lines lcd module certificates.png



Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles



Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/



Related Product

Related Product  for 5V parallel interface1602 character lcd module

 About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.

Display ContentModel No.Outline Size(mm)V.A(mm)Dots SizeControllerVoltageInterface
8x2CM802-140×35×728×140.5×0.5SPLC7805V/3Vserial/parallel
8x2CM802-258×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
8x2CM802-658×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
12x1CM121-1103×35×1176×251×1.4SPLC7805V/3Vserial/parallel
16x1CM161-180×36×1264×13.80.55×0.7SPLC7805V/3Vserial/parallel
16x1CM161-2122×33×1499×130.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-1122×44×13.499×240.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-384×44×13.762×180.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-480×36×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1084×44×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1180×36×12.564.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1285×36×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1380×36×12.564.6×13.80.55×0.55SPLC7805V/3Vserial/parallel
16x2CM162-1585×29×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1785×36×1462×160.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-3680x36x11.364.9x15.90.54x0.62SPLC7805V/3Vserial/parallel
16x4CM164-187×60×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
16x4CM164-287×55×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
20x2CM202-1116×37×12.583×18.50.61×0.66SPLC7805V/3Vserial/parallel
20x2CM202-2180×40×14.3148×231.1×1.12SPLC7805V/3Vserial/parallel
20x2CM202-3116×32.5×7.987.8×17.50.553×0.569SPLC7805Vserial/parallel
20x2CM9079123×25×12.785×12.90.55×0.65SPLC7805Vserial/parallel
20x4CM204-198×60×1476×260.55×0.55SPLC7805V/3Vserial/parallel
20x4CM204-2146×62.5×13123×42.50.92×1.1SPLC7805V/3Vserial/parallel
40x2CM402-1182×33×11.5154×15.80.6×0.65SPLC7805Vserial/parallel
40x4CM404-1190×54×13.6147×29.50.5×0.55SPLC780x25V/3Vserial/parallel
