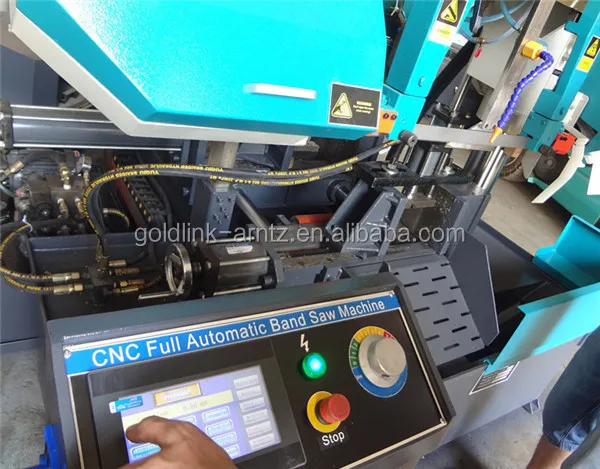

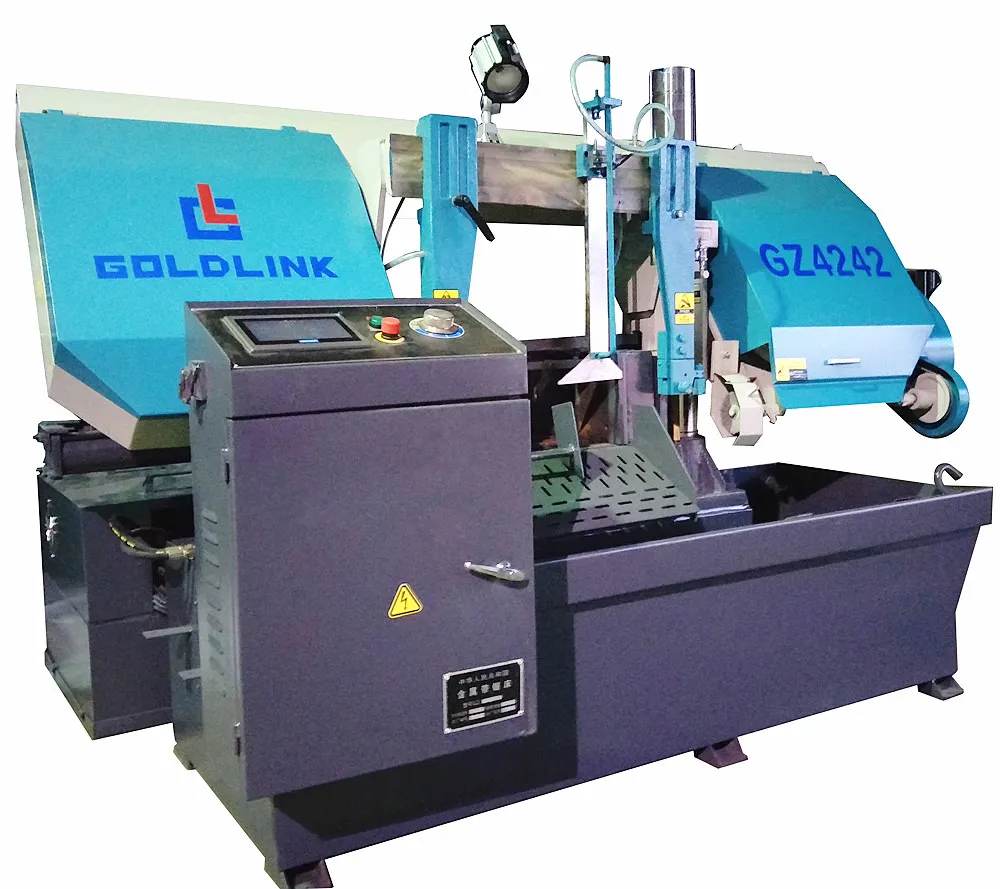

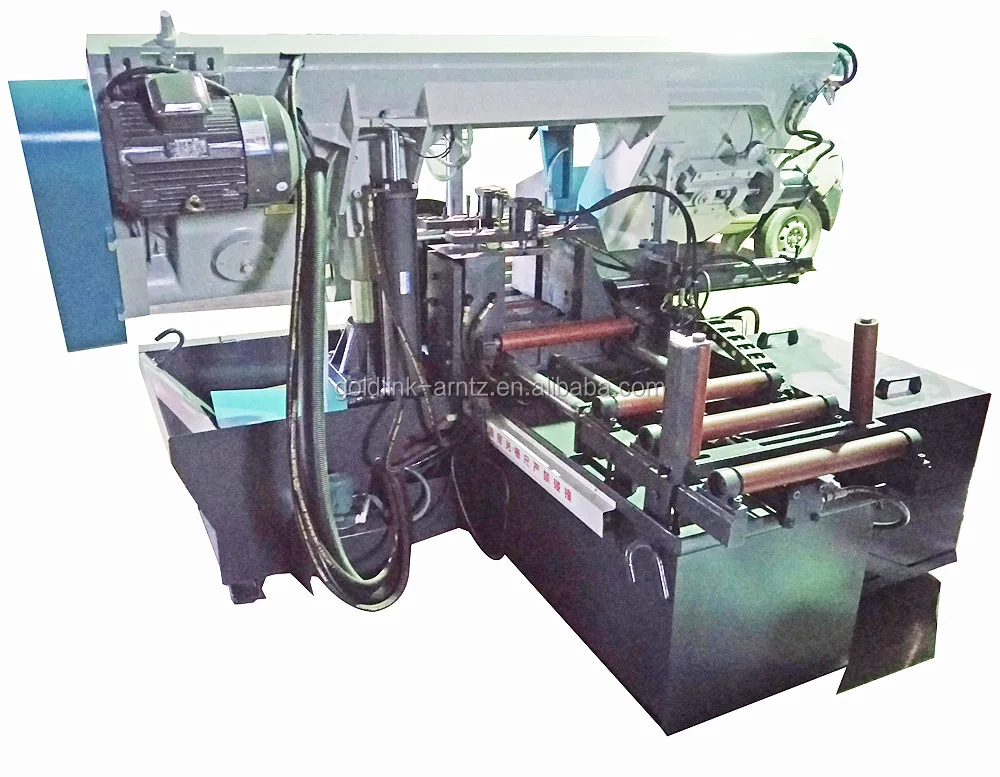

GZ4242 Fully automatic band saw machine for metal

Product Overview

Description











               Japan PLC control CNC Full Automatic band saw machine

        -----------------------------------------------------------------------------













































High performance Full-Automatic Band Saw Machine
Item		GZ4242
Cutting Capacity/mm		Φ420 / W420*H420
Blade speed/M/min		25/40/60/80 (Invertor optional)
Blade size/mm		W41*T1.3*L4910
Blade Tension		Handle Tension/Release
Motor	Blade drive	4.0(4p)KW
	Hyd.Pump	1.5KW
	Coolant pump	0.04KW
Clamping method		Hydraulic vice
Main drive		Worm gear

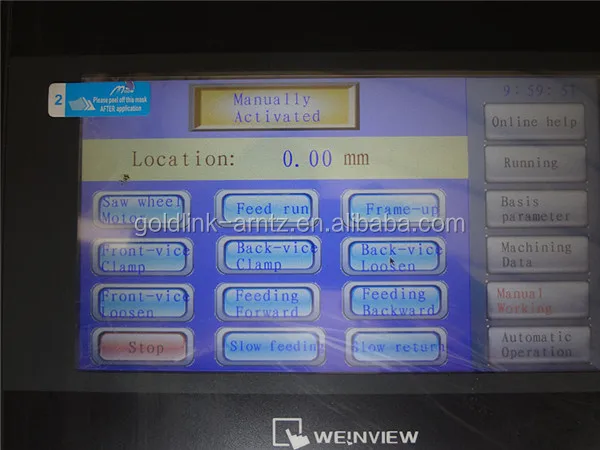

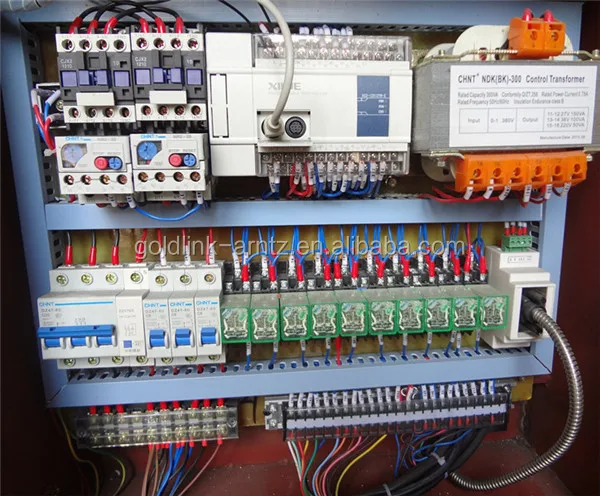

PLC		Japan Omron
Perpendicularity tolerance		Below 0.2°/100mm
Working Feeding		Automatic feeder  CNC full automatic and Semi automatic (2 in 1)
Floor space/mm		L2200×W2180×H1680
Certificate		CE
Quality management system		ISO9001:2008















































































Standard accessories

Working light  Hydraulic vice  Cooling system  PLC motorized feeding  Cut-off quantity counter  Out of stock indicator  Blade breakage sensor  Blade protection device  Automatic feeding table  Extended feeding roller for long materials  Top-down clamping device for bundle cut  Linear guide in auxiliary column  Carbide blade guide system    One set of maintenance tools  One pcs of German band saw blade











Optional accessories

Band saw blades   Automatic chip conveyor  Color and voltage customization  High quality band saw blades  Hydraulic blade tension device  Invertor (for stepless blade speed)  Reinforced plywood case packing













































\\\\\\
