40mm 50mm 70mm Gate pivot Hinges Ball Bearing Top and Bottom Ball Bearing Hinge for swing gate
- Category: Door & Window Hinges >>>
- Supplier: Jiaxing Gates Hardware Products Co. Ltd.
Share on (60692850391):
Product Overview
Description
Product Description

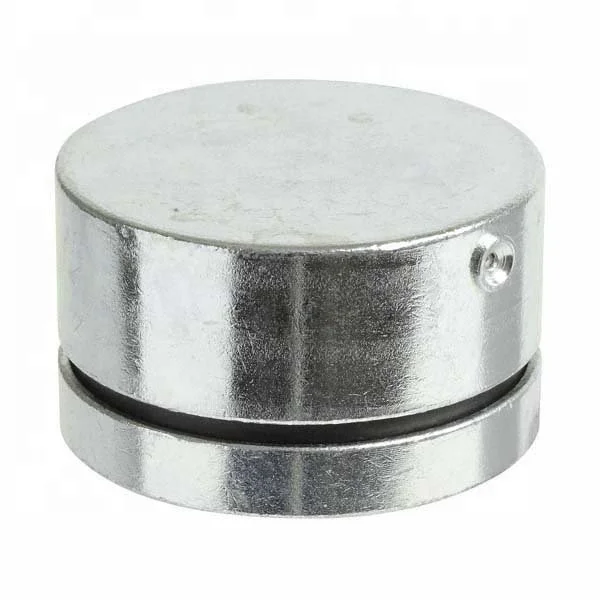

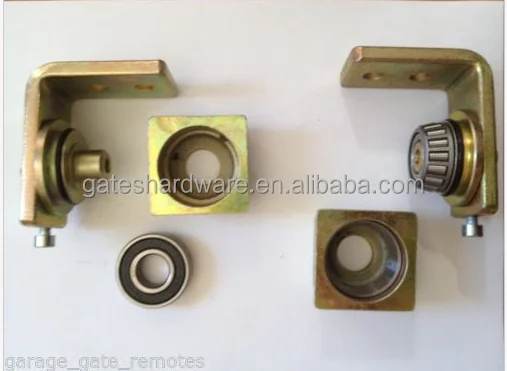

Ball Bearing Hinge,

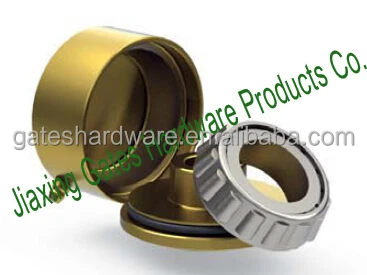

It has bearing inside,
Used for swing gate.
We have sizes 40mm, 50mm, 70mm & 120mm.

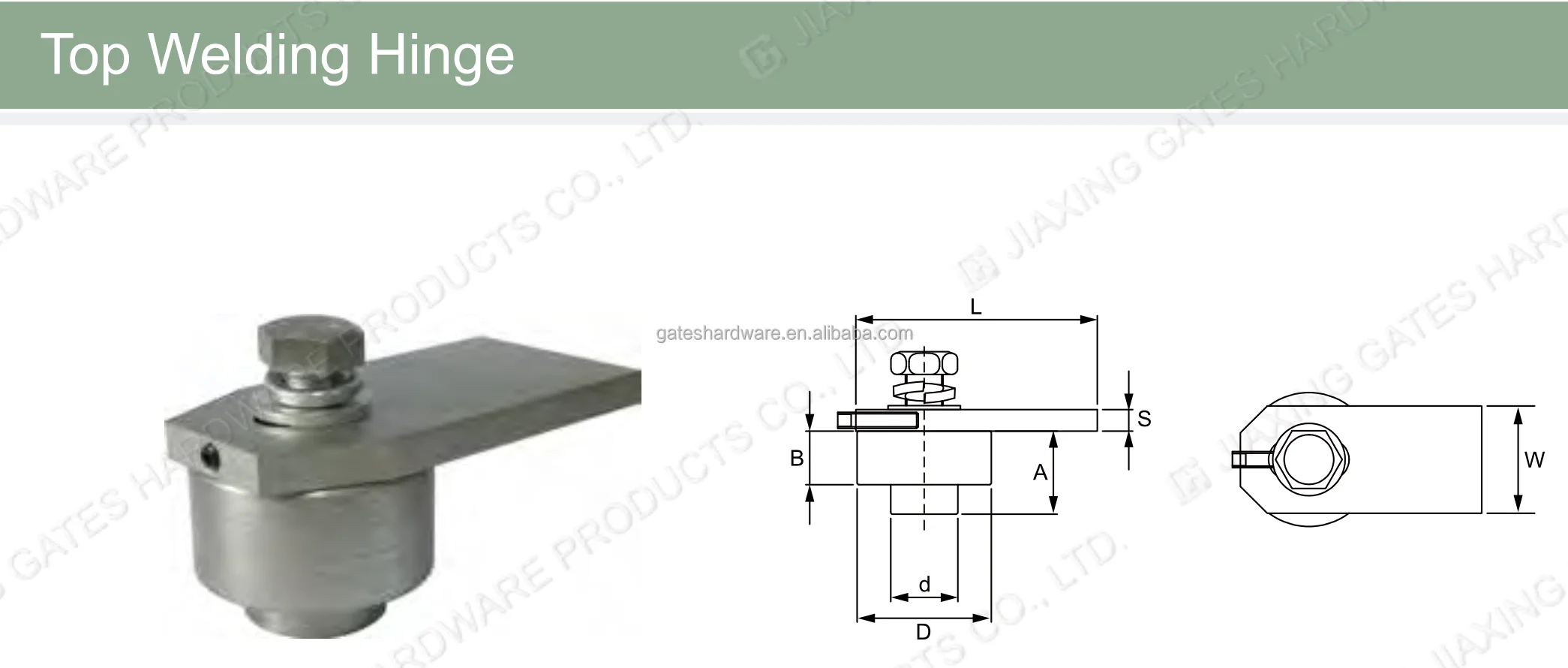

| Code | D | d | A | B | L | S | W | Kg |
| TWH40 | 40 | 25 | 30 | 20 | 80 | 7 | 40 | 0.38 |
| TWH50 | 50 | 30 | 30 | 20 | 90 | 8 | 50 | 0.52 |
| TWH70 | 70 | 35 | 35 | 25 | 120 | 10 | 60 | 1.80 |
| TWH120 | 120 | 45 | 45 | 35 | 250 | 14 | 100 | 5.30 |

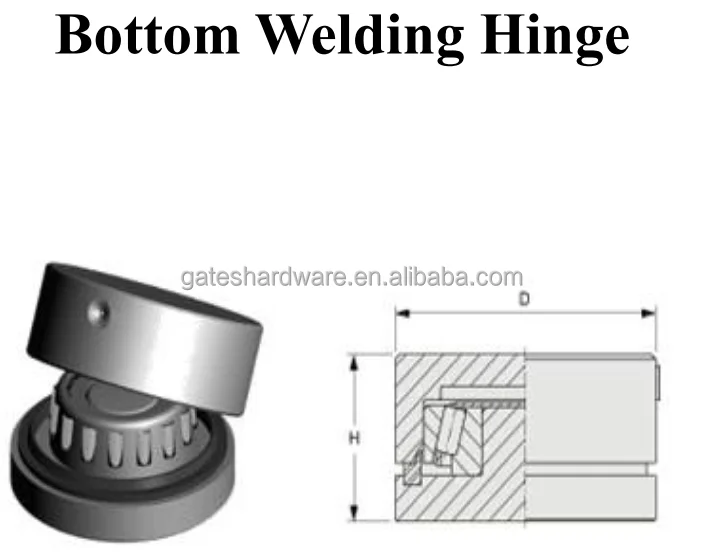

| Code | D | H | Kg |
| BWH40 | 40 | 30 | 0.27 |
| BWH50 | 50 | 35 | 0.39 |
| BWH60 | 60 | 35 | 0.74 |
| BWH70 | 70 | 35 | 1.1 |
| BWH120 | 120 | 45 | 3.61 |
Usage:
