electric mini melting furnace portable furnace for lead smelting
- Category: >>>
- Supplier: Zhengzhou Lanshuo Electronics Co. Ltd
Share on (60692889137):
Product Overview
Description
Product Description

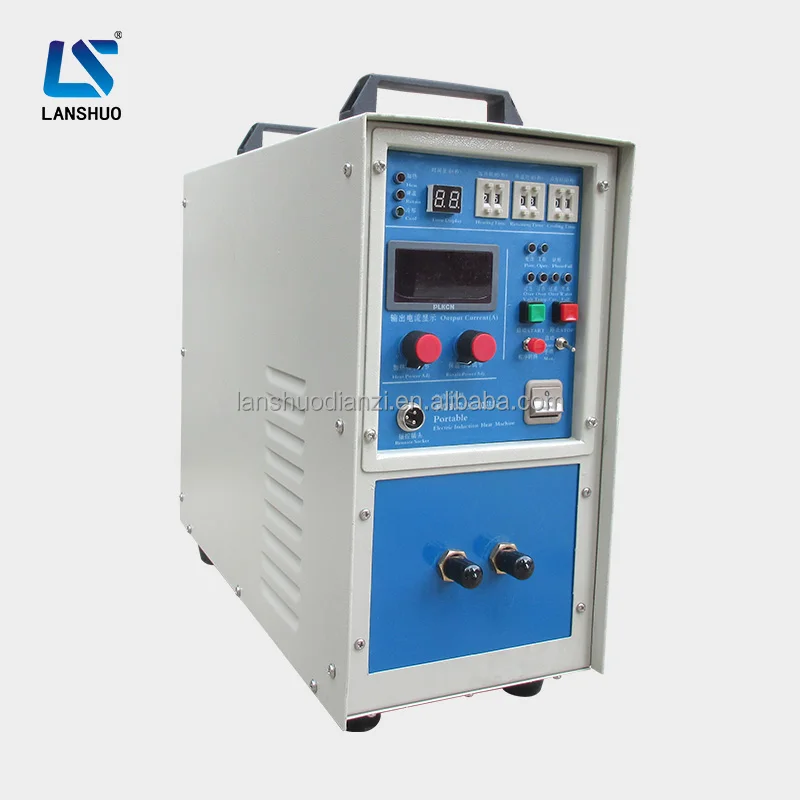

Electric mini melting furnace portable furnace for lead smelting
Fetures of gold melting furnace
1. IGBT module and Inverting technologies.
2. Higher reliability and lower maintenance cost.
3. 100% duty cycle, continuous working is allowed at maximum power output.

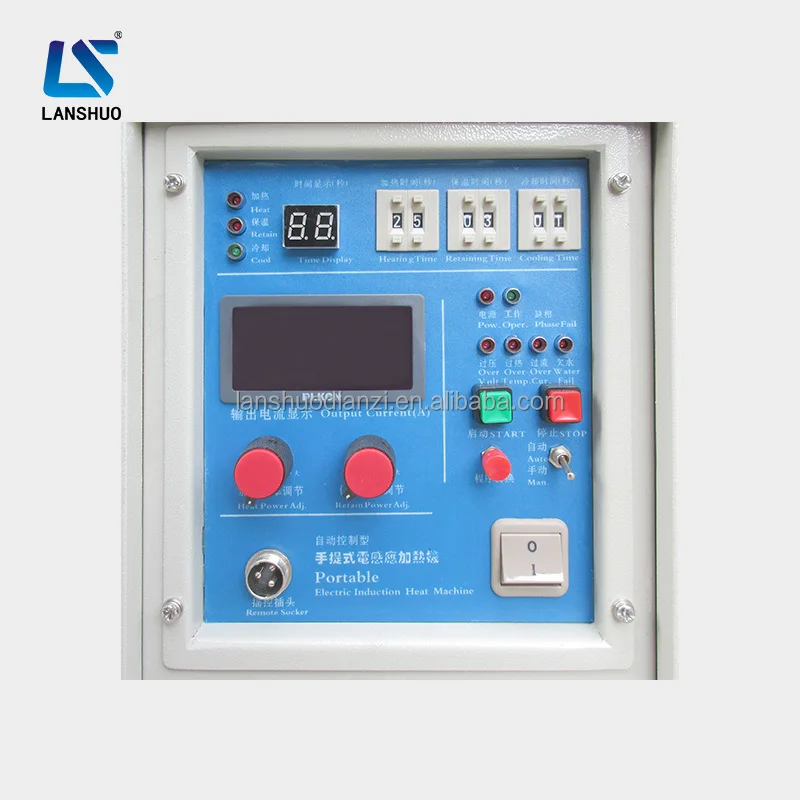

4. Display of heating power and heating current and oscillating frequency.
5. Simple to install. No need debug, After connectting through electrical&water can be used.
6. Convenient to change furnace crucible for different material melting.
7. Suitable for melting of copper, gold, silver and aluminum and other precious metal melting.
8. Continuously heating ability for 24 hours.
Technical Parameters
Main parameters of 16kw gold melting furnace | ||
Model | LSW-16 | |
Working voltage | Single phase 220V, 50-60HZ, or Customized | |
Max input current (A) | 35 | |
Max input power (KW) | 16 | |
Oscillation frequency(KHZ) | 28-40 | |
Duty cycle(%) | 100 | |
Cooling water flow : L/Main-MPa | 20/0.05 | |
Weight : kg | 22 | |
Dimension : (L*W*H)mm | 420*200*360 | |
Melting capacity | 1kg for steel, stainless steel, aluminum(alloy); 1-2kg for copper, gold, silver | |
The list item for whole set machine
Item No. | Name of machine or accessories | Specification | Quantity |
1 | LSW-16 induction melting machine | - | 1 set |
2 | Induction coils | - | 1 pcs |
3 | Graphite crucible | - | 1 pcs |
4 | Foot switch | - | 1 pcs |
5 | User manual | - | 1 pcs |

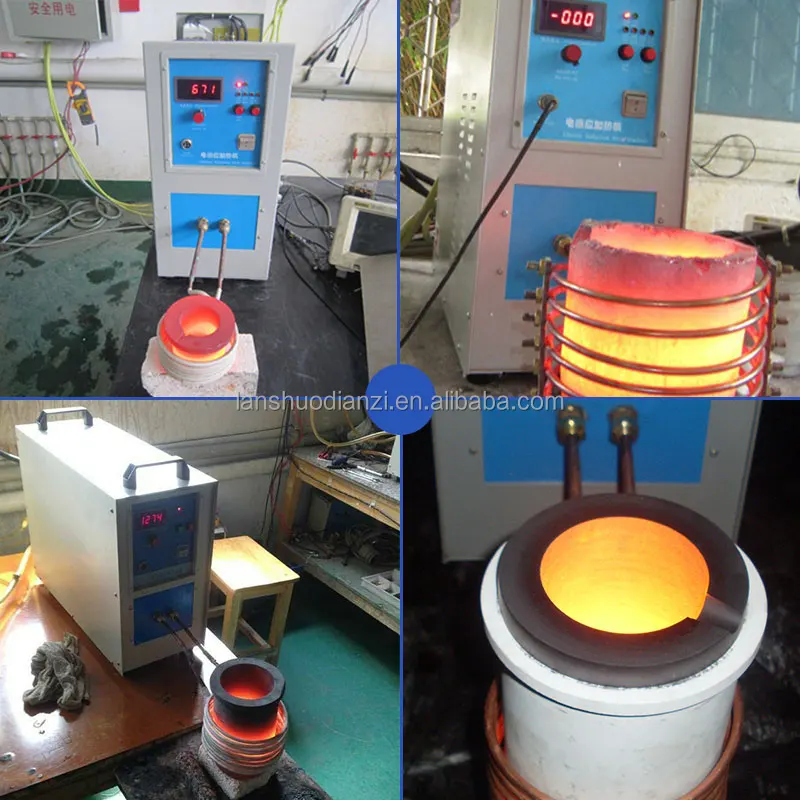

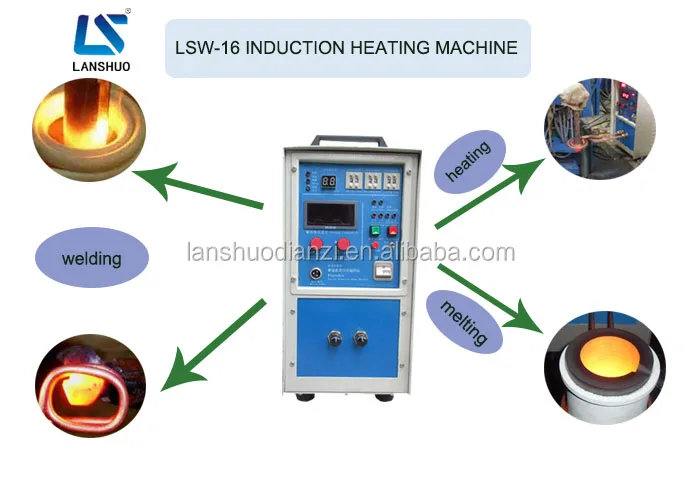

Application
Application of induction melting furnace
1. Melting for iron, steel, copper, aluminum;
2. Melting for presious metals, such as gold, sliver, platinum and copper;
3. Melting for ferrous and non ferrous metals;
4. Melting for alloys;
5. Melting for metal rods;
6. Other melting work for metal product.
2. Melting for presious metals, such as gold, sliver, platinum and copper;
3. Melting for ferrous and non ferrous metals;
4. Melting for alloys;
5. Melting for metal rods;
6. Other melting work for metal product.
Packing & Delivery
Packing or Shipping of small melting machine
Packaging: Induction melting furnace wrapped with plastic films and foam first, then put it into a standard export carton and fasten at last. (Can be customized if needed.)
Delivery: Within 7 working days after receiving your payment.
Certifications
Our Company
(1) Zhengzhou Lanshuo Electronics CO.,LTD,China. We are metal induction heating machine manufacturer with 15-year experience.
(2) Leading products include IGBT medium frequency induction heating equipment, IGBT super audio induction heating equipment, CNC quenching machine tool, IGBT medium frequency induction melting furnace, KGPS medium frequency induction melting furnace, open type water cooling tower, closed water cooling tower, etc.
(3) CE certificate.
(4) OEM& ODM available.
(5) We have exported to UK, Austarlia, Pakistan, Egypt, Singapore, India, Vietnam, Mexico, Uganda, Ukraine, Serbia, Russia, Germany, Turkey, South Korea, Malaysia, the Philippines and other countries.
(6) We have senior engineers and technical researchers. Engineers are available to service overseas if needed.
Our Service
As a manufacturer with 15 years R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
