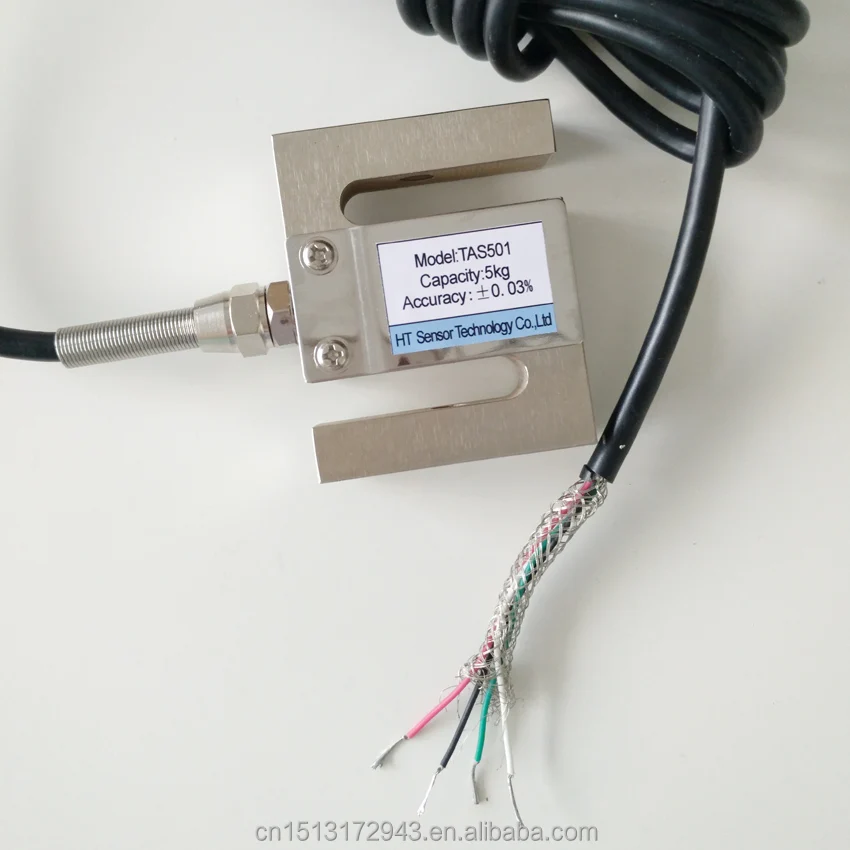

1000 kg force sensor vehicle weighing system S load cell

Name: 1000 kg force sensor vehicle weighing system S load cell
SKU: 60692924707
Availability: InStock

Price:

Quantity:

Product Description

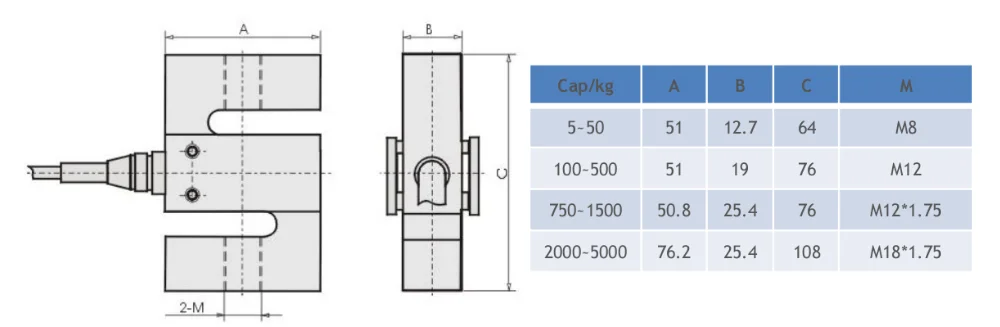

Dimensions

Specifications

\t capacity	\t kg	\t 5,10,20,30,50,100,150,200,300,500,1T,1.5T,2T,3T,5T
\t safe overload	\t %FS	\t 150
\t ultimate overload	\t %FS	\t 200
\t rated output	\t mV/V	\t 2.0 ± 0.004
\t excitation voltage	\t Vdc	\t 9~ 12
\t combined error	\t %FS	\t ± 0.02
\t zero balance	\t %FS	\t ± 1.0
\t non-linearity	\t %FS	\t ± 0.02
\t hysteresis	\t %FS	\t ± 0.02
\t repeatability	\t %FS	\t ± 0.02
\t creep	\t %FS/30min	\t ± 0.024
\t input resistance	\t Ω	\t 350±20
\t output resistance	\t Ω	\t 350±5
\t insulation resistance	\t M Ω	\t ≥ 5000 @ 50 Vdc
\t operating temperature range	\t ℃	\t -10~ +40
\t compensated temperature range	\t ℃	\t -20 ~ +55
\t temperature coefficient of SPAN	\t %FS/10℃	\t ± 0.023
\t temperature coefficient of ZERO	\t %FS/10℃	\t ± 0.017
\t Electrical connection	\t cable	\t 4 core shielded PVC cable, Ø 5 × 5m excitation(+):Red excitation(-):Black signal(+):Green signal(-):White

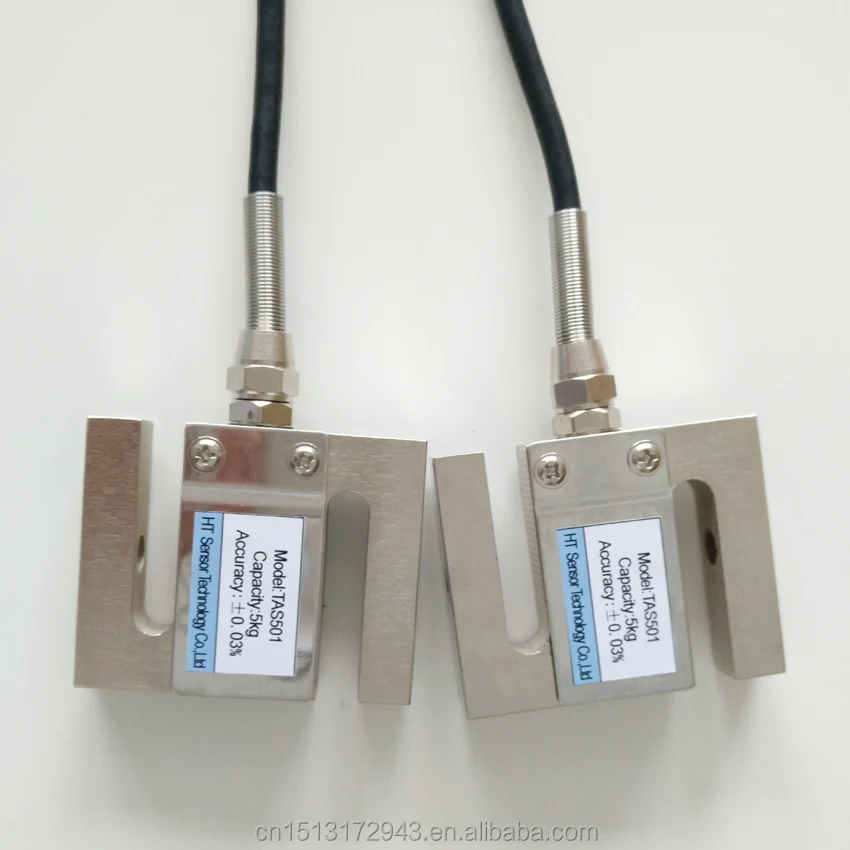

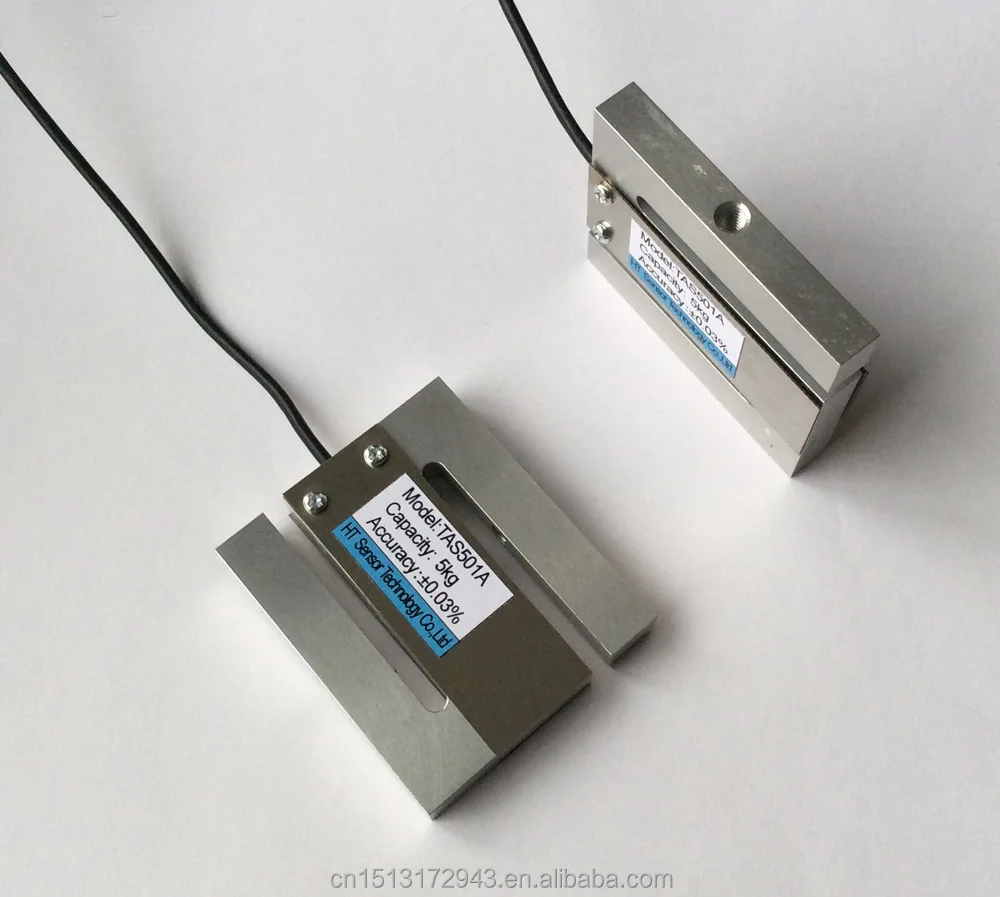

Detailed Image

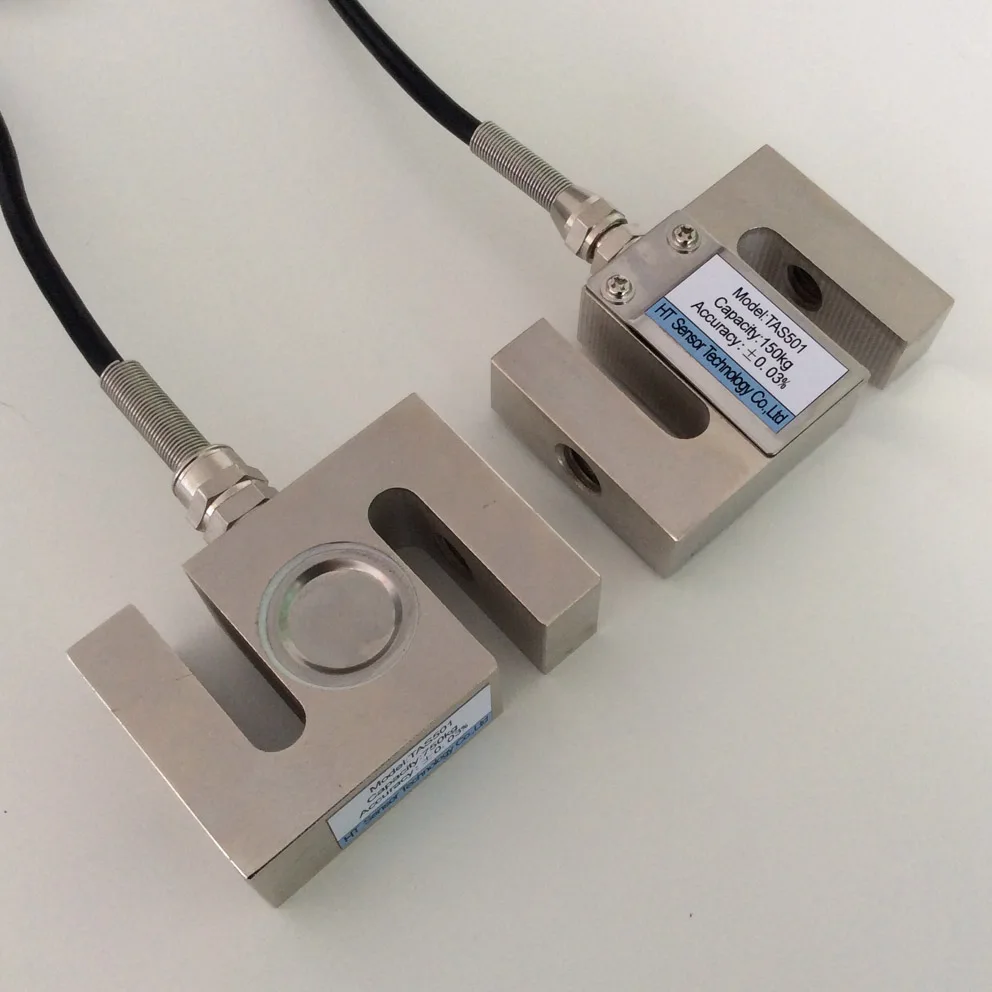

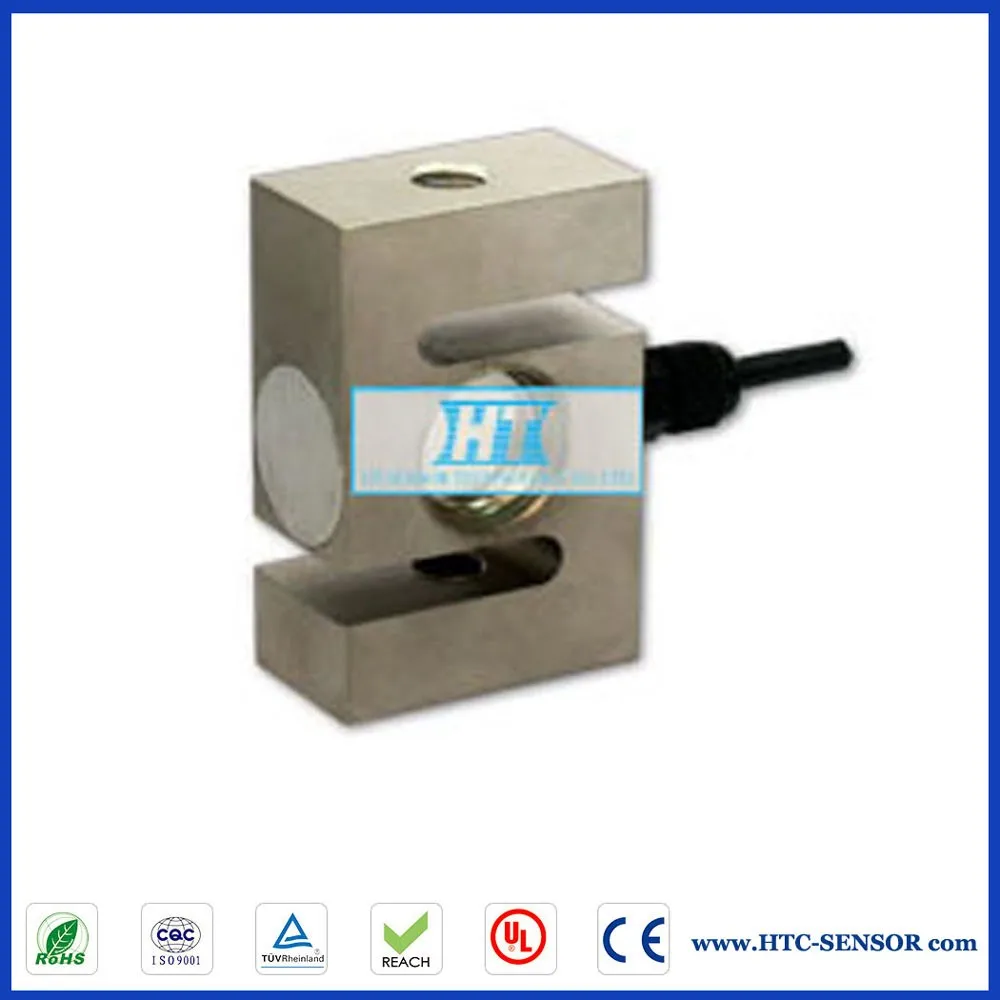

Left: capacity is more than 500kg

Right:capacity is less than 500kg

TAS501-750KG

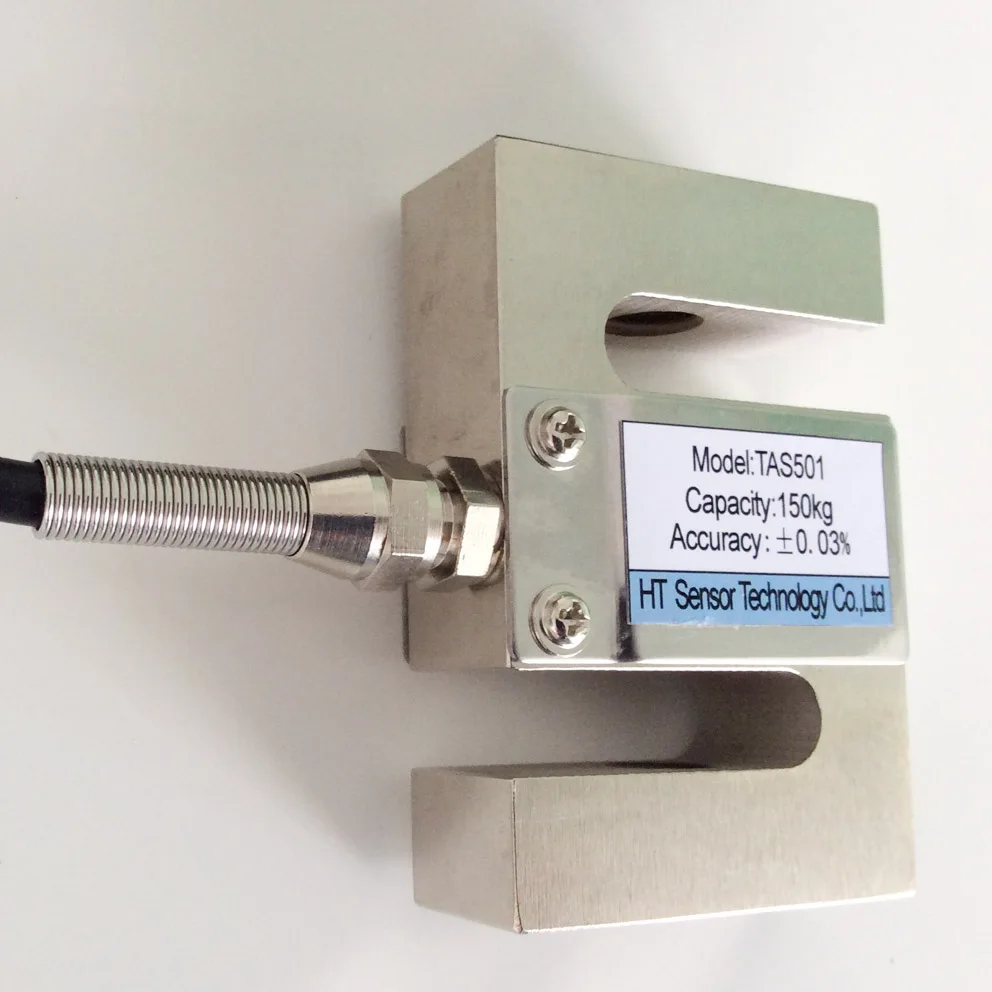

TAS501-150KG

Application

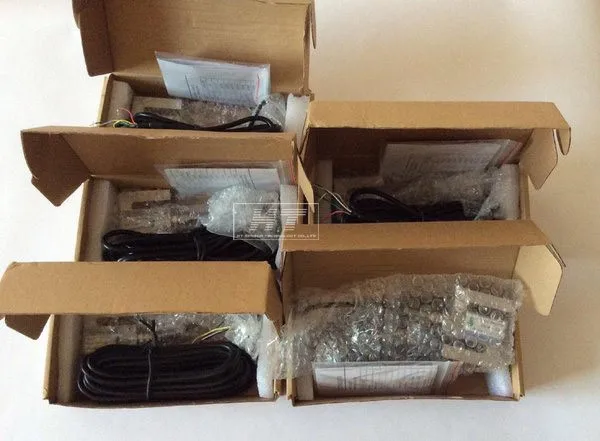

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Normal products: 7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
