HFSecurity FP05 5 inch Android Handheld Tablet Fingerprint RFID Time Recording with JAVA VB PHP Free SDK
- Category: Fingerprint Attendance >>>
- Supplier: Chongqing Huifan Technology Co. Ltd.
Share on (60692939103):
Product Overview
Description
FP05 is one of HFSecurity's best selling Android SMS fingerprint Time Attendance. It is Android 7.0 based and with 4G communication. Has been widely used for education, as SMS Fingerprint Time Attendance machine, when students arrive school and press finger, SMS message will send to parents phone at same time, to ensure students are in save. The fingerprint sensor is ISO 19794-2 and ANSI 378 standard, compatible with most Biometric national databases. Open free SDK for integration.
Specification
Hardware | ||
RAM | 2GB | |
ROM | 16GB | |
LCD Display | 5”, 1280*720; Optional protection screen glass | |
Dimension | 175 (L) *78 (W) *27 (H)mm | |
Touch Panel | Capacitive panel, multi-point touch, G+G | |
Camera | Rear: 8.0M | |
Battery | DC 3.7V/4000mAh | |
RFID | NFC, RFID, 13.56MHz smart card | |
G-sensor | Gravity acceleration sensor | |
GPS | Support for A-GPS | |
MIC | Built-in microphone | |
Speaker | Built-in stereo speaker 8Ω/1.5W | |
SIM Card | Support 1 SIM card | |
TF | 1x mini SD card up to 32G | |
Earphone | 3.5mm stereo phone jack | |
Operating Temperature Range | -20℃ to + 70℃ | |
Certification | CE, ISO9001, GSM TAC certificated | |
Rugged | IP65 | |
Operating Humidity | 0-95% | |
Barcode | Optional 1D/2D, PDF417 scanner | |
Antistatic Ability | IEC64000-4-2 standard 15KV | |
OTA | Support (Can update firmware & app remotely via OTA function) | |
Package Accessories | Device bag, Screw driver, adapter, USB cable | |
Software | ||
OS | Android 7.0 | |
CPU Professor | Quad-core, 1.5G, Android 7, MTK6737V/CT | |
SDK | For free, come with sample package | |
Cloud-based development | Yes, Support | |
Extra Support | Launcher APP for free (Only allow to use the specific app,user cannot access other settings/apps on device) | |
ODM logo | ||
Can optional wall-mounted metal box | ||
Fingerprint Sensor | ||
Image Size | 256*288 pixel | |
Image resolution | 500DPI | |
Gray Scale | 8-bit (256 levels) | |
Imaging Area | 10.4mm*14.4mm | |
Standard | Support ANSI378, ISO19794-2 | |
Image Format | WSQ, JPG, BMP, etc | |
Communication | ||
Data link | 2G: GSM CDMA 850/900/1800 MHz | |
3G: WCDMA 2100/1900/900/8500MHz (Can do customization according to clients country details) | ||
4G: B1 B2 B3 B5 B8 B38 B39 B40 B41 (Can do customization according to clients country details) | ||
WIFI | 802.11 b/g/n | |
USB | Type C with OTG function | |
Bluetooth | Bluetooth 4.0 | |
Features
Demo show
For school / office time attendance management, when students / staff press finger and get attendance, there will have a SMS message send to parents / boss at same time, to ensure students / staffs arrived school / office in time and in safe.
Successful project
Mobile Fingerprint time attendance for bank
For banks worker management, when staff need go out for business, take one model then boss can check workers location at real time in office, to know whether workers arrived specific place to finish their job.
Mobile Fingerprint time attendance for farmers
Build fingerprint database for all farmers, know the whole populations, then check daily / weekly / monthly working time for farmers and calculate the salary.
Mobile Fingerprint time attendance for official
Take attendance for official, to check daily working time to know how many hours they are working per day. Ensure no any corruption situation.
Mobile Fingerprint time attendance for guards
GPS function for guards location check, ensure they arrived specific place and get attendance. All data will send to cloud system at real time.
Mobile Fingerprint time attendance for school bus trucking
Teachers hold FP05 on bus, sudents press finger when take on bus, parents will get SMS message at same time to ensure their child arrived school or with teacher safety. Also can check real time location on their phone and PC.
Mobile Fingerprint time attendance support ODM/OEM
HFSecurity 14 years factory on Biometric solution, any ODM/OEM is support based on quantity. To extend client own LOGO and get more market.
HFSecurity 14 years factory on Biometric solution, any ODM/OEM is support based on quantity. To extend client own LOGO and get more market.

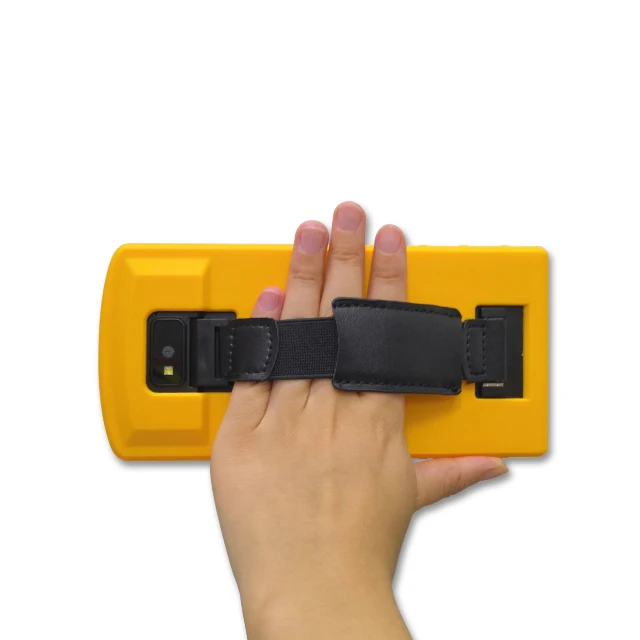

Different way to carry and move
Production line
FAQ
| F:Do you offer warranty for the device? |
| Q:Yes,we offer one year warranty,also life soan technical support |
| F:What is your MOQ |
| Q:MOQ is 1pcs |
| F:What is your payment term? |
| Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card |
| F:How to get software and SDK? |
| Q:Software and SDK is free.Will send download link after you place order. |
