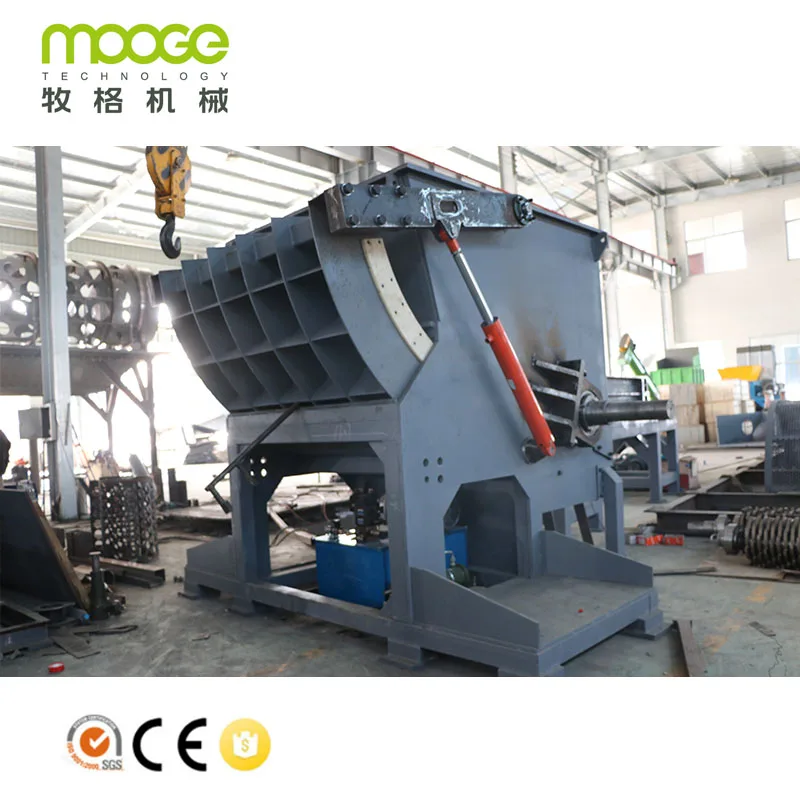

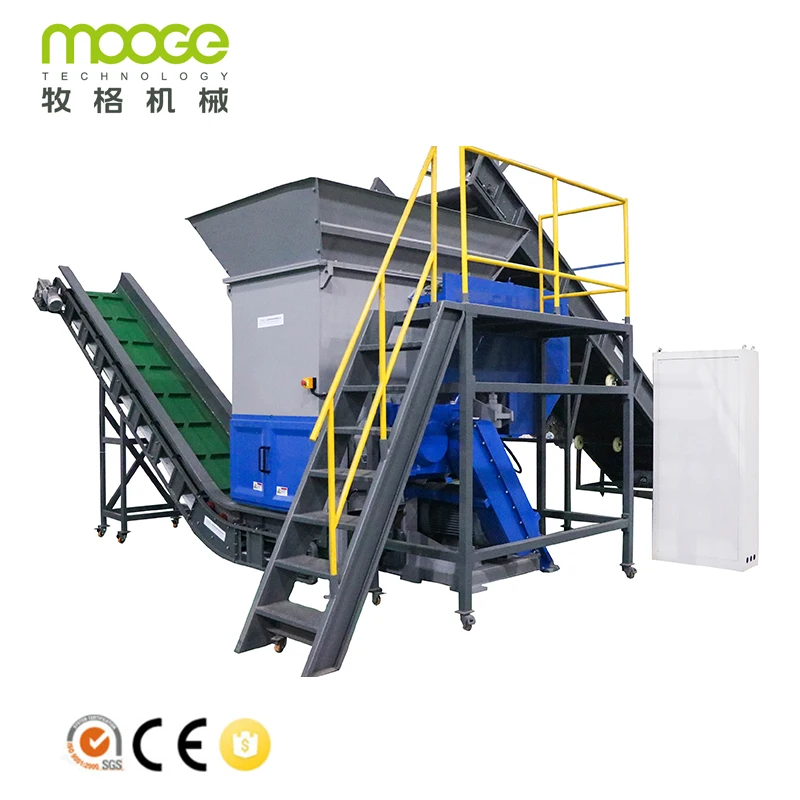

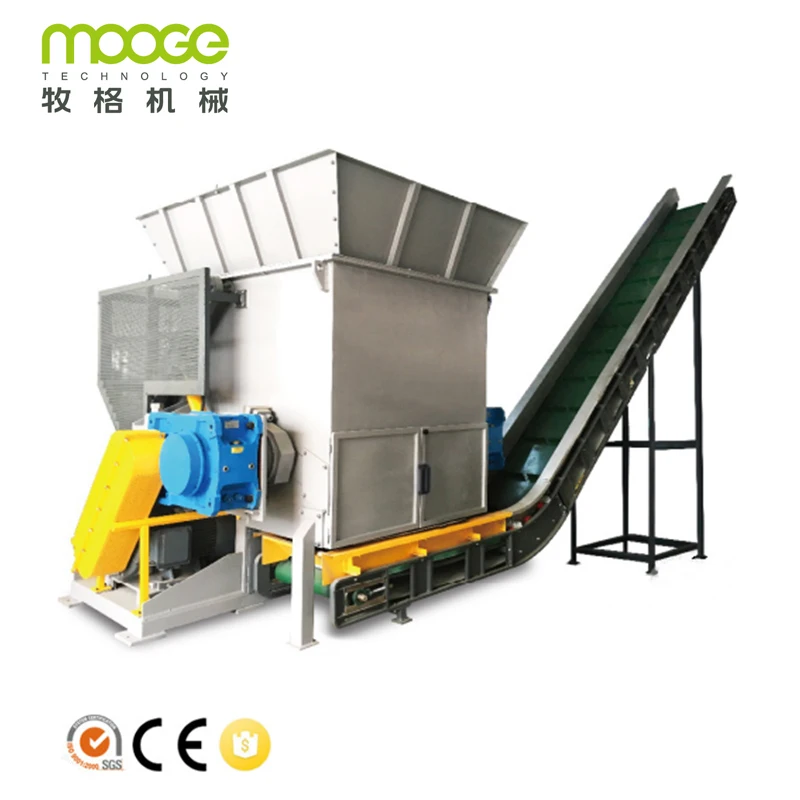

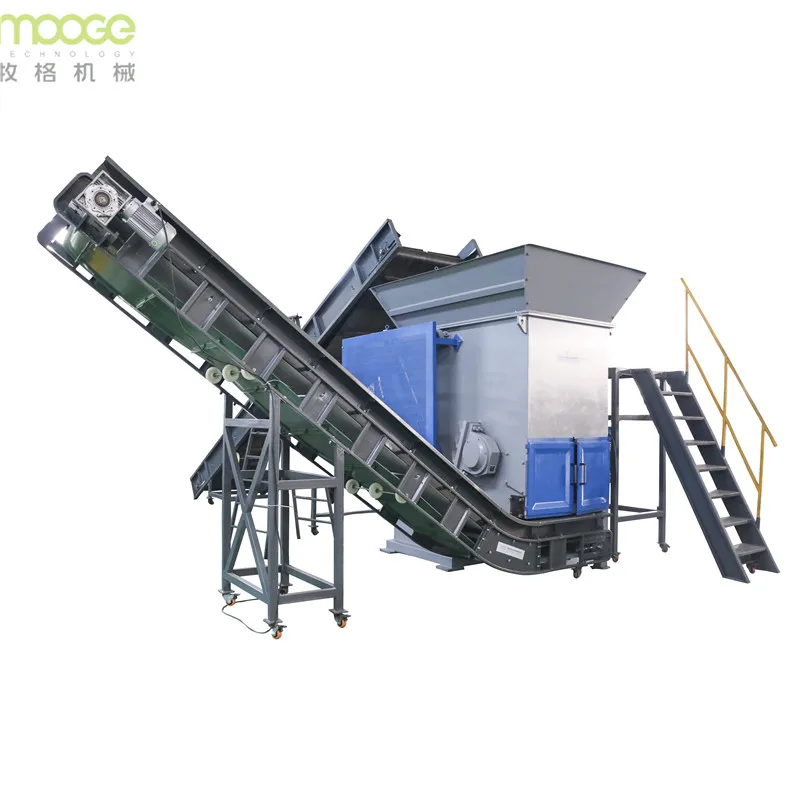

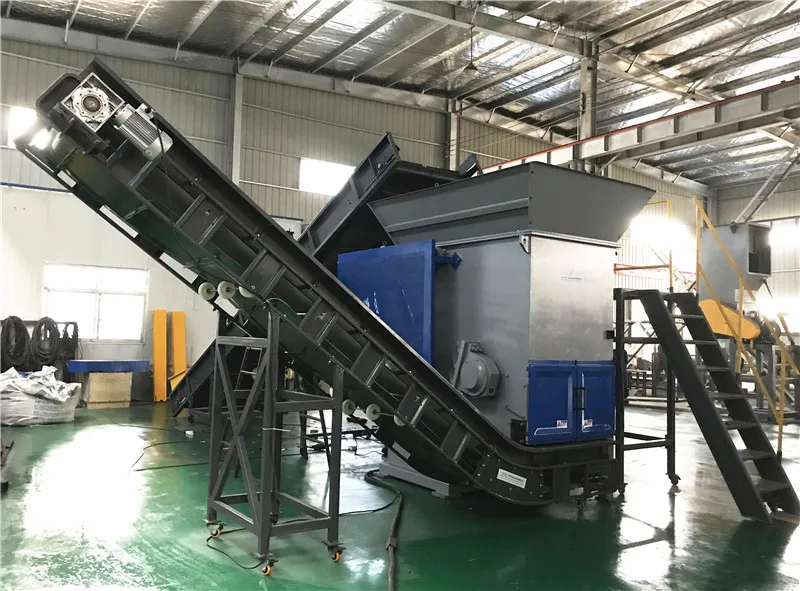

Plastic fiber shredder crushing machine
- Category: Plastic Recycling Machines >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd
Share on (60692955630):
Product Overview
Description
Products Description
Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.
VH-Series single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.
Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.
Shredder machine advance
1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise,
blades easy changeable
blades easy changeable
3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
Product Paramenters
Model | VH-4880 | VH-48100 | VH-48120 | VH-48150 | VH-48200 |
Motor | 452KW | 55KW | 75KW | 75KWX2 | 75KWX2 |
Rotor speed | 83 RPM | 83 RPM | 83 RPM | 83 RPM | 83 RPM |
Rotor Diameter | 480 mm | 480 mm | 480 mm | 400 mm | 480 mm |
Rotor Blade Qty | 38 PCS | 46 PCS | 58 PCS | 111 PCS | 135PCS |
Fixed blade Qty | 2 PCS | 2 PCS | 2 PCS | 3 PCS | 4 PCS |
Screen diameter | 60mm | 60mm | 60mm | 60mm | 60mm |
Capacity | 500 kg/h | 800 kg/h | 100 kg/h | 1500 kg/h | 2000 kg/h |
Product Photos

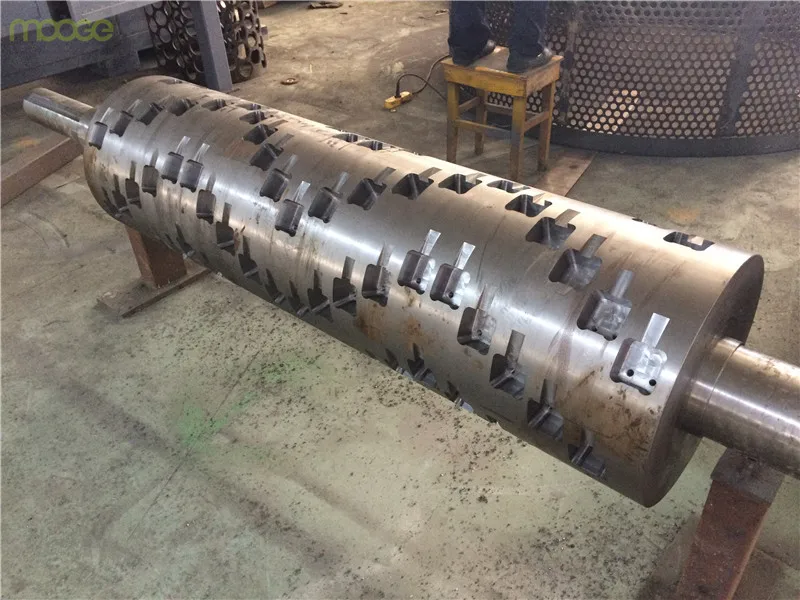

Rotary shaft
The rotary shaft made by high quality carbon steel,anti-worn

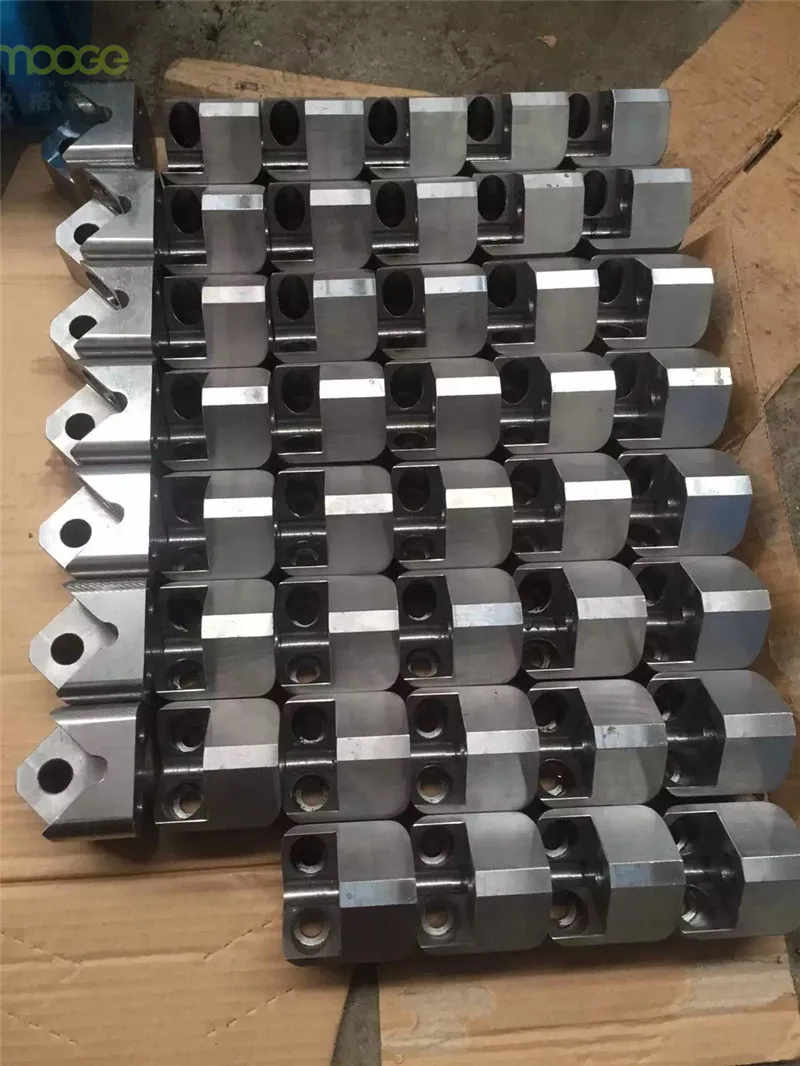

Rotary blade
Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time

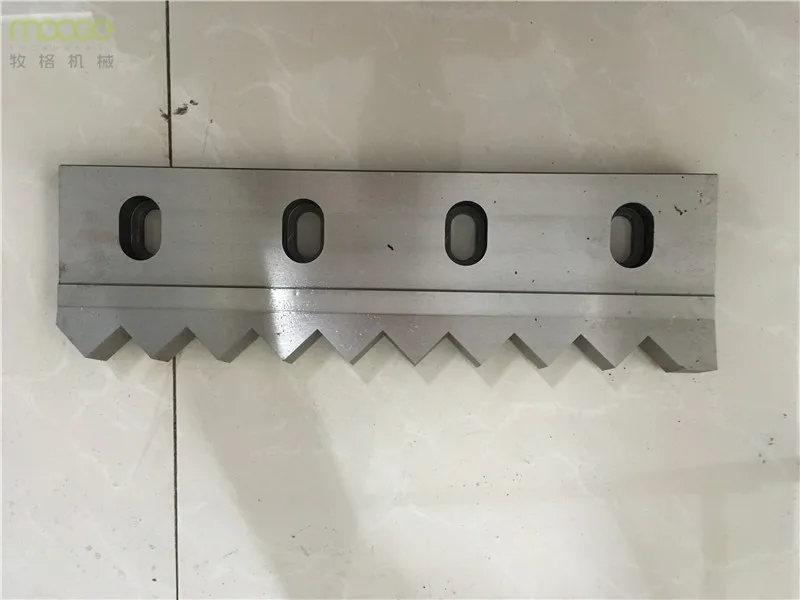

Fixed Blade
Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material

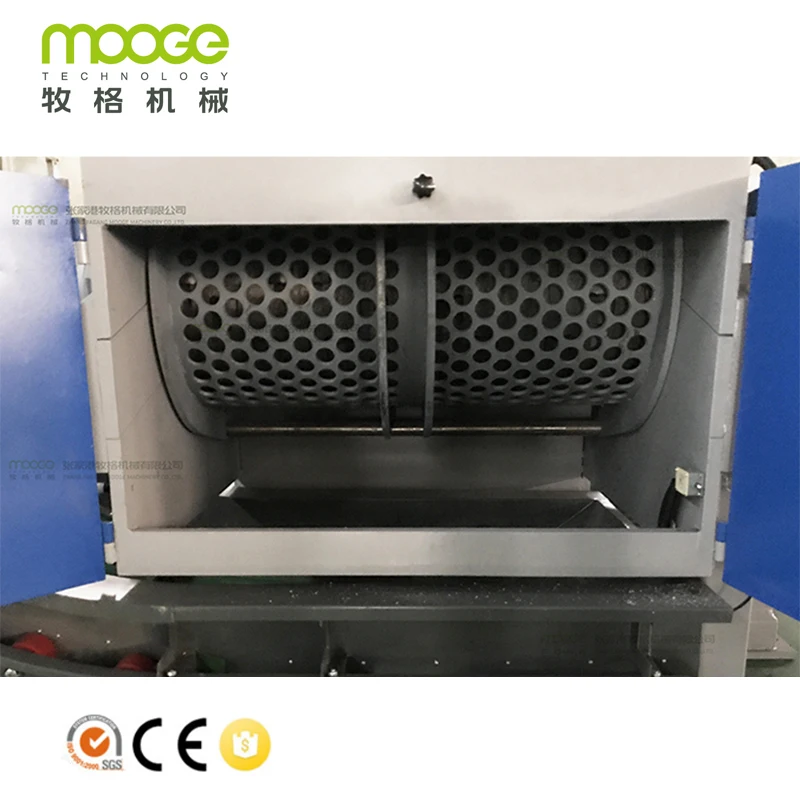

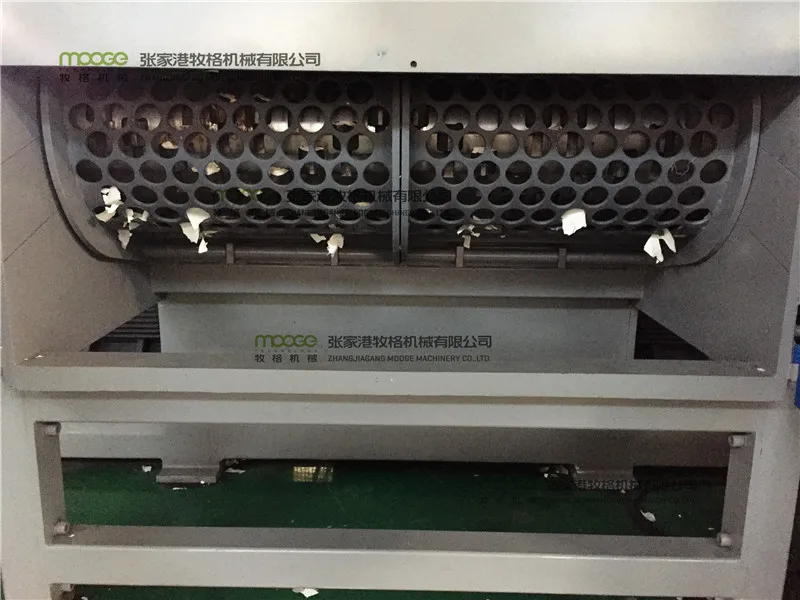

Screen
the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down
Motor，Using Beide brand motor(siemens standard motors ltd in china)
Bearing，Using Japan famous brand- NSKoriginal import from Japan factory We also supply SKF bearing for customer
Contactor，Use Schneider brand in us control system
PLC，Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary
Before shredding(Raw materail)

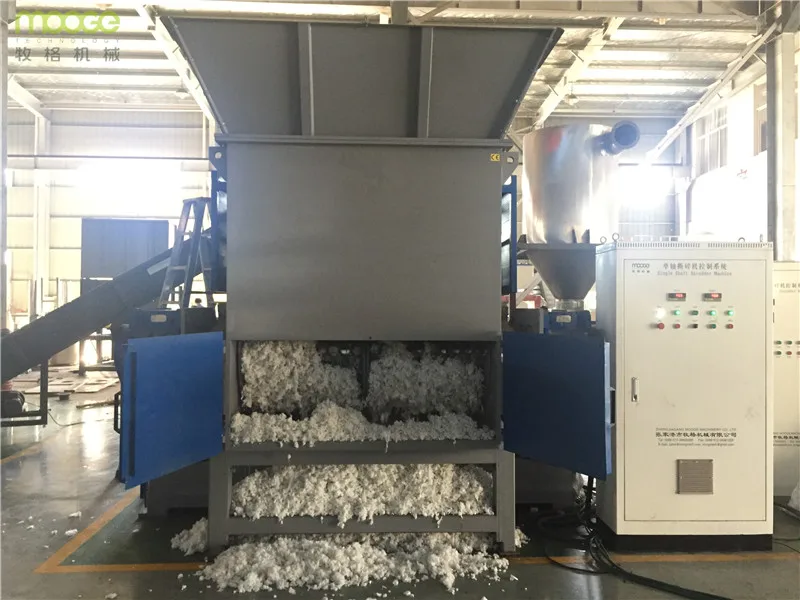

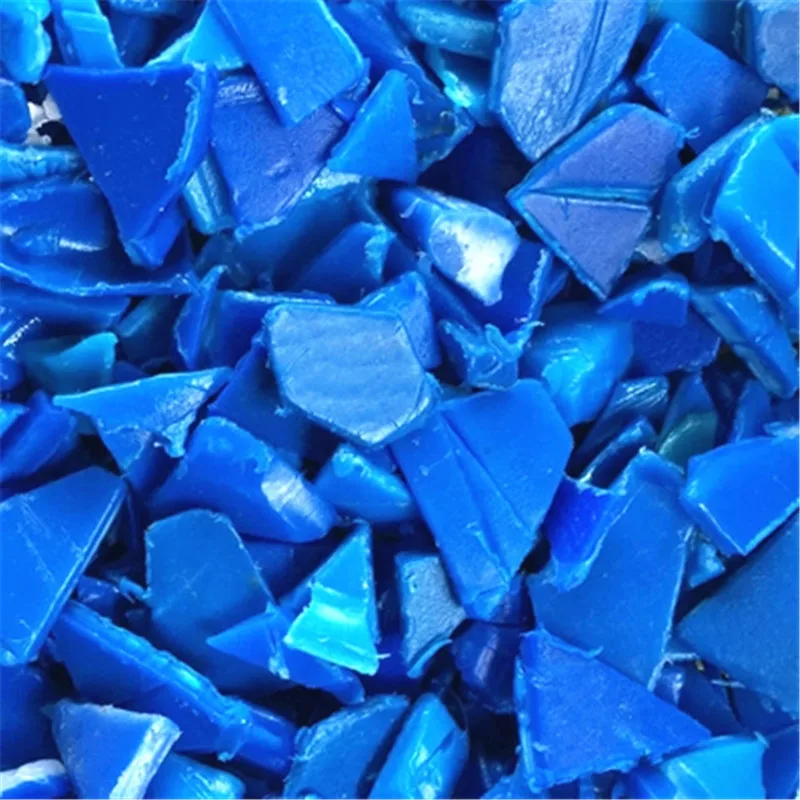

After shredding(Plastic flakes)
Auxiliary Machine
S Model Plastic crusher machine
PC Model Plastic crusher machine
Packing & Delivery
After Sales Service
• Pre-sale: we given client the details technician offer, sign the sales contract etc
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer
• In-sales: we supply the details layout, installation instruction, technician support for the clients
• After sales: we arrange engineer to install the machinery and training the workers for client
• We have 24hours team to solve the after sales problem
• We have free spare parts with the machine
• We supply long term spare parts for every customer
• We always up date the new technology to every customer
