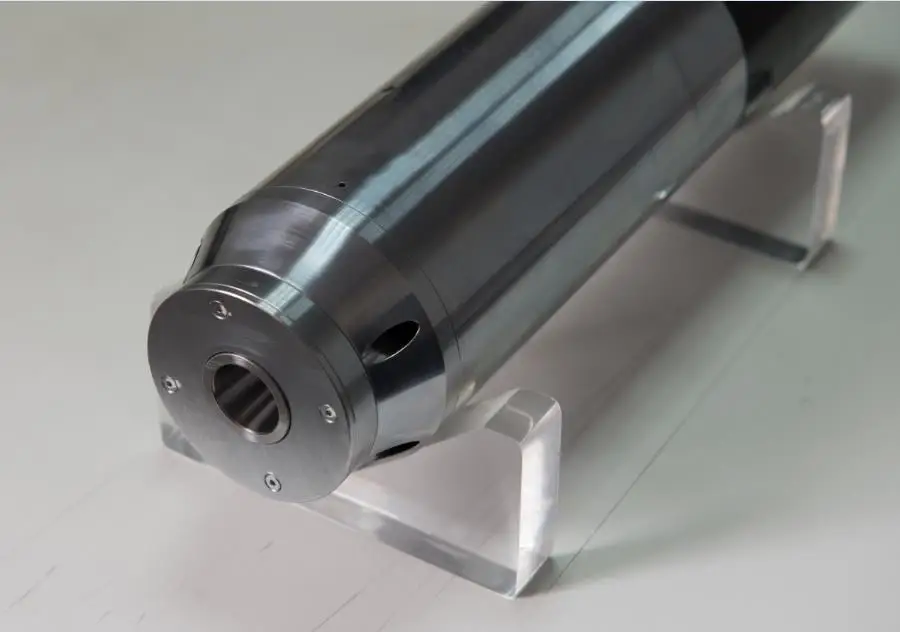

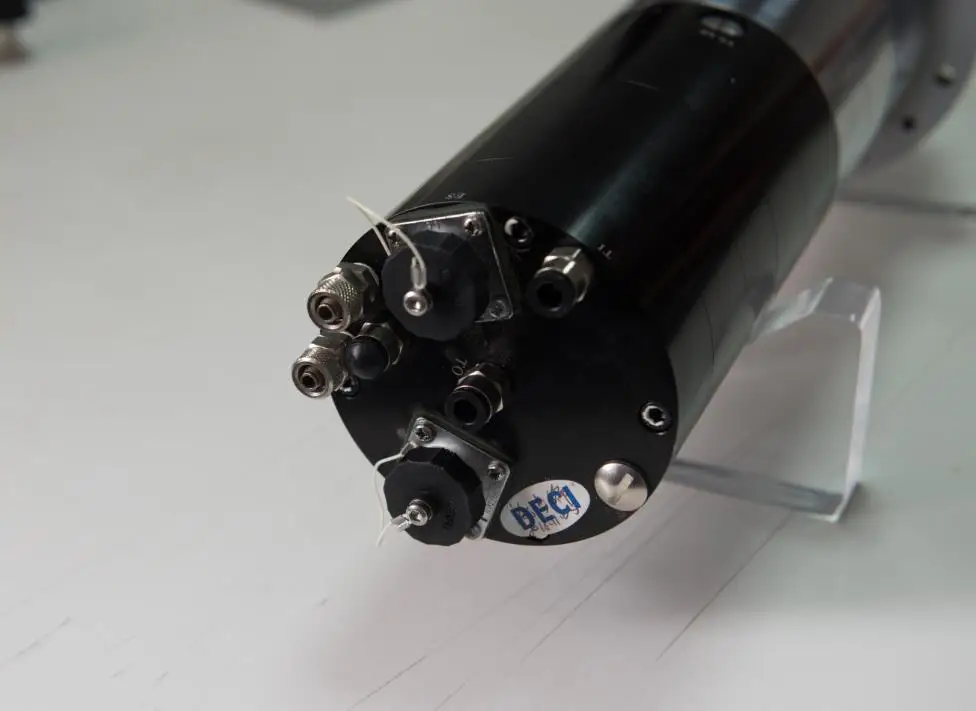

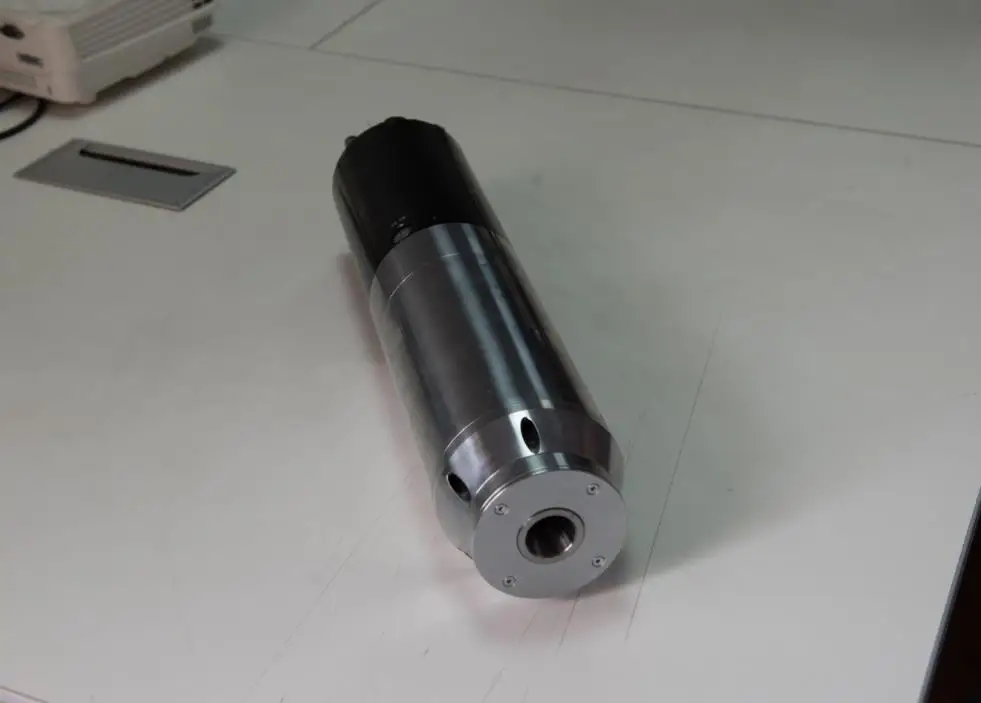

Hot Selling 5.5kw water cooling spindle motor for CNC spindle
- Category: >>>
- Supplier: Guangdong Xingtuo Machinery Co. Ltd.
Share on (60692978512):
Product Overview
Description
5.5kw water cooling spindle motor for metal milling
Product Description
High precision electric spindle motor for metal cut is special designed for machining/engraving /drilling/milling/threading for metal,metalloid material. Material could be SUS304 steel, 38crmoala,42CrMo. Which widely applied to produce small metal parts like fastener, badge..etc.
Advance/Features :
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
· Customized design to meet metal cut machining .
Usage of spindle motor :
Widely used in CNC drilling and milling equipment, precision carving, engraving and milling machinery bar, computer gongs precision grinding machines, CD profiling batch flower machine, optical processing equipment, watches and equipment.
Specificiations
EEJA 1036A-ISO25 Specifications
| Parameters | |||
| Motor Power: | 5.5KW | Rated voltage: | 380v(3~) |
| Max rotate speed : | 36000Rpm/min | Max currency: | 21A |
| Max Frequency: | 1200Hz | Torque: | 3.98NM |
| Specification | |||
| Cone surface spring at shaft end: | ≤0.001mm | Tooling Releasing Air curtain: | 5.6-6.0 Kgf/cm² |
| Tooling Exchange Method: | ATC | Air curtain pressure at front end: | 2.5~3.0 Kgf/cm² |
| Tooling Pulling Force: | ≥2000 | Tooling Back Air Pressure: | 5.6-6.0 Kgf/cm² |
| Tooling Connection: | ISO25 Handle-ER20 | Cooling: | Water |
| Encoder: | Sine-Cosine 1VPP(Optional) | Coolant Pressure: | ≥2.5 Kgf/cm² |
| Approach Switch: | PNP On | Bearing Lubrication Method: | Grease |
| Balance Level : | G1 | Tooling Instalation Method: | FLANGE |
| Vibration Value: | ≤0.8 | Weight: | 15kg |

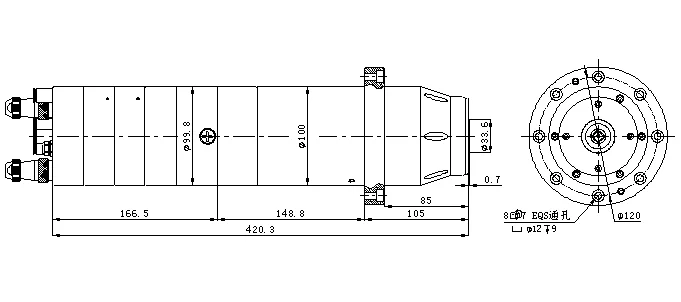

| Structure | |||
 | |||
| Motor property curves | |||
 | |||
| Applications | |||
 | |||
